BUK755R4-100E,127

Description
MOSFET N-channel TrenchMOS standard level FET
Categorysemiconductor    Discrete semiconductor
File Size713KB,13 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

BUK755R4-100E,127 Overview

MOSFET N-channel TrenchMOS standard level FET

BUK755R4-100E,127 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerNXP
Product CategoryMOSFET
RoHSDetails
TechnologySi
Mounting StyleThrough Hole
Package / CaseTO-220-3
Number of Channels1 Channel
Transistor PolarityN-Channel
Vds - Drain-Source Breakdown Voltage100 V
Id - Continuous Drain Current120 A
Rds On - Drain-Source Resistance4.1 mOhms
Vgs th - Gate-Source Threshold Voltage3 V
Vgs - Gate-Source Voltage20 V
Qg - Gate Charge180 nC
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 175 C
ConfigurationSingle
Pd - Power Dissipation349 W
Channel ModeEnhancement
PackagingTube
Transistor Type1 N-Channel
Fall Time80 ns
Rise Time62 ns
Factory Pack Quantity1000
Typical Turn-Off Delay Time158 ns
Typical Turn-On Delay Time37 ns
Unit Weight0.211644 oz

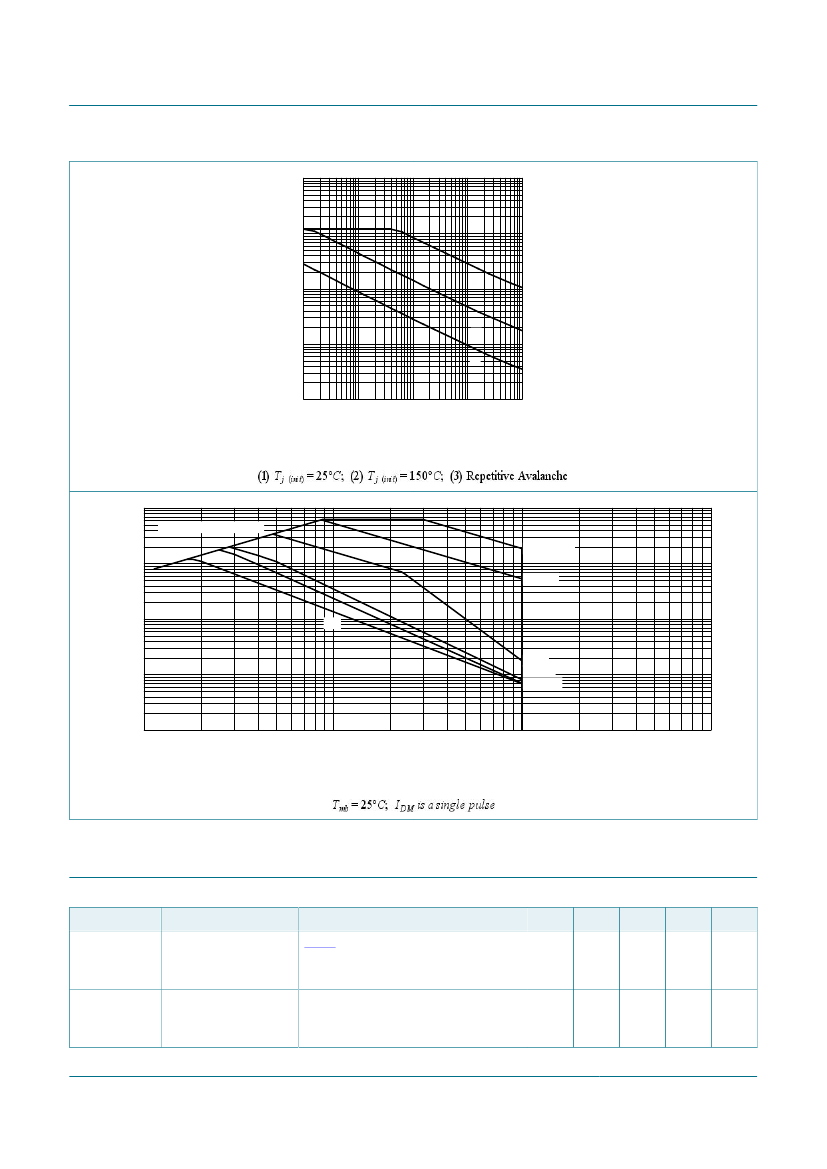

BUK755R4-100E
11 September 2012
N-channel TrenchMOS standard level FET
Product data sheet
1. Product profile
1.1 General description
Standard level N-channel MOSFET in a SOT78 package using TrenchMOS technology.
This product has been designed and qualified to AEC Q101 standard for use in high
performance automotive applications.
1.2 Features and benefits
AEC Q101 compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True standard level gate with VGS(th) rating of greater than 1V at 175 °C
1.3 Applications
12V, 24V and 48V Automotive systems
Electric and electro-hydraulic power steering
Motors, lamps and solenoid control
Start-Stop micro-hybrid applications
Transmission control
Ultra high performance power switching
1.4 Quick reference data
Table 1.
Symbol
V
DS
I
D
P
tot
R
DSon
Quick reference data
Parameter
drain-source voltage
drain current
total power dissipation
Conditions
T
j
≥ 25 °C; T
j
≤ 175 °C
V
GS
= 10 V; T
mb
= 25 °C;
Fig. 1
T
mb
= 25 °C;
Fig. 2
V
GS
= 10 V; I
D
= 25 A; T
j
= 25 °C;
Fig. 11
V
GS
= 10 V; I
D
= 25 A; V
DS
= 80 V;
T
j
= 25 °C;
Fig. 13; Fig. 14
[1]
Continuous current is limited by package.
[1]
Min
-
-
-
Typ
-
-
-
Max
100
120
349
Unit
V
A
W
Static characteristics
drain-source on-state
resistance
-
4.1
5.2
Dynamic characteristics
Q
GD
gate-drain charge
-
65
-
nC
