B230Q-13-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B230Q-13-F

B230Q-13-F: DescriptionSchottky Diodes & Rectifiers Schottky Diode; CategoryDiscrete semiconductor diode; File Size243KB，6 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

B230Q-13-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B230Q-13-F	-	-	View	Buy Now

B230Q-13-F Overview

Schottky Diodes & Rectifiers Schottky Diode

B230Q-13-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMB, 2 PIN
Reach Compliance Code	not_compliant
Factory Lead Time	9 weeks
Other features	FREE WHEELING DIODE, HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.5 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	30 V
Maximum reverse current	500 µA
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

Green

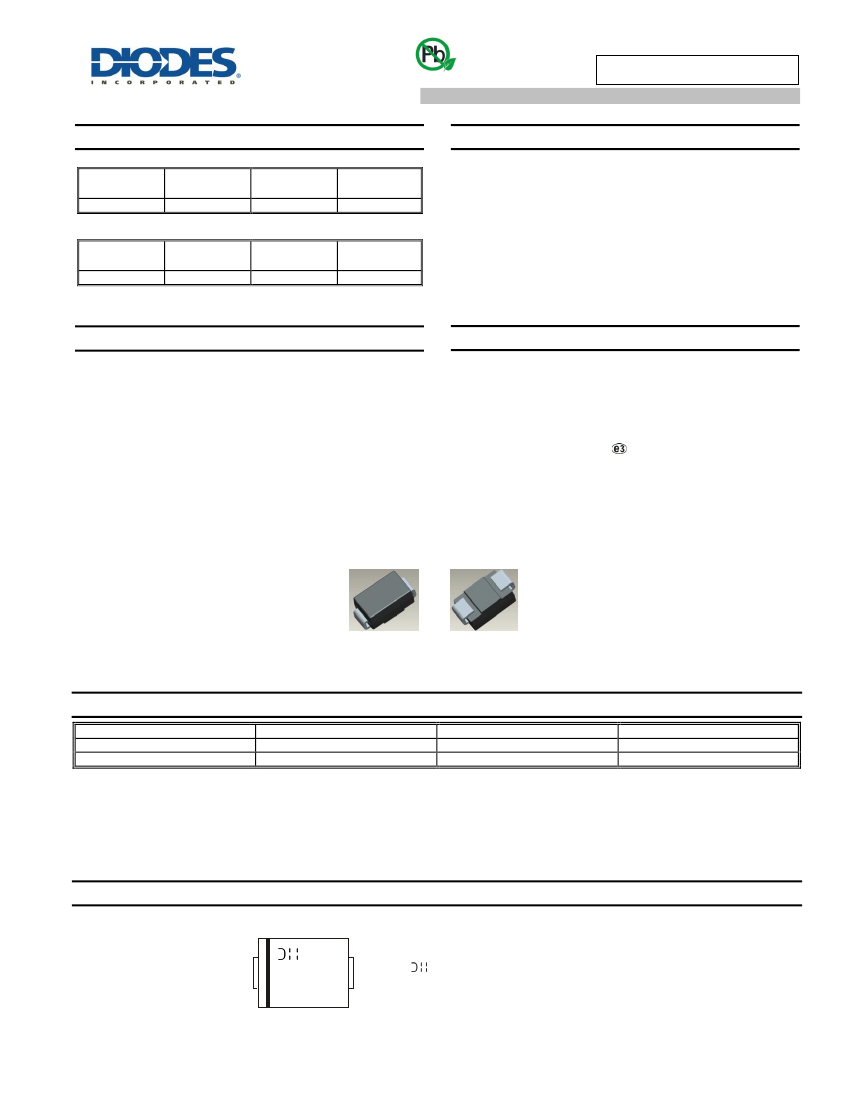

B220AQ/Q - B260AQ/Q

2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Summary

B220AQ/Q-B240AQ/Q

RRM

(V)

20/30/40

B250AQ/Q,B260AQ/Q

RRM

(V)

50/60

(A)

2.0

Max (V)

= +25°

0.7

Max (mA)

= +25°

0.5

(A)

2.0

Max (V)

= +25°

0.5

Max (mA)

= +25°

0.5

Features and Benefits



Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 30A Peak

For Use in Low-Voltage, High-Frequency Inverters

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Description and Applications

This Schottky Barrier Rectifier is designed to meet the general

requirements of commercial applications. It is ideally suited for use

as:



Polarity Protection Diode

Re-Circulating Diode

Switching Diode

Blocking Diode

Freewheel Diode

Mechanical Data



Case: SMA/SMB

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band or Cathode Notch

Weight: SMA 0.064 grams (Approximate)

SMB 0.093 grams (Approximate)

SMA/SMB

Top View

Bottom View

Ordering Information

(Note 5)

Part Number

B2X0AQ-13-F

B2X0Q-13-F

Notes:

Qualification

Automotive

Case

SMA

SMB

Packaging

5,000/Tape & Reel

3,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

B2X0A = Product Type Marking Code, ex: B220A (SMA Package)

B2X0 = Product Type Marking Code, ex: B230 (SMB Package)

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 6 for 2016)

WW = Week Code (01 to 53)

YWW

B2X0(A)

B220AQ/Q - B260AQ/Q

Document number: DS38433 Rev. 2 - 2

1 of 6

www.diodes.com

February 2016

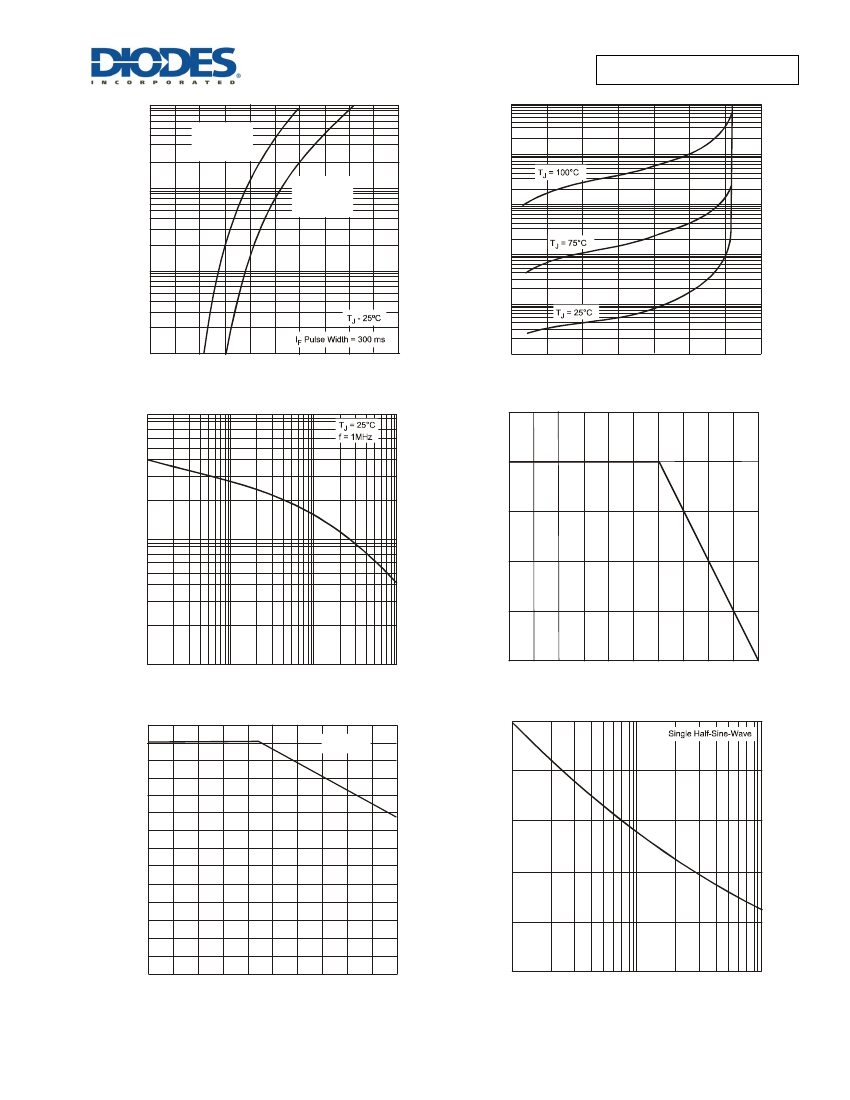

B230Q-13-F Related Products

	B230Q-13-F	B240Q-13-F	B260Q-13-F
Description	Schottky Diodes & Rectifiers Schottky Diode	Schottky Diodes & Rectifiers 2.0A Schottky Rec Guard Ring 50A Peak	Schottky Diodes & Rectifiers 2.0A SBR 60Vrrm 42Vr 50Ifsm 50A
Configuration	SINGLE	Single	Single
Product Attribute	-	Attribute Value	Attribute Value
Manufacturer	-	Diodes Incorporated	Diodes Incorporated
Product Category	-	Schottky Diodes & Rectifiers	Schottky Diodes & Rectifiers
RoHS	-	Details	Details
Product	-	Schottky Diodes	Schottky Rectifiers
Mounting Style	-	SMD/SMT	SMD/SMT
Package / Case	-	SMB-2	SMB-2
If - Forward Current	-	2 A	2 A
Vrrm - Repetitive Reverse Voltage	-	40 V	60 V
Vf - Forward Voltage	-	0.5 V	700 mV
Ifsm - Forward Surge Current	-	50 A	50 A
Technology	-	Si	Si
Ir - Reverse Current	-	0.5 mA	500 uA
Minimum Operating Temperature	-	- 65 C	- 65 C
Maximum Operating Temperature	-	+ 150 C	+ 150 C
Qualification	-	AEC-Q101	AEC-Q101
Packaging	-	Reel	Reel
Factory Pack Quantity	-	3000	3000
Vr - Reverse Voltage	-	40 V	60 V
