HS9-565BRH-Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> HS9-565BRH-Q

HS9-565BRH-Q: DescriptionDigital to Analog Converters - DAC RAD HARD 12 BIT D/A CONVERTER, FLATPACK, CLASS V; CategoryAnalog mixed-signal IC converter; File Size344KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

HS9-565BRH-Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HS9-565BRH-Q	-	-	View	Buy Now

HS9-565BRH-Q Overview

Digital to Analog Converters - DAC RAD HARD 12 BIT D/A CONVERTER, FLATPACK, CLASS V

HS9-565BRH-Q Parametric

Parameter Name	Attribute value
Brand Name	Renesas
Maker	Renesas Electronics Corporation
Parts packaging code	CFP
package instruction	DFP,
Contacts	24
Manufacturer packaging code	K24.A24
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDFP-F24
JESD-609 code	e4
Maximum linear error (EL)	0.0061%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.92 mm
Nominal settling time (tstl)	0.5 µs
Nominal supply voltage	15 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Gold (Au)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	9.905 mm

Preview

Download Datasheet

View All

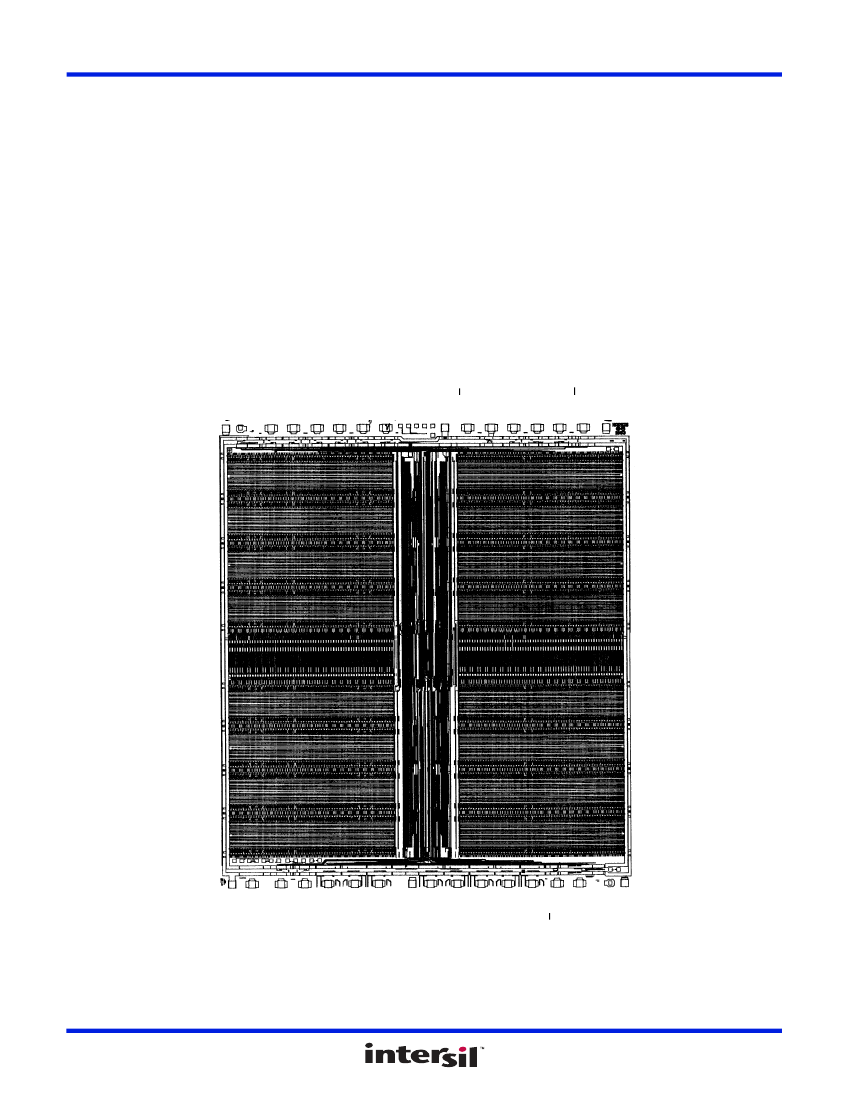

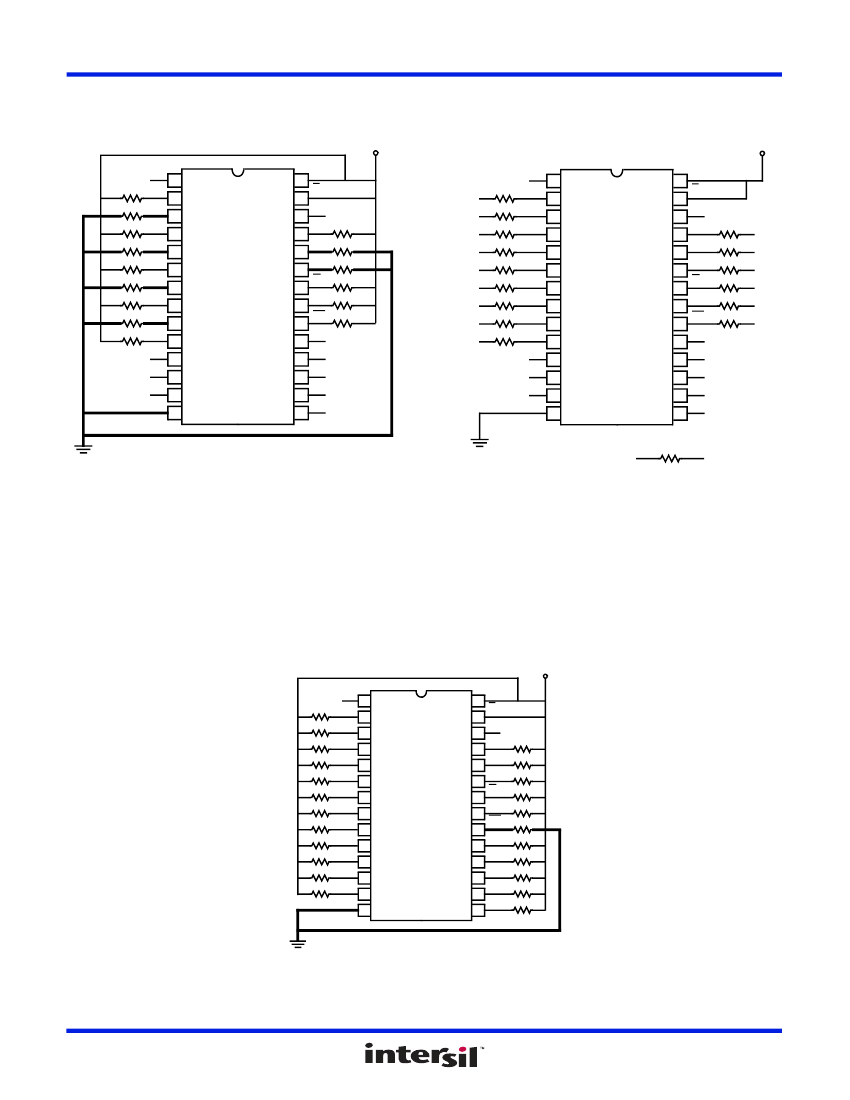

DATASHEET

HS-6664RH

Radiation Hardened 8kx8 CMOS PROM

The Intersil HS-6664RH is a radiation hardened 64k CMOS

PROM, organized in an 8k word by 8-bit format. The chip is

manufactured using a radiation hardened CMOS process,

and utilizes synchronous circuit design techniques to

achieve high speed performance with very low power

dissipation.

On-chip address latches are provided, allowing easy

interfacing with microprocessors that use a multiplexed

address/data bus structure. The output enable control (G)

simplifies system interfacing by allowing output data bus

control in addition to the chip enable control (E). All bits are

manufactured storing a logical “0” and can be selectively

programmed for a logical “1” at any bit location.

Applications for the HS-6664RH CMOS PROM include low

power microprocessor based instrumentation and

communications systems, remote data acquisition and

processing systems, and processor control storage.

Specifications for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD 5962-95626. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.htm

FN3197

Rev 4.00

August 2000

Features

• Electrically Screened to SMD # 5962-95626

• QML Qualified per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened Bulk CMOS

• Total Dose . . . . . . . . . . . . . . . . . . . . . . 300 krad(Si) (Max)

• Transient Output Upset . . . . . . . . . . . . . . >5x10

rad(Si)/s

• LET >100 MEV-cm

/mg

• Fast Access Time. . . . . . . . . . . . . . . . . . . . . . . 35ns (Typ)

• Single 5V Power Supply

• Single Pulse 10V Field Programmable

• Synchronous Operation

• On-Chip Address Latches

• Three-State Outputs

• NiCr Fuses

• Low Standby Current . . . . . . . . . . . . . . <500A (Pre-Rad)

• Low Operating Current. . . . . . . . . . . . . . . . . . <15mA/MHz

• Military Temperature Range . . . . . . . . . . . -55

C to 125

Ordering Information

ORDERING NUMBER

5962F9562601QXC

5962F9562601QYC

5962F9562601VXC

5962F9562601VYC

HS1-6664RH/PROTO

HS9-6664RH/PROTO

INTERNAL

MKT. NUMBER

HS1-6664RH-8

HS9-6664RH-8

HS1-6664RH-Q

HS9-6664RH-Q

HS1-6664RH/PROTO

HS9-6664RH/PROTO

TEMP. RANGE

(

-55 to 125

FN3197 Rev 4.00

August 2000

Page 1 of 5
