Part Number

Search

LFVCXO022614BULK

Description
HCMOS Output Clock Oscillator, 50MHz Nom
CategoryPassive components    oscillator
File Size800KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFVCXO022614BULK Overview

HCMOS Output Clock Oscillator, 50MHz Nom

LFVCXO022614BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; BULK
Maximum control voltage3.3 V
Minimum control voltage
maximum descent time10 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
linearity10%
Installation featuresSURFACE MOUNT
Nominal operating frequency50 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeHCMOS
Output load15 pF
physical size7.0mm x 5.0mm x 1.7mm
longest rise time10 ns
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry40/60 %
Base Number Matches1

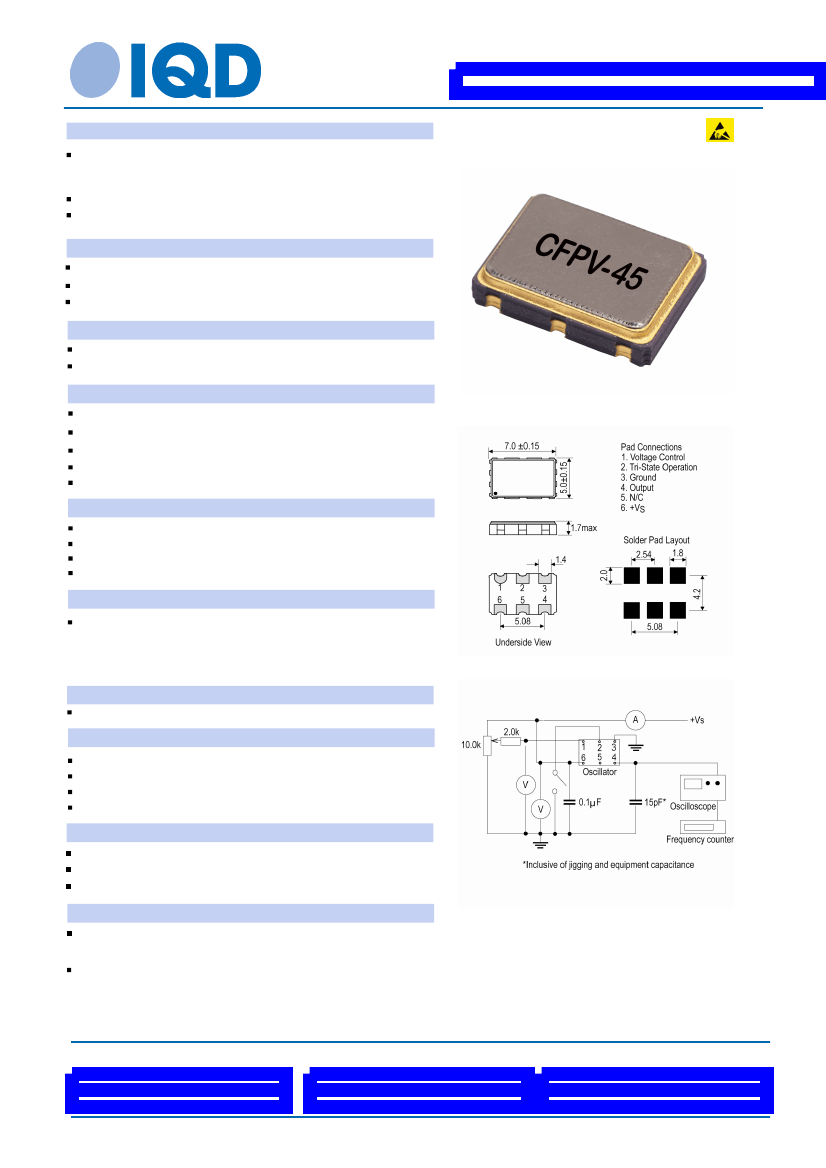

VCXO Specification
Part No. + Packaging:
LFVCXO022614Bulk
Description
Standard 7 x 5mm Voltage Controlled Crystal Oscillators
Ceramic package with a seam sealed metal lid, hermetically
sealed
Model
CFPV-45
Model Issue number
7
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Electrical Parameters
50.0MHz
±100.00ppm
0.00 to 70.00°C
Supply Voltage
Current Draw
Frequency Adjustment
3.3V ±0.3V
50.00mA
Pulling
Control Voltage
***See Technical Notes***
1.65V ±1.65V
Outline (mm)
Input Impedence
50kΩ min
Modulation Bandwidth: >10kHz (@-3dB, Vc=2.5V)
Linearity: Positive < ±10%
Output Details
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
HCMOS
15pF max
10.0ns max
40/60%
Logic ‘1’ (>2.5V) to pad 2 enables oscillator output
Logic ‘0’ (<0.5V) to pad 2 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection pad 2 enables oscillator output
Noise Parameters
Test Circuit
Phase Jitter: 20ps max @ 1sigma
Environmental Parameters
Operable Temperature Range: -40 to 85°C
Shock: MIL-STD-202, Method 213, Cond. E
Vibration: MIL-STD-883, Method 2007, Cond. A
Storage Temperature Range: –55 to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
