Revision 1.1 (04-18-13)
2
SMSC LAN950x Family
PRODUCT PREVIEW
USB 2.0 to 10/100 Ethernet Controller
Overview
The LAN950x is a high performance Hi-Speed USB 2.0 to 10/100 Ethernet controller. With applications
ranging from embedded systems, set-top boxes, and PVR’s, to USB port replicators, USB to Ethernet
dongles, and test instrumentation, the device is a high performance and cost competitive USB to
Ethernet connectivity solution.
The LAN950x contains an integrated 10/100 Ethernet PHY, USB PHY, Hi-Speed USB 2.0 device
controller, 10/100 Ethernet MAC, TAP controller, EEPROM controller, and a FIFO controller with a total
of 30 KB of internal packet buffering.
The internal USB 2.0 device controller and USB PHY are compliant with the USB 2.0 Hi-Speed
standard. The device implements Control, Interrupt, Bulk-in, and Bulk-out USB Endpoints.
The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX, and is
compliant with the IEEE 802.3 and IEEE 802.3u standards. An external MII interface provides support
for an external Fast Ethernet PHY, HomePNA, and HomePlug functionality.
Multiple power management features are provided, including various low power modes and "Magic
Packet", "Wake On LAN", and "Link Status Change" wake events. These wake events can be
programmed to initiate a USB remote wakeup.
An internal EEPROM controller exists to load various USB configuration information and the device
MAC address. The integrated IEEE 1149.1 compliant TAP controller provides boundary scan via JTAG.
USB
USB
PHY
USB 2.0
Device
Controller
FIFO
Controller
10/100
Ethernet
MAC
Ethernet
PHY
Ethernet
MII: To optional
external PHY
JTAG
TAP
Controller
SRAM
EEPROM
Controller
EEPROM
LAN950x
Figure 1 System Diagram
SMSC LAN950x Family
PRODUCT PREVIEW
3
Revision 1.1 (04-18-13)
USB 2.0 to 10/100 Ethernet Controller
Package Outline

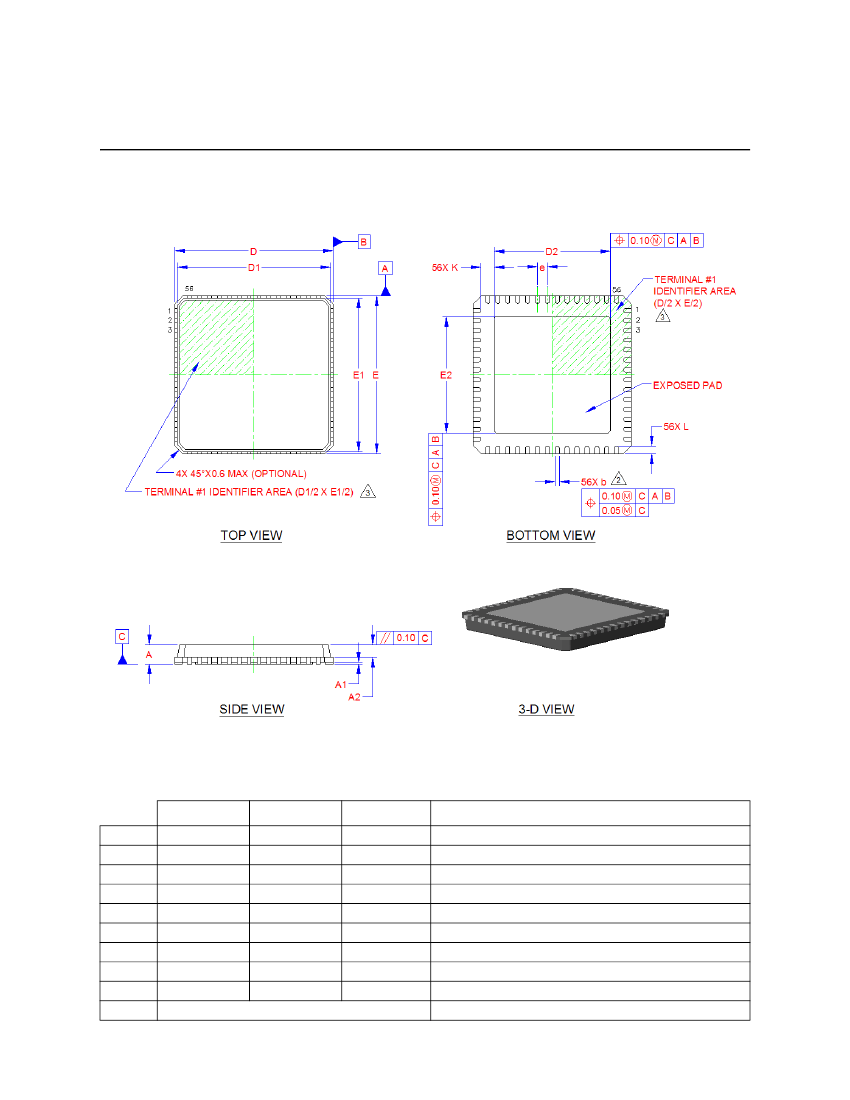

Figure 2 LAN950x 56-QFN Package
Table 1 LAN950x 56-QFN Dimensions
MIN
A
A1
A2
D/E
D1/E1
D2/E2
L
b
K
e
Revision 1.1 (04-18-13)
NOMINAL
0.85
0.02
-
8.00
7.75
5.90
0.40
0.25
-
0.50 BSC
MAX
1.00
0.05
0.90
8.15
7.95
6.00
0.50
0.30
-
REMARKS
Overall Package Height
Standoff
Mold Cap Thickness
X/Y Body Size
X/Y Mold Cap Size
X/Y Exposed Pad Size
Terminal Length
Terminal Width
Center Pad to Pin Clearance
Terminal Pitch
0.70
0.00
-
7.85
7.55
5.80
0.30
0.18
0.55
PRODUCT PREVIEW
4
SMSC LAN950x Family
USB 2.0 to 10/100 Ethernet Controller
Notes:
1. All dimensions are in millimeters unless otherwise noted.
2.
3.
Position tolerance of each terminal and exposed pad is +/- 0.05 mm at maximum material condition. Dimension
“b” applies to plated terminals and is measured between 0.15 and 0.30 mm from the terminal tip.
The pin 1 identifier may vary, but is always located within the zone indicated.

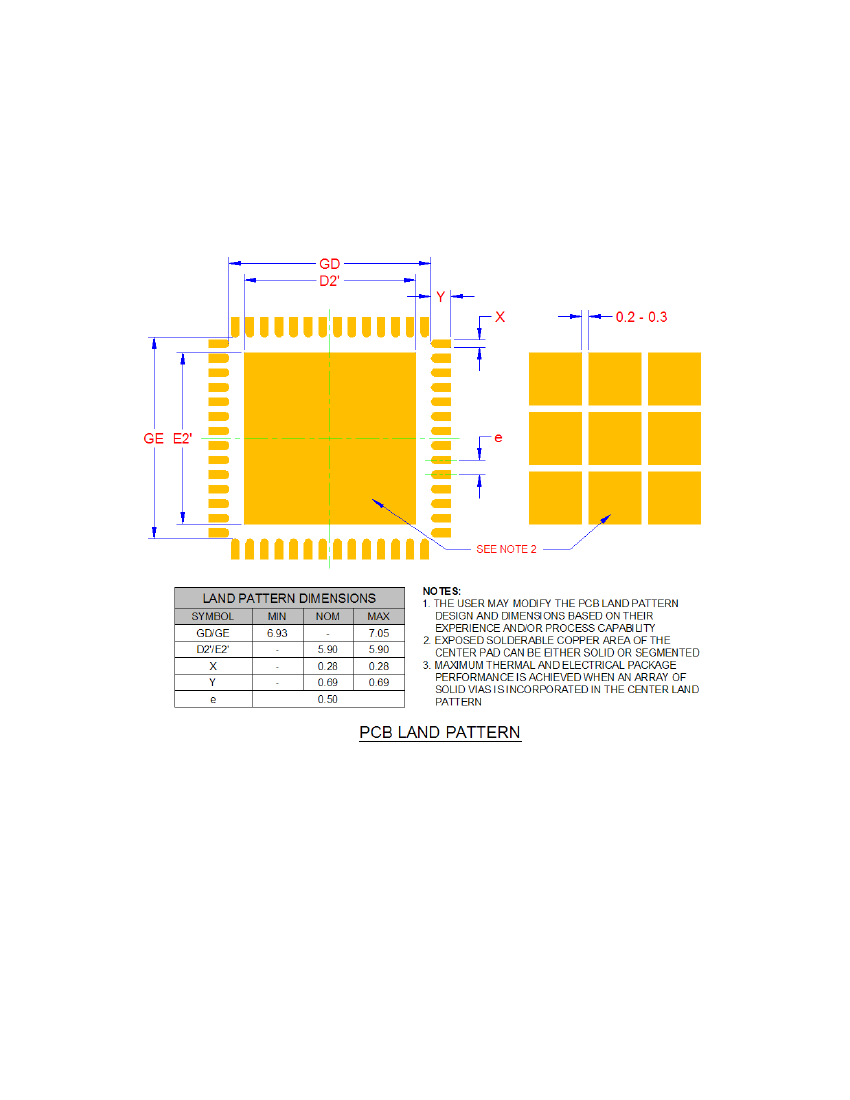

Figure 3 LAN950x 56-QFN Recommended PCB Land Pattern
