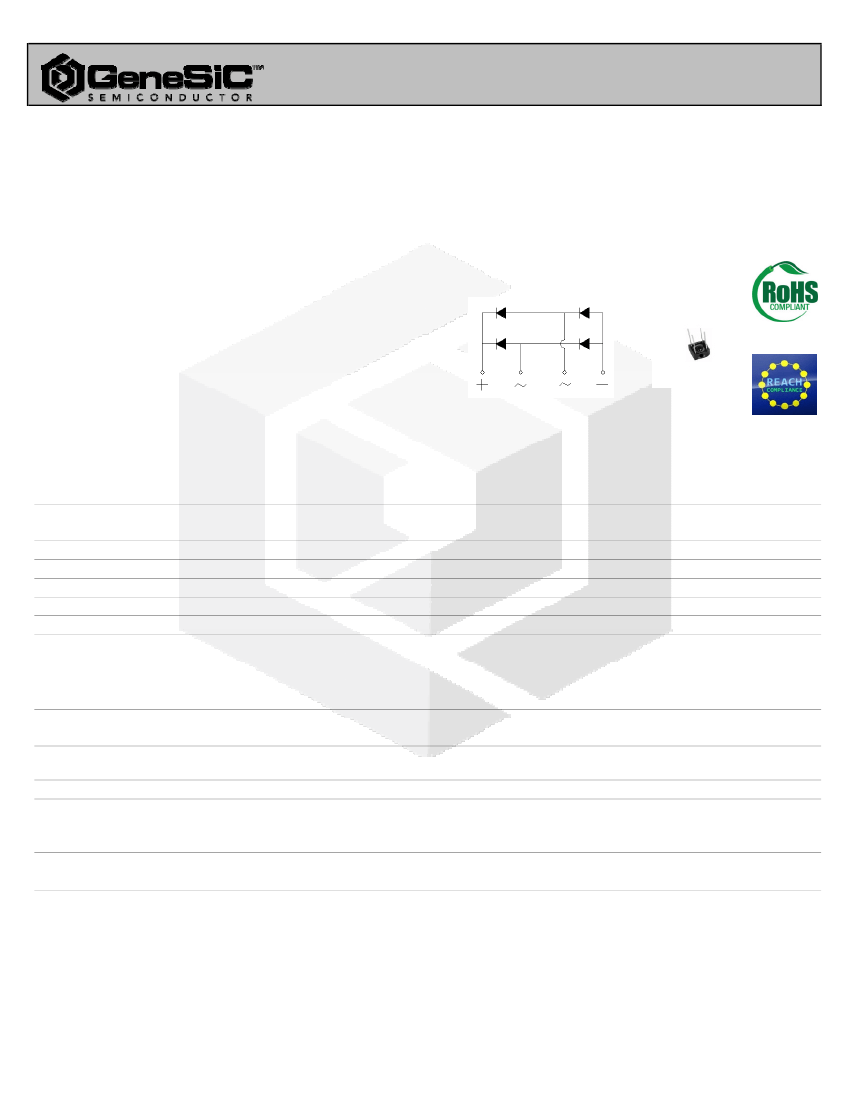

BR86 thru BR810
Single Phase Silicon
Bridge Rectifier
Features
• Low forward voltage drop
• Low leakage current
• Types from 600 V up to 1000 V V
RRM
• Not ESD Sensitive
BR-8 Package
V
RRM
= 600 V - 1000 V
I
O
= 8 A
Mechanical Data
Mounting: Hole thru for #6 screw
Mounting position: Any
Maximum ratings at Tc = 25 °C, unless otherwise specified
Parameter
Repetitive peak reverse voltage
RMS reverse voltage
DC blocking voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
T
j
T
stg
Conditions
BR86
600
420
600
-65 to 125
-65 to 150
BR88
800
560
800
-65 to 125
-65 to 150
BR810
1000
700
1000
-65 to 125
-65 to 150
Unit
V
V
V
°C
°C
Electrical characteristics at Tc = 25 °C, unless otherwise specified
Single phase, half sine wave, 60 Hz, resistive or inductive load
For capacitive load derate current by 20%
Parameter
Maximum average forward
rectified current
Peak forward surge current
Maximum instantaneous forward
voltage drop per bridge element
Maximum DC reverse current at
rated DC blocking voltage
Symbol
I
O
I
FSM
V
F
I
R
Conditions
T
c
= 50 °C
t
p
= 8.3 ms, half sine
I
F
= 4.0 A
T
a
= 25 °C
T
a
= 100 °C
BR86
8.0
250
1.1
10
200
BR88
8.0
250
1.1
10
200
BR810
8.0
250
1.1
10
200
Unit
A
A
V
μA
Apr 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/bridge-rectifiers/
1

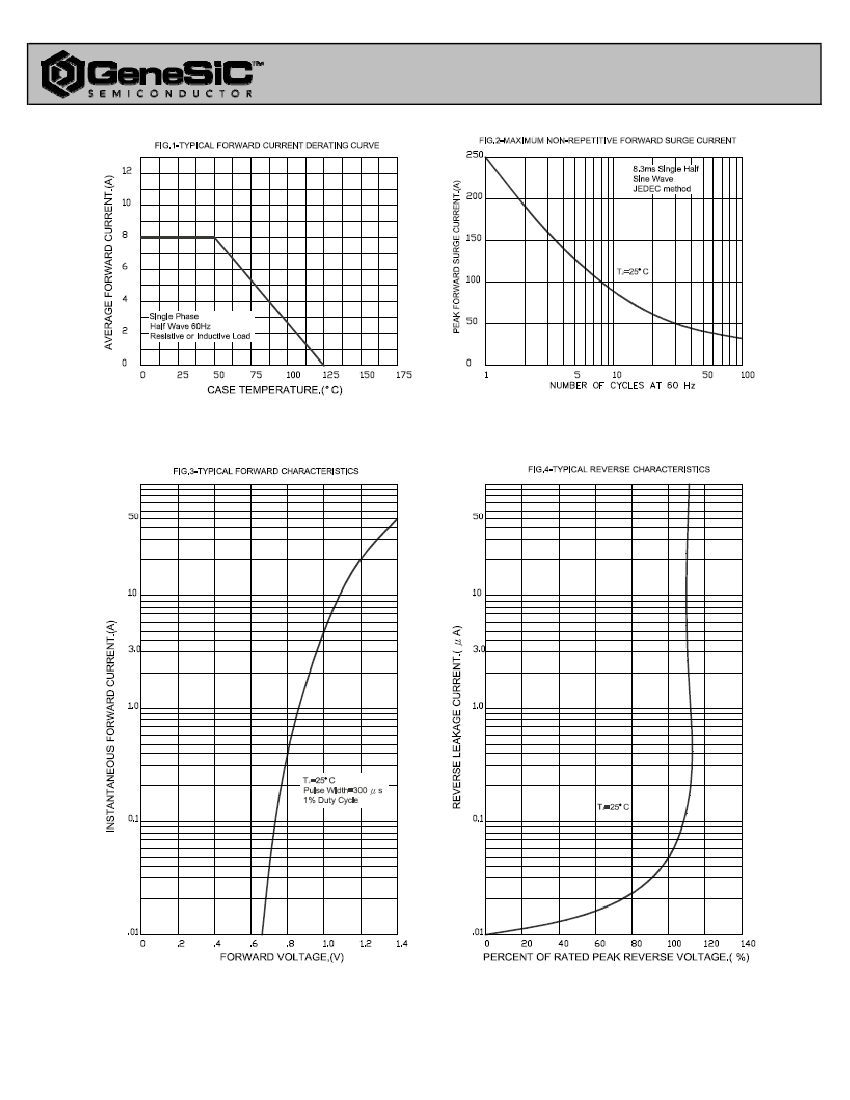

BR86 thru BR810

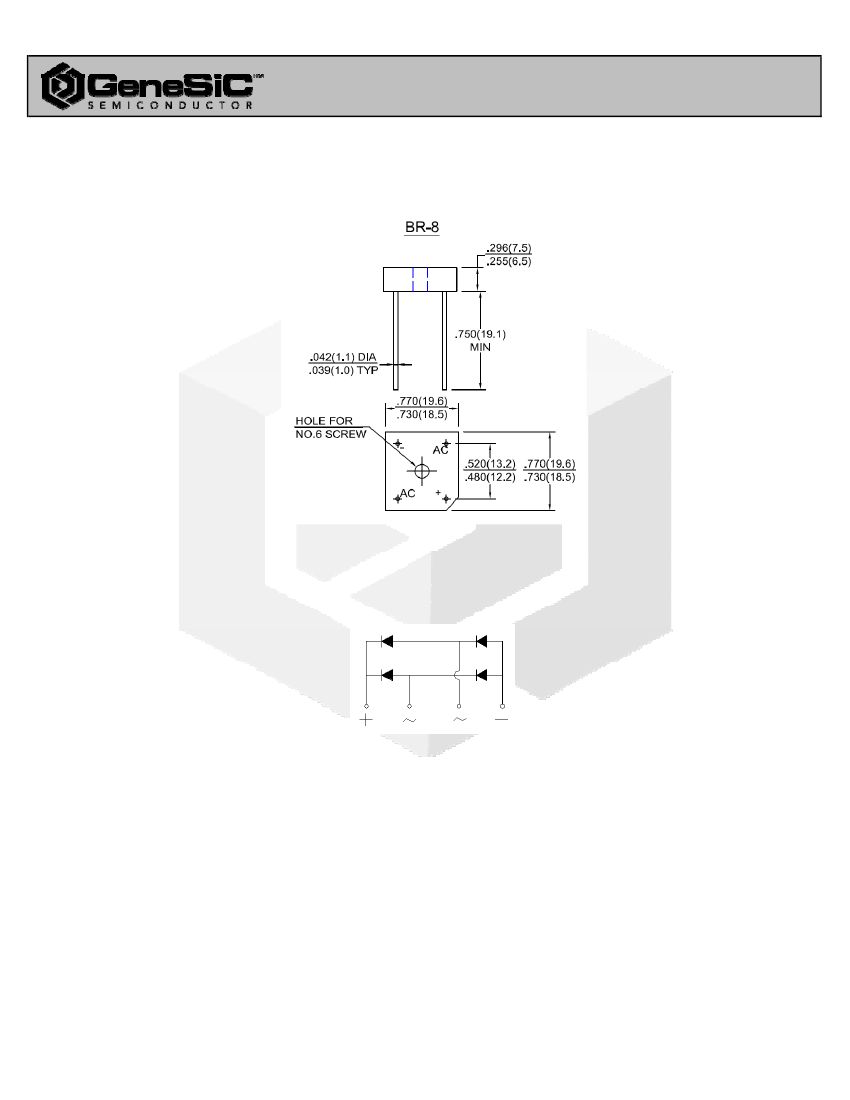

Package dimensions and terminal configuration
Product is marked with part number and terminal configuration.
Dimensions in inches and (millimeters)
Apr 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/bridge-rectifiers/
3
