BYC20D-600P
Hyperfast power diode
10 February 2014
Product data sheet
1. General description
Hyperfast power diode in a SOD59 (2-lead TO-220AC) plastic package.
2. Features and benefits
•
•
•
•
•
Fast switching
Low leakage current
Low reverse recovery current
Low thermal resistance
Reduces switching losses in associated MOSFET or IGBT
3. Applications
•
•
•
Active PFC in air conditioner
High frequency switched-mode power supplies
Continuous Current Mode (CCM) Power Factor Correction (PFC)
4. Quick reference data
Table 1.
Symbol
V
RRM
I
F(AV)
Quick reference data
Parameter
repetitive peak reverse
voltage
average forward
current
δ = 0.5; T
mb
≤ 120 °C; square-wave
pulse;
Fig. 1; Fig. 2; Fig. 3
I
F
= 20 A; T
j
= 150 °C;
Fig. 6
I
F
= 1 A; V
R
= 30 V; dI
F
/dt = 200 A/µs;
T
j
= 25 °C;
Fig. 7
-
1.2
1.97
V
Conditions
Min
-
-
Typ
-
-
Max
600
20
Unit
V
A
Static characteristics
V
F
t
rr
forward voltage
Dynamic characteristics
reverse recovery time
-
16
20
ns
Scan or click this QR code to view the latest information for this product
TO
-22
0
AC
NXP Semiconductors
BYC20D-600P
Hyperfast power diode
5. Pinning information
Table 2.
Pin
1
2
mb
Pinning information
Symbol Description
K
A
mb
cathode
anode
mounting base; connected to
cathode
Simplified outline
mb
Graphic symbol
K
A
001aaa020
1
2
TO-220AC (SOD59)
6. Ordering information
Table 3.
Ordering information
Package
Name
BYC20D-600P
TO-220AC
Description
plastic single-ended package; heatsink mounted; 1 mounting
hole; 2-lead TO-220AC
Version
SOD59
Type number
7. Marking
Table 4.
Marking codes
Marking code
BYC20D-600P
Type number
BYC20D-600P
8. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FRM
Parameter
repetitive peak reverse voltage
crest working reverse voltage
reverse voltage
average forward current
repetitive peak forward current
DC
δ = 0.5; T
mb
≤ 120 °C; square-wave
pulse;
Fig. 1; Fig. 2; Fig. 3
δ = 0.5; t
p
= 25 µs; T
mb
≤ 120 °C;
square-wave pulse
BYC20D-600P
All information provided in this document is subject to legal disclaimers.
© NXP N.V. 2014. All rights reserved
Conditions
Min
-
-
-
-
-
Max
600
600
600
20
40
Unit
V
V
V
A
A
Product data sheet
10 February 2014
2/9
NXP Semiconductors
BYC20D-600P
Hyperfast power diode
Symbol
I
FSM
Parameter
non-repetitive peak forward
current
Conditions
t
p
= 10 ms; T
j(init)
= 25 °C; sine-wave
pulse;
Fig. 4
t
p
= 8.3 ms; T
j(init)
= 25 °C; sine-wave
pulse;
Fig. 4
Min
-
-
-65
-
Max
250
275
175
175
aaa-010044
Unit
A
A
°C
°C
T
stg
T
j
60
P
tot
(W)
40
storage temperature
junction temperature
aaa-010043
δ=1
50
P
tot
(W)
40
2.2
2.8
4.0
20
a = 1.57
1.9
0.5
0.2
0.1
30
20
10
0
0
10
20
I
F(AV)
(A)
30
0
0
5
10
15
I
F(AV)
(A)
20

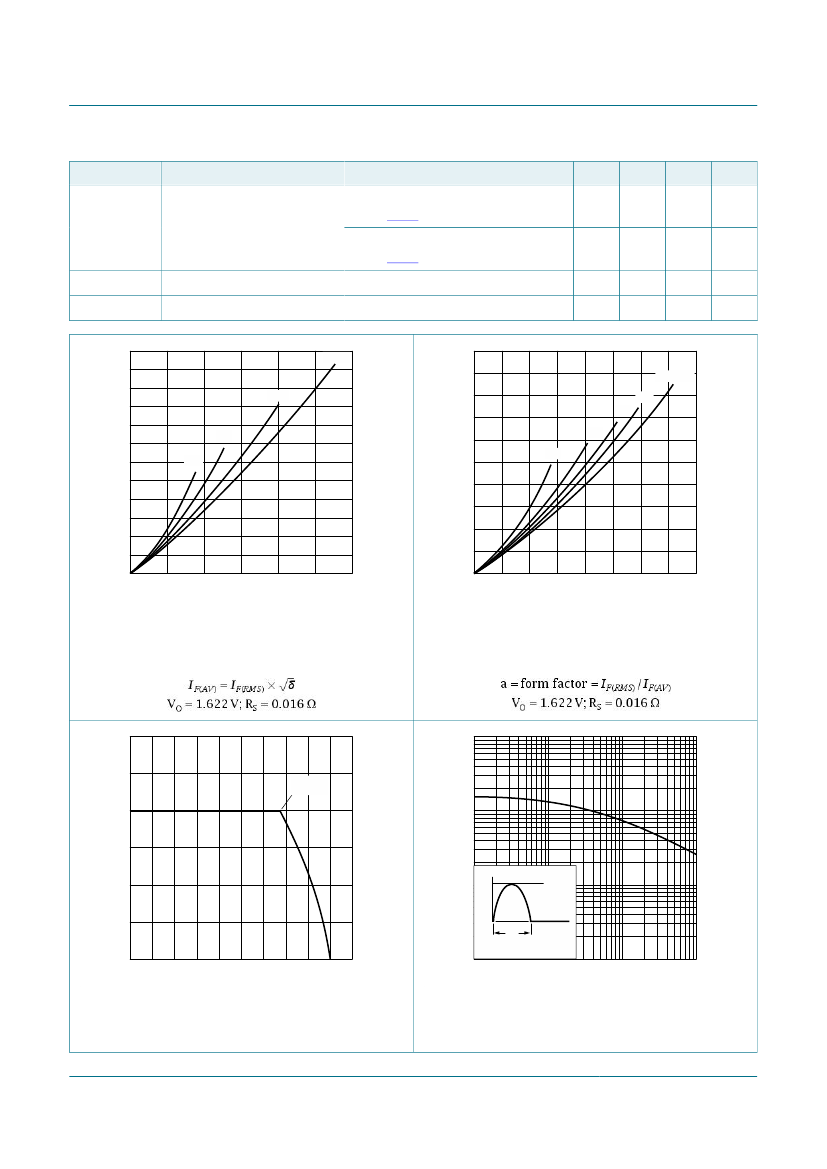

Fig. 1.
Forward power dissipation as a function of
average forward current; square waveform;
maximum values
Fig. 2.
Forward power dissipation as a function of
average forward current; sinusoidal waveform;
maximum values
30
I
F(AV)
(A)
20
aaa-010049
10
4
I
FSM
(A)
10
3
aaa-010046
120 °C
10
10
2
I
F
I
FSM
t
p
t
0
-50
0
50
100
150
200
T
mb
(°C)
10
10
-5
T
j(init)
= 25 °C max
10
-4
10
-3
t
p
(s)
10
-2
Fig. 3.
Forward current as a function of mounting base Fig. 4.
temperature; maximum values
Non-repetitive peak forward current as a
function of pulse width; sinusoidal waveform;
maximum values
© NXP N.V. 2014. All rights reserved
BYC20D-600P
All information provided in this document is subject to legal disclaimers.
Product data sheet
10 February 2014
3/9
NXP Semiconductors
BYC20D-600P
Hyperfast power diode
9. Thermal characteristics
Table 6.
Symbol
R
th(j-mb)
Thermal characteristics
Parameter
thermal resistance
from junction to
mounting base
thermal resistance
from junction to
ambient
10
Z
th(j-mb)
(K/W)
1
Conditions
with heatsink compound;
Fig. 5
Min
-
Typ
-
Max
1.2
Unit
K/W
R
th(j-a)
in free air
-
60
-
K/W
aaa-010050
10
-1
δ = 0.5
δ = 0.3
δ = 0.1
10
-3
δ = 0.05
δ = 0.02
δ = 0.01
single pulse
10
-5
10
-4
10
-3
10
-2
10
-1
1
t
p
T
P
δ=
t
p
T
10
-2
t
10
-4
10
-6
t
p
(s)
10
Fig. 5.
Transient thermal impedance from junction to mounting base as a function of pulse duration
10. Characteristics
Table 7.
Symbol
V
F
Characteristics
Parameter
forward voltage
Conditions
I
F
= 20 A; T
j
= 25 °C;
Fig. 6
I
F
= 20 A; T
j
= 150 °C;
Fig. 6
I
R
reverse current
V
R
= 600 V; T
j
= 25 °C
V
R
= 600 V; T
j
= 150 °C
Dynamic characteristics
Q
r
recovered charge
I
F
= 20 A; V
R
= 200 V; dI
F
/dt = 200 A/
µs; T
j
= 25 °C;
Fig. 7
I
F
= 20 A; V
R
= 200 V; dI
F
/dt = 200 A/
µs; T
j
= 125 °C;
Fig. 7
-
193
-
nC
-
47
-
nC
Min
-
-
-
-
Typ
2
1.2
-
-
Max
2.9
1.97
10
1
Unit
V
V
µA
mA
Static characteristics
BYC20D-600P
All information provided in this document is subject to legal disclaimers.
© NXP N.V. 2014. All rights reserved
Product data sheet
10 February 2014
4/9
