1A 200V 60ns
OUTLINE DRAWING
FRD
10ERB20
Type :
10ERB20
FEATURES
* Miniature Size
* Fast Recovery and Low Price
* High Surge Capability
* 100volts trough 600volts Types Available
* 26mm and 52mm Inside Tape Spacing
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Approx Net Weight:0.17g
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
1.0
0.9
45
Ta=50°C *1
Ta=27°C *2
10ERB20
200
Half Sine Wave
Resistive Load
Unit
V
A
A
A
°C
°C
1.57
Half Sine Wave,1cycle,Non-repetitive
- 40 to + 150
- 40 to + 150
Electrical
•
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Symbol
I
RM
V
FM
trr
Conditions
Min
-
-
-
-
Typ
-
-
-
-
Max
Unit
10
1.03
60
100
140
µA
V
ns
°C/W
Tj= 25°C, V
RM
= V
RRM
Tj= 25°C, I
FM
= 1 A
I
FM
= 1 A, -di/dt= 50 A/µs, Ta= 25°C
*1 P.C. Board mounted
Junction
Thermal Resistance
Rth(j-a)
to Ambient *2 Without Fin or P.C.
Board mounted
∗1:
P.C. Board mounted (L=3mm, Print Lands =
7x7
mm,Both Sides)
*2: Without Fin or P.C.Board mounted
10ERB_ OUTLINE DRAWING (Dimensions in mm)

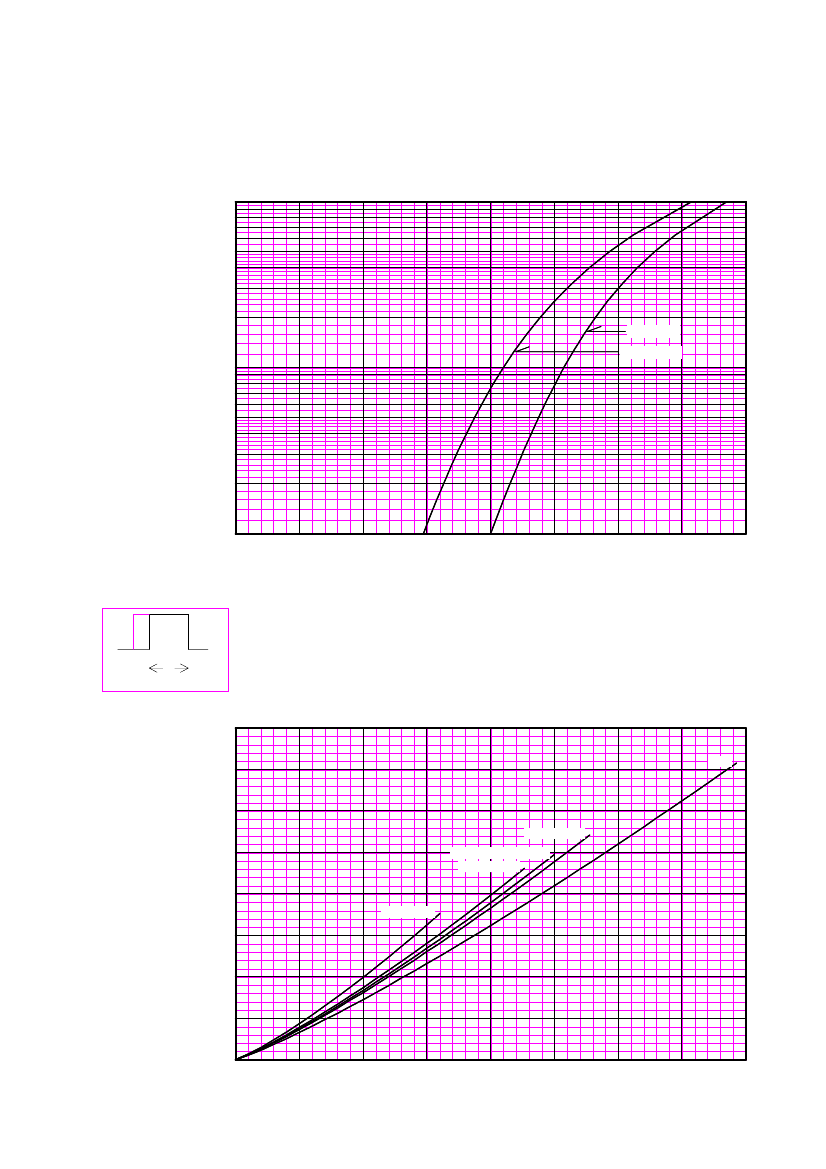

FORWARD CURRENT VS. VOLTAGE
10ERB20
10
INSTANTANEOUS FORWARD CURRENT (A)
5
2
Tj=25°C
Tj=150°C
1
0.5
0.2
0.1
0
0.4
0.8
1.2
1.6
INSTANTANEOUS FORWARD VOLTAGE (V)
180°
θ
CONDUCTION ANGLE
0°
AVERAGE FORWARD POWER DISSIPATION
10ERB20
D.C.
1.6
AVERAGE FORWARD POWER DISSIPATION (W)
1.4
1.2
RECT 180°
1.0
0.8
RECT 60°
HALF SINE WAVE
RECT 120°
0.6
0.4
0.2
0
0
0.4
0.8
1.2
1.6
AVERAGE FORWARD CURRENT (A)
180°
θ
CONDUCTION ANGLE
0°

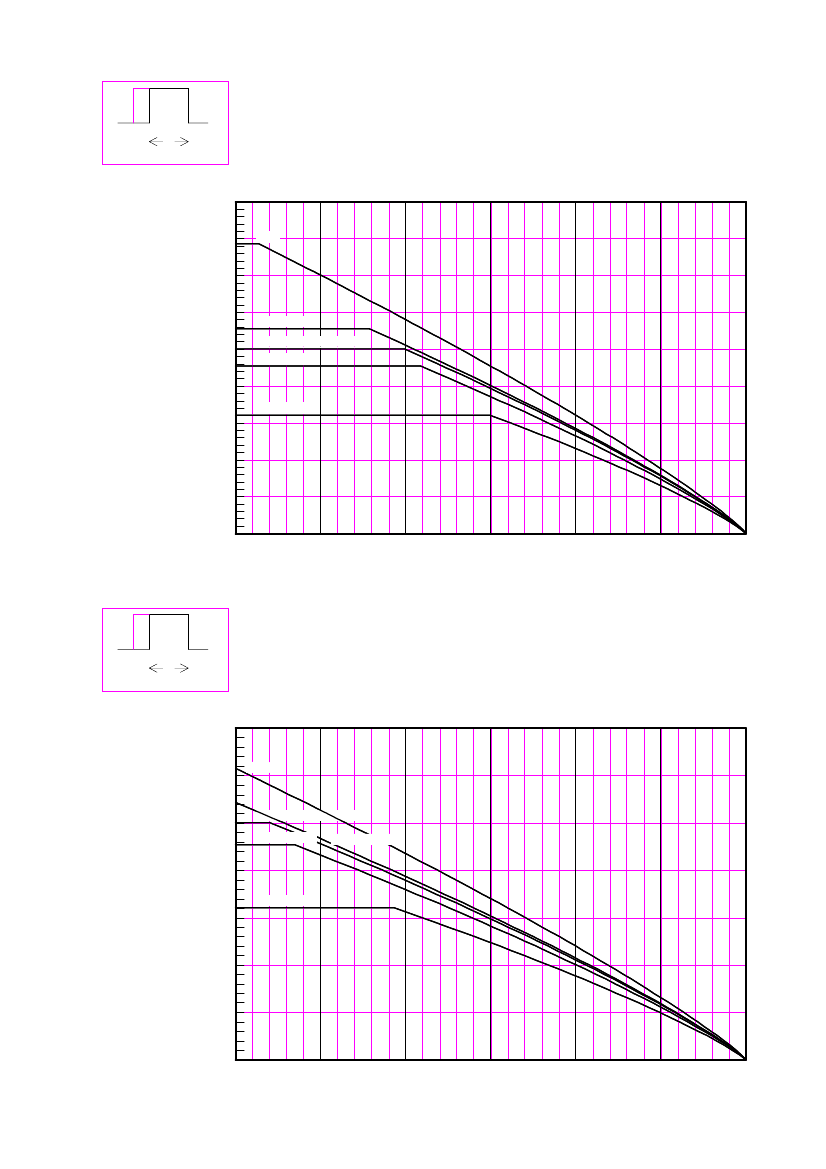

AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
P.C. Board mounted (L=3mm,Print Land=7×7mm,Both Sides)
10ERB20
D.C.
1.6
AVERAGE FORWARD CURRENT (A)
1.2
RECT 180°
HALF SINE WAVE
RECT 120°
0.8
RECT 60°
0.4
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (°C)
180°
θ
CONDUCTION ANGLE
0°
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
Without Fin or P.C. Board
10ERB20
1.4
D.C.
AVERAGE FORWARD CURRENT (A)
1.2
1.0
HALF SINE WAVE
RECT 120°
RECT 180°
0.8
RECT 60°
0.6
0.4
0.2
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (°C)
SURGE CURRENT RATINGS
f=50Hz,Harf Sine Wave,Non-Repetitive,No Load
50
10ERB20
SURGE FORWARD CURRENT (A)
40
30
20
10
I FSM
0.02s
0
0.02
0.05
0.1
0.2
0.5
1
2
TIME (s)
