RS07B-M, RS07D-M, RS07G-M, RS07J-M, RS07K-M
www.vishay.com
Vishay Semiconductors
Fast Rectifier Surface Mount
eSMP
®
Series
FEATURES
•
•
•
•
•
•
•
•
•
•
•
For surface mounted applications
Low profile package
Ideal for automated placement
Glass passivated
Meets MSL level 1, per J-STD-020,
LF maximum peak of 260 °C
Meets JESD 201 class 2 whisker test
Wave and reflow solderable
AEC-Q101 qualified available
Base P/N-M3 - halogen-free, RoHS-compliant
Base P/N-HM3 - halogen-free, RoHS-compliant, and
AEC-Q101 qualified (available on request)
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
1
2
23020
23019
SMF
(DO-219AB)
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
MECHANICAL DATA
Case:
SMF (DO-219AB)
Polarity:
band denotes cathode end
Weight:
approx. 15 mg
Packaging codes / options:
18/10K per 13" reel (8 mm tape)
08/3K per 7" reel (8 mm tape)
Circuit configuration:
single
PARTS TABLE
PART
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
ORDERING CODE
RS07B-M-18 or RS07B-M-08
RS07D-M-18 or RS07D-M-08
RS07G-M-18 or RS07G-M-08
RS07J-M-18 or RS07J-M-08
RS07K-M-18 or RS07K-M-08
MARKING
TB
TD
TG
TJ
TK
REMARKS
Tape and reel
Tape and reel
Tape and reel
Tape and reel
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
SYMBOL
V
RRM
V
RRM
V
RRM
V
RRM
V
RRM
V
RMS
V
RMS
V
RMS
V
RMS
V
RMS
V
DC
V
DC
V
DC
V
DC
V
DC
I
F(AV)
I
F(AV)
I
FSM
VALUE
100
200
400
600
800
70
140
280
420
560
100
200
400
600
800
1.4
0.5
30
UNIT
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
A
A
A
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current 8.3 ms half sine-wave
T
L
= 65 °C
T
A
= 45 °C
T
L
= 25 °C
Rev. 1.5, 29-Mar-18
Document Number: 85195
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RS07B-M, RS07D-M, RS07G-M, RS07J-M, RS07K-M
www.vishay.com
Vishay Semiconductors
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to lead
Thermal resistance junction to ambient air
(1)
Operating junction and storage temperature range
Note
(1)
Mounted on epoxy glass PCB with 3 mm x 3 mm Cu pads ( 40 μm thick)
TEST CONDITION
SYMBOL
R
thJL
R
thJA
T
j
, T
stg
VALUE
30
180
-55 to 150
UNIT
K/W
K/W
°C
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
RS07B-M
RS07D-M
RS07G-M
RS07J-M
RS07K-M
SYMBOL
V
F
V
F
V
F
V
F
V
F
I
R
I
R
I
R
I
R
I
R
I
R
I
R
I
R
I
R
I
R
t
rr
t
rr
t
rr
t
rr
t
rr
C
j
C
j
C
j
C
j
C
j
MIN.
TYP.
MAX.
1.15
1.15
1.15
1.15
1.3
10
10
10
10
2
50
50
50
50
150
150
150
150
250
300
UNIT
V
V
V
V
V
μA
μA
μA
μA
μA
μA
μA
μA
μA
μA
ns
ns
ns
ns
ns
pF
pF
pF
pF
pF
Instantaneous forward voltage
I
F
= 0.7 A
(1)
I
F
= 1 A
(1)
T
A
= 25 °C
Maximum DC reverse current at
rated DC blocking voltage
T
A
= 125 °C
Reverse recovery time
I
F
= 0.5 A, I
R
= 1 A,
I
rr
= 0.25 A
Typical capacitance
4 V, 1 MHz
9
9
9
9
4
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
Rev. 1.5, 29-Mar-18
Document Number: 85195
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RS07B-M, RS07D-M, RS07G-M, RS07J-M, RS07K-M
www.vishay.com

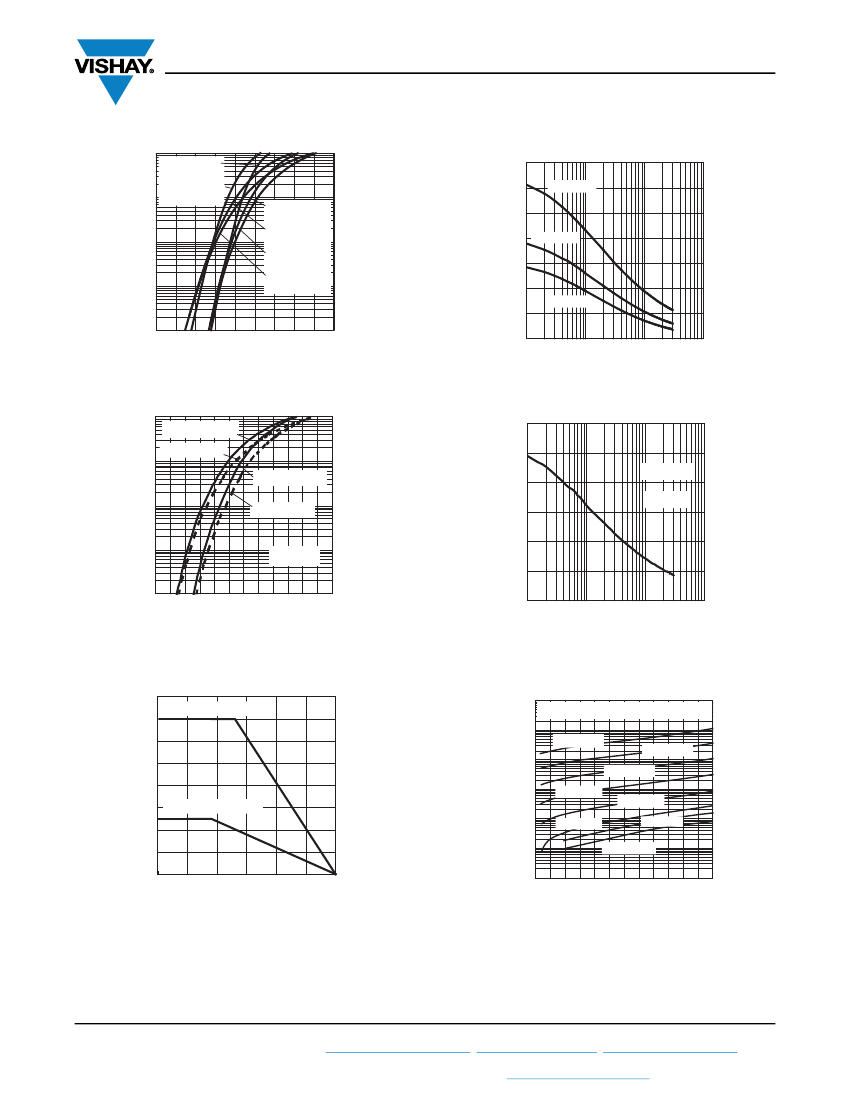

TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
10
Typ. at 25 °C
RS07D-M
Typ. at 150 °C
1 RS07D-M
35
30
Typ. at 25 °C
RS07G-M
Typ. at 150 °C
RS07G-M
Typ. at 25 °C
RS07J-M
Typ. at 150 °C
RS07J-M
25
RS07D-M
Vishay Semiconductors
I
F
(A)
C
D
(pF)
0.1
20
15
10
RS07G-M
0.01
RS07J-M
5
0.001
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
0
0.1
18248-1
18246-1
V
F
(V)
1
10
100
V
R
(V)
Fig. 1 -
Typical Forward Characteristics
10
Typical at 150 °C
Max. at 150 °C
max. at 150 °C
1
Typical at 25 °C
Fig. 4 -
Typical Diode Capacitance vs. Reverse Voltage
12
10
f = 1 MHz
8
I
F
(A)
C
D
(pF)
0.1
RS07K-M
6
4
Max. at 25 °C
0.01
RS07K-M
2
0.001
0
21403
0.4
0.8
1.2
1.6
2
2.4
0
21405-1
0.1
1
10
100
V
F
(V)
V
R
(V)
Fig. 2 -
Typical Forward Characteristics
Fig. 5 -
Typical Diode Capacitance vs. Reverse Voltage
1.6
Lead temperature
1.4
1000
RS07B-M, RS07D-M, RS07G-M, RS07J-M
100
1.2
T
J
= 150 °C
I
FAV
(A)
1.0
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
Ambient temperature
10
T
J
= 125 °C
T
J
= 100 °C
I
R
(µA)
1
0.1
0.01
T
J
= 75 °C
T
J
= 25 °C
T
J
= 50 °C
T
J
= 0 °C
T
J
= - 50 °C
0.001
0
100
200
300
400
500
600
18247
T
amb
(°C)
18249-1
V
R
(V)
Fig. 3 -
Forward Current Derating Curve
Fig. 6 -
Typical Reverse Characteristics
Rev. 1.5, 29-Mar-18
Document Number: 85195
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RS07B-M, RS07D-M, RS07G-M, RS07J-M, RS07K-M
www.vishay.com
Vishay Semiconductors
1000
RS07K-M
100
T
J
at 150 °C
T
J
at 125 °C
T
J
at 100 °C
T
J
at 75 °C
1
T
J
at 25 °C
I
R
(µA)
10
0.1
0.01
100
21406-1
300
500
700
900
V
R
(V)
Fig. 7 -
Typical Reverse Characteristics
PACKAGE DIMENSIONS
in millimeters (inches):
SMF (DO-219AB)
0.85 (0.033)
0.35 (0.014)
0.25 (0.010)
0.1 (0.004)
5
0.1(0.003)
1.9 (0.075)
1.7 (0.067)
1.2 (0.047)
0.8 (0.031)
0 (0.000)
Detail Z
enlarged
1.08 (0.043)
2.9 (0.114)
2.7 (0.106)
3.9 (0.154)
3.5 (0.138)
0.88 (0.035)
Foot print recommendation:
1.3 (0.051)
1.3 (0.051)
Created - Date: 15. February 2005
Rev. 3 - Date: 13. March 2007
Document no.: S8-V-3915.01-001 (4)
17247
1.4 (0.055)
2.9 (0.114)
Rev. 1.5, 29-Mar-18
Document Number: 85195
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
5
RS07B-M, RS07D-M, RS07G-M, RS07J-M, RS07K-M
www.vishay.com

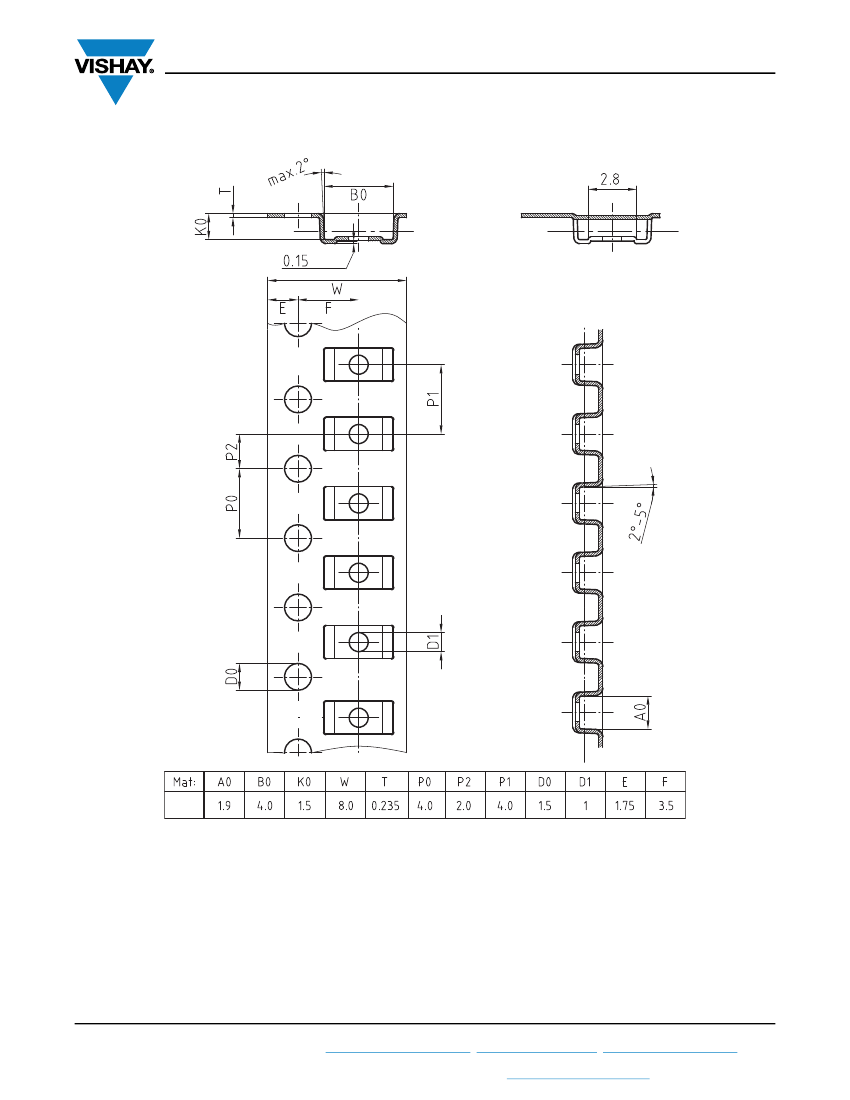

BLISTER TAPE DIMENSIONS
in millimeters:
SMF (DO-219AB)
Vishay Semiconductors
PS
Document-No.: S8-V-3717.02-001 (3)
18513
Rev. 1.5, 29-Mar-18
Document Number: 85195
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
