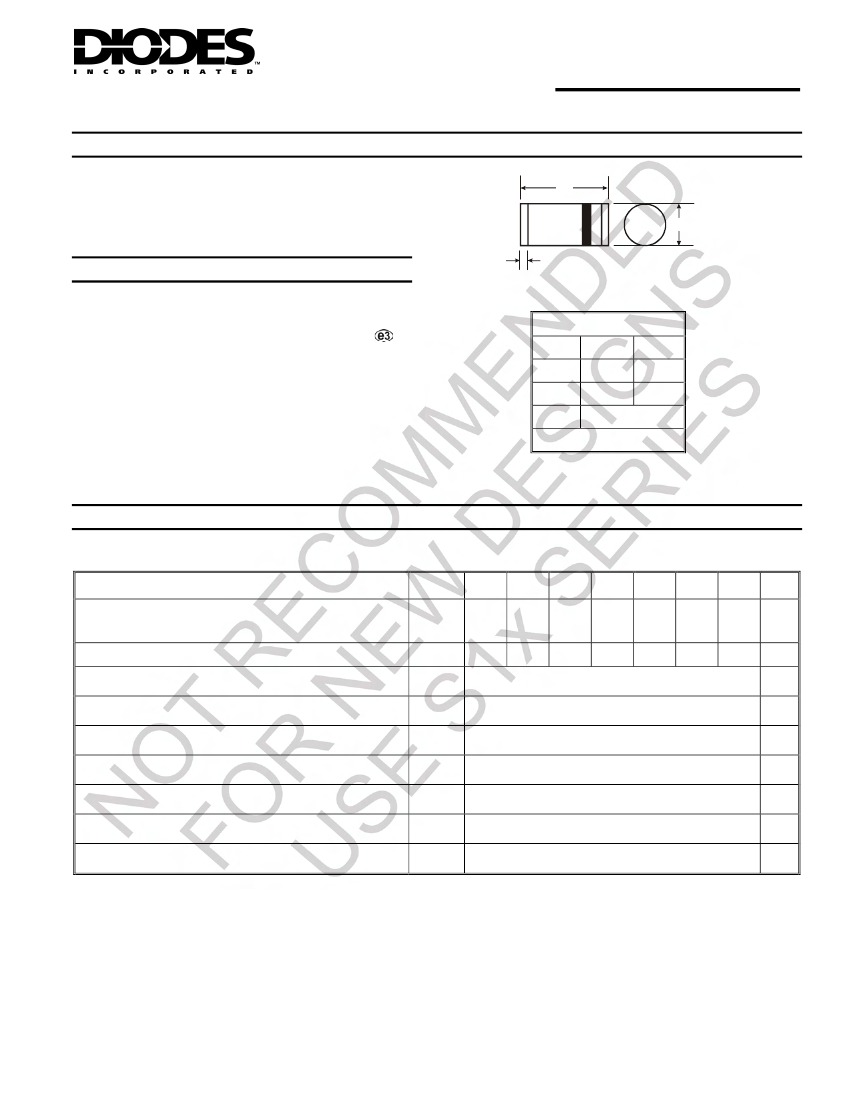

DL4001 - DL4007
1.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Features
•
•
•
•
•
Glass Passivated Junction
High Current Capability
Low Forward Voltage Drop
Low Leakage Current
Lead Free Finish/RoHS Compliant Version (Note 2)
C
A
B
Mechanical Data
•
•
•
•
•
•
•
Case: MELF
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish).
Polarity: Cathode Band
Marking: Cathode Band Only
Approximate Weight: 0.25 grams
MELF
Dim
A
B
C
Min
4.80
2.40
Max
5.20
2.60
0.55 Nominal
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Rectified
Current
@ T
T
= 75°C
Peak Forward Surge Current 8.3ms single half sine-wave
Superimposed on Rated Load
Maximum Forward Voltage
Maximum DC Reverse Current
@Rated DC Blocking Voltage
@ I
F
= 1.0A
@ T
A
= 25°C
@ T
A
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
R
θ
JA
C
T
T
j,
T
STG
@T
A
= 25°C unless otherwise specified
DL
4001
50
35
DL
4002
100
71
DL
4003
200
141
DL
4004
400
283
1.0
30
1.1
5.0
50
50
15
-55 to +150
DL
4005
600
424
DL
4006
800
566
DL
4007
1000
707
Unit
V
V
A
A
V
μA
°C/W
pF
°C
Typical Thermal Resistance, Junction to Ambient Air
Typical Total Capacitance (Note 1)
Operating and Storage Temperature Range
Notes:
1. Measured at 1.0MHz and applied reverse voltage of 4.0 volts.
2. RοHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see
EU Directive Annex Notes 5 and 7.
DS16001 Rev. 9 - 3
1 of 2
www.diodes.com
DL4001-DL4007
© Diodes Incorporated
0.8
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.0
I
O
, AVERAGE RECTIFIED CURRENT (A)
10
1.0
0.6
0.4
0.1
0.2
0
40
60
80
100
120 140
160
T
A
, AMBIENT TEMPERATURE (ºC)

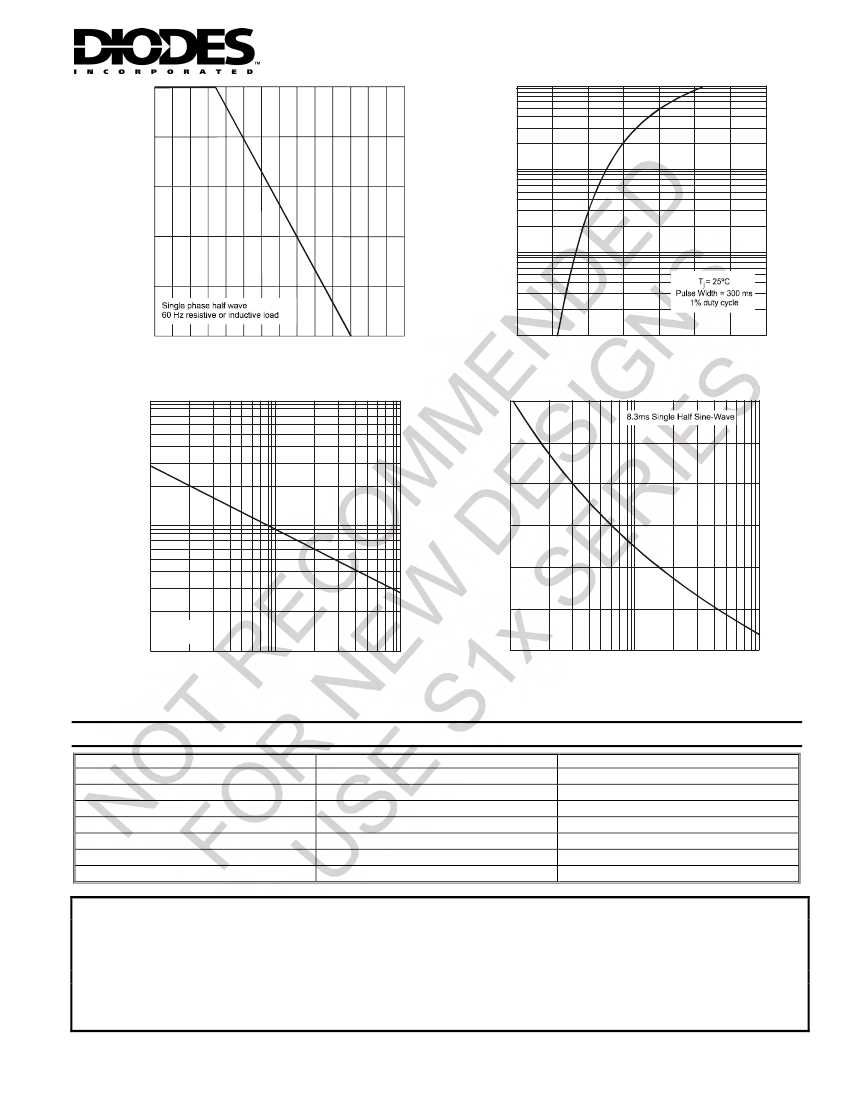

Fig. 1 Forward Current Derating Curve
180
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM,
PEAK FORWARD SURGE CURRENT (A)
30
100
C
T
, TOTAL CAPACITANCE (pF)
25
20
10
15
10
5
0
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 4 Max Non-Repetitive Peak Forward Surge Current
f = 1MHz
T
J
= 25ºC
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Total Capacitance vs. Reverse Voltage
1
Ordering Information
Device
DL4001-13-F
DL4002-13-F
DL4003-13-F
DL4004-13-F
DL4005-13-F
DL4006-13-F
DL4007-13-F
Packaging
MELF
MELF
MELF
MELF
MELF
MELF
MELF
Shipping
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
