MX7506KQ datasheet, PDF - EEWORLD Datasheet

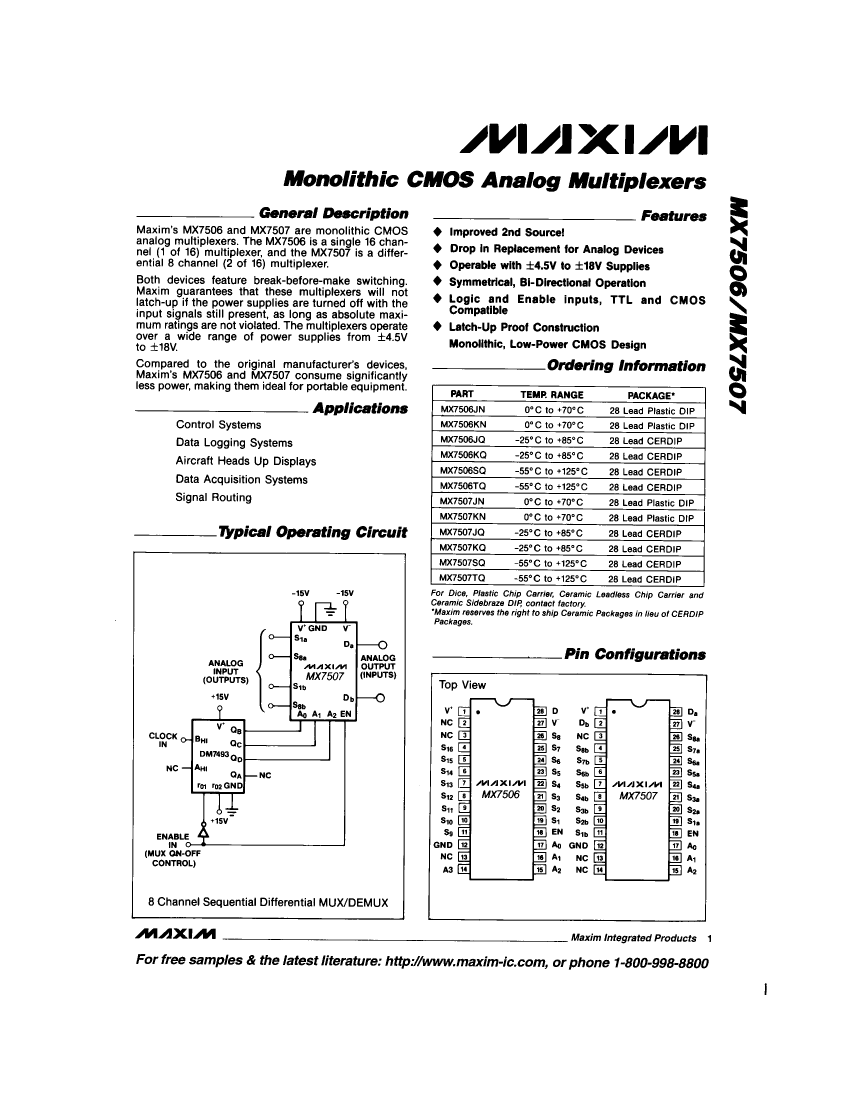

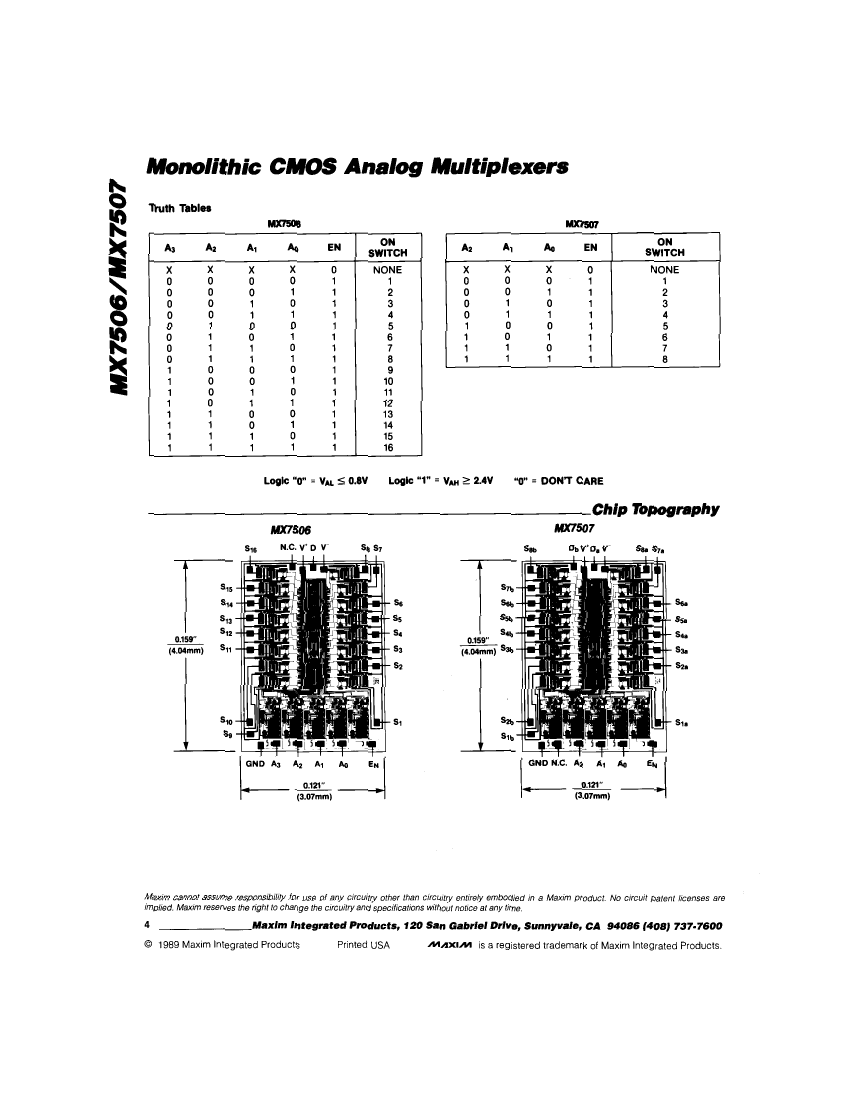

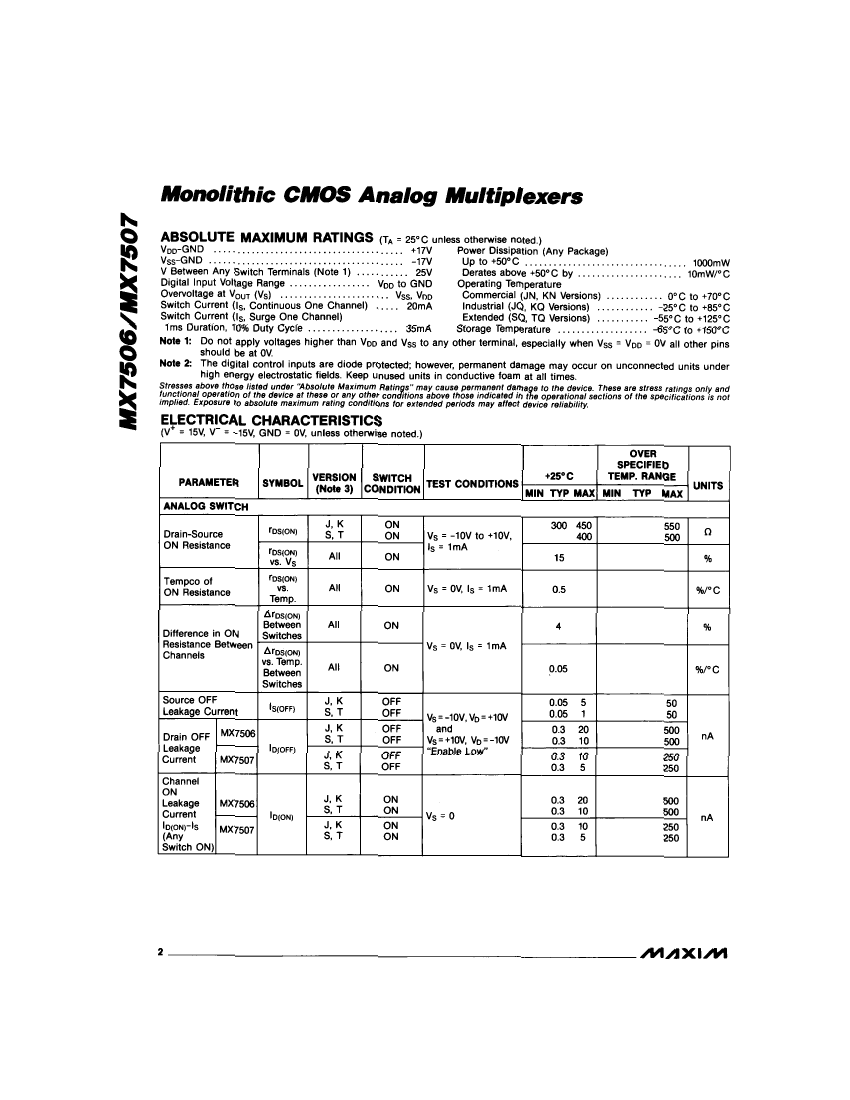

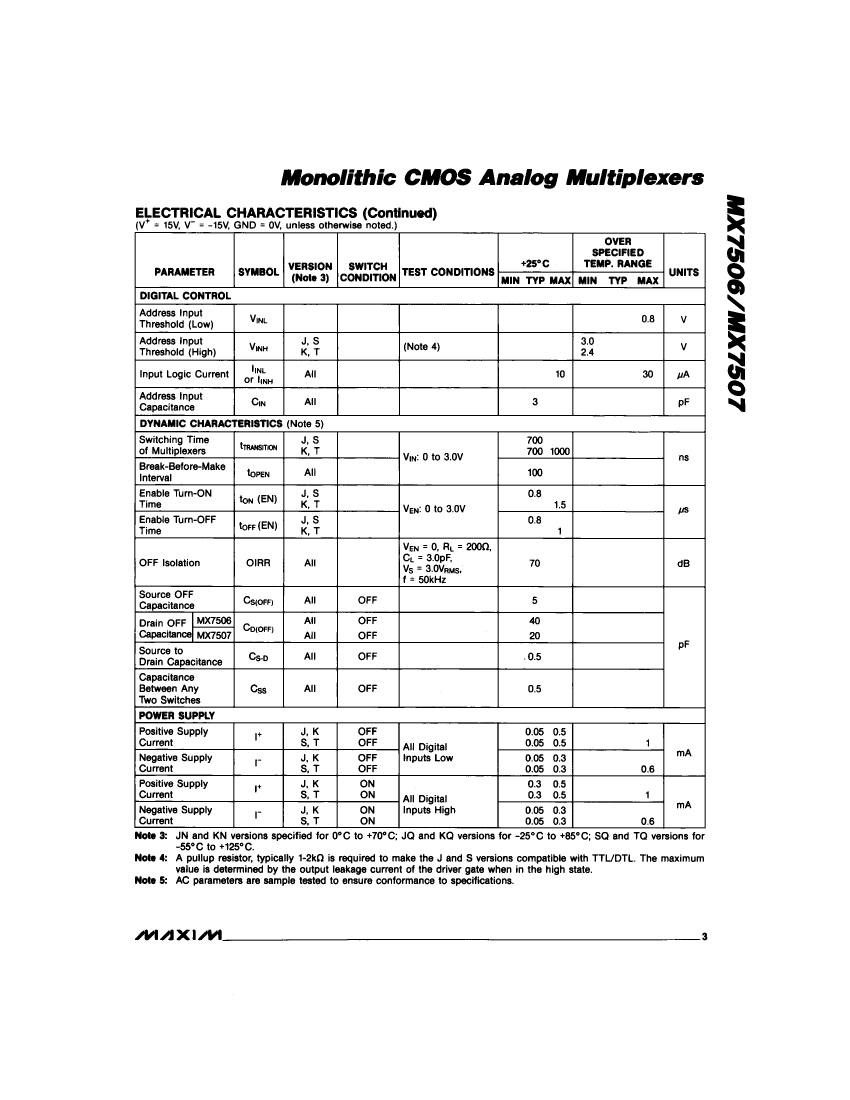

MX7506KQ: DescriptionMultiplexer Switch ICs Monolithic CMOS Analog Multiplexer; CategoryAnalog mixed-signal IC The signal circuit; File Size147KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

MX7506KQ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX7506KQ	-	-	View	Buy Now

Multiplexer Switch ICs Monolithic CMOS Analog Multiplexer

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	0.600 INCH, CERAMIC, DIP-28
Contacts	28
Reach Compliance Code	not_compliant
Other features	HTTP://PDFSERV.MAXIM-IC.COM/PACKAGE_DWGS/21-0046.PDF
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	70 dB
On-state resistance matching specifications	12 Ω
Maximum on-state resistance (Ron)	450 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.89 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
