G5V-212VDC

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.042A (COIL), 12VDC (COIL), 500mW (COIL), 2A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryMechanical and electronic products    relay
File Size506KB,4 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Environmental Compliance
Download Datasheet Parametric View All

G5V-212VDC Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.042A (COIL), 12VDC (COIL), 500mW (COIL), 2A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

G5V-212VDC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerOMRON
Reach Compliance Codecompli
ECCN codeEAR99
body width10.1 mm
body height11.5 mm
Body length or diameter20.5 mm
Maximum coil current (DC)0.042 A
Coil operating voltage (DC)9 V
Coil power500 mW
Coil release voltage (DC)0.6 V
Coil resistance288 Ω
Maximum coil voltage (DC)12 V
Nominal coil voltage12 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load.5A@125VAC
Maximum contact current (AC)0.5 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated R load2A@30VDC
Contact resistance100 mΩ
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)30 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1000 Vrms
Dielectric strength between breaking contacts750 Vrms
Electrical life100000 Cycle(s)
End contact materialSilve
End contact platingGOLD ALLOY
Input switching control typeRandom
Insulation resistance1000000000 Ω
JESD-609 codee4
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
Number of terminals8
operating hours7.3 ms
Maximum operating temperature65 °C
Minimum operating temperature-25 °C
PCB hole count8
physical size20.5mm x 10.1mm x 11.5mm
GuidelineCSA; FCC; UL
Relay actionMOMENTARY
Relay style2 FORM C
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time4.5 ms
surface mountNO
Terminal surfaceSilver (Ag)
Terminal length0.0035 inch
Termination typeSOLDER
weight5 g

G5V-212VDC Preview

PCB Relay
Miniature Relay for Signal Circuits
I
I
I
I
I
G5V-2
Wide switching power of 10
µA
to 2 A.
High dielectric strength coil-contacts:1,000 VAC;
open contacts: 750 VAC.
Conforms to FCC Part 68 requirements.
Ag + Au clad bifurcated crossbar contacts and
fully sealed for high contact reliability.
New 150-mW relays with high-sensitivity.
4
+
FCC
Ordering Information
Classification
Standard
High-sensitivity
Contact form
DPDT
Contact type
Bifurcated crossbar
Contact material
Ag + Au-clad
Enclosure ratings
Fully sealed
G5V-2
G5V-2-H1
Model
Note:
When ordering, add the rated coil voltage to the model number.
Example: G5V-2 12 VDC
Rated coil voltage
Model Number Legend
G5V -
1
-
2
3
VDC
2. Classification
H1: High-sensitivity
3. Rated Coil Voltage
3, 5, 6, 9, 12, 24, 48 VDC
1. Contact Form
2: DPDT
Specifications
I
Coil Ratings
3 VDC
166.7 mA
18
W
Armature OFF
Armature ON
0.04
0.05
5 VDC
100 mA
50
W
0.09
0.11
6 VDC
83.3 mA
72
W
0.16
0.19
9 VDC
55.6 mA
162
W
0.31
0.49
12 VDC
41.7 mA
288
W
0.47
0.74
24 VDC
20.8 mA
1,152
W
1.98
2.63
48 VDC
12 mA
4,000
W
7.23
10.00
Standard Models
Rated voltage
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Must operate voltage
Must release voltage
Max. voltage
Power consumption
75% max. of rated voltage
5% min. of rated voltage
120% of rated voltage at 23°C
Approx. 500 mW
Approx.
580 mW
1
G5V-2
High Sensitivity Models
Rated voltage
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Armature ON
Armature OFF
3 VDC
50 mA
60
W
0.18
0.57
5 VDC
30 mA
166.7
W
0.46
0.71
6 VDC
25 mA
240
W
0.70
0.97
9 VDC
16.7 mA
540
W
1.67
2.33
12 VDC
12.5 mA
960
W
2.90
3.99
24 VDC
8.33 mA
2,880
W
6.72
9.27
G5V-2
48 VDC
6.25 mA
7,680
W
20.1
26.7
Must operate voltage
Must release voltage
Max. voltage
75% max. of rated voltage
5% min. of rated voltage
180% of rated voltage at 23°C
150% of rated
voltage at
23°C
Approx.
200 mW
Approx.
300 mW
Power consumption
Note:
I
Approx. 150 mW
1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
Contact Ratings
Item
Standard models
Resistive load (cos
f
= 1)
0.5 A at 125 VAC; 2 A at 30 VDC
Ag + Au-clad
2A
125 VAC, 125 VDC
2A
62.5 VA, 60 W
0.01 mA at 10 mVDC
1A
62.5 VA, 24 W
0.5 A at 125 VAC; 1 A at 24 VDC
High sensitivity models
Load
Rated load
Contact material
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Failure rate (reference value)
Note
I
Note:P
level:
l
60
= 0.1 x 10
–6
/operation
Characteristics
Item
Standard models
50 m
W
max.
7 ms max.
3 ms max.
Operate: approx. 0.3 ms
Release: approx. 1.5 ms
Mechanical: 36,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000 M
W
min. (at 500 VDC)
1,000 VAC, 50/60 Hz for 1 min between coil
and contacts
1,000 VAC, 50/60 Hz for 1 min between con-
tacts of different polarity
750 VAC, 50/60 Hz for 1 min between contacts
of same polarity
1,000 VAC, 50/60 Hz for 1 min between coil
and contacts
1,000 VAC, 50/60 Hz for 1 min between con-
tacts of different polarity
500 VAC, 50/60 Hz for 1 min between contacts
of same polarity
High sensitivity models
100 m
W
max.
Contact resistance
Operate time
Release time
Bounce time
Max. operating frequency
Insulation resistance
Dielectric strength
Impulse withstand voltage
Vibration resistance
Shock resistance
Endurance
Ambient temperature
Ambient humidity
Weight
1,500 V (10 x 160
µs)
between coil and contacts (conforms to FCC Part 68)
Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 200 m/s
2
(approx. 20G)
Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 100 m/s
2
(approx. 10G)
Mechanical: 15,000,000 operations min. (at 36,000 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr)
Operating:
-
25°C to 65°C (with no icing)
Operating: 5% to 85%
Approx. 5 g
Operating:
-
25°C to 70°C (with no icing)
2
G5V-2
I
G5V-2
Approved Standards
Contact form
Coil ratings
G5V-2
3 to 48 VDC
0.6 A, 125 VAC (general use)
0.6 A, 110 VDC (resistive load)
2 A, 30 VDC (resistive load)
Contact ratings
G5V-2-H1
0.5 A, 125 VAC (general use)
0.2 A, 110 VDC (resistive load)
1 A, 24 VDC (resistive load)
UL478, UL1950, UL508 (File No. E41515)/CSA C22.2 No.0, No.14 (File No. LR24825)
DPDT

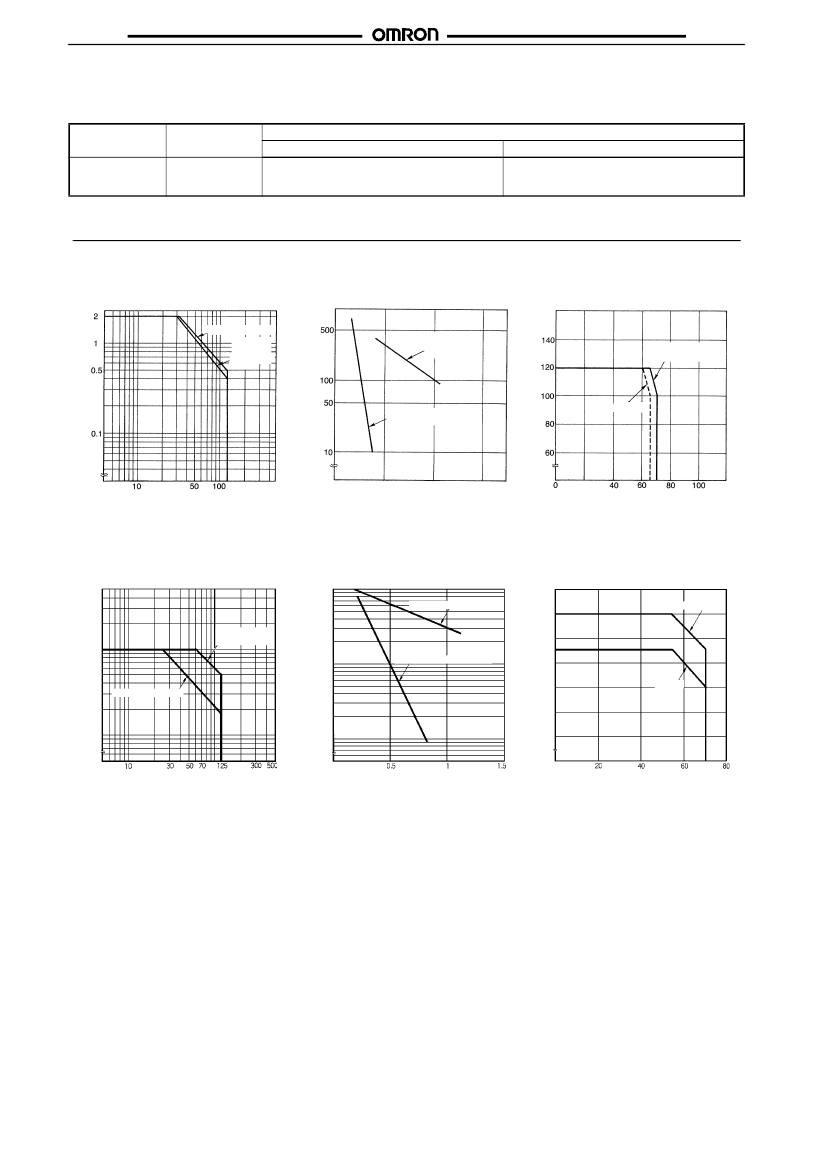

Engineering Data
Maximum Switching Power
G5V-2
Endurance
G5V-2
Ambient Temperature vs.
Maximum Coil Voltage
G5V-2
30-VDC
resistive
load
Maximum coil voltage (%)
AC resistive load
DC re
sistive
load
Endurance (x10
3
operations)
Switching current (A)
Coil rated voltage
3 to 24 VDC
125-VAC resistive
load
48 VDC
1
2
3
Switching voltage (V)
Switching current (A)
Ambient temperature (°)
Note:
The maximum coil voltage refers to the maxi-
mum value in a varying range of operating
power voltage, not a continuous voltage.
G5V-2-H1
1000
G5V-2-H1
5
3
G5V-2-H1
200
24-VDC resistive load
3 to 24 VDC
180
160
140
120
100
80
0
48 VDC
Life expectancy (x10
3
operations)
AC resistive
load
1
0.7
0.5
0.3
0.2
0.1
DC resistive load
300
100
50
30
125-VAC resistive load
10
0
Switching voltage (V)
Switching current (A)
Maximum coil voltage (%)
500
Switching current (A)
Ambient temperature (°)
Note:
The maximum coil voltage refers to the maxi-
mum value in a varying range of operating
power voltage, not a continuous voltage.
3
G5V-2
G5V-2
Dimensions
Note:
1.
All units are in millimeters unless otherwise indicated.
2.
Orientation marks are indicated as follows:
Terminal Arrangement/
Internal Connections
(Bottom View)
1
4
20.5 max.
20.3 typ.
10.1 max.
9.9 typ.
16
13
11
9
6
8
(1.3)
Mounting Holes
(Bottom View)
Tolerance:
±0.1
7.62
5.08 5.08
(1.2)
7.62
11.5 max.
11.4 typ.
0.5
(1.3)
Eight, 1-dia. holes
0.5
0.3
7.62
3.5
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. K046-E1-2B
4
