BD433M2EFJ-CE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BD433M2EFJ-CE2

BD433M2EFJ-CE2: DescriptionLDO Voltage Regulators 200mA 3.3V or 5.0V out LDO Reg; CategoryPower/power management The power supply circuit; File Size2MB，38 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BD433M2EFJ-CE2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD433M2EFJ-CE2	-	-	View	Buy Now

BD433M2EFJ-CE2 Overview

LDO Voltage Regulators 200mA 3.3V or 5.0V out LDO Reg

BD433M2EFJ-CE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HTSOP-8
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Maximum drop-back voltage 1	0.45 V
Maximum input voltage	42 V
Minimum input voltage	4.3 V
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	1
Number of terminals	8
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.2 A
Maximum output voltage 1	3.37 V
Minimum output voltage 1	3.16 V
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	VSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	AEC-Q100
Maximum seat height	1 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Datasheet

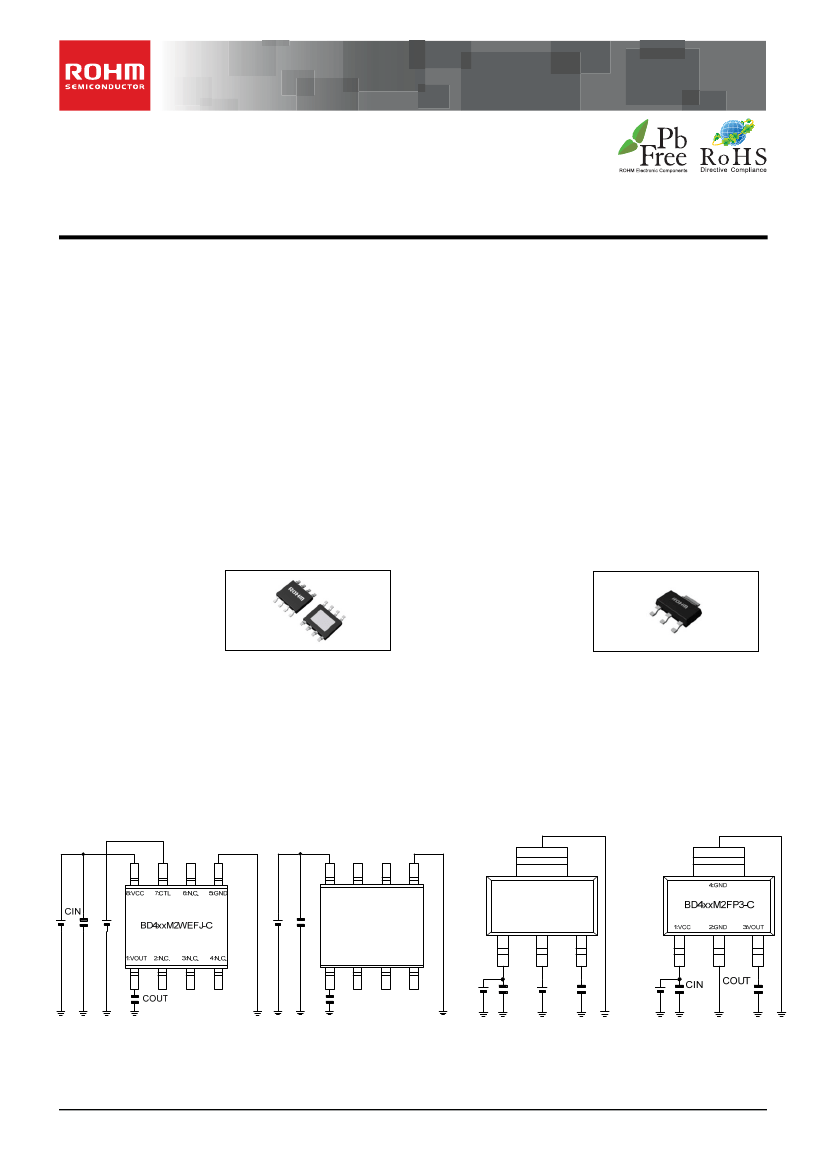

200-mA 3.3-V or 5.0-V Output

LDO Regulators

BD4xxM2-C Series

●General

Description

The BD4xxM2-C series are low quiescent regulators

featuring 45 V absolute maximum voltage, and output

voltage accuracy of ±2 % ( 3.3 V or 5.0 V: Typ.), 200 mA

output current and 40

μA

(Typ.) current consumption.

These regulators are therefore ideal for applications

requiring a direct connection to the battery and a low

current consumption.

A logical “HIGH” at the CTL pin enables the device and

“LOW” at the CTL pin not enables the device.

(Only W: Includes switch)

Ceramic capacitors can be used for compensation of the

output capacitor phase. Furthermore, these ICs also

feature overcurrent protection to protect the device from

damage caused by short-circuiting and an integrated

thermal shutdown to protect the device from overheating

at overload conditions.

●Packages



EFJ: HTSOP-J8

W (Typ.) x D (Typ.) x H (Max.)

4.90 mm x 6.00 mm x 1.00 mm



FP3: SOT223-4(F)

(Note2)

●Features



Qualified for Automotive Applications

Wide Temperature Range:

-40 °C to +150 °C

Wide Operating Input Range:

3.0 V to 42 V

Low Quiescent Current:

μA

(Typ.)

Output Current:

200 mA

High Output Voltage Accuracy:

±2 %

Output Voltage:

3.3 V or 5.0 V (Typ.)

Enable Input (Only W: Includes Enable Input)

Over Current Protection (OCP)

Thermal Shutdown Protection (TSD)

(Note1)

AEC-Q100 Qualified

(Note1:Grade1)

6.53 mm x 7.00 mm x 1.80mm

(Note2: SOT223-4 & SOT223-4F)

Figure 1. Package Outlook

●Applications



Automotive

(body, audio system, navigation system, etc.)

●Typical

Application Circuits



Components externally connected: 0.1 µF

≤

CIN, 10 µF

≤

COUT (Typ.)

*Electrolytic, Tantalum and Ceramic capacitors can be used.

4:GND

8:VCC

7:N.C.

6:N.C.

5:GND

CIN

BD4xxM2EFJ-C

BD4xxM2WFP3-C

1:VCC

2:CTL

3:VOUT

1:VOUT

2:N.C.

3:N.C.

4:N.C.

CIN

COUT

BD433 / 450M2WEFJ-C

HTSOP-J8

BD433 / 450M2EFJ-C

BD433 / 450M2WFP3-C

BD433 / 450M2FP3-C

Figure 2. Typical Application Circuits

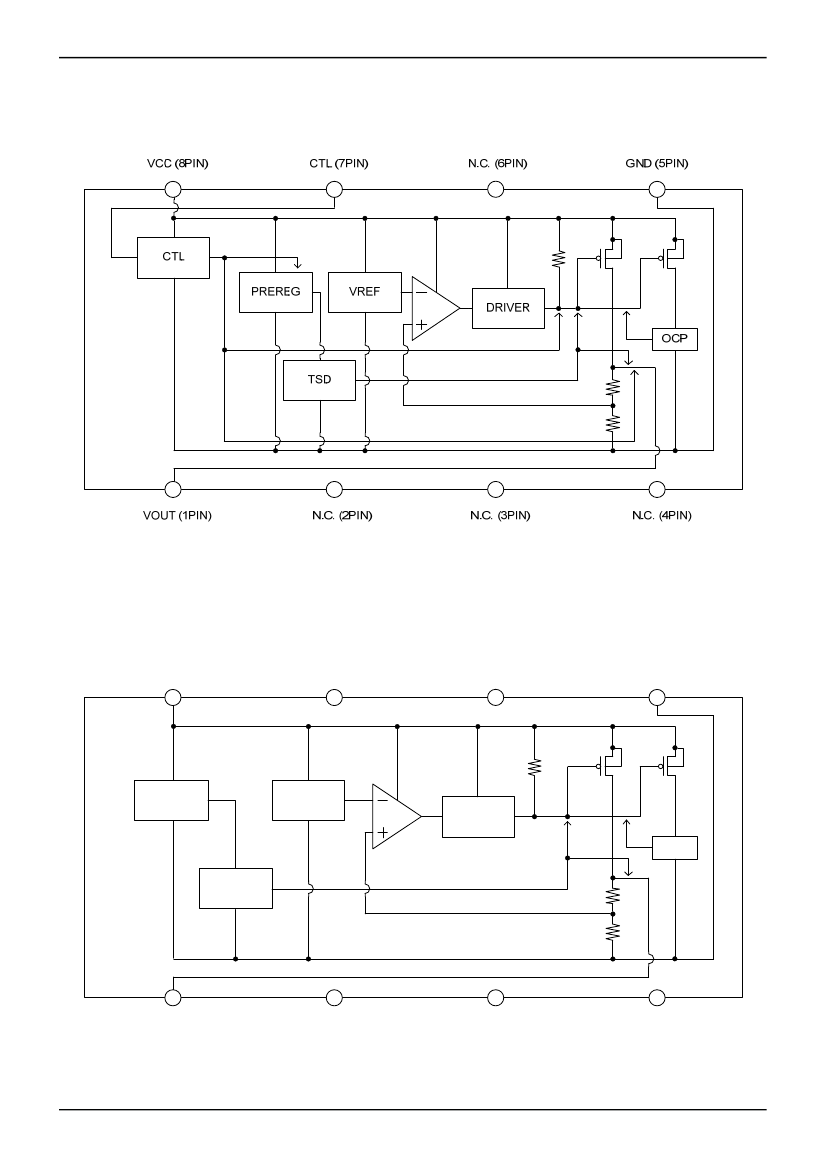

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

SOT223-4(F)

○This

product is not designed protection against radioactive rays

1/34

TSZ02201-0G1G0AN0063-1-2

30.Sept.2016 Rev.004
