1TP150-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1TP150-5

1TP150-5: DescriptionRocker Switch, SPDT, Latched And Momentary, Screw Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size46KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

1TP150-5 Overview

Rocker Switch, SPDT, Latched And Momentary, Screw Terminal, Rocker Actuator, Panel Mount

1TP150-5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	ROCKER
body width	22.1 mm
body height	36.83 mm
Body length or diameter	28.7 mm
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	1TP150
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Termination type	SCREW
Base Number Matches	1

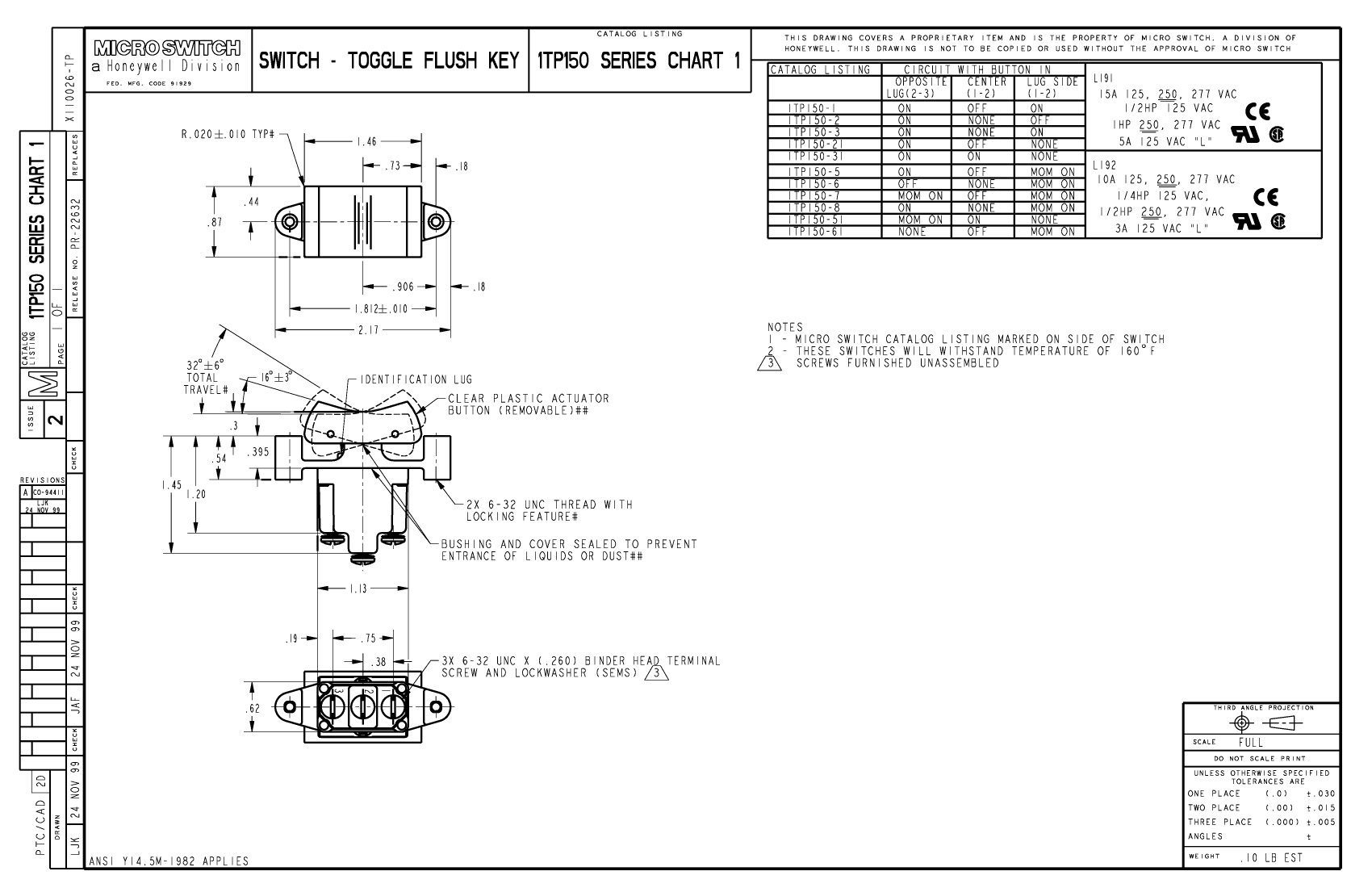

Preview

Download Datasheet

View All

1TP150-5 Related Products

	1TP150-5	1TP150-1	1TP150-31	1TP150-3	1TP150-6	01R5X100F160CT	1TP150-8	1TP150-2	1TP150-51	1TP150-61
Description	Rocker Switch, SPDT, Latched And Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	High precision dimensional tolerances	Rocker Switch, SPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPST, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	-	ROCKER	ROCKER	ROCKER	ROCKER
body width	22.1 mm	22.1 mm	22.1 mm	22.1 mm	22.1 mm	-	22.1 mm	22.1 mm	22.1 mm	22.1 mm
body height	36.83 mm	36.83 mm	36.83 mm	36.83 mm	36.83 mm	-	36.83 mm	36.83 mm	36.83 mm	36.83 mm
Body length or diameter	28.7 mm	28.7 mm	28.7 mm	28.7 mm	28.7 mm	-	28.7 mm	28.7 mm	28.7 mm	28.7 mm
Contact (AC) maximum rated R load	10A@277VAC	15A@125VAC	10A@277VAC	15A@125VAC	10A@277VAC	-	10A@277VAC	15A@125VAC	10A@277VAC	10A@277VAC
Maximum contact current (AC)	10 A	15 A	10 A	15 A	10 A	-	10 A	15 A	10 A	10 A
Maximum contact voltage (AC)	277 V	125 V	277 V	125 V	277 V	-	277 V	125 V	277 V	277 V
Manufacturer's serial number	1TP150	1TP150	1TP150	1TP150	1TP150	-	1TP150	1TP150	1TP150	1TP150
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	-	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	-	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	-	NO	NO	NO	NO
Switch action	LATCHED AND MOMENTARY	LATCHED	LATCHED	LATCHED	MOMENTARY	-	MOMENTARY	LATCHED	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPST	-	SPDT	SPST	SPDT	SPST
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	-	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	-	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	-	1	1	1	1
