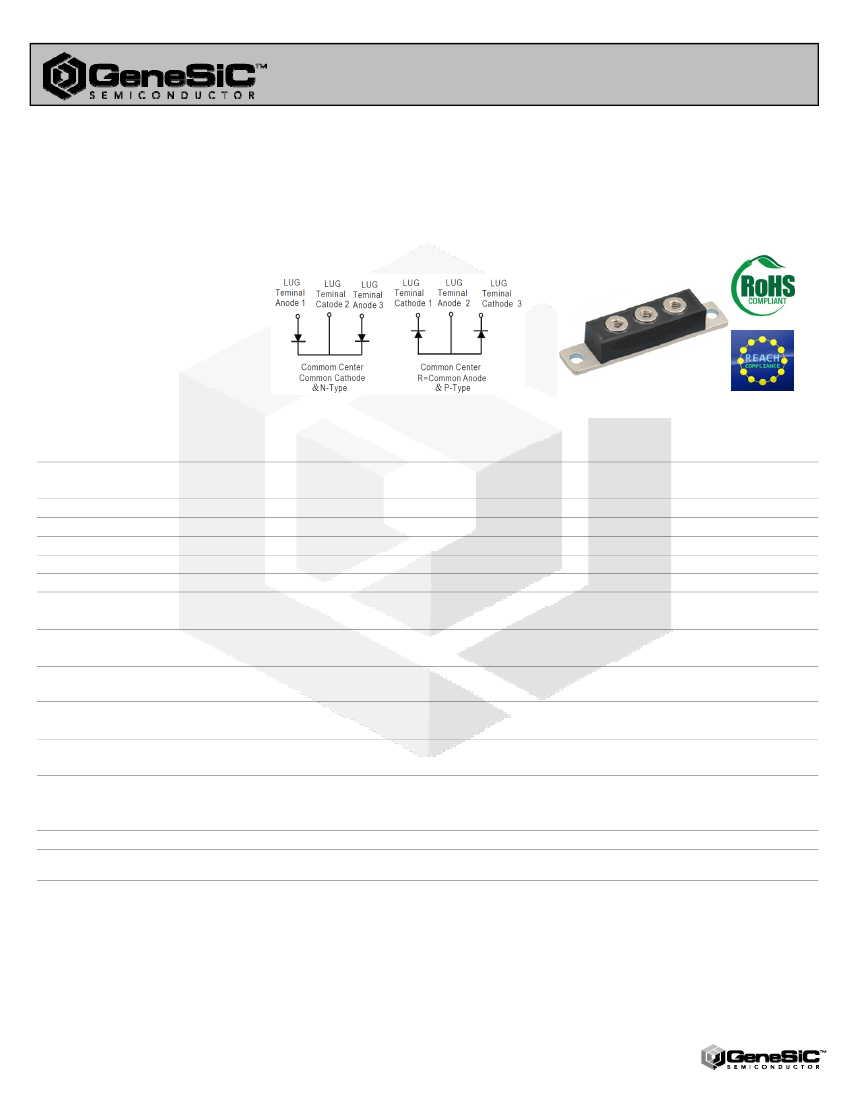

MBRT60045 thru MBRT600100R
Silicon Power
Schottky Diode
Features
• High Surge Capability
• Types from 45 V to 100 V V
RRM
• Isolation Type Package
• Electrically Isolated Base Plate
• Not ESD Sensitive
Three Tower Package
V
RRM
= 45 V - 100 V
I
F(AV)
= 600 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive peak reverse voltage
RMS reverse voltage
DC blocking voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
T
j
T
stg
Conditions
MBRT60045(R) MBRT60060(R) MBRT60080(R) MBRT600100(R) Unit
45
32
45
-55 to 150
-55 to 150
60
42
60
-55 to 150
-55 to 150
80
56
80
-55 to 150
-55 to 150
100
70
100
-55 to 150
-55 to 150
V
V
V
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Average forward current (per
pkg)
Peak forward surge current
(per leg)
Maximum instantaneous
forward voltage (per leg)
Maximum Instantaneous
reverse current at rated DC
blocking voltage (per leg)
Symbol
I
F(AV)
I
FSM
V
F
I
R
Conditions
T
C
=125 °C
t
p
= 8.3 ms, half sine
I
FM
= 300 A, T
j
= 25 °C
T
j
= 25 °C
T
j
= 100 °C
T
j
= 150 °C
MBRT60045(R) MBRT60060(R) MBRT60080(R) MBRT600100(R) Unit
600
4000
0.75
1
10
50
0.28
600
4000
0.80
1
10
50
0.28
600
4000
0.84
1
10
50
0.28
600
4000
0.84
1
10
50
0.28
A
A
V
mA
Thermal characteristics
Maximum thermal resistance,
junction - case (per leg)
R
ΘJC
°C/W
www.genesicsemi.com/silicon-products/schottky-rectifiers/
1

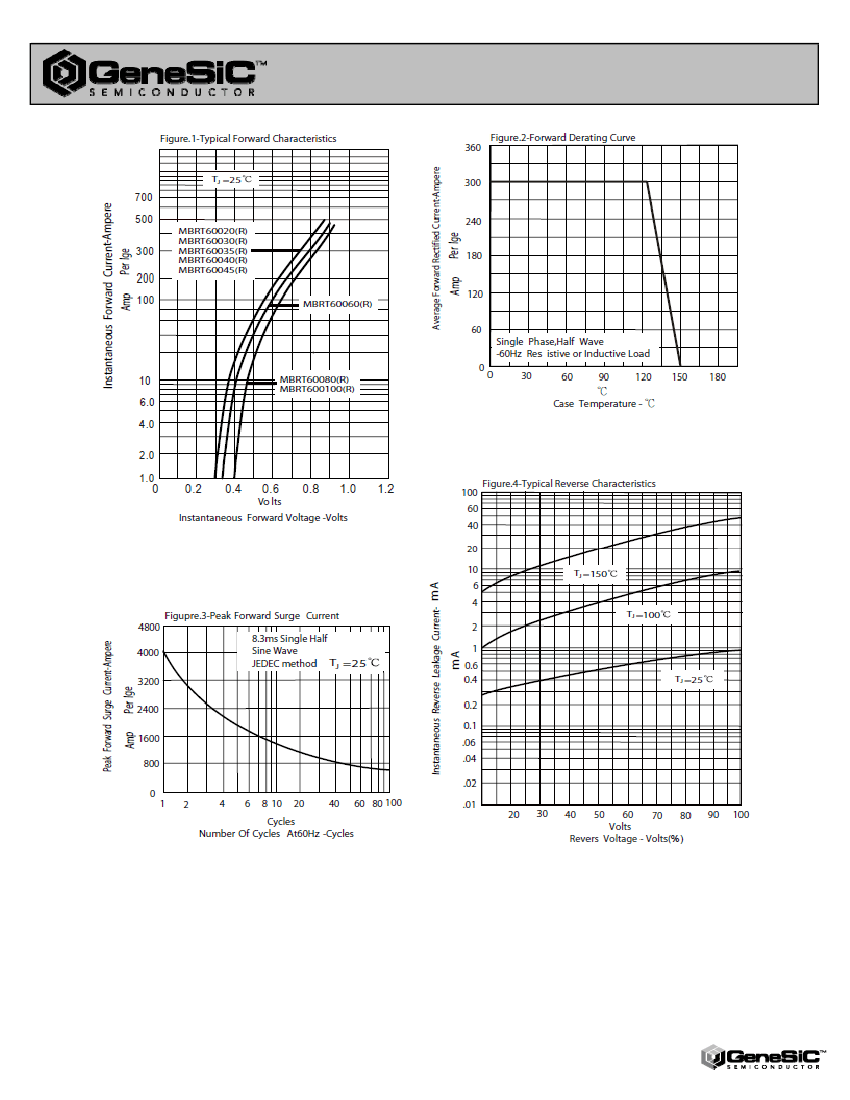

MBRT60045 thru MBRT600100R

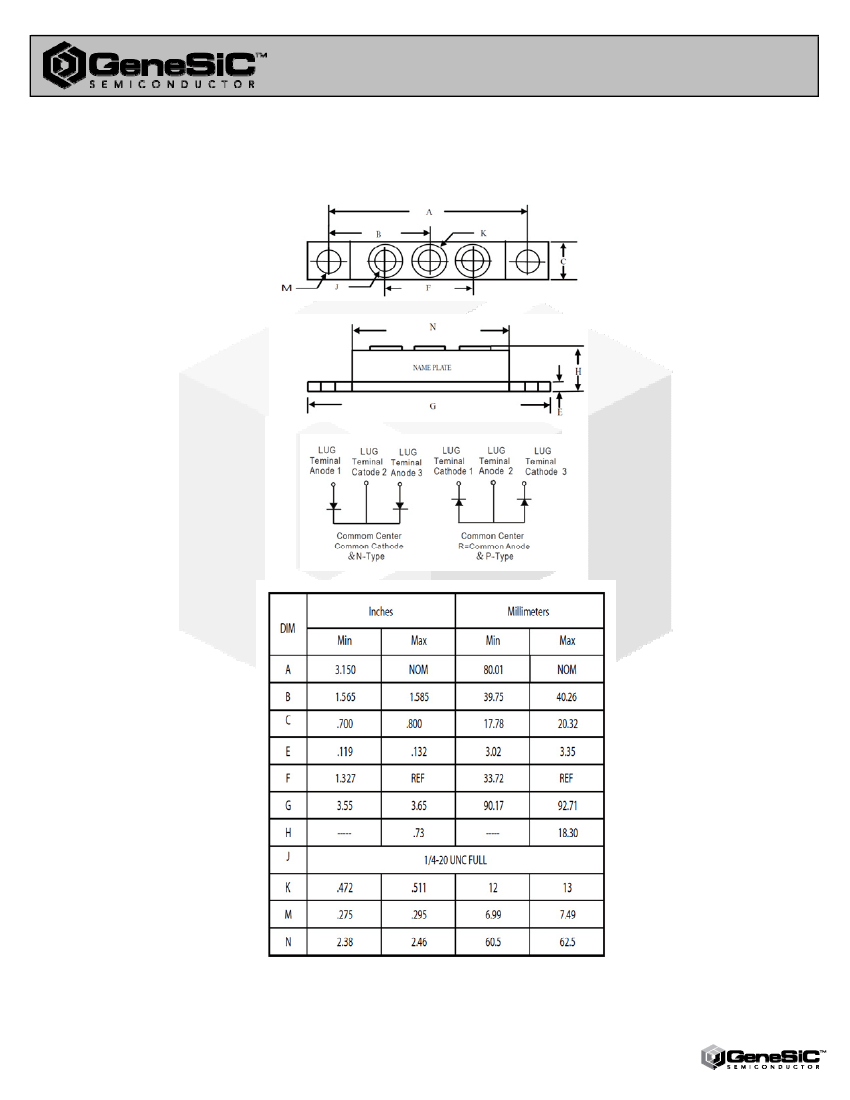

Package dimensions and terminal configuration
Product is marked with part number and terminal configuration.
www.genesicsemi.com/silicon-products/schottky-rectifiers/
3
