DFLS1150Q
1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
PowerDI123
Product Summary
V
RRM
(V)
150
I
O
(A)
1.0
(@+25°
C)
V
F max
(V)
0.82
I
R max
(µA)
2
Features and Benefits
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current
Capacity
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Applications
SMPS
DC-DC Convert
Freewheeling Diodes
Reverse Polarity Protection
Blocking Diodes
Mechanical Data
Case: PowerDI 123
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (Approximate)
®
Top View
Ordering Information
(Note 5)
Part Number
DFLS1150Q-7
Notes:
Compliance
Automotive
Case
PowerDI123
Packaging
3000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
F07
F07 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
Date Code Key
Year
2010
Code
X
Month
Code
Jan
1
2011
Y
Feb
2
2012
Z
Mar
3
2013
A
Apr
4
YM
2014
B
May
5
2015
C
Jun
6
2016
D
Jul
7
2017
E
Aug
8
2018
F
Sep
9
2019
G
Oct
O
2020
H
Nov
N
2021
I
Dec
D
PowerDI is a registered trademark of Diodes Incorporated.
DFLS1150Q
Document number: DS38627 Rev. 2 - 2
1 of 4
www.diodes.com
January 2017
© Diodes Incorporated
DFLS1150Q
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
I
FSM
Value
150
106
1.0
50
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Soldering Point (Note 6)
Thermal Resistance Junction to Ambient (Note 7) T
A
= +25°
C
Operating and Storage Temperature Range
Symbol
R
JS
R
JA
T
J
, T
STG
Typ
125
-55 to +175
Max
7
Unit
C/W
C/W
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Reverse Breakdown Voltage (Note 8)
Forward Voltage
Leakage Current (Note 8)
Total Capacitance
Notes:
Symbol
V
(BR)R
V
F
I
R

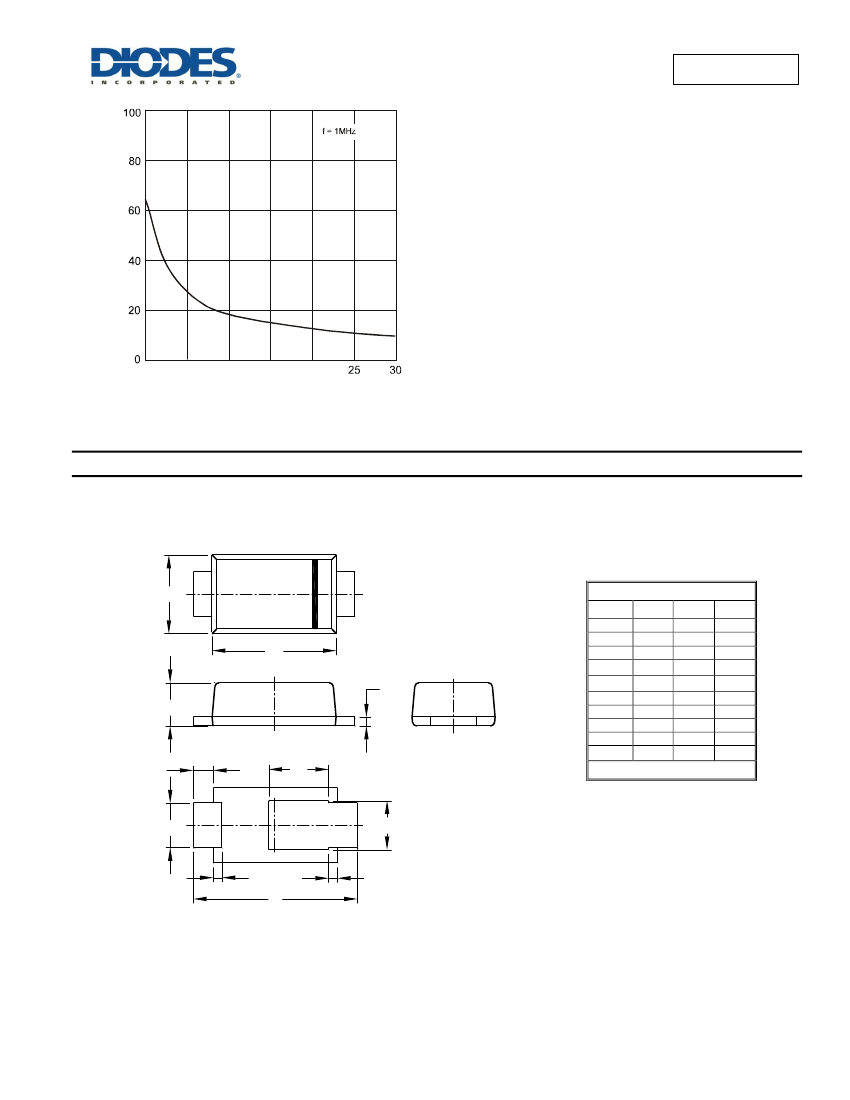

C
T
Min
150
Typ
28
Max
0.82
2
Unit
V
V
µA
pF
Test Condition
I
R
= 2µA

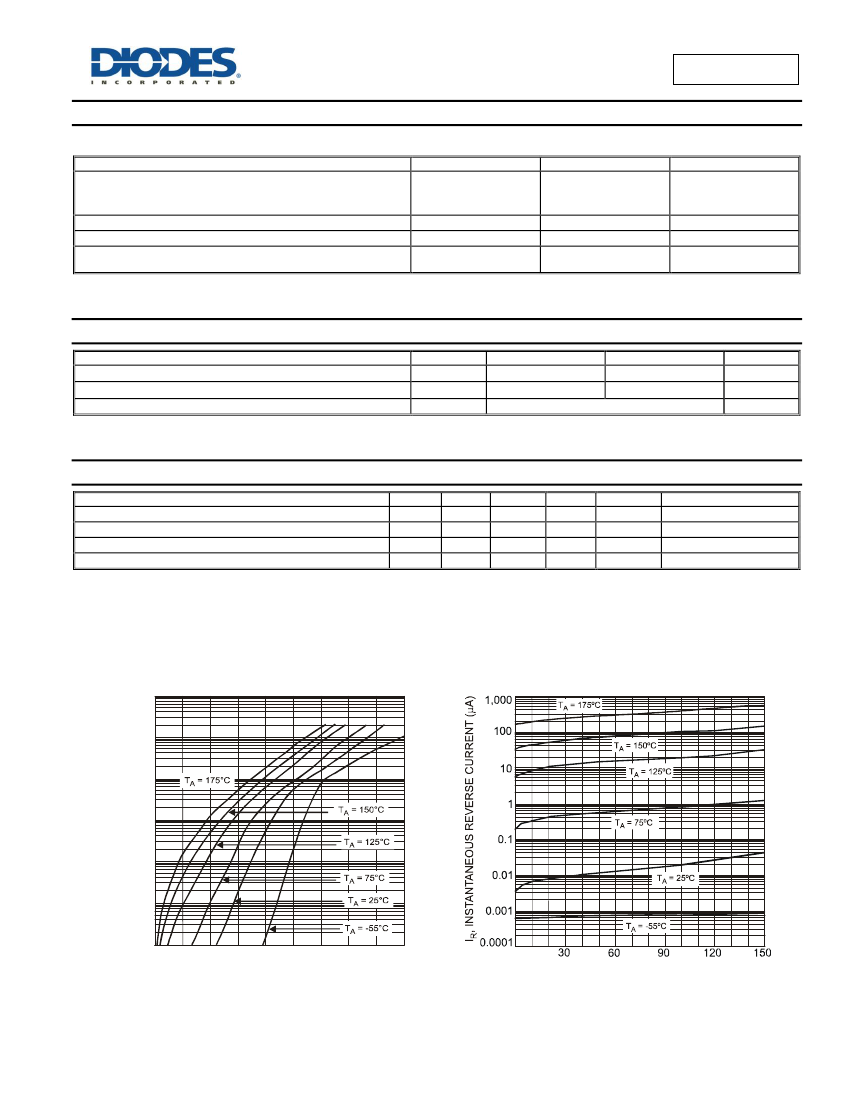

I
F
= 1.0A
V
R
= 150V, T
A
= +25C
V
R
= 5V
DC
, f = 1MHz
6. Theoretical R
JS
calculated from the top center of the die straight down to the PCB/cathode tab solder junction.
7. Part mounted on FR-4 board with 2 oz., minimum recommended copper pad layout, which can be found on our website at
http://www.diodes.com/package-outlines.html.
8. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
1
0.1
0.01
0.001
0.0001
0.00001
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
0
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
DFLS1150Q
Document number: DS38627 Rev. 2 - 2
2 of 4
www.diodes.com
January 2017
© Diodes Incorporated
DFLS1150Q
C
T
, TOTAL CAPACITANCE (pF)
0
10
15
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
5
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
D
PowerDI123
Dim
Min
Max
Typ
A
0.93
1.00
0.98
A3
0.15
0.25
0.20
b
0.85
1.25
1.00
b2
1.025 1.125 1.10
D
1.63
1.93
1.78
E
3.50
3.90
3.70
E1
2.60
3.00
2.80
L
0.40
0.50
0.45
L1
1.25
1.40
1.35
L3
0.125 0.275 0.20
All Dimensions in mm
E1
A3
A
L(2X)
L1
b
b2
L3
E
L3
DFLS1150Q
Document number: DS38627 Rev. 2 - 2
3 of 4
www.diodes.com
January 2017
© Diodes Incorporated
DFLS1150Q
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
X2
Dimensions
Y
Y1
X
G
X1
G
X
X1
X2
Y
Y1
Value
(in mm)
0.65
1.05
2.40
4.10
1.50
1.50
