DG384ABK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG384ABK

DG384ABK: DescriptionAnalog Switch ICs General Purpose CMOS Analog Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size296KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DG384ABK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG384ABK	-	-	View	Buy Now

DG384ABK Overview

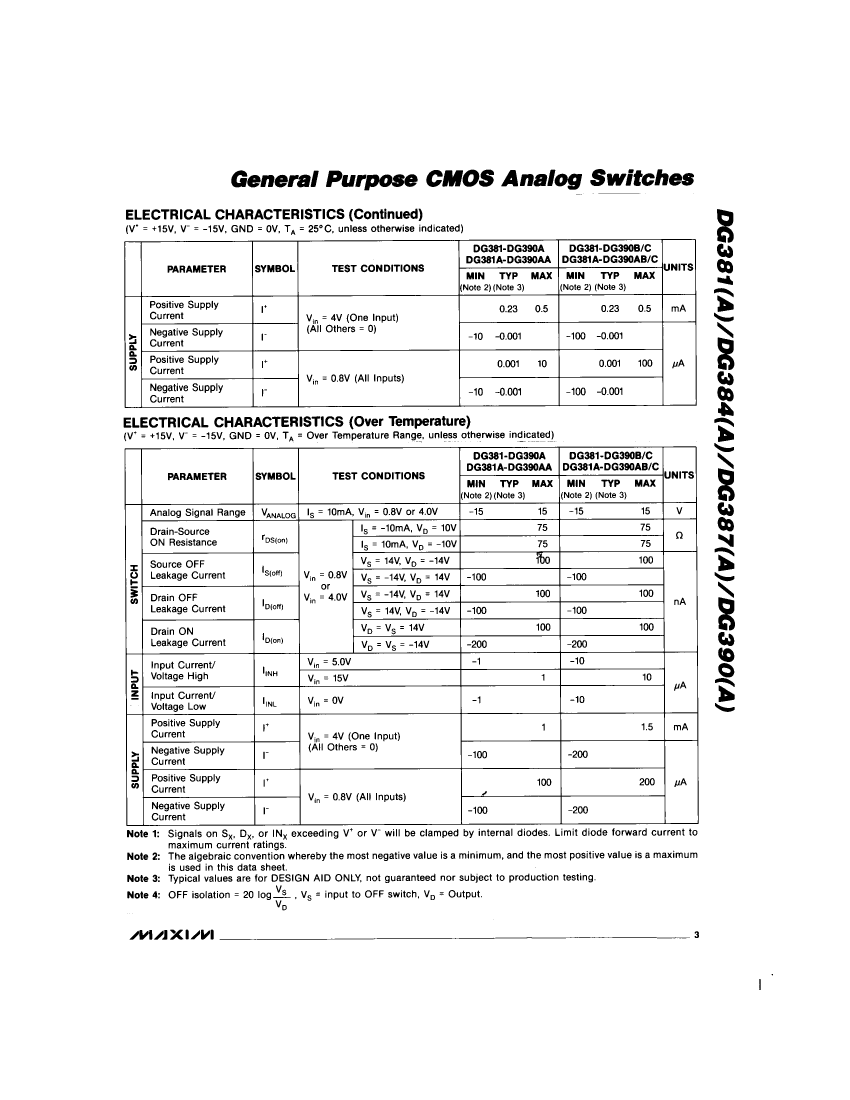

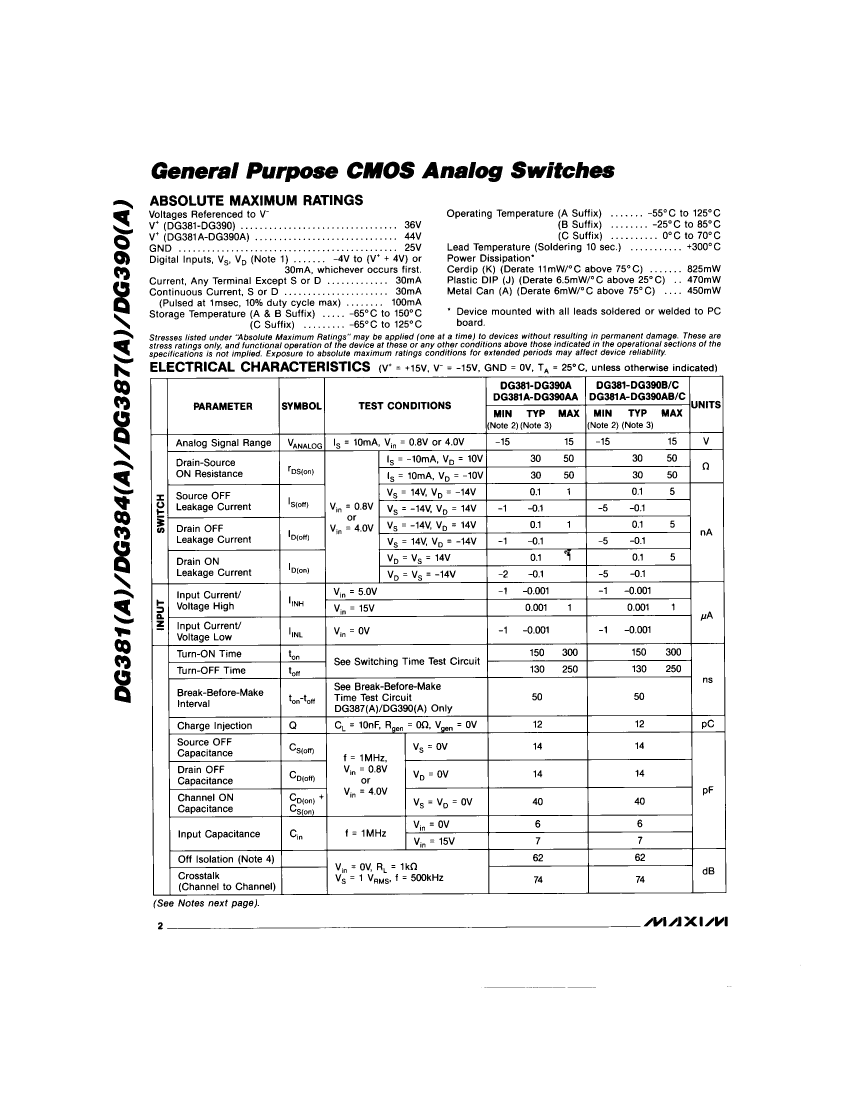

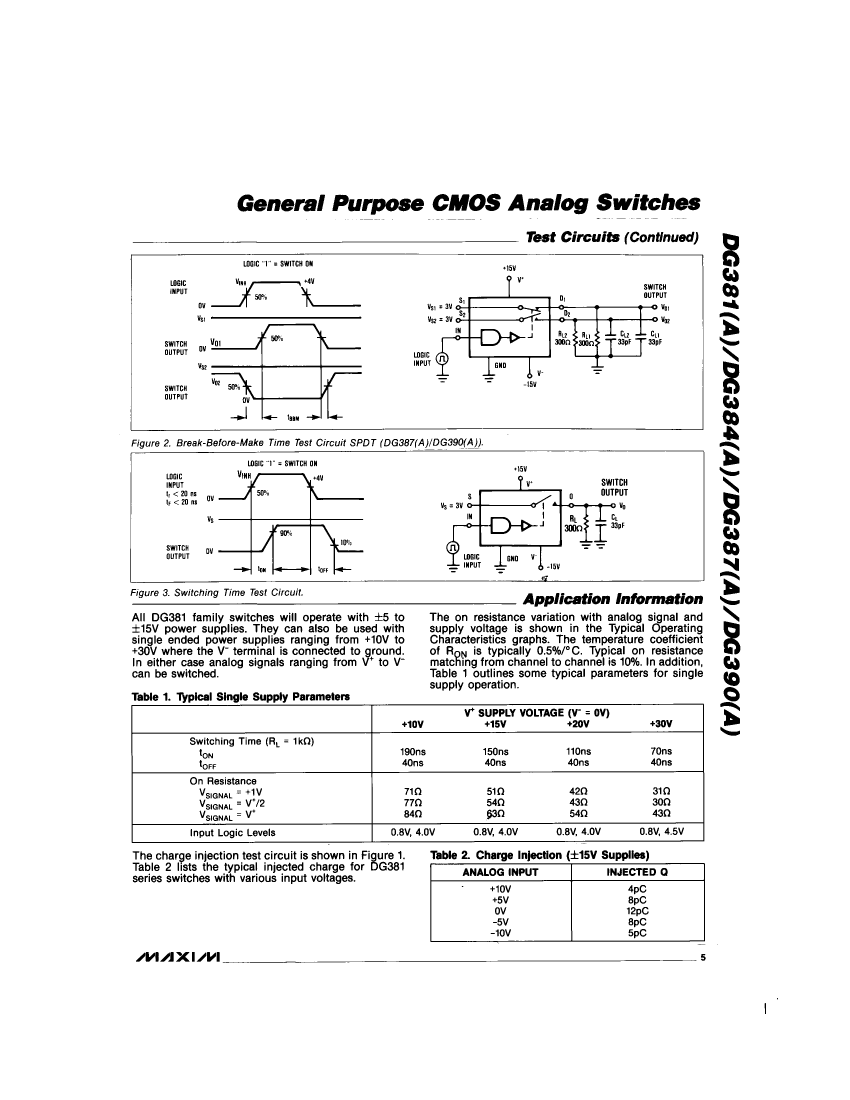

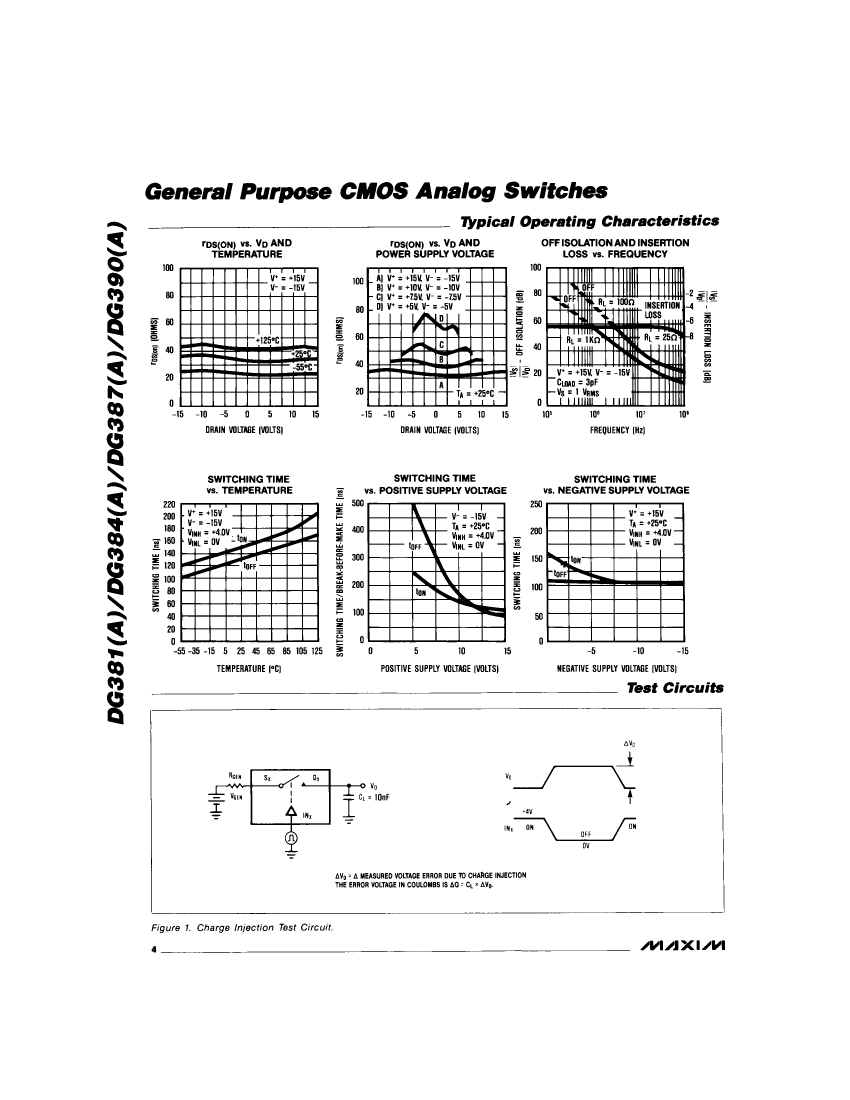

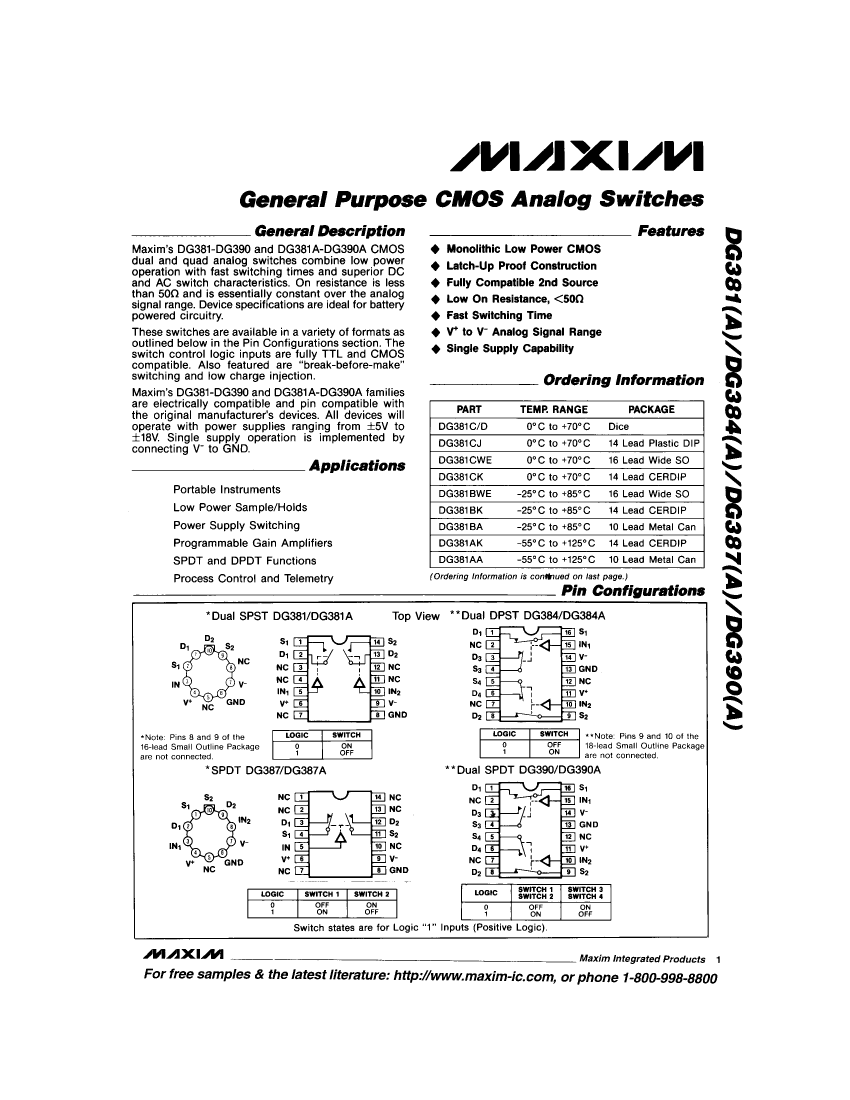

Analog Switch ICs General Purpose CMOS Analog Switch

DG384ABK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	2
Number of functions	2
Number of terminals	16
Nominal off-state isolation	62 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	250 ns
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	7.62 mm

Preview

Download Datasheet

View All

DG384ABK Related Products

	DG384ABK	DG387AAA	DG387ABA	DG381ACK	CPF-26342FT-1E36	DG384ACWE	DG384ACJ
Description	Analog Switch ICs General Purpose CMOS Analog Switch	Analog Switch ICs General Purpose CMOS Analog Switch	Analog Switch ICs General Purpose CMOS Analog Switch	Analog Switch ICs	Fixed Resistor, Metal Film, 2W, 63400ohm, 350V, 1% +/-Tol, -100,100ppm/Cel,	Analog Switch ICs	Analog Switch ICs Dual SPST General Purpose CMOS Analog Switch
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	compliant	not_compliant	not_compliant
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead
Maker	Maxim	Maxim	-	Maxim	-	Maxim	Maxim
Parts packaging code	DIP	-	BCY	DIP	-	SOIC	DIP
package instruction	DIP, DIP16,.3	-	METAL CAN-10	0.300 INCH, CERDIP-14	-	SO-16	DIP, DIP16,.3
Contacts	16	-	10	14	-	16	16
Analog Integrated Circuits - Other Types	DPST	SPDT	SPDT	-	-	DPST	DPST
JESD-30 code	R-GDIP-T16	-	O-MBCY-W10	-	-	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	-	-	e3	e0	e0
Humidity sensitivity level	1	-	1	-	-	1	1
Maximum negative supply voltage (Vsup)	-18 V	-	-18 V	-	-	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-5 V	-	-5 V	-	-	-5 V	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-	-	-15 V	-15 V
Number of channels	2	-	1	-	-	2	2
Number of functions	2	-	1	-	-	2	2
Number of terminals	16	-	10	-	2	16	16
Nominal off-state isolation	62 dB	-	62 dB	-	-	62 dB	62 dB
Maximum on-state resistance (Ron)	50 Ω	-	50 Ω	-	-	50 Ω	50 Ω
Maximum operating temperature	85 °C	-	85 °C	-	230 °C	70 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	-	METAL	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DIP16,.3	-	CAN10,.23	-	-	SOP16,.4	DIP16,.3
Package shape	RECTANGULAR	-	ROUND	-	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	CYLINDRICAL	-	Axial	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	240	-	-	240	240
power supply	+-15 V	-	+-15 V	-	-	+-15 V	+-15 V
Certification status	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	18 V	-	18 V	-	-	18 V	18 V
Minimum supply voltage (Vsup)	5 V	-	5 V	-	-	5 V	5 V
Nominal supply voltage (Vsup)	15 V	-	15 V	-	-	15 V	15 V
surface mount	NO	-	NO	-	-	YES	NO
Maximum disconnect time	250 ns	-	250 ns	-	-	250 ns	250 ns
Maximum connection time	300 ns	-	300 ns	-	-	300 ns	300 ns
switch	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	-	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	-	CMOS	-	METAL FILM	CMOS	CMOS
Temperature level	OTHER	-	OTHER	-	-	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Matte Tin (Sn)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE	-	WIRE	-	-	GULL WING	THROUGH-HOLE
Terminal location	DUAL	-	BOTTOM	-	-	DUAL	DUAL
Maximum time at peak reflow temperature	20	NOT SPECIFIED	20	-	-	20	20
