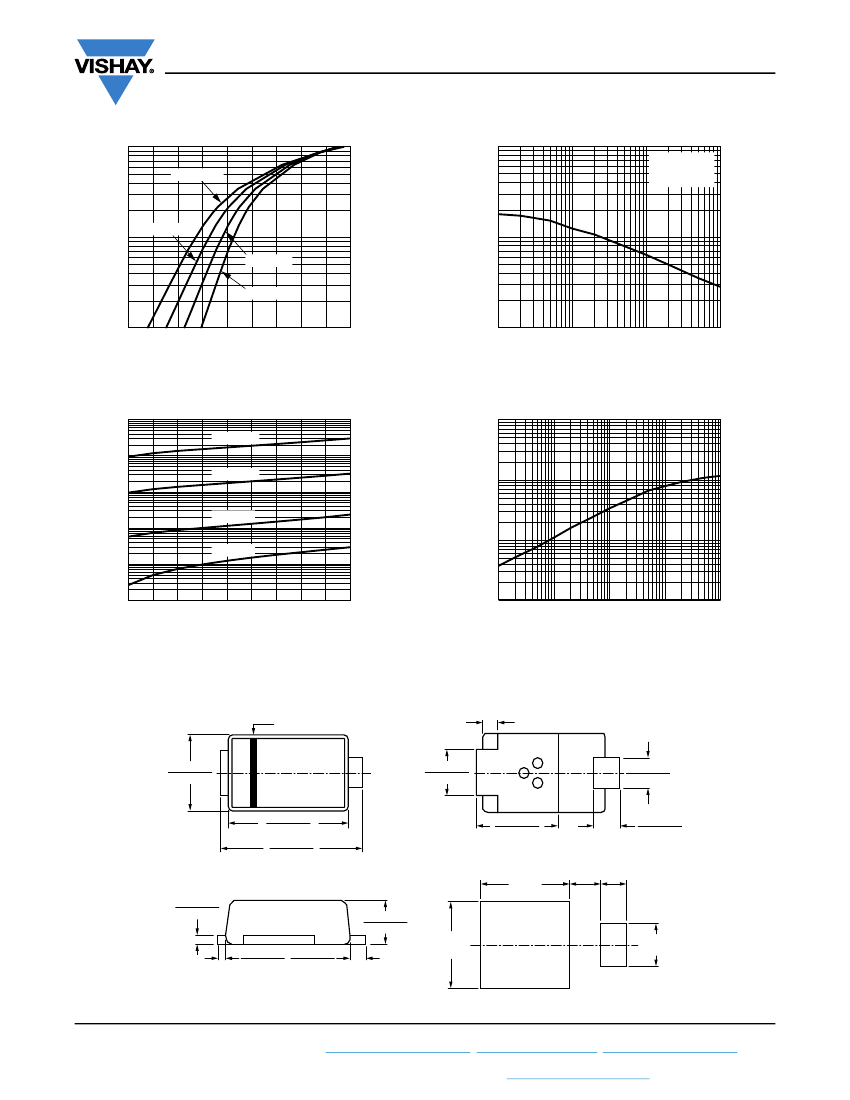

AS1PD, AS1PG, AS1PJ, AS1PK, AS1PM
www.vishay.com
Vishay General Semiconductor
Standard Avalanche Surface Mount Rectifiers
FEATURES
eSMP
®
Series
• Glass passivated pellet chip junction
• Very low profile - typical height of 1.0 mm
• Ideal for automated placement
• Controlled avalanche characteristics
• Low forward voltage drop
• Low leakage current
• Meets MSL level 1, per J-STD-020; LF maximum peak
of 260 °C
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Available
DO-220AA (SMP)
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
= 1.5 A
E
AS
T
J
max.
Package
Diode variations
1.5 A
200 V, 400 V, 600 V, 800 V,
1000 V
30 A
0.3 μA
0.89 V
20 mJ
175 °C
DO-220AA (SMP)
Single die
MECHANICAL DATA
Case:
DO-220AA (SMP)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant, and
automotive grade
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes cathode end
TYPICAL APPLICATIONS
For use in general purpose rectification of power supplies,
inverters, converters, and freewheeling diodes for
consumer, automotive, and telecommunication.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Max. repetitive peak reverse voltage
Max. DC forward current (see fig. 1)
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
Non-repetitive avalanche energy
at I
AS
= 1.0 A, T
A
= 25 °C
Operating junction and storage temperature range
Note
(1)
Mounted on 5 mm x 5 mm pad areas PCB
V
RRM
I
F (1)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
AS1PD
ASD
200
AS1PG
ASG
400
AS1PJ
ASJ
600
1.5
30
20
-55 to +175
AS1PK
ASK
800
AS1PM
ASM
1000
V
A
A
mJ
°C
UNIT
Revision: 19-Feb-16
Document Number: 89290
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AS1PD, AS1PG, AS1PJ, AS1PK, AS1PM
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
I
F
= 1.0 A
Instantaneous forward voltage
I
F
= 1.5 A
Reverse current
Typical reverse recovery time
Typical junction capacitance
Rated V
R
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
t
rr
C
J
V
F (1)
SYMBOL
TYP.
0.95
0.84
0.99
0.89
0.3
35
1.5
10.4
MAX.
-
-
1.15
1.0
5
100
-
-
μA
μs
pF
V
UNIT
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °c unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(1)
AS1PD
AS1PG
AS1PJ
115
15
AS1PK
AS1PM
UNIT
°C/W
Note
(1)
Unit mounted on PCB with 5 mm x 5 mm copper pad areas. Thermal resistance R
JA
- junction to ambient, R
JM
- junction to mount at the
terminal of cathode band
ORDERING INFORMATION
(Example)
PREFERRED P/N
AS1PJ-M3/84A
AS1PJ-M3/85A
AS1PJHM3/84A
(1)
AS1PJHM3/85A
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.024
0.024
0.024
0.024
PREFERRED PACKAGE CODE
84A
85A
84A
85A
BASE QUANTITY
3000
10 000
3000
10 000
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
C
unless otherwise noted)
1.6
1.8
D = 0.5 D = 0.8
1.4
1.6
D = 0.3
D = 0.2
D = 0.1
D = 1.0
Average Forward Rectified Current (A)
Average Power Loss (W)
1.2
1.0
0.8
0.6
Resistive or Inductive Load
0.4
0.2
0
95
105
115
125
135
145
155
165
175
T
M
Measured
at the Cathode Band Terminal
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
0.2
0.4
T
D = t
p
/T
0.6
0.8
1.0
1.2
1.4
t
p
1.6
1.8
T
M
- Mount Temperature (°C)
Average Forward Current (A)
Fig. 1 - Max. Forward Current Derating Curve
Fig. 2 - Forward Power Loss Characteristics
Revision: 19-Feb-16
Document Number: 89290
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AS1PD, AS1PG, AS1PJ, AS1PK, AS1PM
www.vishay.com
Vishay General Semiconductor
100
10
Instantaneous Forward Current (A)
1
T
A
= 125 °C
T
A
= 75 °C
Junction Capacitance (pF)
T
A
= 175 °C
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
10
T
A
= 25 °C
0.1
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
1000
T
A
= 175 °C
100
T
A
= 125 °C
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
1000
Transient Thermal Impedance (°C/W)
70
80
90
100
Instantaneous Reverse Current (μA)
100
10
0.01
10
20
30
40
50
60
1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-220AA (SMP)
Cathode Band
0.012 (0.30) REF.
0.086 (2.18)
0.074 (1.88)
0.053 (1.35)
0.041 (1.05)
0.036 (0.91)
0.024 (0.61)
0.142 (3.61)
0.126 (3.19)
0.158 (4.00)
0.146 (3.70)
0.103 (2.60)
0.087 (2.20)
0.032 (0.80)
0.016 (0.40)
0.105
(2.67)
0.013 (0.35)
0.004 (0.10)
0.045 (1.15)
0.033 (0.85)
0.012 (0.30) 0.018 (0.45)
0.000 (0.00) 0.006 (0.15)
0.100
(2.54)
0.025 0.030
(0.635) (0.762)
0.050
(1.27)
Revision: 19-Feb-16
Document Number: 89290
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
