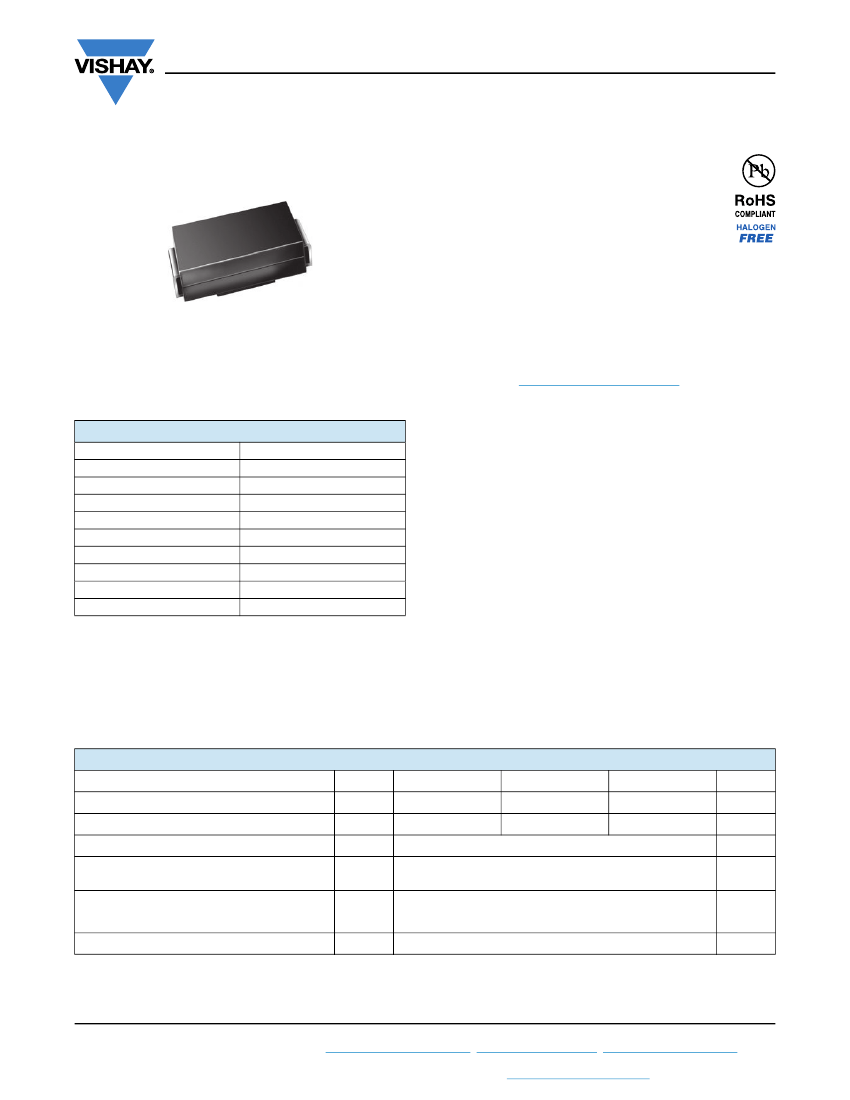

BYG20D, BYG20G, BYG20J
www.vishay.com
Vishay General Semiconductor
Ultrafast Avalanche SMD Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Low reverse current
Available
• Soft recovery characteristics
• Ultrafast reverse recovery time
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
SMA
(DO-214AC)
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
t
rr
E
R
T
J
max.
Package
Diode variations
1.5 A
200 V, 400 V, 600 V
30 A
1.0 μA
1.4 V
75 ns
20 mJ
150 °C
SMA (DO-214AC)
Single
For use in high frequency rectification of power supply,
inverters, converters, and freewheeling diodes for
consumer, automotive, and telecommunication.
MECHANICAL DATA
Case:
SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,...)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, HM3 suffix meet JESD 201 class 2 whisker test
Polarity:
Color band denotes the cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse
voltage
Average forward current
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
Pulse energy in avalanche mode,
non repetitive (inductive load switch off)
I
(BR)R
= 1 A, T
J
= 25 °C
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
E
R
T
J
, T
STG
SYMBOL
BYG20D
BYG20D
200
BYG20G
BYG20G
400
1.5
30
BYG20J
BYG20J
600
V
A
A
UNIT
20
-55 to +150
mJ
°C
Revision: 17-Aug-17
Document Number: 88958
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG20D, BYG20G, BYG20J
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward
voltage
Maximum DC reverse current
Maximum reverse recovery
time
TEST CONDITIONS
I
F
= 1 A
I
F
= 1.5 A
V
R
= V
RRM
T
J
= 25 °C
T
J
= 25 °C
T
J
= 100 °C
SYMBOL
V
F (1)
BYG20D
BYG20G
1.3
1.4
1
10
75
BYG20J
UNIT
V
I
R
t
rr
µA
ns
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to lead, T
L
= const.
SYMBOL
R
JL
R
JA
(1)
Typical thermal resistance, junction to ambient
R
JA
(2)
R
JA
(3)
Notes
(1)
Mounted on epoxy-glass hard tissue
(2)
Mounted on epoxy-glass hard tissue, 50 mm
2
35 μm Cu
(3)
Mounted on Al-oxide-ceramic (Al O ), 50 mm
2
35 μm Cu
2 3
BYG20D
BYG20G
25
150
125
100
°C/W
BYG20J
UNIT
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
BYG20M-E3/TR
BYG20M-E3/TR3
BYG20MHE3_A/H
(1)
BYG20MHE3_A/I
(1)
BYG20M-M3/TR
BYG20M-M3/TR3
BYG20MHM3_A/H
(1)
BYG20MHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
TR
TR3
H
I
TR
TR3
H
I
BASE QUANTITY
1800
7500
1800
7500
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 17-Aug-17
Document Number: 88958
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG20D, BYG20G, BYG20J
www.vishay.com
Vishay General Semiconductor

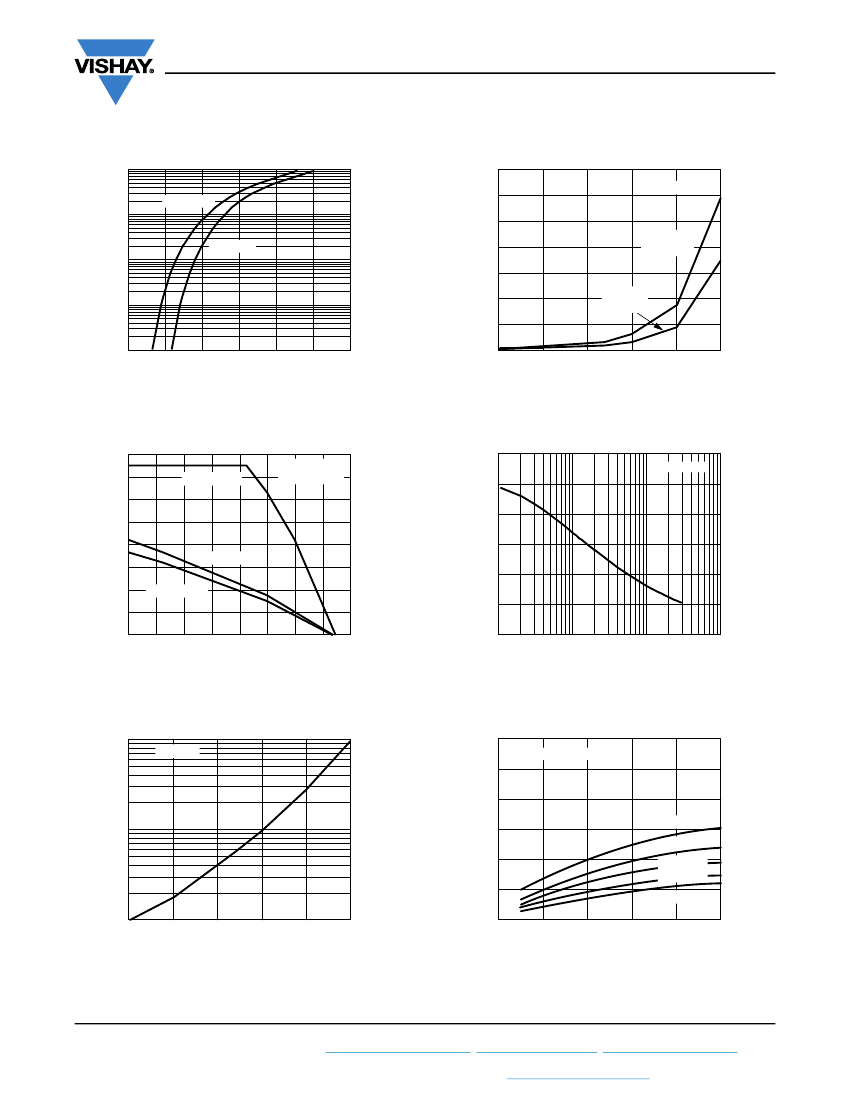

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
10
70
Reverse Power Dissipation (mW)
T
J
= 150 °C
60
50
40
30
20
10
0
P
R
- Limit
at
80
%
V
R
V
R
=
V
RRM
Forward Current (A)
1
T
J
= 25 °C
0.1
P
R
- Limit
at 100 %
V
R
0.01
0.001
0.0
0.5
1.0
1.5
2.0
2.5
3.0
25
50
75
100
125
150
Forward
Voltage
(V)
Junction Temperature (°C)
Fig. 1 - Forward Current vs. Forward Voltage
Fig. 4 - Max. Reverse Power Dissipation vs. Junction Temperature
1.6
1.4
1.2
1.0
0.8
R
θJA
≤
125 K/W
0.6
0.4
0.2
0
0
20
40
60
80
100
120
140
160
R
θJA
≤
150 K/W
R
θJA
≤
25 K/W
V
R
=
V
RRM
Half Sine-Wave
30
f = 1 MHz
25
Average Forward Current (A)
Diode Capacitance (pF)
20
15
10
5
0
0.1
1
10
100
Ambient Temperature (°C)
Reverse
Voltage
(V)
Fig. 2 - Max. Average Forward Current vs. Ambient Temperature
Fig. 5 - Diode Capacitance vs. Reverse Voltage
100
V
R
=
V
RRM
600
I
R
= 0.5 A, i
R
= 0.125 A
Reverse Recovery Time (ns)
500
Reverse Current (µA)
400
T
A
= 125 °C
T
A
= 100 °C
200
T
A
= 75 °C
T
A
= 50 °C
100
T
A
= 25 °C
10
300
1
25
50
75
100
125
150
0
0
0.2
0.4
0.6
0.8
1.0
Junction Temperature (°C)
Forward Current (A)
Fig. 3 - Reverse Current vs. Junction Temperature
Fig. 6 - Reverse Recovery Time vs. Forward Current
Revision: 17-Aug-17
Document Number: 88958
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG20D, BYG20G, BYG20J
www.vishay.com
Vishay General Semiconductor
Thermal Resistance for Pulse Cond. (K/W)
1000
200
I
R
= 0.5 A, i
R
= 0.125 A
Reverse Recovery Charge (nC)
150
T
A
= 125 °C
T
A
= 100 °C
100
T
A
= 75 °C
50
T
A
= 50 °C
T
A
= 25 °C
0
0
0.2
0.4
0.6
0.8
1.0
125 K/W DC
100
t
p
/T = 0.5
t
p
/T = 0.2
t
p
/T = 0.1
10
t
p
/T = 0.05
t
p
/T = 0.02
Single Pulse
t
p
/T = 0.01
1
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
Forward Current (A)
Pulse Length (s)
Fig. 7 - Reverse Recovery Charge vs. Forward Current
Fig. 8 - Thermal Response
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMA
(DO-214AC)
Cathode Band
Mounting Pad Layout
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.066 (1.68)
MIN.
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 17-Aug-17
Document Number: 88958
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
