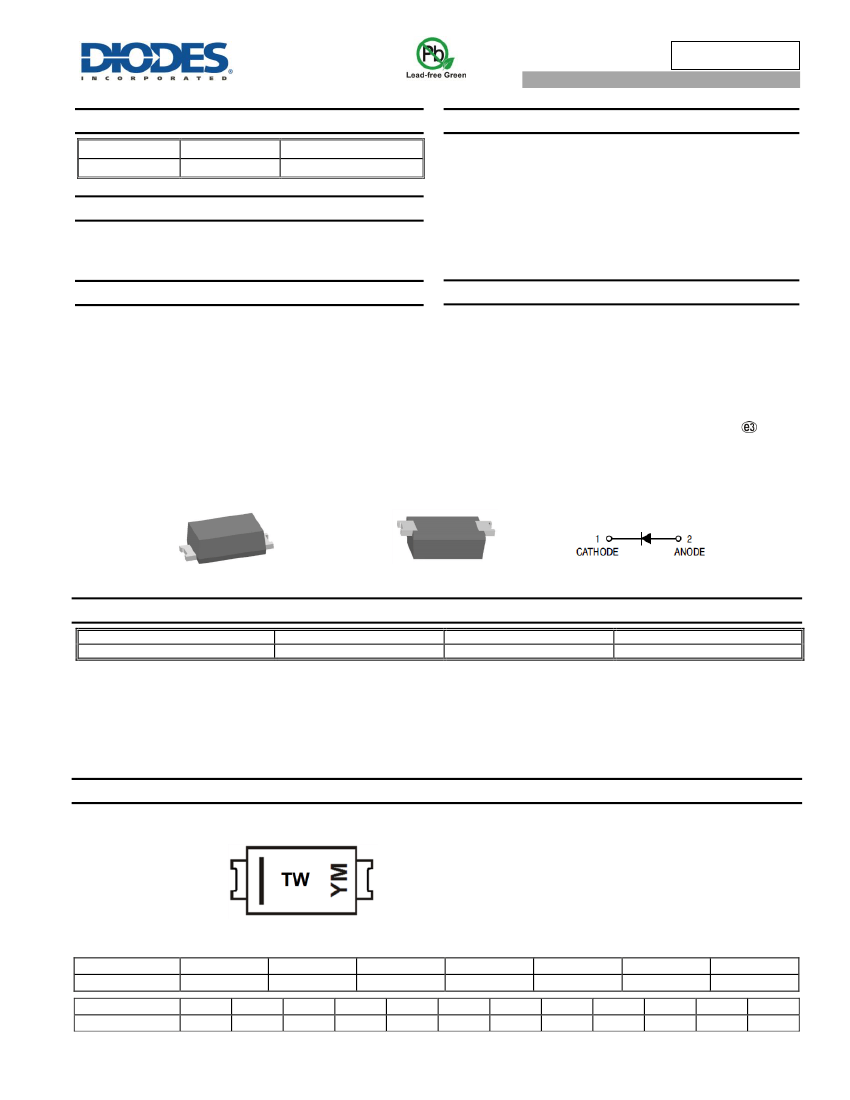

BAV116HWFQ
SURFACE MOUNT LOW LEAKAGE DIODE
Product Summary
(@T
A
= +25°C)
V
R
85V
I
R
5nA
t
rr
3µs
Features
Ultra Low Leakage Current (5nA @ V
R
= 75V)
Flat Leadframe Design for Improved Thermal Transfer
Low Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
ADVANCED INFORMATION
Description
The BAV116HWFQ is an 85V, 5nA and 3µs switching diode that is
optimized for ultra-low leakage current.
Applications
It is ideally suited for use in applications such as the following:
Mobile
Portable Electronics
Consumer Electronics
Automotive
Mechanical Data
SOD123F
Case: SOD123F
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Bar
Terminals: Matte Tin Finish Annealed over Copper Alloy
Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.018 grams (Approximate)
Top View
Bottom View
Ordering Information
(Note 5)
Product
BAV116HWFQ-7
Notes:
Compliance
Automotive
Case
SOD123F
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4.
Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOD123F
TW = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex.: C = 2015)
M = Month (ex: O = October)
Bar Denotes Cathode Side
Date Code Key
Year
Code
Month
Code
2015
C
Jan
1
Feb
2
2016
D
Mar
3
Apr
4
2017
E
May
5
Jun
6
2018
F
Jul
7
2019
G
Aug
8
Sep
9
2020
H
Oct
O
Nov
N
2021
I
Dec
D
BAV116HWFQ
Document number: 38274 Rev. 1 - 2
1 of 5
www.diodes.com
September 2015
© Diodes Incorporated
BAV116HWFQ
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
@ t = 1.0µs
@ t = 1.0ms
@ t = 1.0s
I
FSM
Value
85
60
215
500
4.0
1.0
0.5
Unit
V
V
mA
mA
A
ADVANCED INFORMATION
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Thermal Resistance Junction to Solder Point
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
R
θJSP
T
J
, T
STG
Value
375
330
70
-65 to +150
Unit
mW
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Symbol
V
(BR)R
Min
85
Typ
Max
0.9
1.0
1.1
1.25
5.0
80
3.0
Unit
V
Test Condition
I
R
= 100µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
V
F
V
Leakage Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
2
nA
nA
pF
µs
6. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
7. Short duration pulse test used to minimize self-heating effect.
BAV116HWFQ
Document number: 38274 Rev. 1 - 2
2 of 5
www.diodes.com
September 2015
© Diodes Incorporated
BAV116HWFQ
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
400
350
P
D
, POWER DISSIPATI ON (mW)
Note 5
Note 6
1000
100
T
A
=150°C
300
250
200
150
100
50
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)

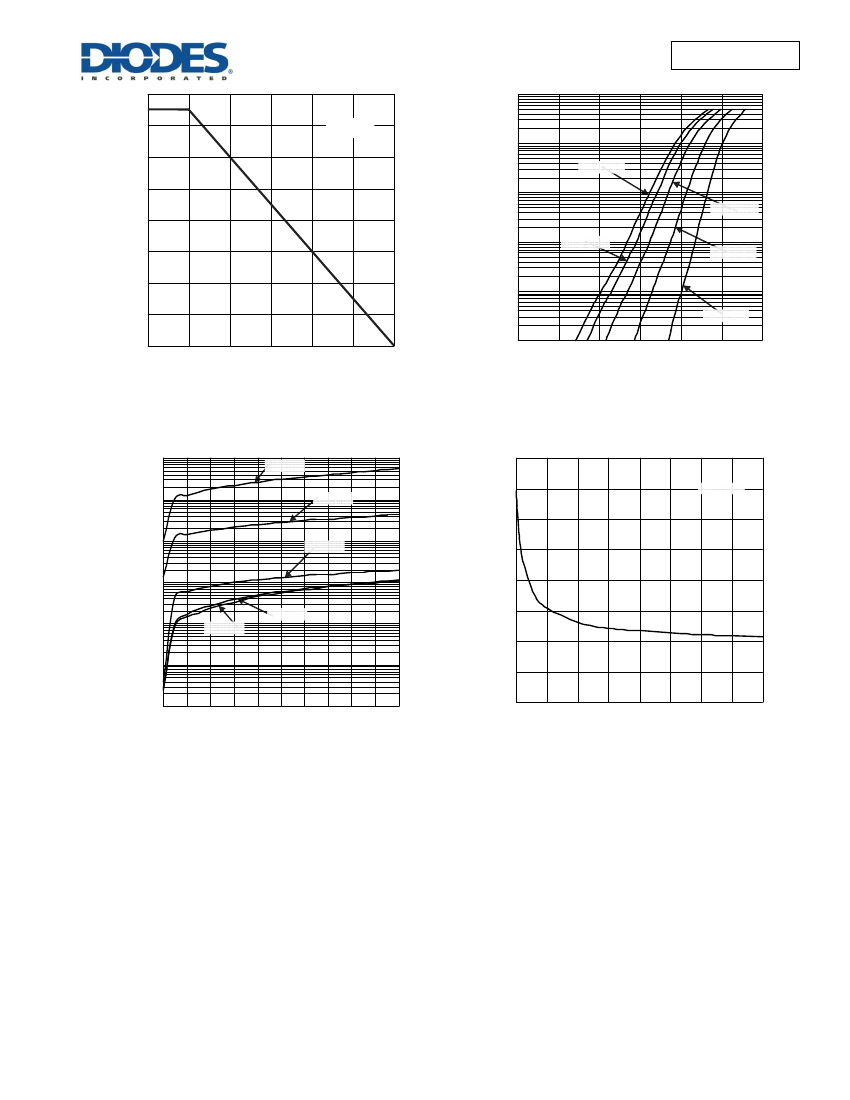

Figure 1 Power Derating Curve, Total Package
150
ADVANCED INFORMATION
10
T
A
=85°C
1
T
A
=125°C
T
A
=25°C
0
.
1
T
A
=-55°C
0
.
01
0
200
400
600
800
1000
1200
I
F
INSTANTANEOUS FORWARD VOLTAGE (mV)
Figure 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT(pA)
100,000
T
A
=150°C
1.6
1.4
f = 1MHz
C
T
, TOTAL CAPACITANCE (pF)
10,000
T
A
=125°C
1.2
1
0.8
0.6
0.4
0.2
0
1,000
T
A
=85°C
100
T
A
=25°C
T
A
=-55°C
10
1
0.1
0
10
20
30
40
50
60
70
80
90 100
0
5
10
15
20
25
30
35
40
V
R,
INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Total Capacitance vs. Reverse Voltage
BAV116HWFQ
Document number: 38274 Rev. 1 - 2
3 of 5
www.diodes.com
September 2015
© Diodes Incorporated
BAV116HWFQ
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
SOD123F (Type B)
ADVANCED INFORMATION
L
SOD123F (Type B)
Dim Min Max
Typ
A
0.81 1.15
—
b
0.80 1.35
—
c
0.05 0.30
—
D
1.70 1.90
1.80
E
2.60 2.80
2.70
He
3.30 3.70
3.50
L
0.35 0.85
—
All Dimensions in mm
D
b
E
c
He
A
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOD123F (Type B)
X
Dimensions
Y
G
X
X1
Y
Value
(in mm)
1.90
1.00
3.90
1.50
G
X1
BAV116HWFQ
Document number: 38274 Rev. 1 - 2
4 of 5
www.diodes.com
September 2015
© Diodes Incorporated
BAV116HWFQ
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
ADVANCED INFORMATION
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
BAV116HWFQ
Document number: 38274 Rev. 1 - 2
5 of 5
www.diodes.com
September 2015
© Diodes Incorporated
