PI6C4511WEX Overview

Phase Locked Loops - PLL Clock Multiplier

PI6C4511WEX Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Diodes Incorporated
Product Category	Phase Locked Loops - PLL
RoHS	Details
Type	PLL Clock Multiplier
Number of Circuits	1
Maximum Input Frequency	50 MHz
Minimum Input Frequency	4 MHz
Output Frequency Range	200 MHz
Supply Voltage - Max	5.5 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	SOIC-8
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Height	1.5 mm
Length	5 mm
Width	3.99 mm
Operating Supply Voltage	3.3 V, 5 V
Factory Pack Quantity	3000

Preview

Download Datasheet

View All

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI6C2504A

Phase-Locked Loop Clock Driver

with 4 Clock Outputs

Product Features

•

High-Performance Phase-Locked-Loop Clock

Distribution for Networking

•

Registered DIMM Synchronous DRAM modules

for server/workstation/PC applications

•

Allows Clock Input to have Spread Spectrum

modulation for EMI reduction

•

Zero Input-to-Output delay

•

Low jitter: Cycle-to-Cycle jitter ±75ps max.

•

On-chip series damping resistor at clock output

drivers for low noise and EMI reduction

•

Operates at 3.3V V

•

Wide range of Clock Frequencies 80 to 134 MHz

•

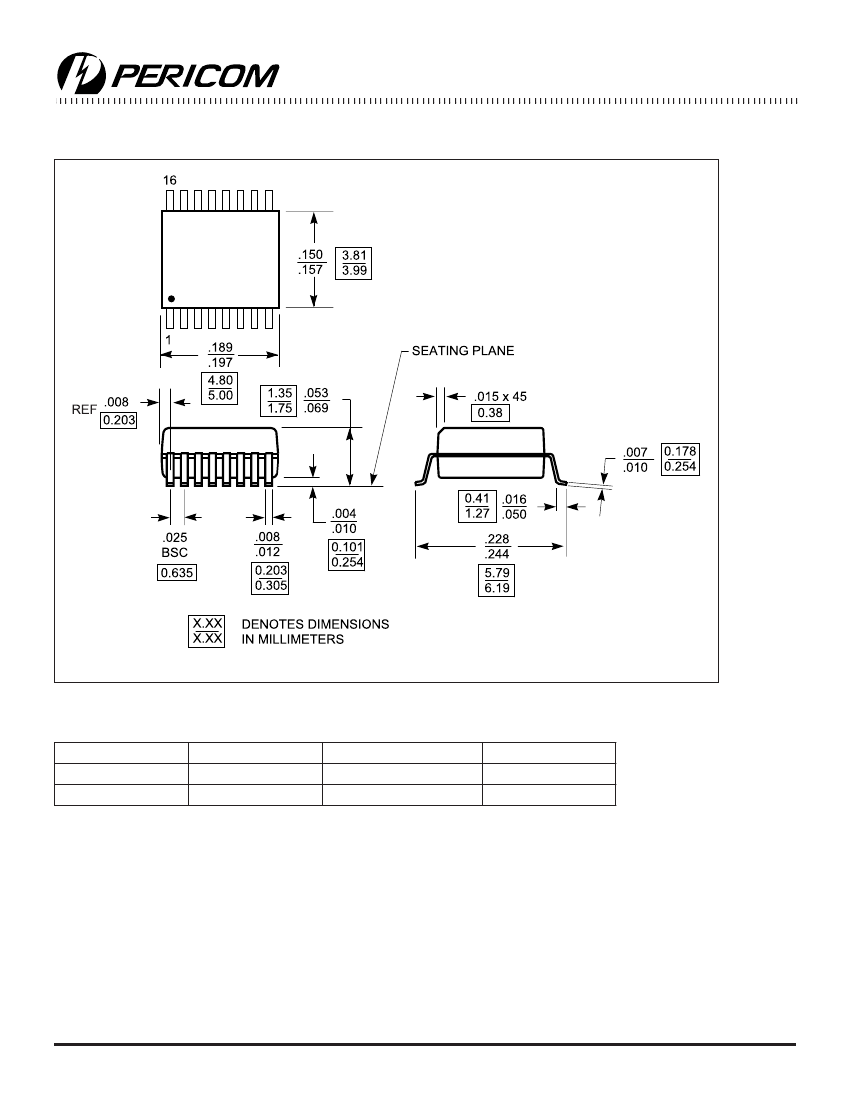

Package: Plastic 16-pin QSOP Package (Q)

Plastic 16-pin QSOP Package (QE) Pb-free

Product Description

The PI6C2504A features a low-skew, low-jitter, phase-locked loop

(PLL) clock driver, distributing high-frequency clock signals for

SDRAM and server applications. By connecting the feedback

FB_OUT output to the feedback FB_IN input, the propagation

delay from the CLK_IN input to any clock output will be nearly zero.

Logic Block Diagram

PLL

FB_IN

AVCC

FB_OUT

Y[0:3]

Product Pin Configuration

AGND

VCC

GND

CLK_IN

AVCC

GND

VCC

FB_IN

CLK_IN

16-Pin

Functional Table

Inputs

Y[0:3]

CLK_IN

Outputs

FB_OUT

CLK_IN

VCC

FB_OUT

PS8501A

09/19/05
