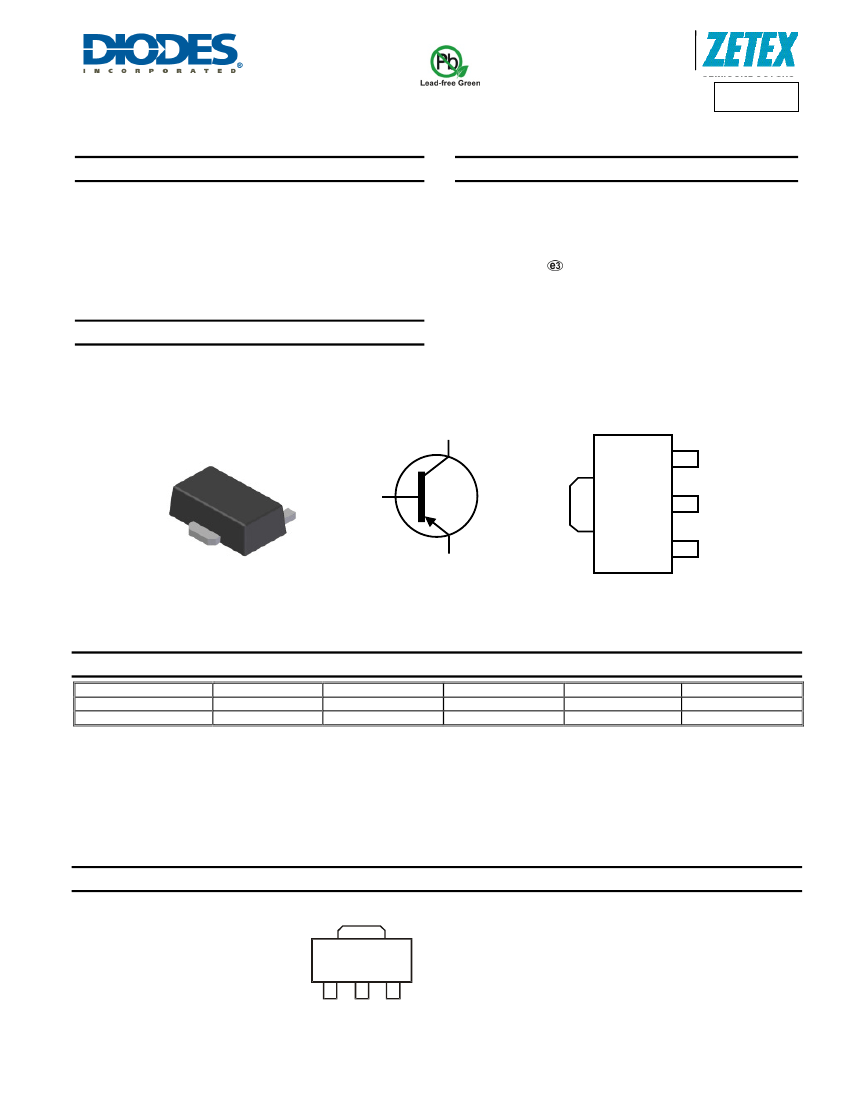

BSR33
80V PNP MEDIUM POWER TRANSISTOR IN SOT89
Features
BV
CEO
> -80V
I
C
= -1A High Continuous Current
Low saturation voltage V
CE(sat)
< -250mV @ -150mA
Complementary type BSR43
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case: SOT89
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish, Solderable per MIL-STD-202,
Method 208
Weight: 0.052 grams (Approximate)
Application
Load management functions
Solenoid, relay and actuator drivers
DC – DC modules
SOT89
C
E
B
C
C
B
Top View
Pin-Out
E
Top View
Device Symbol
Ordering Information
(Notes 4 & 5)
Product
BSR33TA
BSR33QTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
BR4
BR4
Reel size (inches)
7
7
Tape width (mm)
12
12
Quantity per reel
1,000
1,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q10x qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
BR4
BR4 = Product Type Marking Code
BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
1 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BSR33
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Peak Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
Value
-90
-80
-5
-1
-2
-200
Unit
V
V
V
A
A
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
(Note 6)
(Note 7)
(Note 8)
(Note 6)
(Note 7)
(Note 8)
(Note 9)
Symbol
P
D
Value
1
1.5
2.1
125
83
60
13
-65 to +150
Unit
W
Thermal Resistance, Junction to Ambient Air
Thermal Resistance, Junction to Lead
Operating and Storage Temperature Range
R
Θ
JA
R
Θ
JL
T
J,
T
STG
°C/W
°C/W
°C
ESD Ratings
(Note 10)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
6. For a device mounted with the exposed collector pad on 15mm x 15mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured
under still air conditions whilst operating in a steady-state.
7. Same as note (6), except the device is mounted on 25mm x 25mm 1oz copper.
8. Same as note (6), except the device is mounted on 50mm x 50mm 1oz copper.
9. Thermal resistance from junction to solder-point (on the exposed collector pad).
10. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
2 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BSR33

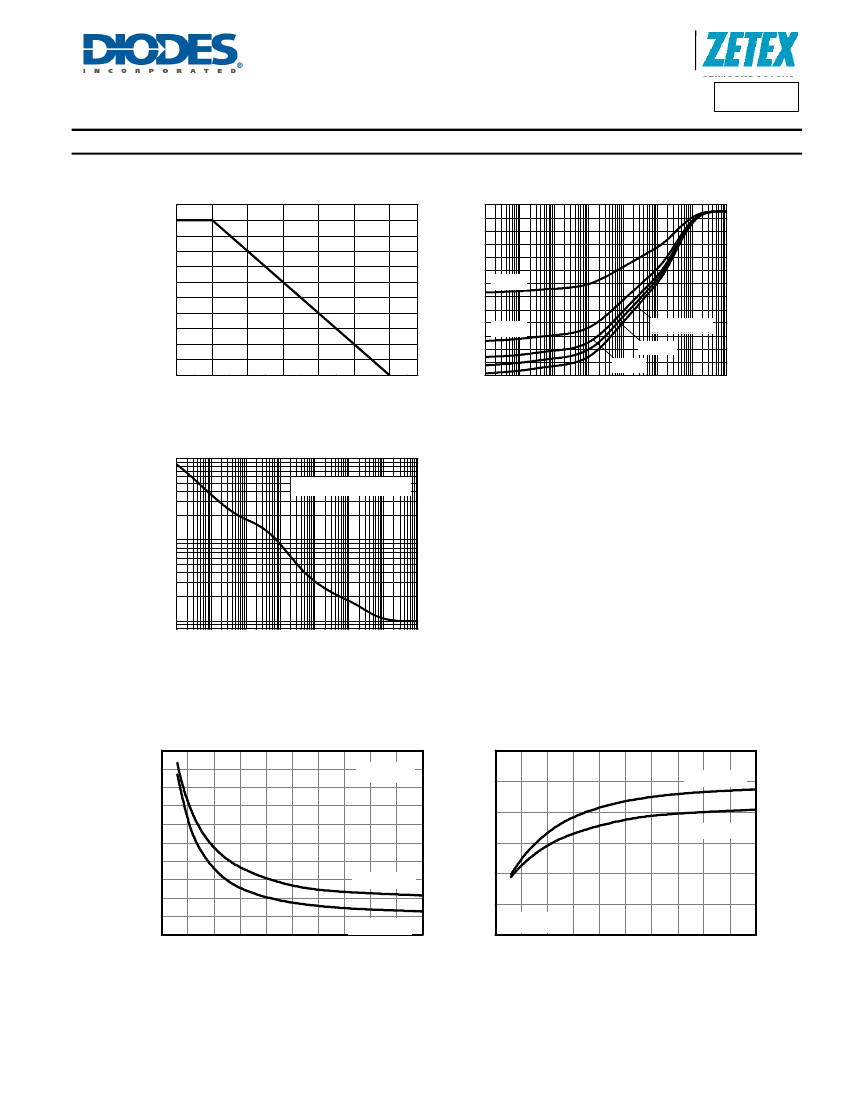

Thermal Characteristics
and Derating Information
Max Power Dissipation (W)
Thermal Resistance (°C/W)
1.0
0.8
0.6
0.4
0.2
0.0
0
25
50
75
100
125
150
120
100
80
D=0.5
60
40
20
0
100µ
1m
10m 100m
1
D=0.2
D=0.1
Single Pulse
D=0.05
10
100
1k
Temperature (°C)
Pulse Width (s)
Derating Curve
100
Transient Thermal Impedance
Max Power Dissipation (W)
Single Pulse. T
amb
=25°C
10
1
100µ
1m
10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Power Dissipation
Thermal Resistance (°C/W)
140.0
3
Maximum Power (W)
120.0
100.0
80.0
T
amb
=25°C
2oz copper
2
1oz copper
1oz copper
1
60.0
40.0
2oz copper
0
500
Copper Area (sqmm)
1000
1500
2000
2500
0
T
amb
=25°C
0
500
Copper Area (sqmm)
1000
1500
2000
2500
BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
3 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BSR33
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 11)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
DC current transfer Static ratio (Note 11)
Collector-Emitter Saturation Voltage (Note 11)
Base-Emitter Saturation Voltage (Note 11)
Transitional Frequency
Output capacitance
Input Capacitance
Turn-On Time
Turn-Off Time
Note:
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
h
FE
V
CE(sat)
V
BE(sat)
f
T
C
obo
C
ibo
T
on
T
off
Min
-90
-80
-5
–
30
100
50
–
–
Typ.
–
–
–
–
–
–
–
–
–
Max
–
–
–
-100
-50
–
Unit
V
V
V
nA
µA
–
V
V
MHz
pF
pF
ns
ns
300
–
-0.25
-0.5
-1.0
-1.2
–
20
120
500
650
–
100
–
–
–
–
–
–
–
–
–
–
Test Condition
I
C
= -100μA
I
C
= -10mA
I
E
= -100μA
V
CB
= -60V
V
CB
= -60V, T
J
= +150°C
I
C
= -100µA, V
CE
= -5V
I
C
= -100mA, V
CE
= -5V
I
C
= -500mA, V
CE
= -5V
I
C
= -150mA, I
B
= -15mA
I
C
= -500mA, I
B
= -50mA
I
C
= -150mA, I
B
= -15mA
I
C
= -500mA, I
B
= -50mA
I
C
= -50mA, V
CE
= -10V
f = 35MHz
V
CB
= -10V, f = 1MHz
V
CB
= -0.5V, f = 1MHZ
V
CC
=-20V, I
C
= -100mA
I
B1
=I
B2
= -5mA
11. Measured under pulsed conditions. Pulse width
≤
300μs. Duty cycle
≤
2%.
BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
4 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BSR33

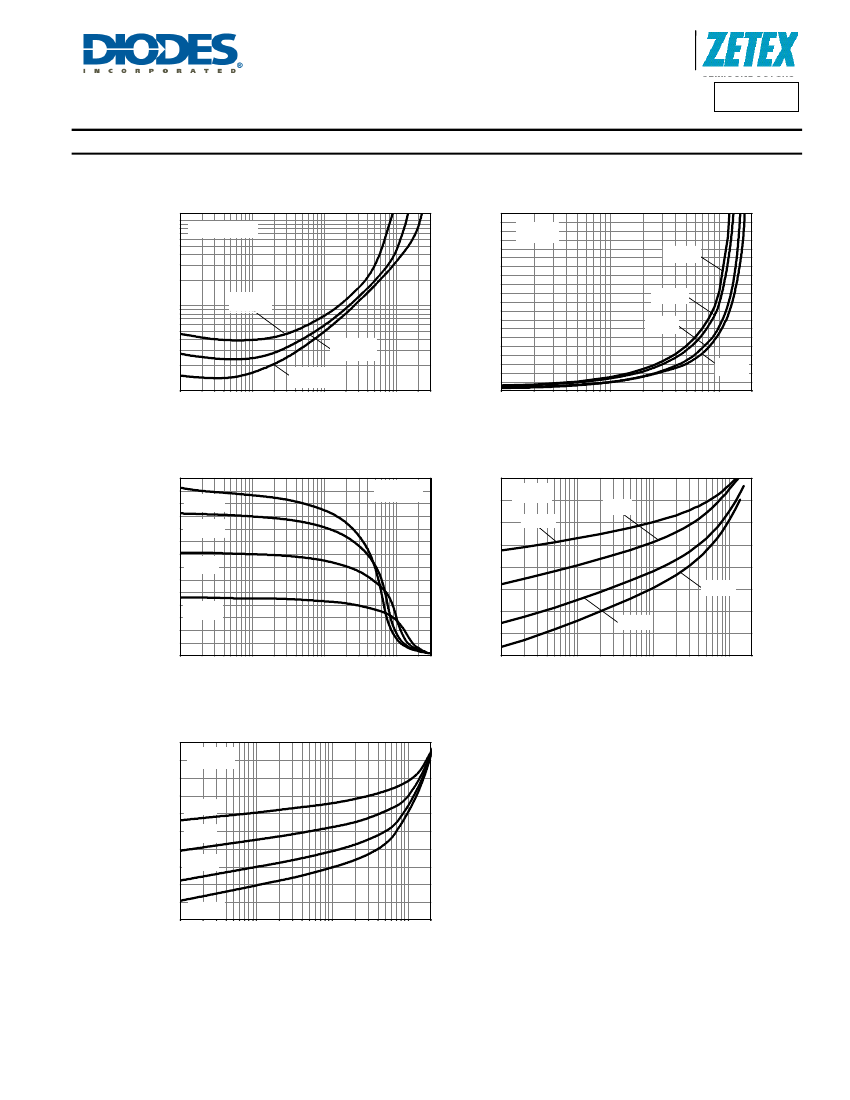

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
1
Tamb=25°C
100m
I
C
/I
B
=20
I
C
/I
B
=10
10m
1m
I
C
/I
B
=5
-I
C
Collector Current (A)
10m
100m
1
1.0
0.9
I
C
/I
B
=10
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
10m
150°C
-V
CE(SAT)
(V)
-V
CE(SAT)
(V)
100°C
25°C
-55°C
V
CE(SAT)
v I
C
-I
C
Collector Current (A)
100m
1
V
CE(SAT)
v I
C
300
150°C
100°C
25°C
V
CE
=-5V
1.0
I
C
/I
B
=10
25°C
-55°C
Typical Gain (h
FE
)
250
200
150
100
50
0
1m
-V
BE(SAT)
(V)
0.8
0.6
100°C
150°C
-55°C
0.4
10m
100m
1
1m
10m
-I
C
Collector Current (A)
h
FE
v I
C
-I
C
Collector Current (A)
100m
1
V
BE(SAT)
v I
C
1.2
V
CE
=-5V
1.0
-V
BE(ON)
(V)
0.8
0.6
-55°C
25°C
100°C
0.4
0.2
1m
150°C
-I
C
Collector Current (A)
10m
100m
1
V
BE(ON)
v I
C
BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
5 of 7
www.diodes.com
November 2013
© Diodes Incorporated
