BR25L160F-WE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR25L160F-WE2

BR25L160F-WE2: DescriptionEEPROM SPI 16K BIT; Categorystorage storage; File Size731KB，20 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR25L160F-WE2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR25L160F-WE2	-	-	View	Buy Now

BR25L160F-WE2 Overview

EEPROM SPI 16K BIT

BR25L160F-WE2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum clock frequency (fCLK)	5 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e2
length	5 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Serial bus type	SPI
Maximum standby current	0.000002 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE/SOFTWARE
Base Number Matches	1

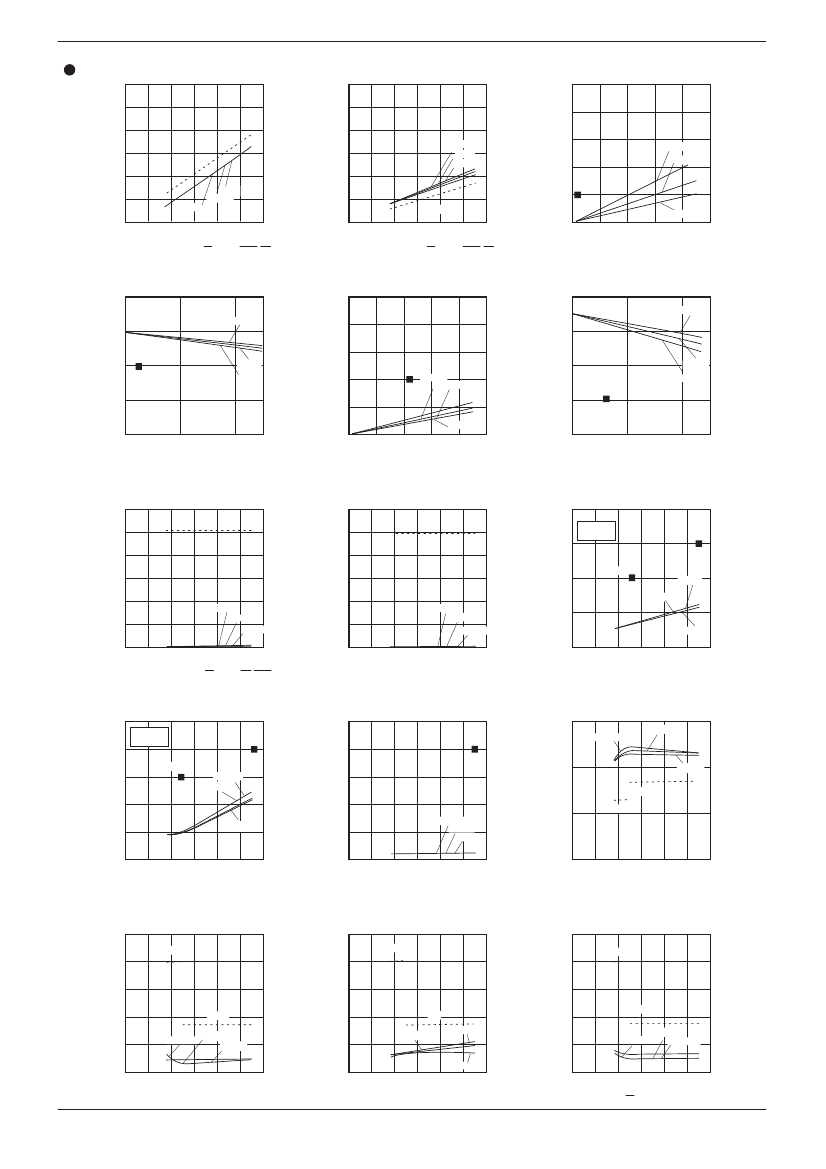

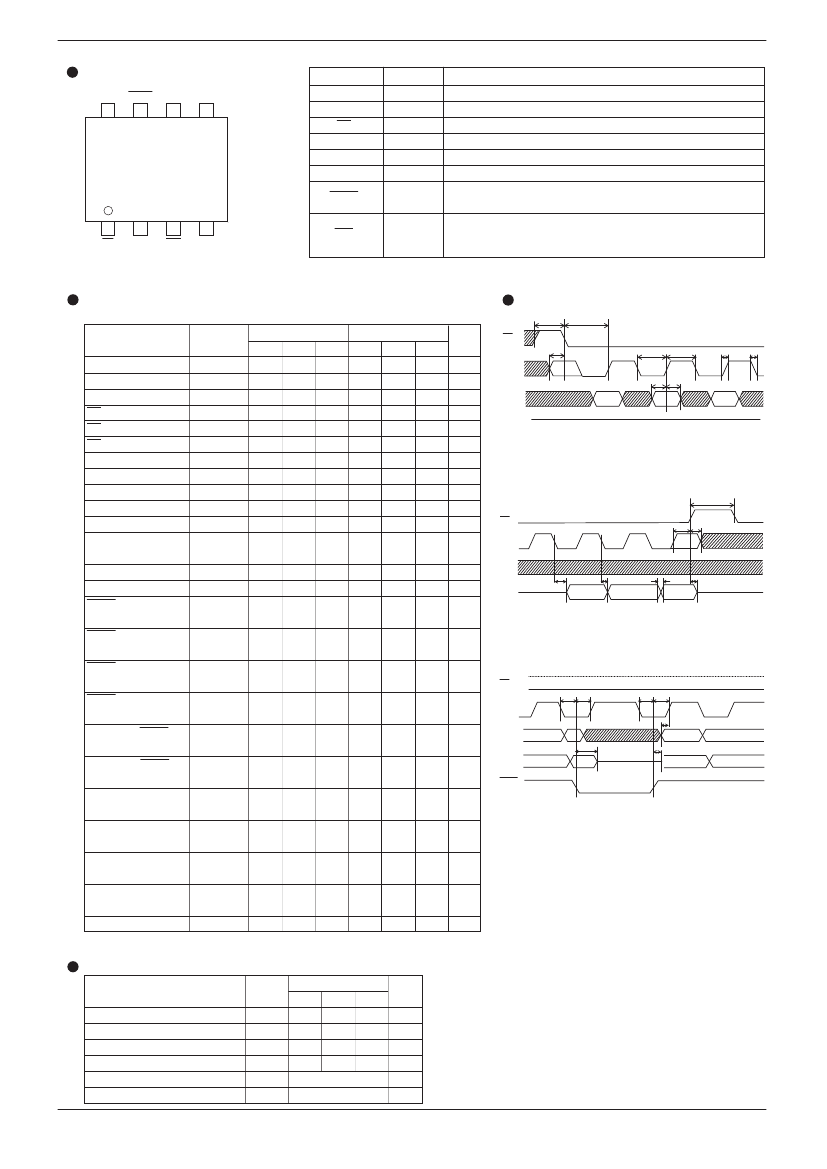

Preview

Download Datasheet

View All

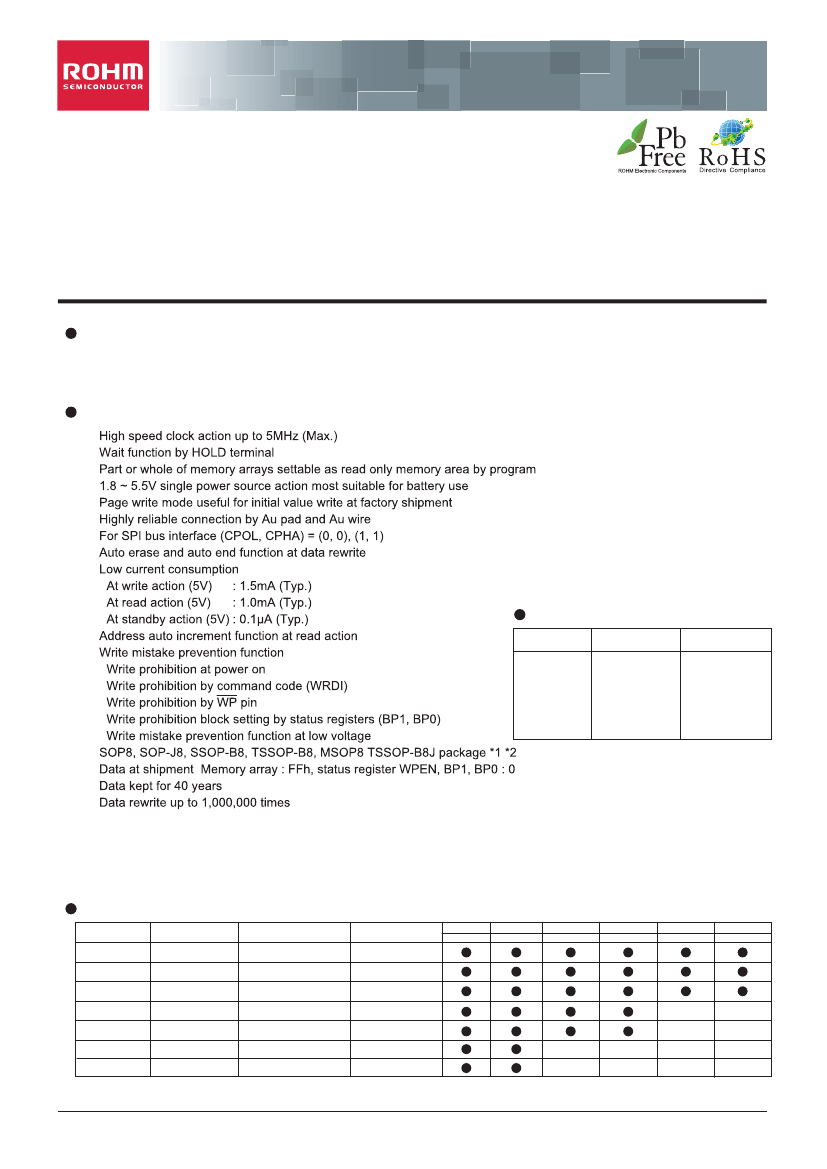

High Reliability Serial EEPROMs

SPI BUS Serial EEPROMs

BR25□□□□family

BR25L010-W series, BR25L020-W series, BR25L040-W series, BR25L080-W series,

BR25L160-W series, BR25L320-W series, BR25L640-W series

Description

BR25L

-W series is a serial EEPROM of SPI BUS interface method.

Features

Page write

Number of

pages

16 Byte

BR25L010-W

32 Byte

BR25L080-W

BR25L160-W

BR25L320-W

BR25L640-W

Product

number

BR25L020-W

BR25L040-W

*1 BR25L080/160-W : SOP8, SOP-J8, SSOP-B8, TSSOP-B8

*2 BR25L320/640-W : SOP8, SOP-J8

BR25L series

Capacity

1Kbit

2Kbit

4Kbit

8Kbit

16Kbit

32Kbit

64Kbit

Bit format

128 X 8

256 X 8

512 X 8

1K X 8

2K X 8

4K X 8

8K X 8

Type

BR25L010-W

BR25L020-W

BR25L040-W

BR25L080-W

BR25L160-W

BR25L320-W

BR25L640-W

Power source

voltage

SOP8

SOP-J8

SSOP-B8

TSSOP-B8

FVT

MSOP8

FVM

TSSOP-B8J

FVJ

1.8 ~ 5.5V

www.rohm.com

1/16

2010.07 -

Rev. B
