BAS70-04Q-7-F: DescriptionSchottky Diodes & Rectifiers 70mA SBR 70Vr 1.0mA 0.41Vf 0.1Ir LVD; CategoryDiscrete semiconductor diode; File Size193KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

BAS70-04Q-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS70-04Q-7-F	-	-	View	Buy Now

BAS70-04Q-7-F Overview

Schottky Diodes & Rectifiers 70mA SBR 70Vr 1.0mA 0.41Vf 0.1Ir LVD

BAS70-04Q-7-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Samacsys Description	Schottky Diodes & Rectifiers 70mA SBR 70Vr 1.0mA 0.41Vf 0.1Ir LVD
Other features	HIGH RELIABILITY
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.2 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.002 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

BAS70/ -04/ -05/ -06

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Product Summary

(V)

(mA)

1.0

F MAX

(V)

@ +25°C

0.41

R MAX

(uA)

@ +25°C

0.1

Features and Benefits

•

Low Turn-On Voltage

Fast Switching

PN Junction Guard Ring for Transient and ESD Protection

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

70mA surface mount Schottky Barrier Diode in SOT23 package,

offers low forward voltage drop and fast switching capability,

designed with PN Junction Guard Ring for Transient and ESD

Protection.

Mechanical Data

•

Case: SOT23

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Solderable per MIL-STD-202, Method 208

Lead Free Plating (Matte Tin Finish annealed over Alloy 42

leadframe)

Polarity: See Diagrams Below

Weight: 0.008 grams (approximate)

Top View

BAS70

BAS70-04

BAS70-05

BAS70-06

Ordering Information

(Note 4 & 5)

Part Number

BAS70-7-F

BAS70-04-7-F

BAS70-04Q-7-F

BAS70-04Q-13-F

BAS70-05-7-F

BAS70-06-7-F

Notes:

Case

SOT23

Packaging

3000/Tape & Reel

10000/Tape & Reel

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

5. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code

V9 are built with Non-Green Molding Compound and may contain Halogens or Sb

Fire Retardants.

BAS70/ -04/ -05/ -06

Document number: DS11007 Rev. 24 - 2

1 of 5

www.diodes.com

August 2014

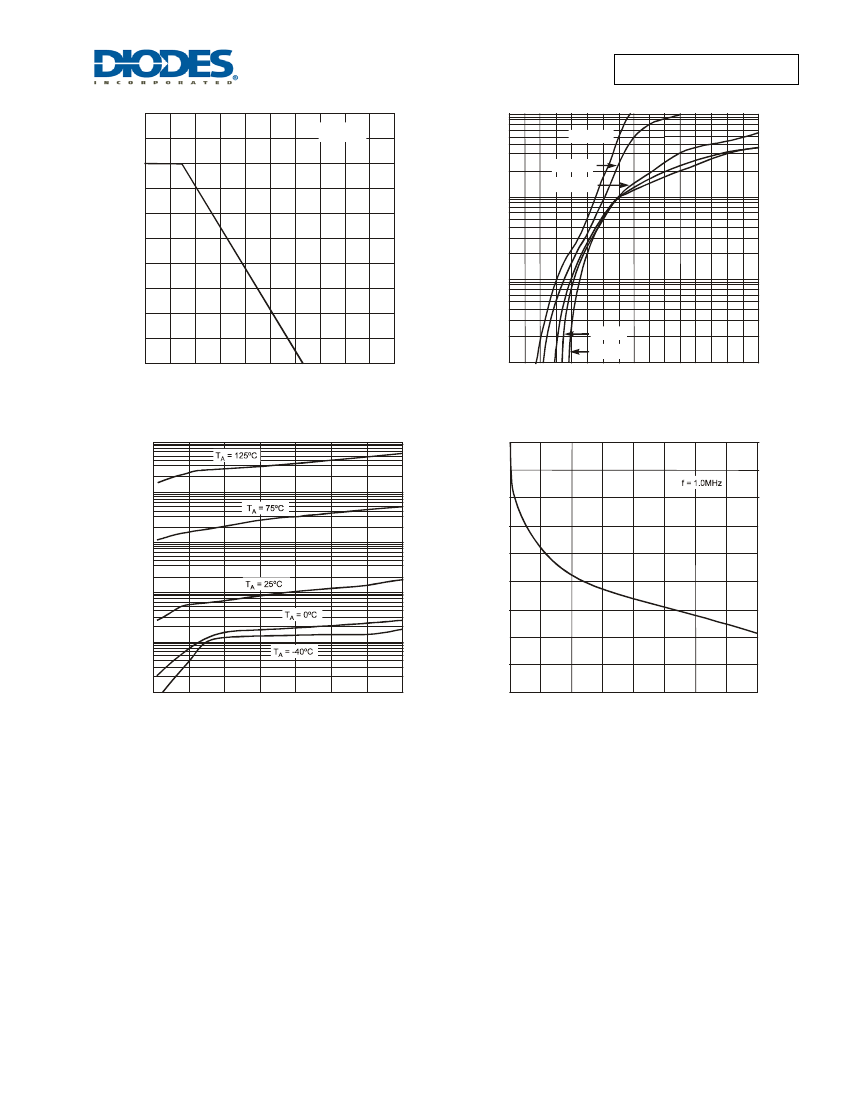

BAS70/ -04/ -05/ -06

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

BAS70/ -04/ -05/ -06

Document number: DS11007 Rev. 24 - 2

5 of 5

www.diodes.com

August 2014
