200725D • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • September 8, 2014
1

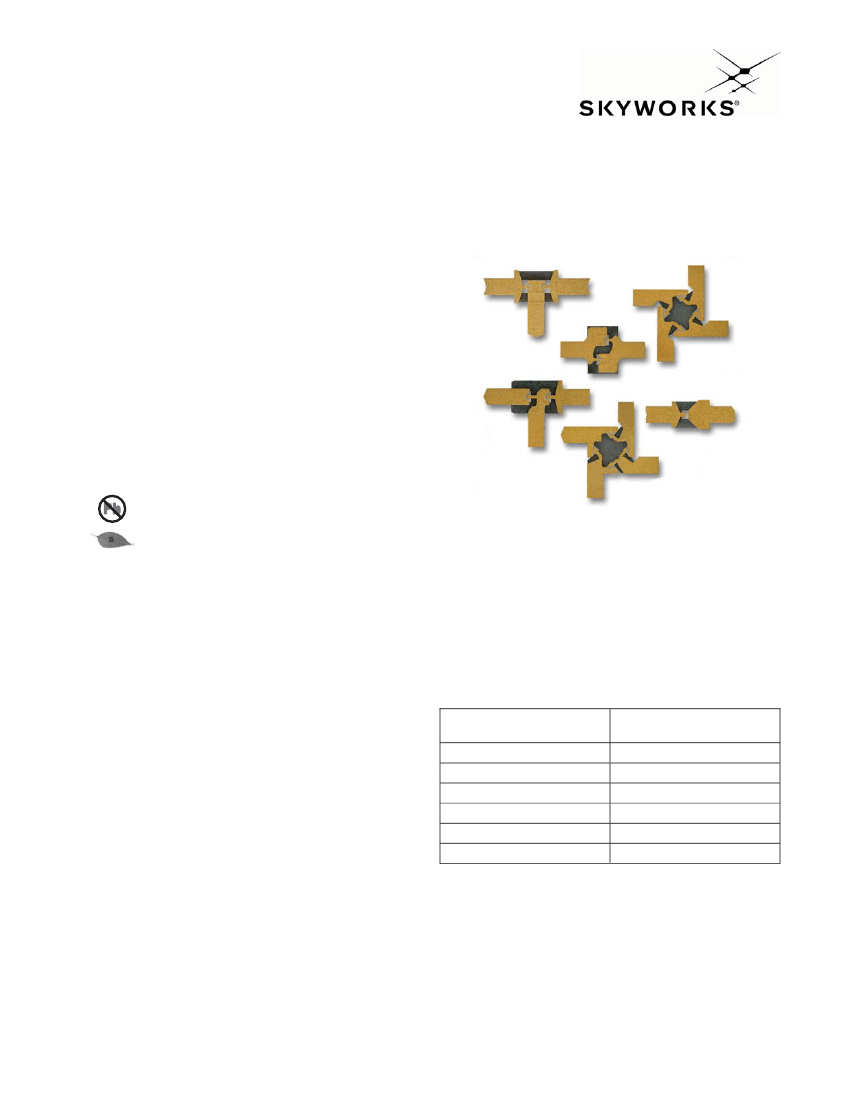

DATA SHEET • DME, DMF, DMJ SERIES SCHOTTKY MIXER DIODES
Electrical and Mechanical Specifications
The absolute maximum ratings of the DME, DMF, and DMJ series
of Schottky mixer diodes are provided in Table 2. Electrical and
physical specifications are provided in Tables 3 through 8.
Typical performance characteristics are shown in Figures 1
through 3. Typical mixer circuits are shown in Figure 4.
Table 2. Absolute Maximum Ratings (Note 1)
Parameter
Maximum current
Power dissipation (continuous wave)
Storage temperature
Operating temperature
Imax
Pd
T
STG
T
A
–65
–65
Symbol
Minimum
Typical
Maximum
100
75
+175
+175
Units
mA
mW/junction
C
C
Note 1:
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other
parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
CAUTION:
Although these devices are designed to be as robust as possible, electrostatic discharge (ESD) can damage them. These
devices must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the
human body or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all
times.
Table 3. Electrical Specifications: Beam-Lead Single N-Type Low, Medium, High Drive Schottky Diodes
200725D • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • September 8, 2014
3
DATA SHEET • DME, DMF, DMJ SERIES SCHOTTKY MIXER DIODES
200725D • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • September 8, 2014
