BCX5410TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCX5410TA

BCX5410TA: DescriptionBipolar Transistors - BJT Pwr Mid Perf Transistor SOT89 T&R 1K; CategoryDiscrete semiconductor The transistor; File Size371KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

BCX5410TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCX5410TA	-	-	View	Buy Now

BCX5410TA Overview

Bipolar Transistors - BJT Pwr Mid Perf Transistor SOT89 T&R 1K

BCX5410TA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-based maximum capacity	25 pF
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	25
JESD-30 code	R-PSSO-F3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power consumption environment	1 W
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
Guideline	AEC-Q101
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
VCEsat-Max	0.5 V
Base Number Matches	1

Preview

Download Datasheet

View All

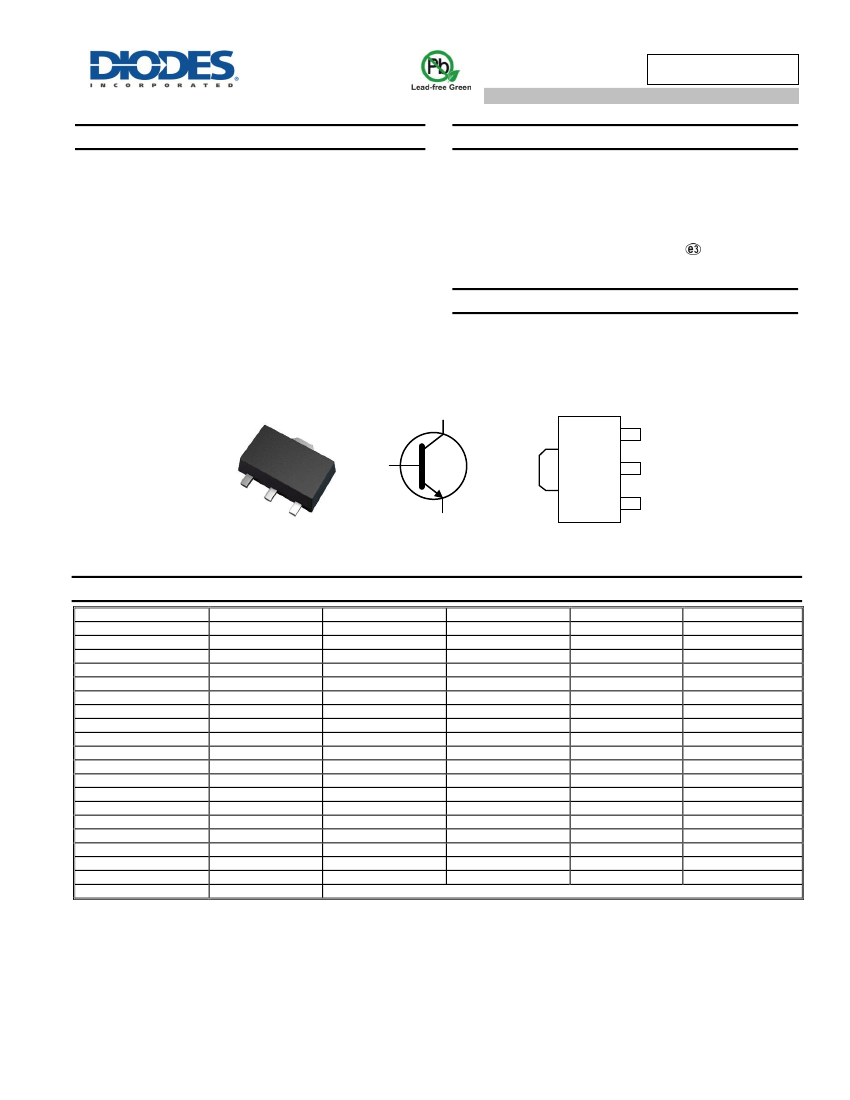

BCX54 /55 /56

NPN MEDIUM POWER TRANSISTORS IN SOT89

Features



CEO

> 45V, 60V & 80V

= 1A Continuous Collector Current

= 2A Peak Pulse Current

Low Saturation Voltage V

CE(sat)

< 500mV @ 0.5A

Gain Groups 10 and 16

Epitaxial Planar Die Construction

Complementary PNP Types: BCX51, 52, and 53

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: SOT89

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish Leads.

Solderable per MIL-STD-202 Method 208

Weight: 0.055 grams (Approximate)

Applications



Medium Power Switching or Amplification Applications

AF Driver and Output Stages

SOT89

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BCX54TA

BCX5410TA

BCX5416TA

BCX5416-13R

BCX55TA

BCX5510TA

BCX5516TA

BCX56TA

BCX5610TA

BCX5616TA

BCX5616TC

BCX5410TC

BCX5416TC

BCX54TC

BCX5510TC

BCX5516TC

BCX55TC

BCX5610TC

BCX56TC

BCX5616QTA

Notes:

Compliance

AEC-Q101

Automotive

Marking

Reel size (inches)

Tape width (mm)

Refer to http://diodes.com/datasheets/BCX5616Q.pdf

Quantity per reel

1,000

4,000

1,000

4,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

BCX54 / 55 / 56

Datasheet Number: DS35369 Rev. 8 - 2

1 of 7

www.diodes.com

November 2015

BCX5410TA Related Products

	BCX5410TA	BCX54TA	BCX5616TA	BCX5516TA
Description	Bipolar Transistors - BJT Pwr Mid Perf Transistor SOT89 T&R 1K	Bipolar Transistors - BJT Pwr Mid Perf Transistor SOT89 T&R 1K	Bipolar Transistors - BJT NPN Medium Power	Bipolar Transistors - BJT Pwr Mid Perf Transistor SOT89 T&R 1K
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1 A	1 A	1 A	1 A
Collector-based maximum capacity	25 pF	25 pF	25 pF	25 pF
Collector-emitter maximum voltage	45 V	45 V	80 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	25	25	25	25
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN
Maximum power consumption environment	1 W	1 W	1 W	1 W
Maximum power dissipation(Abs)	1 W	1 W	1 W	1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	AEC-Q101	AEC-Q101	AEC-Q101	AEC-Q101
surface mount	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	150 MHz	150 MHz	150 MHz
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	-
Base Number Matches	1	1	-	1
Factory Lead Time	-	15 weeks	15 weeks	15 weeks

Recommended Resources

High-quality power amplifier combined with STK3048 and STK615301

HT-114A circuit

ICL7660 application example circuit negative voltage converter circuit diagram

Square wave-triangular wave voltage controlled oscillator circuit diagram

Digital Thermometer

Light control automatic dimming table lamp
