AS358/358A/358B
LOW POWER DUAL OPERATIONAL AMPLIFIERS
Description
The AS358/358A/358B consists of two independent, high gain and
internally frequency compensated operational amplifiers, they are
specifically designed to operate from a single power supply.
Operation from split power supply is also possible and the low power
supply current drain is independent of the magnitude of the power
supply voltages. Typical applications include transducer amplifiers,
DC gain blocks and most conventional operational amplifier circuits.
The AS358/358A/358B series is compatible with industry standard
358. The AS358A has more stringent input offset voltage than the
AS358.
The AS358 is available in DIP-8, TDIP-8, SOIC-8, TSSOP-8 and
MSOP-8 packages, the AS358A is available in DIP-8 and SOIC-8
packages and AS358B is available in TSSOP-8 package.
Pin Assignments
(Top View)
OUTPUT 1
INPUT 1-
INPUT 1+
GND
1
2
3
4
8
7
6
5
V
CC
OUTPUT 2
INPUT 2-
INPUT 2+
ADVANCED INFORMATION
(SOIC-8/TSSOP-8/MSOP-8)
(Top View)
OUTPUT 1
INPUT 1-
1
2
3
4
8
7
6
5
V
CC
OUTPUT 2
Features
INPUT 1+
INPUT 2-
INPUT 2+
Internally Frequency Compensated for Unity Gain
Large Voltage Gain: 100dB (Typical)
Low Input Bias Current: 20nA (Typical)
Low Input Offset Voltage: 2mV (Typical)
Low Supply Current: 0.5mA (Typical)
Wide Power Supply Voltage:
Single Supply: 3V to 36V
Dual Supplies: ±1.5V to ±18V
GND
(DIP-8/TDIP-8)
Applications
Battery Charger
Cordless Telephone
Switching Power Supply
Input Common Mode Voltage Range Includes Ground
Large Output Voltage Swing: 0V to V
CC
-1.5V
Lead-Free Packages: SOIC-8, DIP-8, TSSOP-8 and MSOP-8
Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
Lead-Free Packages, Available in “Green” Molding Compound:
SOIC-8, DIP-8, TDIP-8, TSSOP-8 and MSOP-8
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
AS358/358A/358B
Document number: DS36834 Rev. 5 - 2
1 of 19
www.diodes.com
October 2015
© Diodes Incorporated

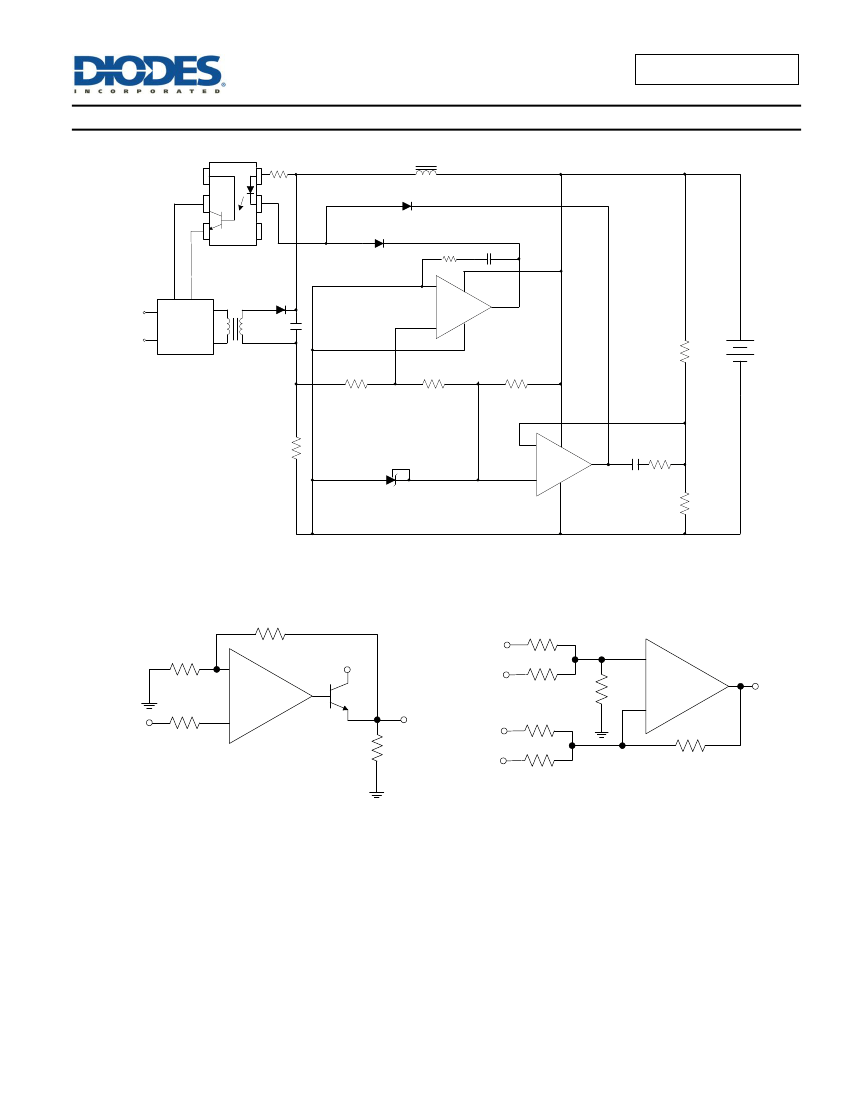

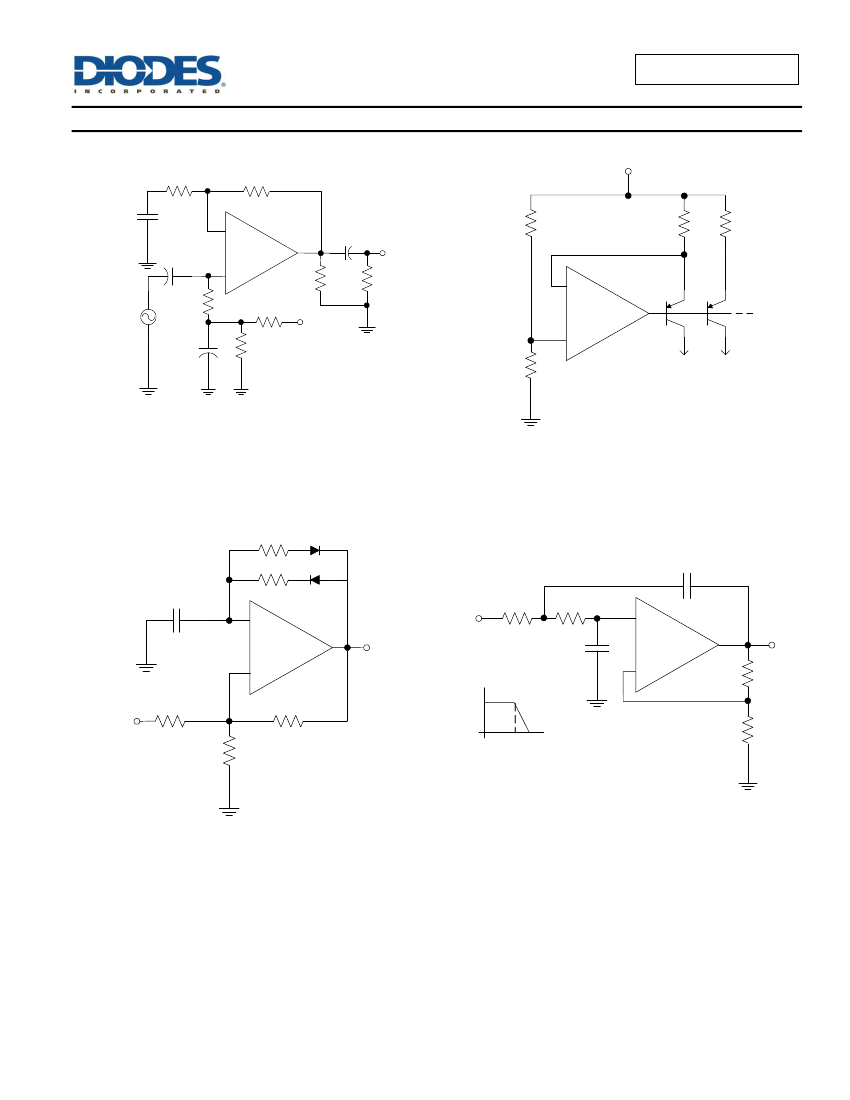

AS358/358A/358B

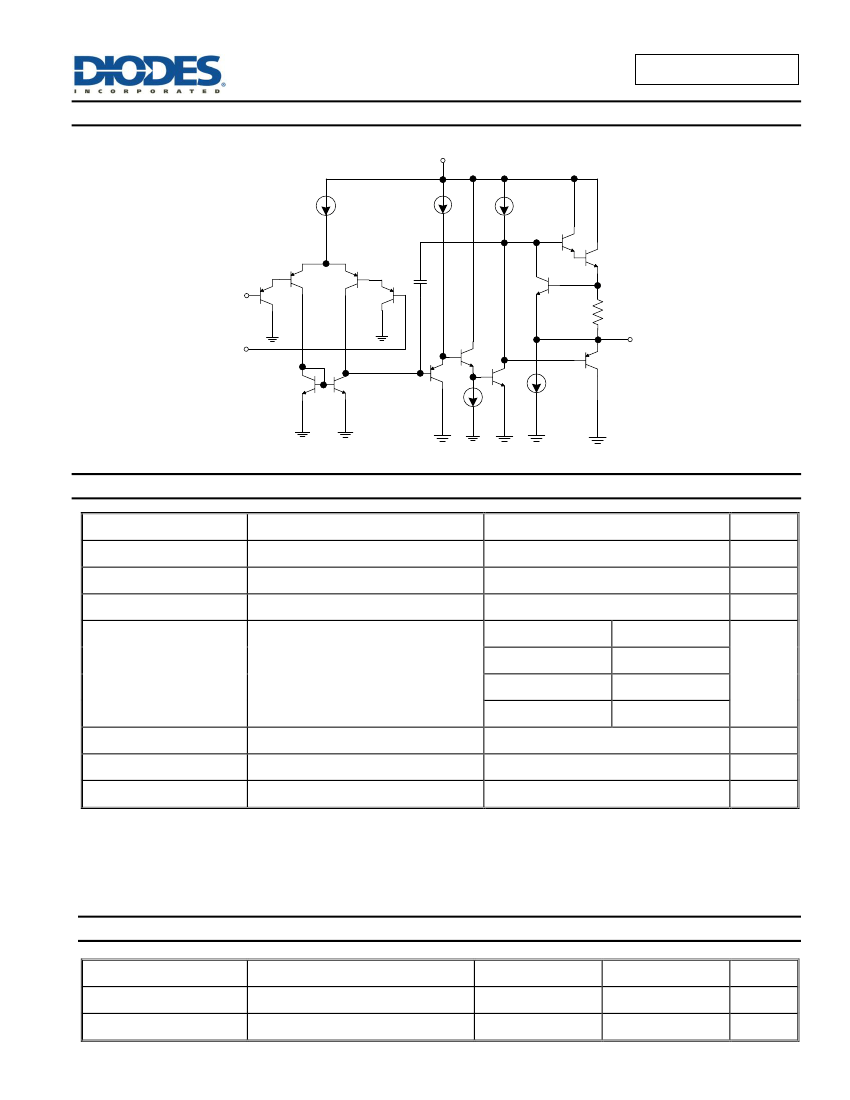

Functional Block Diagram
V
CC
6A
4A
100A
ADVANCED INFORMATION
Q5
Q6
Q2
-
INPUTS
+
Q10
Q8
Q9
Q1
Q3
Q4
Rsc
OUTPUT
Cc
Q7
Q11
Q12
50A
Q13
Absolute Maximum Ratings
(Notes 4 & 5)
Symbol
V
CC
V
ID
V
IC
Parameter
Power Supply Voltage
Differential Input Voltage
Input Voltage
DIP-8
SOIC-8
P
D
Power Dissipation (T
A
= +25
o
C)
TSSOP-8
MSOP-8
T
J
T
STG
T
LEAD
Operating Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering, 10 Seconds)
+150
-65 to +150
+260
500
470
C
C
C
Rating
40
40
-0.3 to 40
830
550
mW
Unit
V
V
V
Notes: 4. Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied.
Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability.
5. ESD sensitivity.
Recommended Operating Conditions
Symbol
V
CC
T
A
Supply Voltage
Ambient Operating Temperature Range
4 of 19
www.diodes.com
Parameter
Min
3
-40
Max
36
+85
Unit
V
C
October 2015
© Diodes Incorporated
AS358/358A/358B
Document number: DS36834 Rev. 5 - 2
AS358/358A/358B
Electrical Characteristics
Symbol
(Limits in standard typeface are for T
A
= +25
o
C,
bold
typeface applies over -40
o
C to +85
o
C (Note 6), V
CC
= 5V, GND = 0V, unless otherwise specified.)
Parameter
Conditions
AS358
Min
–
Typ
2
–
2
–
–
–
7
20
–
5
–
–
0.7
0.5
100
–
70
–
100
–
-120
40
–
15
–
50
40
–
–
28
–
5
–
53
78
Max
5
7
3
mV
5
2
4
–
200
nA
200
30
nA
100
V
CC
-
1.5
2
mA
–
85
80
60
CMRR
Common Mode Rejection Ratio
DC, V
CM
= 0V to (V
CC
-1.5)V
60
70
PSRR
CS
I
SOURCE
Output Current
I
SINK
Sink
Power Supply Rejection Ratio
Channel Separation
Source
V
CC
= 5V to 30V
f = 1kHz to 20kHz
V
IN
+ = 1V, V
IN
- = 0V, V
CC
= 15V,
V
O
= 2V
V
IN
+ = 0V, V
IN
- = 1V, V
CC
= 15V,
V
O
= 2V
V
IN
+ = 0V, V
IN
- = 1V, V
CC
= 15V,
V
O
= 0.2V
I
SC
Output Short Circuit Current to Ground
V
CC
= 15V
V
CC
= 30V, R
L
= 2kΩ
V
OH
Output Voltage Swing
V
CC
= 30V, R
L
= 10kΩ
60
–
20
20
10
5
12
–
26
26
27
27
–
–
–
–
1.2
–
–
–
–
–
–
–
_
–
–
–
–
60
–
–
–
–
20
mV
30
–
–
o
Unit
ADVANCED INFORMATION
–
–
V
IO
Input Offset Voltage
V
O
= 1.4V, R
S
= 0Ω,
V
CC
= 5V to 30V
AS358A
–
–
AS358B
∆V
IO
/∆T
I
BIAS
Average Temperature Coefficient of Input
Offset Voltage
Input Bias Current
T
A
= -40
o
C to +85
o
C
I
IN
+ or I
IN
-, V
CM
= 0V
–
–
–
–
–
µV/
o
C
I
IO
V
IR
Input Offset Current
Input Common Mode Voltage Range (Note 7)
I
IN
+ - I
IN
-, V
CM
= 0V
V
CC
= 30V
T
A
= -40
o
C to +85
o
C, R
L
= ∞,
V
CC
= 30V
T
A
= -40
o
C to +85
o
C, R
L
= ∞, V
CC
= 5V
–
0
–
V
I
CC
Supply Current
G
V
Large Signal Voltage Gain
V
CC
= 15V, V
O
= 1V to 11V, R
L
≥ 2kΩ
dB
dB
dB
dB
mA
mA
µA
mA
V
V
OL
V
CC
= 5V, R
L
= 10kΩ
DIP-8
Thermal Resistance (Junction to Case)
SOIC-8
θ
JC
Notes:
C/W
6. Limits over the full temperature are guaranteed by design, but not tested in production.
7. The input common-mode voltage of either input signal voltage should not be allowed to go negatively by more than 0.3V (at +25
o
C). The upper end of the
common-mode voltage range is V
CC
-1.5V (at +25
o
C), but either or both inputs can go to +36V without damages, independent of the magnitude of the
V
CC
。
AS358/358A/358B
Document number: DS36834 Rev. 5 - 2
5 of 19
www.diodes.com
October 2015
© Diodes Incorporated
