843023AGILFT Overview

Clock Generators & Support Products 3 LVPECL OUT SYNTHESIZER

843023AGILFT Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	4.40 X 3 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-8
Contacts	8
Manufacturer packaging code	PGG8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATES AT 3.3V SUPPLY
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.4 mm
Humidity sensitivity level	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	320 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	2.5/3.3 V
Master clock/crystal nominal frequency	32 MHz
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

FemtoClock

Crystal-to-3.3V, 2.5V LVPECL

Clock Generator

ENERAL

ESCRIPTION

The 843023I is a Gigabit Ethernet Clock Generator and a mem-

ber of the HiPerClocks

family of high performance devices from

IDT. The 843023I uses a 25MHz crystal to synthesize 250MHz.

The 843023I has excellent phase jitter performance, over the

1.875MHz – 20MHz integration range. The 843023I is packaged

in a small 8-pin TSSOP, making it ideal for use in systems with

limited board space.

843023I

DATASHEET

EATURES

•

One differential 3.3V or 2.5V LVPECL output

•

Crystal oscillator interface designed for 25MHz,

18pF parallel resonant crystal

•

Output frequency range: 240MHz - 320MHz

•

VCO range: 480MHz - 640MHz

•

RMS phase jitter @ 250MHz, using a 25MHz crystal

(1.875MHz - 20MHz): 0.39ps (typical)

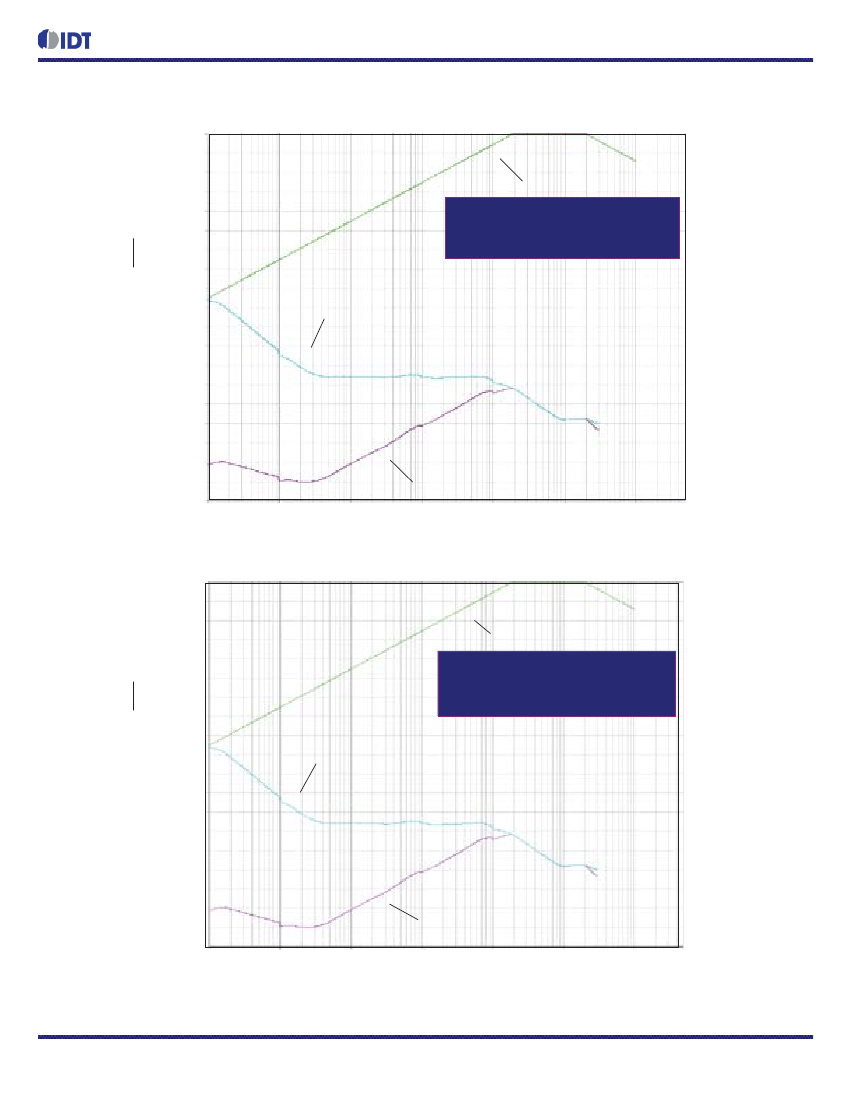

Phase noise:

Offset

Noise Power

100Hz ..................-86.3 dBc/Hz

1kHz ................-114.6 dBc/Hz

10kHz ................-125.6 dBc/Hz

100kHz ................-126.0 dBc/Hz

•

Full 3.3V and 2.5V operating supply

•

-40°C to 85°C ambient operating temperature

•

Available in lead-free (RoHS 6) package

LOCK

IAGRAM

Pullup

XTAL_IN

XTAL_OUT

25MHz

SSIGNMENT

Phase

Detector

VCO

XTAL_OUT

XTAL_IN

OSC

÷2

(fixed)

843023I

÷20

(fixed)

8-Lead TSSOP

4.40mm x 3.0mm x 0.925mm package body

G Package

Top View

843023I REVISION B JANUARY 9, 2015
