L7905ACV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> L7905ACV

L7905ACV: DescriptionLinear Voltage Regulators 5.0V 1.5A Negative; CategoryPower/power management The power supply circuit; File Size1MB，27 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

L7905ACV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L7905ACV	-	-	View	Buy Now

L7905ACV Overview

Linear Voltage Regulators 5.0V 1.5A Negative

L7905ACV Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	SFM
package instruction	TO-220, SIP3,.1TB
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
Samacsys Description	Voltage Regulator -5V 1.5A TO220 L7905ACV, Voltage Regulator, Negative 1.5A -5 V, ±2%, 3-Pin TO-220
Adjustability	FIXED
Nominal dropback voltage 1	1.4 V
Maximum absolute input voltage	35 V
Maximum input voltage	25 V
Minimum input voltage	7 V
JESD-30 code	R-XSFM-T3
JESD-609 code	e3
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1.5 A
Maximum output voltage 1	5.2 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Package body material	UNSPECIFIED
encapsulated code	TO-220
Encapsulate equivalent code	SIP3,.1TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	4%

Preview

Download Datasheet

View All

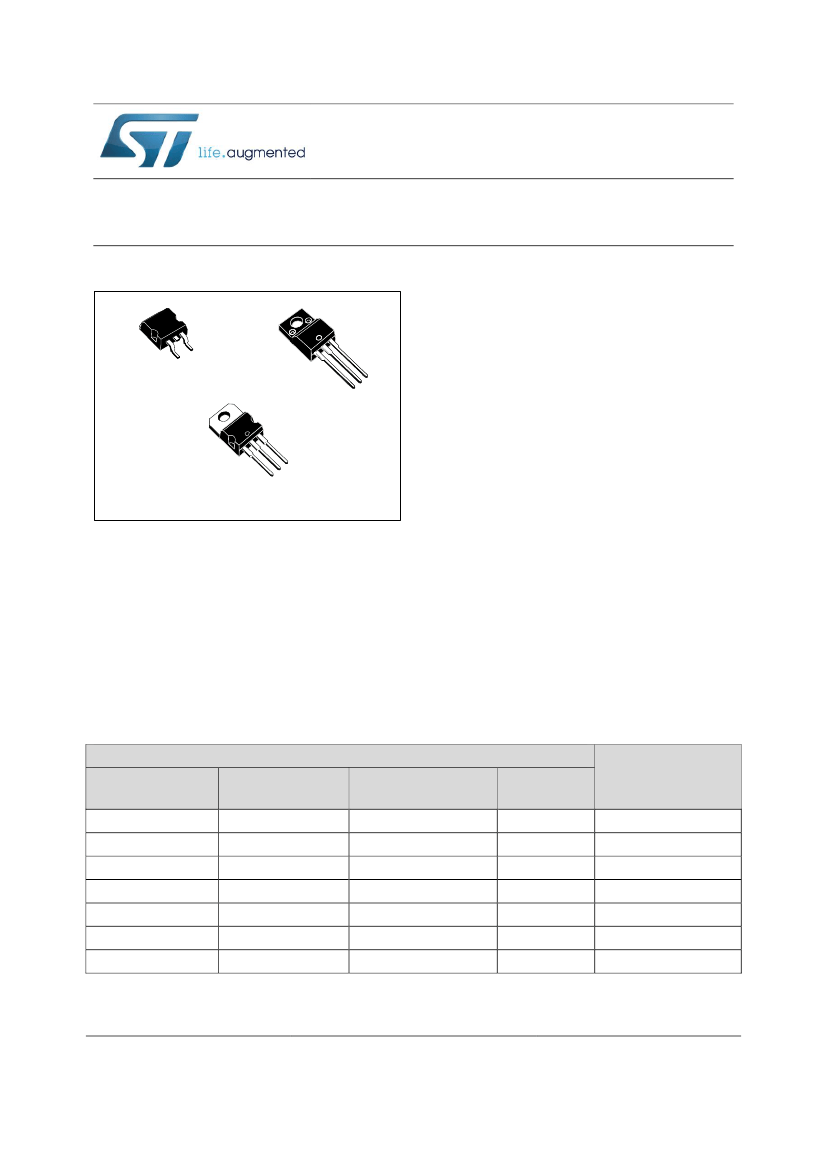

L79

Negative voltage regulators

Datasheet - production data

TAB

Description

PAK

TAB

TO-220FP

The L79 series of three-terminal negative

regulators is available in TO-220, TO-220FP and

D²PAK packages and several fixed output

voltages, making it useful in a wide range of

applications.

These regulators can provide local on-card

regulation, eliminating the distribution problems

associated with single point regulation;

furthermore, having the same voltage option as

the L78 positive standard series, they are

particularly suited for split power supplies. If

adequate heat sinking is provided, they can

deliver over 1.5 A output current.

Although designed primarily as fixed voltage

regulators, these devices can be used with

external components to obtain adjustable

voltages and currents.

TO-220

Features



Output current up to 1.5 A

Output voltages: -5, -8, -12, and -5 V

Thermal overload protection

Short-circuit protection

Output transition SOA protection

Output tolerance 2% (AC version) or 4% (C

version) at 25 °C

Order codes

D²PAK

L7905ACD2T-TR

L7905CD2T-TR

L7905CP

TO-220FP

Output voltages

TO-220

(single gauge)

L7905ACV

L7905CV

L7908CV

L7912ACV

L7912CV

L7915ACV

L7915CV

TO-220

(dual gauge)

L7905ACV-DG

L7905CV-DG

L7908CV-DG

L7912ACV-DG

L7912CV-DG

L7915ACV-DG

L7915CV-DG

Table 1: Device summary

L7912CD2T-TR

L7912CP

L7915CP

-5 V

-8 V

-12 V

-15 V

September 2017

DocID2149 Rev 23

1/27

www.st.com

This is information on a product in full production.

L79

List of tables

Table 1: Device summary ........................................................................................................................... 1

Table 2: Absolute maximum ratings ........................................................................................................... 7

Table 3: Thermal data ................................................................................................................................. 7

Table 4: Electrical characteristics of L7905AC ........................................................................................... 9

Table 5: Electrical characteristics of L7905C ............................................................................................. 9

Table 6: Electrical characteristics of L7908C ........................................................................................... 10

Table 7: Electrical characteristics of L7912AC ......................................................................................... 11

Table 8: Electrical characteristics of L7912C ........................................................................................... 11

Table 9: Electrical characteristics of L7915AC ......................................................................................... 12

Table 10: Electrical characteristics of L7915C ......................................................................................... 13

Table 11: TO-220 (single gauge) package mechanical data .................................................................... 17

Table 12: TO-220 type A package mechanical data ................................................................................ 19

Table 13: TO-220FP package mechanical data ....................................................................................... 21

Table 14: D²PAK (TO-263) type A package mechanical data .................................................................. 22

Table 15: D²PAK type A tape and reel mechanical data .......................................................................... 25

Table 16: Document revision history ........................................................................................................ 26

DocID2149 Rev 23

3/27

List of figures

L79

List of figures

Figure 1: Schematic diagram ...................................................................................................................... 5

Figure 2: Pin connections (top view) ........................................................................................................... 6

Figure 3: Test circuit ................................................................................................................................... 8

Figure 4: Fixed output regulator ................................................................................................................ 14

Figure 5: Split power supply (±15 V - 1 A) ................................................................................................ 14

Figure 6: Circuit for increasing output voltage .......................................................................................... 14

Figure 7: High current negative regulator (-5 V / 4 A with 5 A current limiting) ........................................ 15

Figure 8: TO-220 (single gauge) package outline .................................................................................... 16

Figure 9: TO-220 type A package outline ................................................................................................. 18

Figure 10: TO-220FP package outline...................................................................................................... 20

Figure 11: D²PAK (TO-263) type A package outline ................................................................................ 22

Figure 12: D²PAK (TO-263) type A recommended footprint (dimensions are in mm) .............................. 23

Figure 13: D²PAK type A tape outline ....................................................................................................... 24

Figure 14: D²PAK type A reel outline ........................................................................................................ 25

4/27

DocID2149 Rev 23

L7905ACV Related Products

	L7905ACV	L7908CV	CMF20910R00JNRE143
Description	Linear Voltage Regulators 5.0V 1.5A Negative	Linear Voltage Regulators 8.0V 1.5A Negative	Res,Axial,Metal Film,910 Ohms,500WV,5% +/-Tol,-200,200ppm TC
Is it Rohs certified?	conform to	conform to	incompatible
Reach Compliance Code	not_compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Number of terminals	3	3	2
Package form	FLANGE MOUNT	FLANGE MOUNT	Axial
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	METAL FILM
Brand Name	STMicroelectronics	STMicroelectronics	-
Parts packaging code	SFM	SFM	-
package instruction	TO-220, SIP3,.1TB	TO-220, SIP3,.1TB	-
Contacts	3	3	-
Factory Lead Time	24 weeks	24 weeks	-
Adjustability	FIXED	FIXED	-
Nominal dropback voltage 1	1.4 V	1.1 V	-
Maximum absolute input voltage	35 V	35 V	-
Maximum input voltage	25 V	25 V	-
Minimum input voltage	7 V	10.5 V	-
JESD-30 code	R-XSFM-T3	R-XSFM-T3	-
JESD-609 code	e3	e3	-
Maximum grid adjustment rate	0.1%	0.16%	-
Maximum load regulation	0.1%	0.16%	-
Number of functions	1	1	-
Output times	1	1	-
Working temperatureTJ-Max	125 °C	125 °C	-
Maximum output current 1	1.5 A	1.5 A	-
Maximum output voltage 1	5.2 V	8.4 V	-
Minimum output voltage 1	4.8 V	7.6 V	-
Nominal output voltage 1	5 V	8 V	-
Package body material	UNSPECIFIED	UNSPECIFIED	-
encapsulated code	TO-220	TO-220	-
Encapsulate equivalent code	SIP3,.1TB	SIP3,.1TB	-
Package shape	RECTANGULAR	RECTANGULAR	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
Certification status	Not Qualified	Not Qualified	-
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	-
Terminal location	SINGLE	SINGLE	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
Maximum voltage tolerance	4%	5%	-
method of packing	-	TUBE	TR, 11.5 INCH
