ZL40219
Precision 1:8 LVDS Fanout Buffer
with On-Chip Input Termination
Data Sheet
November 2012
Features
Inputs/Outputs
•
•
•
Accepts differential or single-ended input
• LVPECL, LVDS, CML, HCSL, LVCMOS
On-chip input termination and biasing for AC
coupled inputs
Eight precision LVDS outputs
Ordering Information
ZL40219LDG1
ZL40219LDF1
32 Pin QFN
32 Pin QFN
Trays
Tape and Reel
Matte Tin
Package size: 5 x 5 mm
-40
o
C to +85
o
C
• Operating frequency up to 750 MHz
Power
•
•
•
Options for 2.5 V or 3.3 V power supply
Current consumption of 112 mA
Applications
•
•
•
•
•
•
•
General purpose clock distribution
Low jitter clock trees
Logic translation
Clock and data signal restoration
Wired communications: OTN, SONET/SDH, GE,
10 GE, FC and 10G FC
Wireless communications
High performance micro-processor clock
distribution
On-chip Low Drop Out (LDO) Regulator for superior
power supply rejection
Performance
•
Ultra low additive jitter of 135 fs RMS
out0_p
out0_n
out1_p
out1_n
out2_p
out2_n
out3_p
out3_n
ctrl
vt
Termination
and Bias
clk_p
clk_n
Buffer
out4_p
out4_n
out5_p
out5_n
out6_p
out6_n
out7_p
out7_n

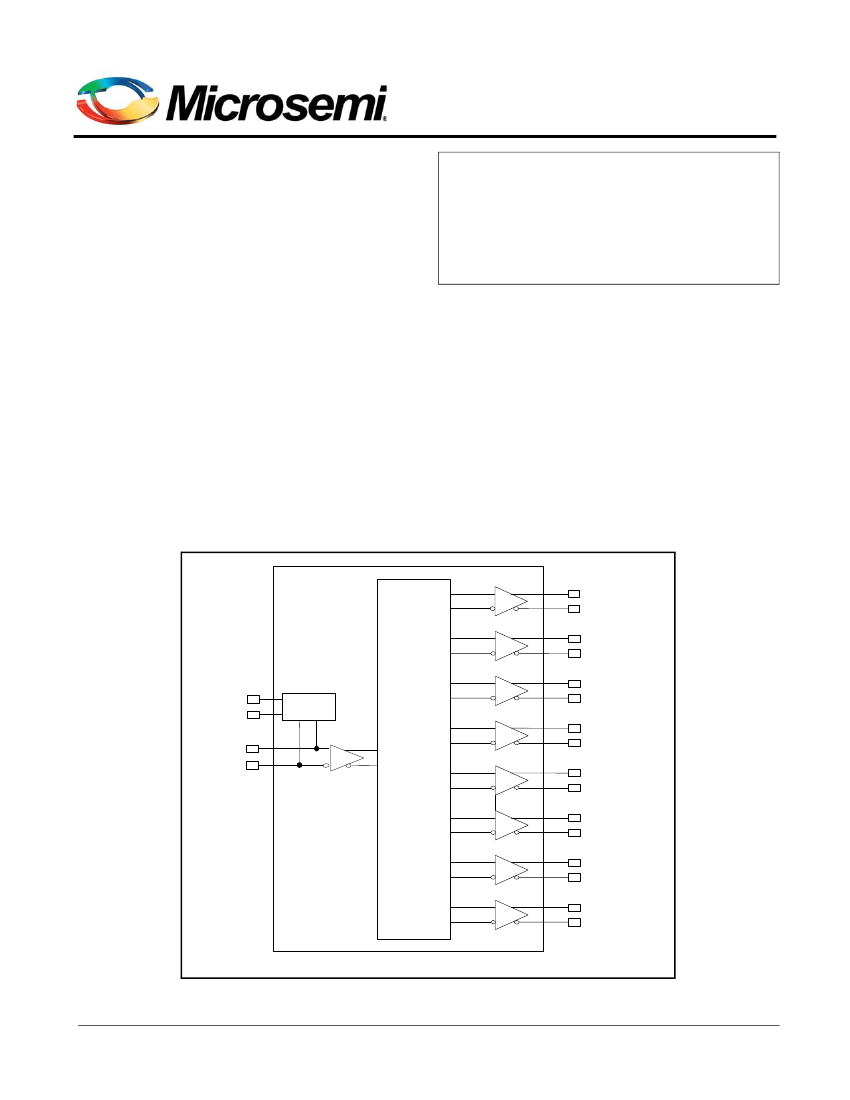

Figure 1 - Functional Block Diagram
1
Microsemi Corporation
Copyright 2012, Microsemi Corporation. All Rights Reserved.
ZL40219
Data Sheet
Table of Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Inputs/Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.0 Package Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.0 Pin Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.0 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Clock Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Clock Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Device Additive Jitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4.1 Sensitivity to power supply noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4.2 Power supply filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4.3 PCB layout considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.0 AC and DC Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.0 Performance Characterization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.0 Typical Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.0 Package Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.0 Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2
Microsemi Corporation
ZL40219
Data Sheet
List of Figures
Figure 1 - Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2 - Pin Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Figure 3 - Simplified Diagram of input stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 4 - Clock Input - LVPECL - DC Coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 5 - Clock Input - LVPECL - AC Coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 6 - Clock Input - LVDS - DC Coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 7 - Clock Input - LVDS - AC Coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 8 - Clock Input - CML- AC Coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 9 - Clock Input - HCSL- AC Coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 10 - Clock Input - AC-coupled Single-Ended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 11 - Clock Input - DC-coupled 3.3V CMOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 12 - Simplified LVDS Output Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 13 - LVDS DC Coupled Termination (Internal Receiver Termination) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 14 - LVDS DC Coupled Termination (External Receiver Termination) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 15 - LVDS AC Coupled Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 16 - LVDS AC Output Termination for CML Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 17 - Additive Jitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 18 - Decoupling Connections for Power Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 19 - Differential Output Voltage Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 20 - Input To Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3
Microsemi Corporation
ZL40219
1.0
Package Description
Data Sheet
The device is packaged in a 32 pin QFN
out3_n
out3_p
out4_p
18
24
22
20
out4_n
gnd
gnd
vdd
vdd
out2_n
out2_p
out1_n
vt
out1_p
out0_n
out0_p
NC
vdd
32
2
4
6
30
28
26
16
out5_p
out5_n
14
out6_p
out6_n
12
out7_p
out7_n
gnd (E-pad)
10
NC
vdd
8
VDD_core
gnd
clk_p
vt
ctrl
gnd
Figure 2 - Pin Connections
4
Microsemi Corporation
VDD_core
clk_n
ZL40219
2.0
Pin #
3, 6
30, 29,
28, 27,
26, 25,
24, 23,
18, 17,
16, 15,
14, 13,
12, 11
9, 19,
22, 32
1, 8
2, 7,
20, 21
4
Data Sheet
Pin Description
Name
clk_p, clk_n,
Description
Differential Input (Analog Input).
Differential (or single ended) input signals.
For single-ended inputs see See “Clock Inputs” on page 6
out0_p, out0_n
Differential Output (Analog Output).
Differential outputs.
out1_p, out1_n
out2_p, out2_n
out3_p, out3_n
out4_p, out4_n
out5_p, out5_n
out6_p, out6_n
out7_p, out7_n
vdd
vdd_core
gnd
vt
Positive Supply Voltage.
2.5 V
DC
or 3.3 V
DC
nominal.
Positive Supply Voltage.
2.5 V
DC
or 3.3 V
DC
nominal.
Ground.
0 V.
On-Chip Input Termination Node (Analog).
Center tap between internal 50 Ohm
termination resistors.
The use of this pin is detailed in section “Clock Inputs” on page 6, for various input signal
types.
Digital Control for On-Chip Input Termination (Input).
Selects differential input mode;
0: DC coupled LVPECL or LVDS modes
1: AC coupled differential modes
This pin is internally pulled down to GND. The use of this pin is detailed in section “Clock
Inputs” on page 6, for various input signal types.
No Connection.
Leave unconnected.
5
ctrl
10, 31
NC
5
