SI4737-C40-GUR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> SI4737-C40-GUR

SI4737-C40-GUR: DescriptionRF Receiver Si4737 Broadcast AM/FM/WB RDS/RBDS; CategoryTopical application Wireless rf/communication; File Size1MB，42 Pages; ManufacturerSilicon Laboratories; Environmental Compliance

Download Datasheet Parametric Compare View All

SI4737-C40-GUR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SI4737-C40-GUR	-	-	View	Buy Now

SI4737-C40-GUR Overview

RF Receiver Si4737 Broadcast AM/FM/WB RDS/RBDS

SI4737-C40-GUR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Silicon Laboratories
Product Category	RF Receiver
RoHS	Details
Packaging	Reel
Moisture Sensitive	Yes
Factory Pack Quantity	2500

Preview

Download Datasheet

View All

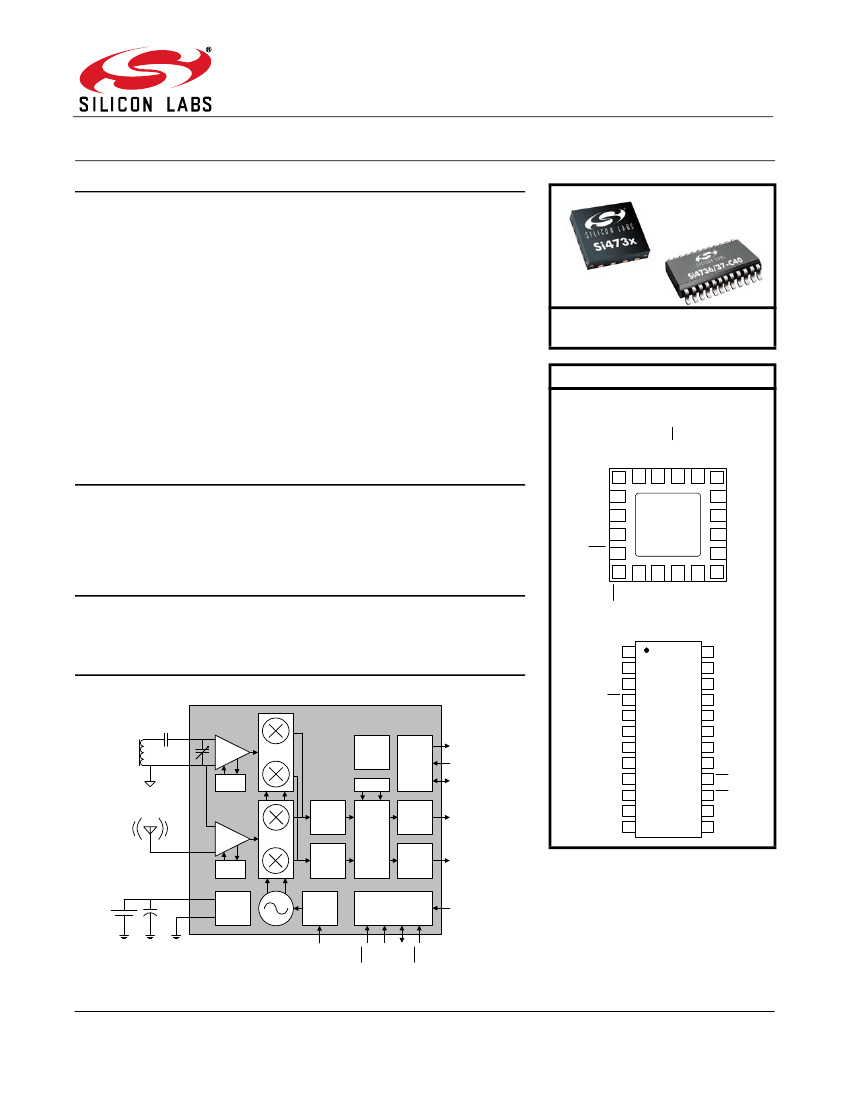

Si4736/37/38/39-C40

ROADCAST

AM/FM R

ADIO

ECEIVER

Features



NOAA weather band support



AM/FM/WB digital tuning



No manual alignment necessary



Programmable reference clock



Volume control



Adjustable soft mute control



RDS/RBDS processor (Si4737/39)



Optional digital audio out (Si4737/39)



2-wire and 3-wire control interface



Integrated LDO regulator



2.0 to 5.5 V supply voltage (SSOP)



2.7 to 5.5 V supply voltage (QFN)



Wide range of ferrite loop sticks and

GPO3/DCLK

VIO

GPO2/INT

GPO1

(162.4–162.55 MHz)

Worldwide FM band support

(64–108 MHz)

Worldwide AM band support

(520–1710 kHz) (Si4736/37)

1050 Hz alert tone detection

Excellent real-world performance

Freq synthesizer with integrated VCO

Advanced AM/FM seek tuning

Automatic frequency control (AFC)

Automatic gain control (AGC)

Digital FM stereo decoder

Programmable AVC max gain

Programmable de-emphasis

Ordering Information:

See page 32.

Pin Assignments

Si4736/37/38/39 (QFN)

air loop antennas supported



QFN and SSOP packages



RoHS compliant

Applications

Emergency radios



Table and portable radios



Stereos



Mini/micro systems



15 DOUT

Boom boxes



Modules



Clock radios



Mini HiFi



FMI 2

RFGND 3

AMI 4

RST 5

SEN

SCLK

SDIO

RCLK

GND

PAD

11 VDD

Description

The Si4736/37/38/39 is the first digital CMOS AM/FM radio receiver IC that

integrates the complete tuner function from antenna input to audio output.

Si4736/37 (SSOP)

DOUT

LOUT

ROUT

DBYP

VDD

VIO

RCLK

SDIO

SCLK

SEN

RST

GND

DFS

GPO3/DCLK

GPO2/INT

Functional Block Diagram

Si473x

AMI

ANT

RFGND

LNA

AGC

FM/

ANT

ADC

FMI

LNA

AGC

2.7– 5.5 V (QFN)

2.0– 5.5 V (SSOP) VDD

GND

LDO

AFC

ADC

DSP

DAC

LOUT

RDS

(Si4737/

39)

LOW-IF

DIGITAL

AUDIO

(Si4737/

39)

DOUT

DFS

GPO/DCLK

GPO1

FMI

RFGND

DAC

ROUT

AMI

CONTROL

INTERFACE

VIO

1.85–3.6 V

This product, its features, and/or its

architecture is covered by one or more of

the following patents, as well as other

patents, pending and issued, both foreign

and domestic: 7,127,217; 7,272,373;

7,272,375;

7,321,324;

7,355,476;

7,426,376;

7,471,940;

7,339,503;

7,339,504.

Rev. 1.0 12/09

RCLK

SCLK

SDIO

SEN

RST

Si4736/37/38/39-C40

DFS

14 LOUT

13 ROUT

12 GND

Si4736/37/38/39-C40

ABLE

Section

ONTENTS

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. Typical Application Schematic (QFN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3. Typical Application Schematic (SSOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

4. Bill of Materials (QFN/SSOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.2. Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.3. FM Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.4. AM Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.5. Weather Band Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.6. Digital Audio Interface (Si4737/39 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.7. Stereo Audio Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.8. De-emphasis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.9. Stereo DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

5.10. Soft Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.11. RDS/RBDS Processor (Si4737/39 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.12. Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.13. Seek . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.14. Reference Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.15. Control Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.16. GPO Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.17. Firmware Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

5.18. Reset, Powerup, and Powerdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.19. Programming with Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6. Commands and Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7. Pin Descriptions: Si4736/37/38/39-GM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8. Pin Descriptions: Si4736/37-GU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

9. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

10. Package Markings (Top Marks) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10.1. Si4736/37/38/39 Top Mark (QFN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10.2. Top Mark Explanation (QFN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10.3. Si4736/37 Top Mark (SSOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10.4. Top Mark Explanation (SSOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

11. Package Outline: Si4736/37/38/39 QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

12. PCB Land Pattern: Si4736/37/38/39 QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

13. Package Outline: Si4736/37 SSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

14. PCB Land Pattern: Si4736/37 SSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

15. Additional Reference Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Rev. 1.0

SI4737-C40-GUR Related Products

	SI4737-C40-GUR	Si4739-C40-GU	Si4739-C40-GM	Si4738-C40-GU	SI4737-C40-GMR	SI4738-C40-GMR	SI4736-C40-GMR	SI4736-C40-GUR	SI4739-C40-GUR
Description	RF Receiver Si4737 Broadcast AM/FM/WB RDS/RBDS	RF Receiver Broadcast FM/WB Recvr w/RDS/RBDS	RF Receiver Si4739 Broadcast FM/WB Radio Receiver	RF Receiver Broadcast FM/WB Radio Receiver	RF Receiver Si4737 Broadcast AM/FM/WB RDS/RBDS	RF Receiver Si4738 Broadcast FM/WB Radio Receiver	RF Receiver Si4736 Broadcast AM/FM/WB Radio Recvr	RF Receiver Si4736 Broadcast AM/FM/WB Radio Rcvr	RF Receiver Broadcast FM/WB Recvr w/RDS/RBDS
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories
Product Category	RF Receiver	RF Receiver	RF Receiver	RF Receiver	RF Receiver	RF Receiver	RF Receiver	RF Receiver	RF Receiver
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Moisture Sensitive	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Factory Pack Quantity	2500	2500	2500	2500	2500	2500	2500	2500	2500
