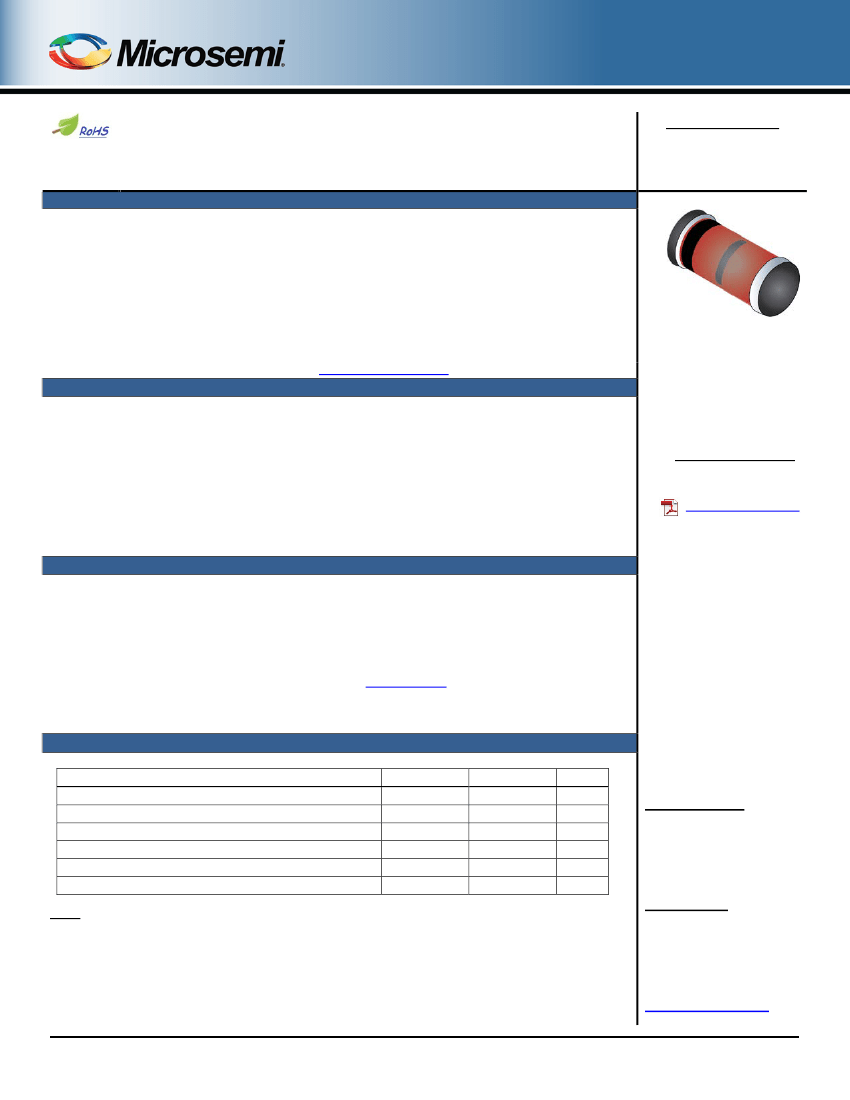

1N5283UR-1 thru 1N5314UR-1
CURRENT REGULATOR DIODES
Available on
commercial
versions
Qualified per MIL-PRF-19500/463
DESCRIPTION
Qualified Levels:
JAN, JANTX, JANTXV
and JANS
The popular 1N5283UR-1 thru 1N5314UR-1 series of 0.5 watt current regulators provides a
selection from 0.22 mA to 4.7 mA in standard 10% tolerances. These devices regulate current
over a broad voltage range as a counter part offering to Zeners (that regulate voltage over a
broad current range). The DO-213AB package offers a double plug internal bond connection
with a large die element for its unique function as a current limiter. Microsemi also offers
numerous other Zener products to meet higher and lower power voltage regulation
applications.
DO-213AB
Important:
For the latest information, visit our website
http://www.microsemi.com.
(MELF, LL41)
FEATURES
•
•
•
•
•
•
JEDEC registered surface mount equivalent of 1N5283 thru 1N5314 series.
High source impedance.
Internal metallurgical bond.
JAN, JANTX, JANTXV, and JANS qualifications are available per MIL-PRF-19500/463.
Chips also available as JANHC and JANKC.
RoHS compliant versions available (commercial grade only).
Package
Also available in:
DO-7 Package
(axial-leaded)
1N5283-1 to 1N5314-1
APPLICATIONS / BENEFITS
•
•
•
•
•
•
Double-plug construction.
Regulates current over a broad operating voltage and temperature range.
Extensive selection from 0.22 mA to 4.7 mA.
Standard current tolerances are plus/minus 10%.
Non-sensitive to ESD.
Inherently radiation hard as described in Microsemi “MicroNote
050”.
MAXIMUM RATINGS
Parameters/Test Conditions
Junction and Storage Temperature
Thermal Resistance Junction-to-End Cap
@ L = 0 in
Thermal Impedance
Steady-State Power Dissipation
@ T
EC
= +125
o
C,
(1)
Working Peak Voltage
Solder Pad Temperature @ 10 s max.
Notes:
1. Derate at 10 mW/°C above +125
o
C.
Symbol
T
J
and T
STG
R
ӨJEC
Z
ӨJX
P
D
V
WM
T
SP
Value
-65 to +175
100
25
500
100
260
Unit
C
C/W
O
C/W
mW
V
o
C
o
o
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
T4-LDS-0160, Rev. 2 (111541)
©2011 Microsemi Corporation
Page 1 of 6
1N5283UR-1 thru 1N5314UR-1
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
CASE: Hermetically sealed glass case.
TERMINALS: Tin/lead finished copper clad steel or RoHS compliant matte-tin finish available (commercial grade only).
MARKING: Cathode band.
POLARITY: Diode to be operated with the banded (cathode) end negative.
MOUNTING SURFACE SELECTION: The Axial Coefficient of Expansion (COE) of this device is approximately +6PPM/°C.
The COE of the Mounting Surface System should be selected to provide a suitable match with this device.
WEIGHT: 0.2 grams.
See
Package Dimensions
on last page.
PART NOMENCLATURE
JAN
Reliability Level
JAN = JAN Level
JANTX = JANTX Level
JANTXV = JANTXV Level
JANS = JANS Level
Blank = Commercial
JEDEC type number
(see
Electrical Characteristics
table)
1N5283
UR
-1
(e3)
RoHS Compliance
e3 = RoHS Compliant (available
on commercial grade only)
Blank = non-RoHS Compliant
Metallurgically Bonded
Surface Mount Package Type
Symbol
I
L
I
S
P
D
R
ӨJL
T
L
T
SP
V
K
V
L
V
S
z
k
z
s
Z
ӨJX
SYMBOLS & DEFINITIONS
Definition
Limiting Current: A specified current below the lower knee of the current-regulating characteristic.
Regulator current: A current within the regulating range of a current-regulator diode.
Power Dissipation: The power dissipation, dc.
Thermal Resistance Junction-to-Lead: The thermal resistance from the virtual junction(s) of a semiconducter device to
the lead.
Lead Temperature: The temperature of a lead terminal.
Temperature Solder Pad: The maximum solder temperature that can be safely applied to the terminal.
Knee Voltage: A specified regulator voltage near the lower knee of the current-regulating characteristic.
Limiting Voltage: The voltage at point I
L
on the current-voltage characteristic.
Regulator Voltage: A voltage within the regulating range of a current-regulating diode.
Knee Impedance: The small-signal impedance at operating point VK on the current-voltage characteristic.
Regulator Impedance: The small-signal impedance within the regulating range of a current-regulator diode.
Thermal Impedance: The thermal impedance junction to reference point.
T4-LDS-0160, Rev. 2 (111541)
©2011 Microsemi Corporation
Page 2 of 6
1N5283UR-1 thru 1N5314UR-1
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C, unless otherwise specified)
MINIMUM
DYNAMIC
IMPEDANCE
@VS = 25 V
zs (MΩ)
(Note 1)
25.00
19.00
14.00
9.000
6.600
4.100
3.300
2.700
1.900
1.550
1.350
1.150
1.000
0.880
0.800
0.700
0.640
0.580
0.540
0.510
0.475
0.420
0.395
0.370
0.345
0.320
0.300
0.280
0.265
0.255
0.245
0.235
MINIMUM
KNEE
IMPEDANCE
@VK = 6.0 V
zk (MΩ)
(Note 2)
2.750
2.350
1.950
1.600
1.350
1.000
0.870
0.750
0.560
0.470
0.400
0.335
0.290
0.240
0.205
0.180
0.155
0.135
0.115
0.105
0.092
0.074
0.061
0.052
0.044
0.035
0.029
0.024
0.020
0.017
0.014
0.012
MAXIMUM
LIMITING
VOLTAGE
@ lL = 0.8 lS
(min)
VL (Volts)
1.00
1.00
1.00
1.00
1.00
1.05
1.05
1.05
1.10
1.13
1.15
1.20
1.25
1.29
1.35
1.40
1.45
1.50
1.55
1.60
1.65
1.75
1.85
1.95
2.00
2.15
2.25
2.35
2.50
2.60
2.75
2.90
TYPE
NUMBER
REGULATOR CURRENT
lS (mA) @ VS = 25 V
1N5283UR
1N5284UR
1N5285UR
1N5286UR
1N5287UR
1N5288UR
1N5289UR
1N5290UR
1N5291UR
1N5292UR
1N5293UR
1N5294UR
1N5295UR
1N5296UR
1N5297UR
1N5298UR
1N5299UR
1N5300UR
1N5301UR
1N5302UR
1N5303UR
1N5304UR
1N5305UR
1N5306UR
1N5307UR
1N5308UR
1N5309UR
1N5310UR
1N5311UR
1N5312UR
1N5313UR
1N5314UR
NOM
0.22
0.24
0.27
0.30
0.33
0.39
0.43
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.00
1.10
1.20
1.30
1.40
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
MIN
0.198
0.216
0.243
0.270
0.297
0.351
0.387
0.423
0.504
0.558
0.612
0.675
0.738
0.819
0.900
0.990
1.080
1.170
1.260
1.350
1.440
1.620
1.800
1.980
2.160
2.430
2.700
2.970
3.240
3.510
3.870
4.230
MAX
0.242
0.264
0.297
0.330
0.363
0.429
0.473
0.517
0.616
0.682
0.748
0.825
0.902
1.001
1.100
1.210
1.320
1.430
1.540
1.650
1.760
1.980
2.200
2.420
2.640
2.970
3.300
3.630
3.960
4.290
4.730
5.170
NOTE 1:
z
s
is derived by superimposing a 90 Hz RMS signal equal to 10% of V
S
on V
S.
NOTE 2:
z
k
is derived by superimposing a 90 Hz RMS signal equal to 10% of V
K
on V
K.
T4-LDS-0160, Rev. 2 (111541)
©2011 Microsemi Corporation
Page 3 of 6
1N5283UR-1 thru 1N5314UR-1
GRAPHS

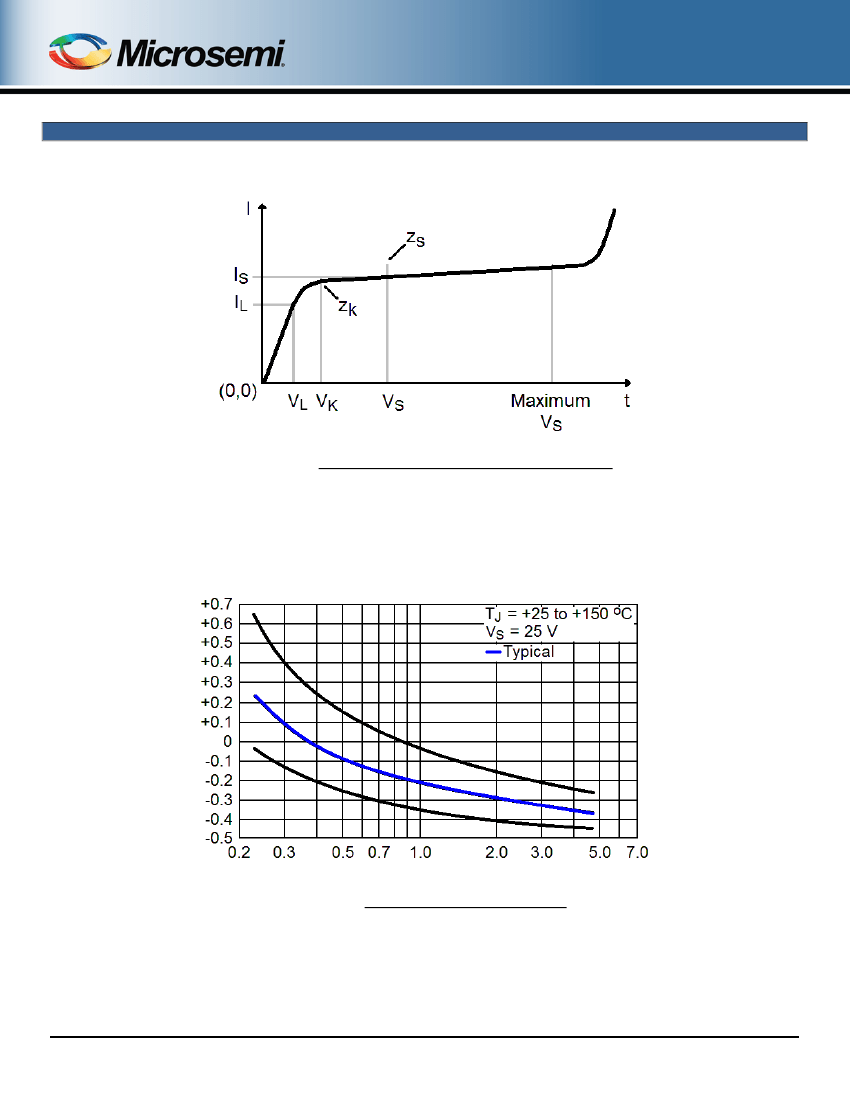

FIGURE 1
– CURRENT-REGULATOR CHARACTERISTICS
T
C
TEMPERATURE COEFFICIENT (% / °C)
I
S
NOMINAL PINCH-OFF CURRENT (mA)
FIGURE 2
– TEMPERATURE COEFFICIENT
T4-LDS-0160, Rev. 2 (111541)
©2011 Microsemi Corporation
Page 4 of 6
1N5283UR-1 thru 1N5314UR-1
GRAPHS (continued)
T
C
TEMPERATURE
I
S
NOMINAL PINCH-OFF CURRENT (mA)

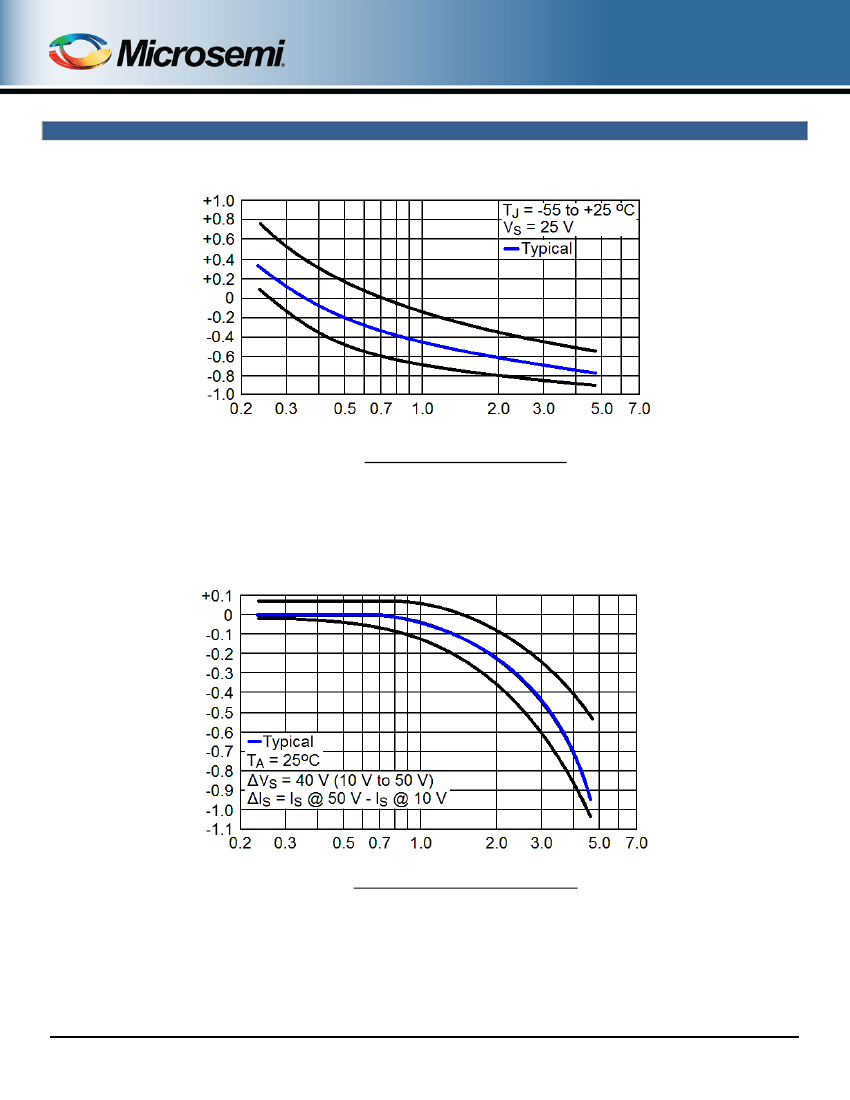

FIGURE 3
– TEMPERATURE COEFFICIENT
3
I
P
CURRENT CHANGE (mA)
I
S
NOMINAL PINCH-OFF CURRENT (mA)
FIGURE 4
– CURRENT REGULATION FACTOR
T4-LDS-0160, Rev. 2 (111541)
©2011 Microsemi Corporation
Page 5 of 6
