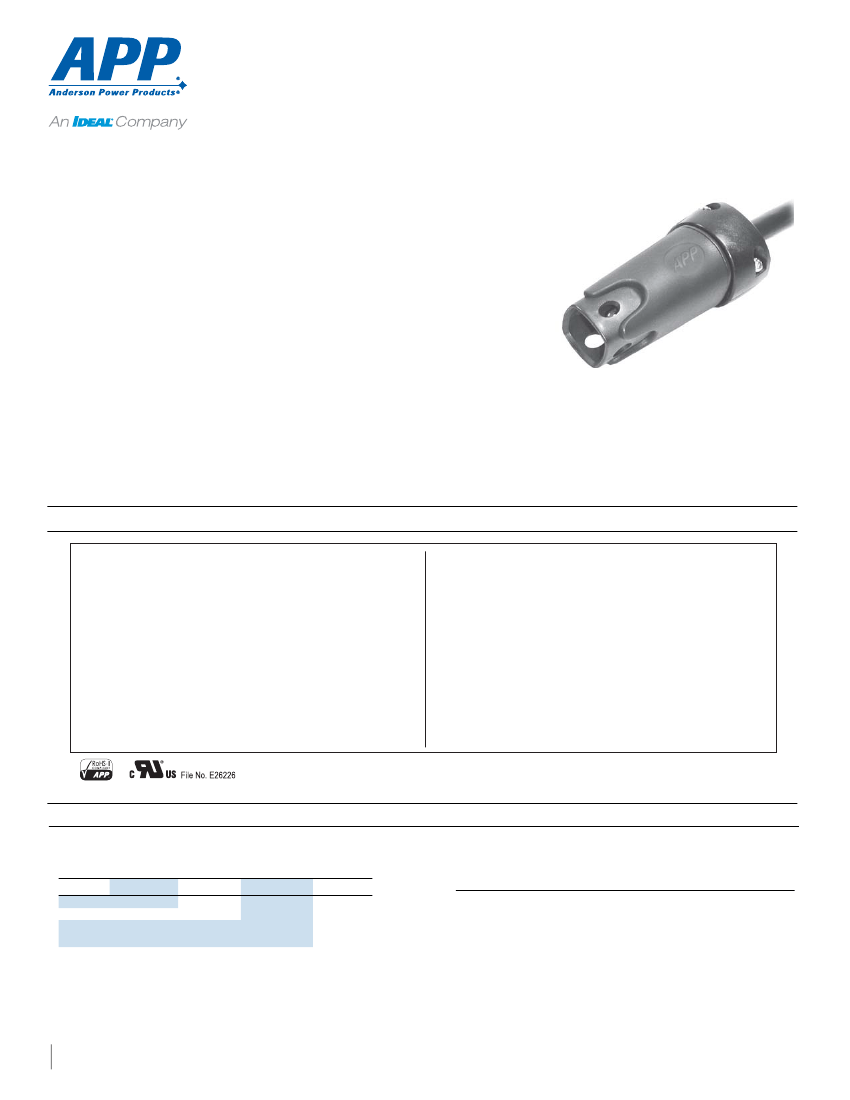

Single Pole Male - Series B
PowerMod HP connectors, developed by
Anderson Power Products, are the innovative
New Generation of High Power Interconnections
for the Electronics Industry.
The touch-safe, positive latching, PowerMod HP
female connector design presents a new
standard for high power connector safety. The
ergonomic latch release is simple to operate and
is colored blue for clear identification. Housings
are a black UL94 V-0 flame retardant material.
PowerMod HP contacts are durable and rated
for circuit interruption (true hot-pluggable).
Series B contacts are available in 1/0 to 4/0
American wire gauge and 50mm² to 95mm²
metric wire sizes for global design freedom. Our
optional strain relief ensures superior contact
reliability under adverse operating conditions.
The PowerMod HP connectors embody the
highest quality in the industry and meet all
applicable industry standards.
PowerMod HP
®
Features
Integral latches with ergonomic release
provide over 50 lbs retention
Reduces risk of wire insulation creep and
reduces transmission of wire loads to contacts
improving service life
•
Positive latching
•
Strain relief option
•
Low connector mating forces
Connectors are easily mated and unmated
Offers greater longevity for high power,
elevated temperature applications
•
Silver plated, high conductivity
contacts
•
Ease of assembly
Intuitive designallows for simplicity of assembly
SPECIFICATIONS
Electrical
Current Rating (Amperes)
UL
CSA (30°C Rise)
UL / CSA Voltage Rating
Wire Size (AWG)
(mm²)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C)
(°F)
Ambient Temperature (°C)
(°F)
450
280
6 00
1/0 to 4/0
50 to 95
2200
-40° to 130°
-40° to 266°
-40° to 85°
-40° to 185°
Mechanical
Mating Force
Latch Retention Force
Contact Retention Force
Mating
a. No Load (mating cycles)
b. Under Load (Hot Plug 250 mating cycles @ 120V)
Materials
Housing & Cable Clamp
Latch
Contacts
Hardware
16.5 lbs. (74N) avg
50 lbs. (222N) min
150 lbs. (667N) min
500
150A
PBT UL94 V-0
PEI UL94 V-0
Copper alloy silver plate
Steel zinc chromate
ORDERING INFORMATION
PowerMod HP Part Number Plan - Single Pole Male
Series
Series
Gender
Model
01
Wire Size
P04
PMHP
B
M
B*
M - Male
01 - Single Pole Straight
02 - Single Pole Straight with Cable Clamp
P04 - 1/0 AWG to 50mm²
P03 - 2/0 AWG to 70mm²
P02 - 95mm²
P01 - 4/0 AWG
* Maximum wire size 4/0 AWG
Components
Part
Number
PMHPBM01
PMHPBM02
PMHPBP04
PMHPBP03
PMHPBP02
PMHPBP01
PMHPBC01
Description
Housing Kit, Male, Single Pole, Straight
Housing Kit with Cable Clamp, Male, Single Pole, Straight
Pin, Series B, Crimp for 1/0 AWG to 50mm² wire
Pin, Series B, Crimp for 2/0 AWG to 70mm² wire
Pin, Series B, Crimp for 95mm² wire
Pin, Series B, Crimp for 4/0 AWG wire
Single Pole cable clamp kit
www.andersonpower.com
All Data Subject To Change Without Notice
Single Pole
Male - Series B

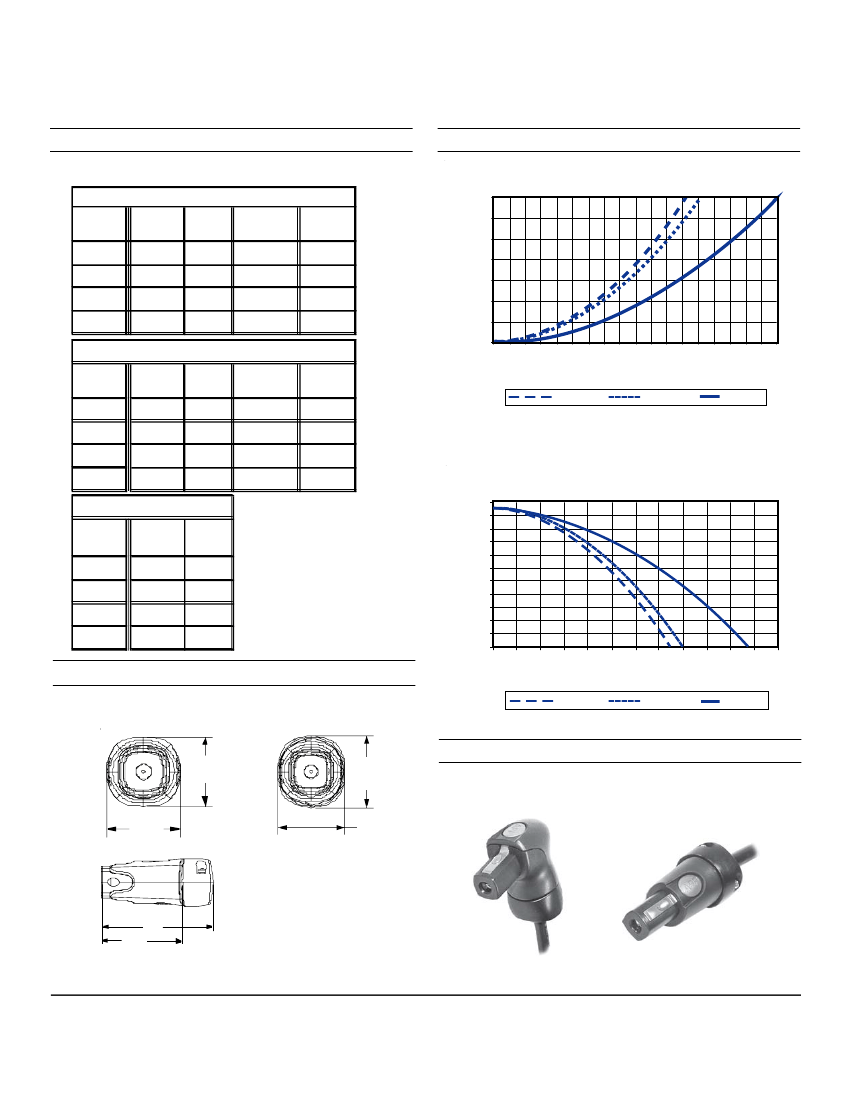

ORDERING INFORMATION
Tooling
Pneumatic Production Tool
TEMPERATURE CHART
70
PowerMod®HP Single Pole Series “B”
Temperature Rise
4/0
95mm²
2/0-70mm²
1/0-50mm²
1387G 2
1387G 2
1387G 2
1387G 2
1303G 3
1303G17
1303G16
1303G 8
Hand Tool
1304G25
1304G25
1304G23
1304G23
2
2
2
2
Temperature (°C)
Wire Size
Part
Number
Die P/N
Locator P/N
Number of
Crimps
60
50
40
30
20
10
0
0
50
100
150
200
250
300
350
400
4/0 cable
450
Wire Size
4/0
95mm ²
2/0-70mm²
1/0-50mm²
Hydraulic
1387G3
1387G3
1387G3
1387G3
Battery
1370G1
1370G1
1370G1
1370G1
Die P/N
1322G14
1322G1
1322G3
1322G13
Number of
Crimps
2
2
2
2
Current (A)
1/0 cable
2/0 cable
* Double crimp is required to achieve stated electrical specifications
Wire Size
4/0
95mm²
2/0-70mm²
1/0-50mm²
Part
Number
1368
1368
1368
1368
Number
of Crimps
2
2
2
2
Ambient T emperature (°C)
Hydraulic Tool
110
100
90
80
70
60
50
40
30
20
10
0
PowerMod®HP Single Pole De-rating Curve Series “B”
B”
Per IEC 60512-5
DIMENSIONS
Front Without
Strain Relief
[ 39.3 ]
1.55
[ 42.6 ]
1.68
0
50 100 150 200 250 300 350 400 450 500 550 600
Front With
Strain Relief
[ 49.5 ]
1.95
[ 44.8 ]
1.76
Current (A)
2/0 cable
1/0 cable
4/0 cable
* Double crimp is required to achieve stated electrical specifications
MATING CONNECTORS
Single Pole Right
Angle Female
Single Pole Female
Side
[ 98.4 ]
3.88
[ 80.8 ]
2017-0070
DS-BSPM REV 6
3.18
All Data Subject To Change Without Notice
