52271-1579

Description
FFC & FPC Connectors 1.0 FPC ZIF For SMT SMT EmbsTp Pkg 15Ckt
CategoryThe connector    The connector
File Size25KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52271-1579 Online Shopping

Suppliers Part Number Price MOQ In stock
52271-1579 - - View Buy Now

52271-1579 Overview

FFC & FPC Connectors 1.0 FPC ZIF For SMT SMT EmbsTp Pkg 15Ckt

52271-1579 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresZIF, BOTTOM CONTACT STYLE
body width0.118 inch
subject depth0.35 inch
body length0.787 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance100000000 Ω
Insulator colorNATURAL
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness4u inch
Rated current (signal)0.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts15
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1
This document was generated on 02/19/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:

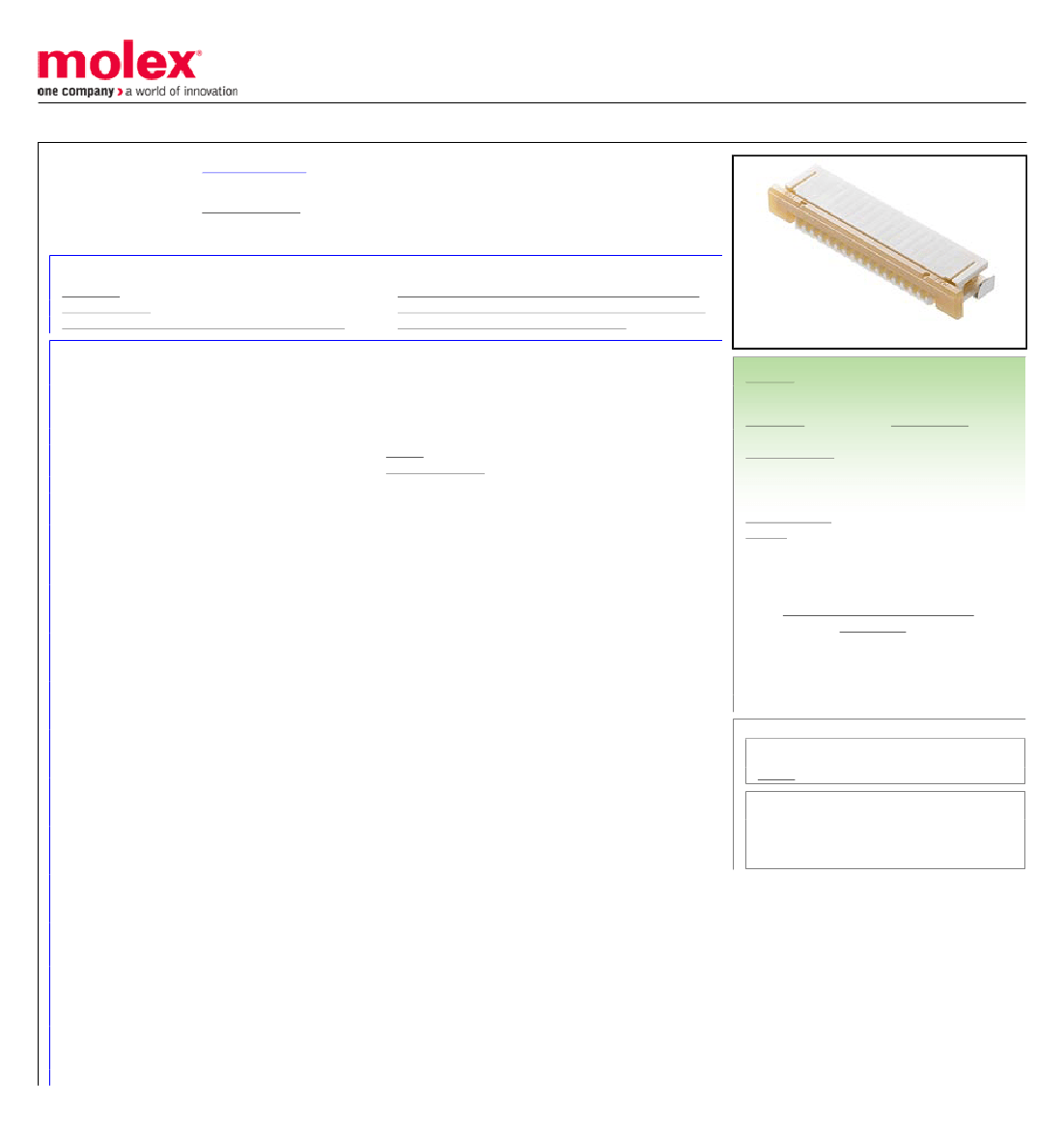

0522711579
Active
FFC-FPC (SMT)
1.00mm Pitch Easy-On FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Bottom
Contact Style, 15 Circuits, High Barrier Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52271-053-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Application Specification AS-52271-001-001 (PDF)
Packaging Specification SPK-52271-002-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
FFC/FPC Connectors
52271
FFC-FPC (SMT)
Easy-On
Slider
822348148745
15
Natural
Bottom
30
90° Angle
94V-0
3.00mm
Phosphor Bronze
Tin-Bismuth
Tin-Bismuth
Nylon
673.060/mg
1
Right Angle
No
Yes
Embossed Tape on Reel
1.00mm
1.00mm
Yes
No
-40°C to +85°C
Surface Mount
FFC/FPC
0.5A
50V AC (RMS)/DC
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
52271 Series
Mates With
<a href="http://www.molex.com/product/
premoflex_ffc-fpc.html">Molex Premo-Flex
FFC</a>. Be sure to match like plating
AS-52271-001-001
SPK-52271-002-001
