MAY06 (1/6)
MITSUBISHI (OPTICAL DEVICES)
FU-632SEA-x61MyyF
1.55
μm

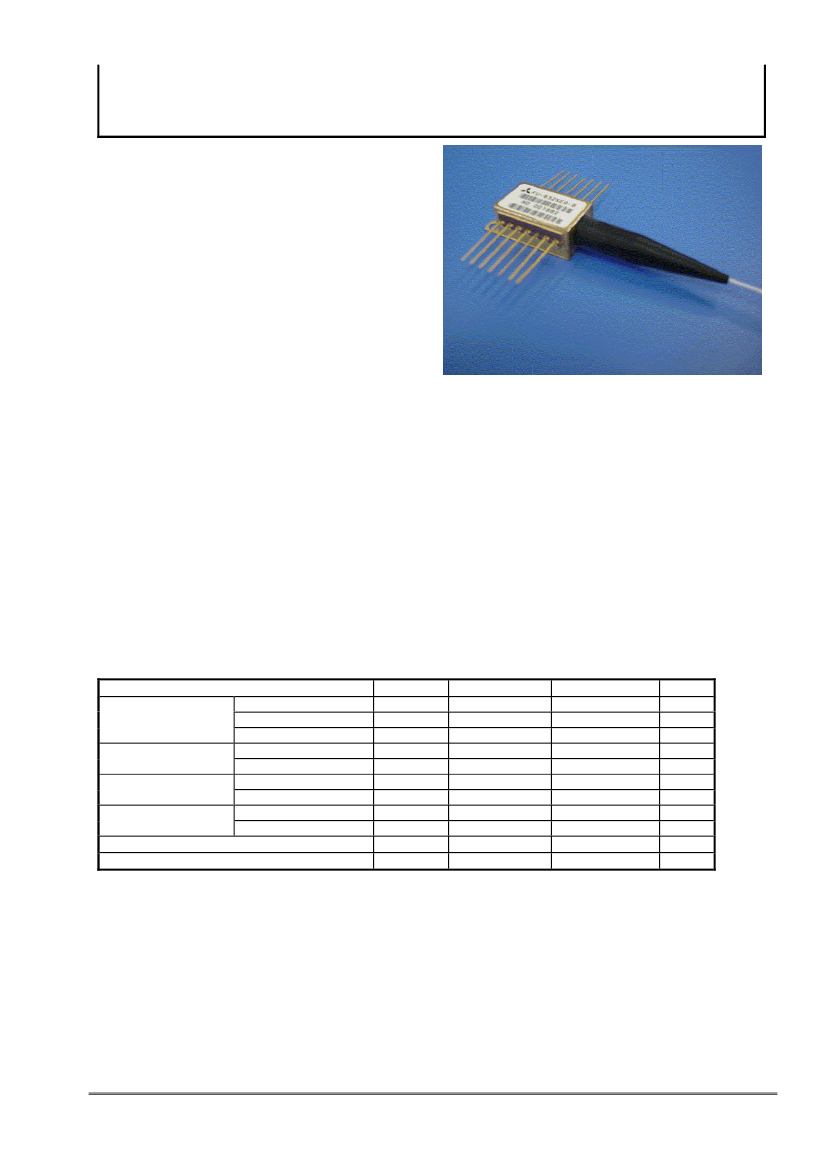

EAM/DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
DESCRIPTION
Module type FU-632SEA-x61MyyF is an electro-aborption
modulator integrated with 1.55μm DFB-LD module with
single mode optical fiber.
This module is suitable to a light source in 2.5Gb/s digital
optical communication systems where the distance is
more than 640km.
This module is prepared in accordance with ITU-T
recommendation wavelength channel plan for Dense-
WDM transmission.
FEATURES
•
Input impedance is 50Ω
•
Electroabsorption Modulator integrated Multi quantum
wells (MQW) DFB Laser Diode
•
Emission wavelength is in full C band
•
Single mode optical fiber pig-tail
•
Built-in optical isolator
•
Built-in thermal electric cooler
•
Butterfly package
•
With photodiode for optical output monitor
•
RoHS (2002/95/EC) complian½
APPLICATION
High speed transmission systems (~2.5Gb/s)
Long haul transmission systems (12800ps/nm)
Dense-WDM systems
ABSOLUTE MAXIMUM RATINGS
(Tld=Tset)
Parameter
Symbol
Conditions
Rating
Unit
Laser diode
Optical output power
Pf
CW
6
mW
Forward current
If
CW
200
mA
Reverse voltage
Vrl
CW
2
V
Modulator
Reverse voltage
Vrm
-
5
V
Forward voltage
Vfm
-
1
V
Photodiode for
Reverse voltage
Vrd
-
20
V
monitoring
Forward current
Ifd
-
2
mA
Thermoelectric
Current
Ipe
-
1.5
A
cooler(Note 1)
Voltage
Vpe
-
3
V
Operating case temperature
Tc
-
-20 to 70
°C
Storage temperature
Tstg
-
-40 to 85
°C
Note 1. Even if the thermoelectric cooler(TEC) is operated within the rated conditions, uncontrolled current loading or
operation without heat sink may easily damage the module by exceeding the storage temperature range.
Thermistor resistance should be properly monitored by the feedback circuit during TEC operation to avoid
the catastrophic damage.
Mitsubishi Electric Corporation reserves the right to make changes to the products or information contained herein
without notice. No liability is assumed as a result of their use or application.
MITSUBISHI CONFIDENTIAL
MAY06 (2/6)
MITSUBISHI (OPTICAL DEVICES)
FU-632SEA-x61MyyF
1.55
μm
EAM/DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
ELECTRICAL/OPTICAL CHARACTERISTICS
Parameter
Symbol
Laser operating Temperature
Threshold current
Operating current
Operating voltage
Input impedance
Optical output power
from fiber end
Light emission central
spectral wavelength
Center wavelength drift with
case temperature
Side mode suppression ratio
Spectral width
Relative intensity noise
Power penalty
Extinction ratio
Rise/Fall time
Cutoff frequency
RF return loss
Tset
Ith
Iop
Vop
Zin
Pf_ave
λc
Δλc/ΔTc
(Tld=Tset, Tc=-20~70°C unless otherwise noted)
Test Conditions
Limits
(Note 2)
Min.
Typ.
CW, If=Iop
20
-
5
40
-
-
-2
-
60
-
50
-
Unit
Max.
35
30
70
1.7
-
+2.5
°C
mA
mA
V
Ω
dBm
nm
0
-
10
0.1
-140
1.5
-
100
pm/°C
CW,Vm=0V
CW,Vm=0V
CW,Vm=0V,If=Iop
If=Iop
(Note3,4)
(Note3,4)
CW,Vm=0V,APC,
20~70°C
(Note3,4)
CW,Vm=0V,If=Iop
(Note3,4)
Tld=Tset
,Tc=-
see Table 1.
-1
35
-
-
-
-
11
-
-
40
3
0.05
-155
-
-
-
Sr
Δλcw
Δλmod
RIN
Pp
Ex
tr/tf
fc
S
11
dB
MHz
nm
dB/Hz
dB
dB
ps
CW,Vm=0V,If=Iop,2.5GHz
(Note3,4), 12800ps/nm
(Note3,4)
(Note3,4),20-80%
If=Iop,Vm=-1V
3.5
-
-
GHz
If=Iop,Vm=-1V,0~2GHz
10
-
-
dB
If=Iop,Vm=-1V,2~3GHz
7
-
-
dB
Tracking error
Er
Tc=-20~70°C,APC,
ATC
(Note
-
0.3
0.5
dB
5),Vm=0V
Monitor current
Imon
(Note3,4)
0.1
-
1.5
mA
Dark current(PD)
Id
Vrd=5V,Tld=25°C
-
-
0.1
μA
Capacitance(PD)
Ct
Vrd=5V,Tld=25°C,f = 1MHz
-
10
-
pF
Optical isolation
Iso
Tc=25°C
35
-
-
dB
Tc=-20~70°C
23
-
-
dB
Note2) Vm is EAM bias level at CW condition, Vpp and Voff are EAM amplitude and EAM high level offset voltage
respectively at modulated condition.
Note 3) 2.48832Gb/s,NRZ,PRBS2
23
-1,If=Iop,Vpp=2.5V,Voff= -0.2V,Tld=Tset, Back to back.
Note 4) Optical return loss of the connectors should be greater than 40dB in order to get specified performance.
Note 5) Er=MAX|10×log(Pf(Tc)/Pf(25°C))|
input
voltage
0V
Voff
Vpp
time
fig1. Definition of Electrical input
Mitsubishi Electric Corporation reserves the right to make changes to the products or information contained herein
without notice. No liability is assumed as a result of their use or application.
MITSUBISHI CONFIDENTIAL
MAY06 (3/6)
MITSUBISHI (OPTICAL DEVICES)
FU-632SEA-x61MyyF
1.55
μm
EAM/DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
THERMAL CHARACTERISTICS
(Tld=Tset, Tc=-20~70°C)
Parameter
Symbol
Test Conditions
Min.
Thermistor resistance
Rth25
Rth
B constant of Rth
Cooler current
Cooler voltage
B
Ipe
Vpe
Tld=25°C
Tld=Tset
-
If=Iop,Tld=Tset,Tc=70°C
If=Iop,Tld=Tset,Tc=70°C
9.5
(6.51)
-
-
-
Limits
Typ.
10
(10)
3950
0.7
1.7
Unit
Max.
10.5
(12.54)
-
1.2
2.5
kΩ
kΩ
K
A
V
FIBER PIGTAIL SPECIFICATIONS
Parameter
Limits
Unit
Type
SM
-
Mode field diameter
9.5+/-1
μm
Cladding diameter
125+/-2
μm
Secondary coating outer diameter
0.9+/-0.1
mm
Connector
(Note 5)
-
Optical return loss of connector
40 (min)
dB
Note 6) SC/PC and FC/PC are available. Other connectors are also available for large quantities.
DOCUMENTATION
(Tld=Tset)
•
Fiber output power vs. Laser forward current at Vm=0V, Tld=Tset
•
Fiber output power (Pf_ave) at If=Iop,2.48832Gb/s modulation,Tld=Tset and Tc=25°C
•
Threshold current (Ith) at Tld=Tset and Tc=25°C
•
Laser forward current (Iop) at Pf_ave > -1dBm, Vm=0V, Tld=Tset and Tc=25°C
•
Laser forward voltage (Vop) at If = Iop, Vm=0V, Tld=Tset and Tc=25°C
•
Laser operating temperature (Tset) at
λc.
(Note 7)
•
Light emission central spectral wavelength (λc) at If=Iop,2.48832Gb/s modulation,Tld=Tset and Tc=25°C
•
Monitor current (Imon) at If = Iop, Vm=0V, Tld=Tset and Tc=25°C
•
Thermistor resistance (Rth) at
λc,Tld=Tset
(Note 7)
•
Cooler current (Ipe) at If = Iop, Vm=0V, Tld=Tset and Tc=70°C
•
Cooler voltage (Vpe) at If = Iop, Vm=0V, Tld=Tset and Tc=70°C
Note 7) Tset is attached as a reference data. Rth should be used in order to tune the wavelength to the specified value
accurately.
Mitsubishi Electric Corporation reserves the right to make changes to the products or information contained herein
without notice. No liability is assumed as a result of their use or application.
MITSUBISHI CONFIDENTIAL
MAY06 (4/6)
MITSUBISHI (OPTICAL DEVICES)
FU-632SEA-x61MyyF
1.55
μm
EAM/DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
ORDERING INFORMATION
FU – 632SEA – _ 61M __ F
λ
code
Connector
SC/PC
FC/PC
See table 1
W
V
Table 1.
f [THz]
196.20
196.10
196.00
195.90
195.80
195.70
195.60
195.50
195.40
195.30
195.20
195.10
195.00
194.90
194.80
194.70
194.60
194.50
194.40
194.30
194.20
194.10
194.00
193.90
193.80
193.70
193.60
193.50
193.40
193.30
193.20
193.10
193.00
192.90
λc
[nm]
1527.99
1528.77
1529.55
1530.33
1531.12
1531.90
1532.68
1533.47
1534.25
1535.04
1535.82
1536.61
1537.40
1538.19
1538.98
1539.77
1540.56
1541.35
1542.14
1542.94
1543.73
1544.53
1545.32
1546.12
1546.92
1547.72
1548.51
1549.32
1550.12
1550.92
1551.72
1552.52
1553.33
1554.13
λ
code
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
f [THz]
192.80
192.70
192.60
192.50
192.40
192.30
192.20
192.10
192.00
191.90
191.80
191.70
191.60
191.50
λc
[nm]
1554.94
1555.75
1556.55
1557.36
1558.17
1558.98
1559.79
1560.61
1561.42
1562.23
1563.05
1563.86
1564.68
1565.50
λ
code
73
75
77
79
81
83
85
87
89
91
93
95
97
99
All wavelengths are referred to vacuum. Tolerance is
λc+/-0.05nm.
Mitsubishi Electric Corporation reserves the right to make changes to the products or information contained herein
without notice. No liability is assumed as a result of their use or application.
MITSUBISHI CONFIDENTIAL
MAY06 (5/6)
MITSUBISHI (OPTICAL DEVICES)
FU-632SEA-x61MyyF
1.55
μm
EAM/DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
OUTLINE DIAGRAM
Unless otherwise noted +/-0.5mm
(Unit : mm)
7 .3 8
1 5 .2 4
2 .5 4
±
0 .2
P IN 1
2 -φ 2 .7
±
0 .2
φ0.9±0.1
C o n n e c to r
1 3 -0 .5 1
±
0 .1
8.9±0.2
43±1
15.2
12.7
φ7
0 .3
±
0 .1
6 .1
4 .6
2
1 7 .8
2 0 .8
2 6
±
0 .2
30
P IN 1 4
37M A X
1100
±
100
5.6
L
8.9
5.6
0.25±0.1
PIN7
Thermo cooler
PIN1
Thermistor
PD
LD
R
GND
(CASE)
PIN NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Function
Thermistor
Thermistor
LD bias (+)
PD anode
PD cathode
Thermo cooler (+)
Thermo cooler (-)
GND
GND
NC
GND,LD(-),EA(+)
EA modulator (-)
GND,LD(-),EA(+)
NC
PIN8
0.1
PIN14
FU-632SEA-x61MyyF
Mitsubishi Electric Corporation reserves the right to make changes to the products or information contained herein
without notice. No liability is assumed as a result of their use or application.
MITSUBISHI CONFIDENTIAL
5.2
