TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 6T
FLAMABILITY RATING: UL94-V0
COLOUR: IVORY
ACTUATOR: PA 6T
COLOUR: BLACK
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT PLATING: 120µ’’ TIN OVER 50µ’’ NICKEL
QUALITY CLASS: 20 MATING CYLCES
PITCH: 0.50mm
A
Pin 01
ACCOMODATED FFC/FPC

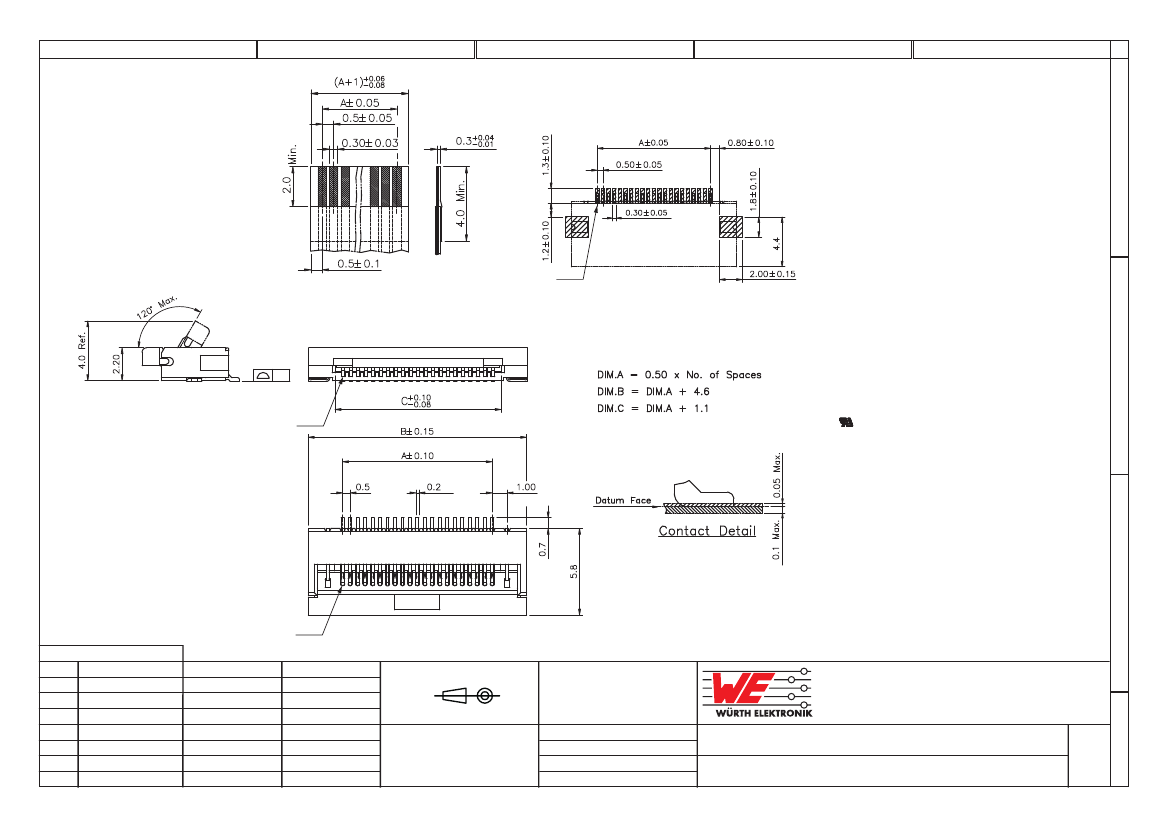

PCB LAYOUT - COMPONENT VIEW
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO +105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 0.5A
WORKING VOLTAGE: 50V AC/DC
INSULATION RESISTANCE: >500 MΩ
WITHSTANDING VOLTAGE: 150 VAC/min
CONTACT RESISTANCE: 50 mΩ max
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE REFLOW SOLDERING PROCESS
PACKAGING
TAPE & REEL
AVAILABLE IN
6-8-10-12-14-16-17-18-20-22-24-26-28-
30-32-33-34-35-40-44-45-50
0.1
B
Pin 01
C
Pin 01
RoHS Compliant
G
F
E
D
C
B
A
REV
03-AUG-16
01-DEC-15
07-OCT-15
20-OCT-14
DATE
TOLERANCE
PUNNING
LAYOUT
PDF
FILE
AK
AK
AK
AS
BY
APPROVAL: GMo
SCALE:
SHEET: 1/3
DRAW: AS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.15
.XX = +/- 0.10
UNIT: MM
DESCRIPTION: WR-FPC -SMT ZIF HORIZONTAL - BOTTOM CONTACT, 0.50MM
SIZE
HINGE TYPE
WERI PART NO: 687 1xx 149 022
A4
D
1
2
3
4
5

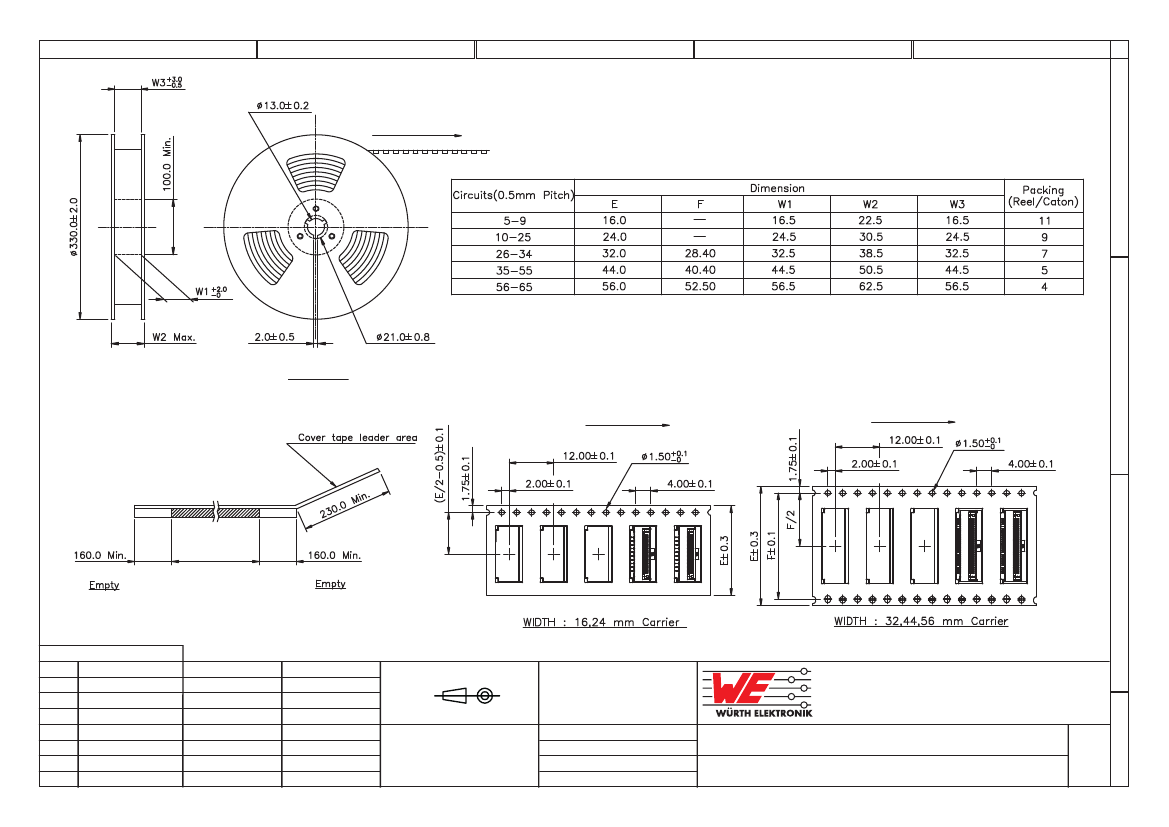

Unreeling direction
A
2000 Pcs/Reel
B
Unreeling direction
Unreeling direction
2000 Pcs
C
RoHS Compliant
G
F
E
D
C
B
A
REV
20-OCT-14
DATE
PDF
FILE
AS
BY
APPROVAL: GM
SCALE:
SHEET: 2/3
DRAW: AS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.15
.XX = +/- 0.10
UNIT: MM
DESCRIPTION: WR-FPC - SMT ZIF HORIZONTAL - BOTTOM CONTACT, 0.50MM -
SIZE
HINGE TYPE -
WERI PART NO: 687 1xx 149 022
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 3/3
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
