50-44E-10-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 50-44E-10-1

50-44E-10-1: DescriptionCard Edge Connector, 44 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle; CategoryThe connector; File Size80KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

50-44E-10-1 Overview

Card Edge Connector, 44 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle

50-44E-10-1 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Is Samacsys	N
Other features	NONE
body width	0.35 inch
subject depth	0.72 inch
body length	4.28 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1800VAC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	PHENOLIC
Manufacturer's serial number	50-XXE-10
Plug contact pitch	0.156 inch
Installation option 1	HOLE .125-.137
Installation option 2	OFFSET
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	50u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.55 inch
Terminal pitch	3.9624 mm
Termination type	WIRE WRAP
Total number of contacts	44
Evacuation force-minimum value	.278 N
Base Number Matches	1

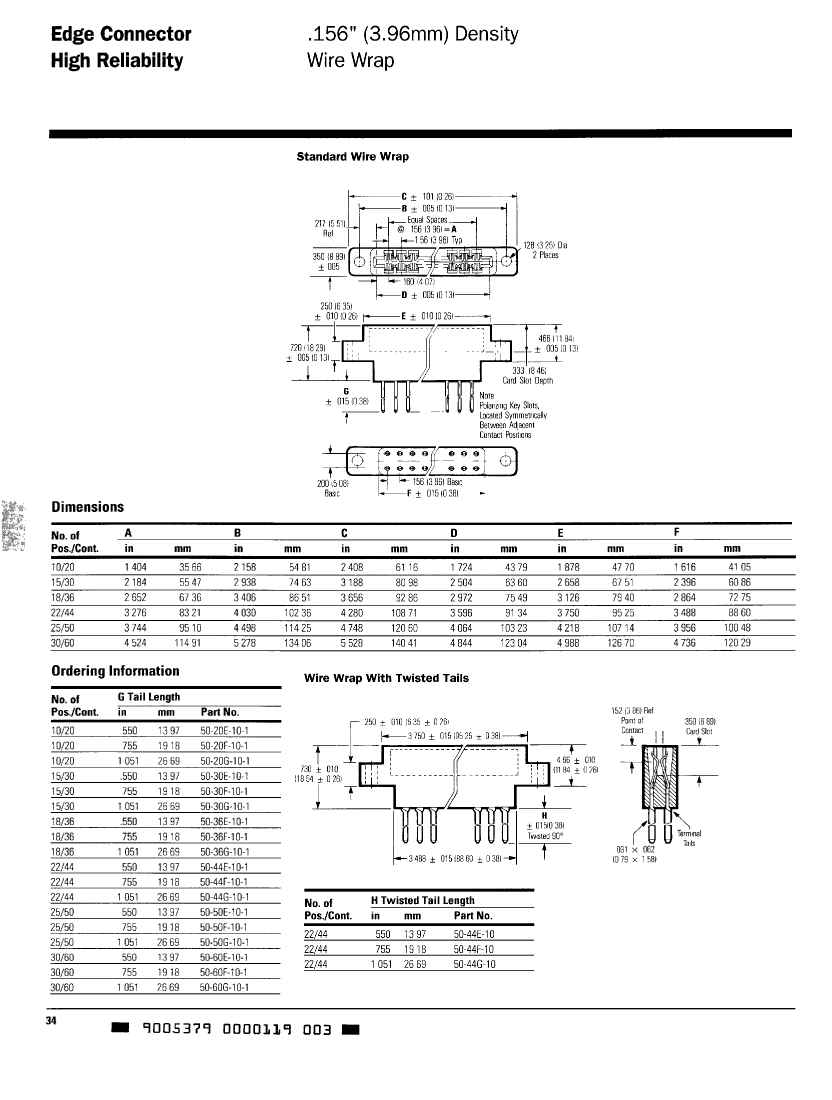

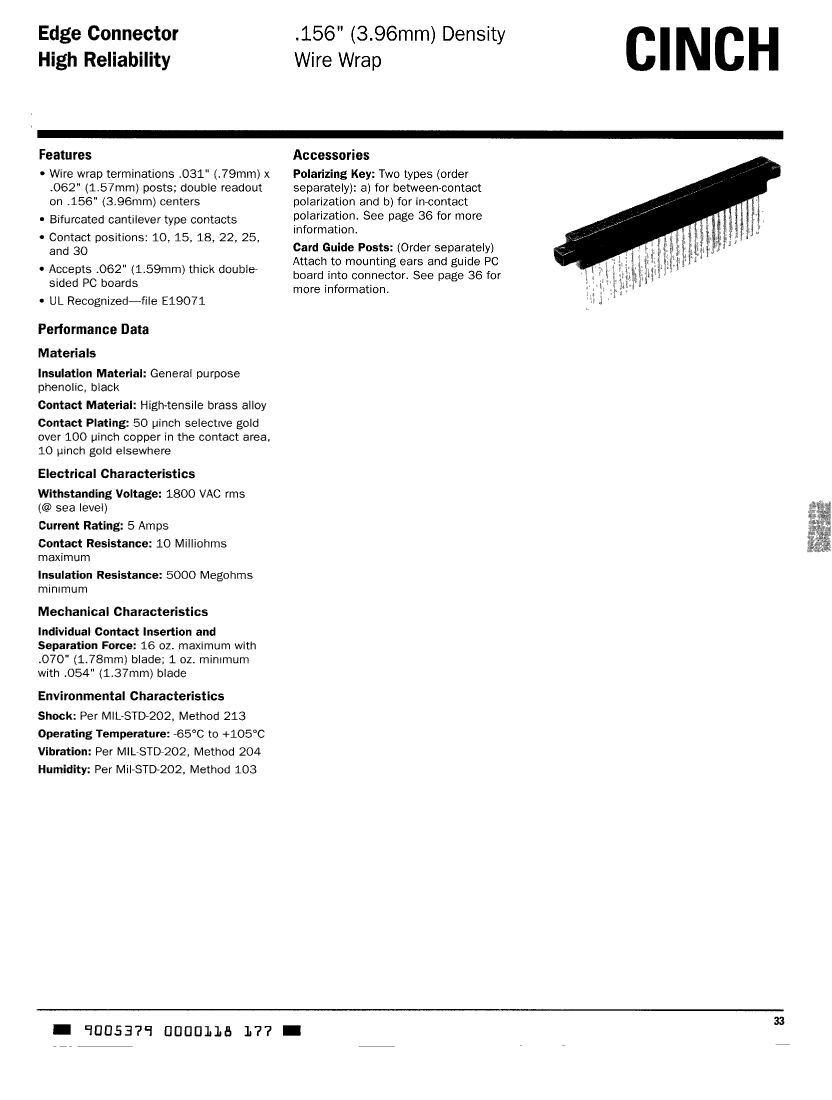

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

50-44E-10-1 Related Products

	50-44E-10-1	50-20E-10-1	50-30E-10-1	50-36E-10-1	50-50E-10-1	50-60E-10-1	50-20F-10-1	50-20G-10-1
Description	Card Edge Connector, 44 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 20 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 50 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 60 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 20 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle	Card Edge Connector, 20 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle
Maker	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	NONE	NONE	NONE	NONE	NONE	NONE	NONE	NONE
body width	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch
subject depth	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch
body length	4.28 inch	2.408 inch	3.188 inch	3.656 inch	4.748 inch	5.528 inch	2.408 inch	2.408 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V
maximum insertion force	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC
Manufacturer's serial number	50-XXE-10	50-XXE-10	50-XXE-10	50-XXE-10	50-XXE-10	50-XXE-10	50-XXF-10	50-XXG-10
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137
Installation option 2	OFFSET	OFFSET	OFFSET	OFFSET	OFFSET	OFFSET	OFFSET	OFFSET
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.755 inch	1.051 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	44	20	30	36	50	60	20	20
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N
Base Number Matches	1	1	1	1	1	1	1	1
Is Samacsys	N	-	N	N	N	N	N	N
