Barrier Terminal Blocks MAGNUM A4000 SERIES

A40031100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 5 days
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

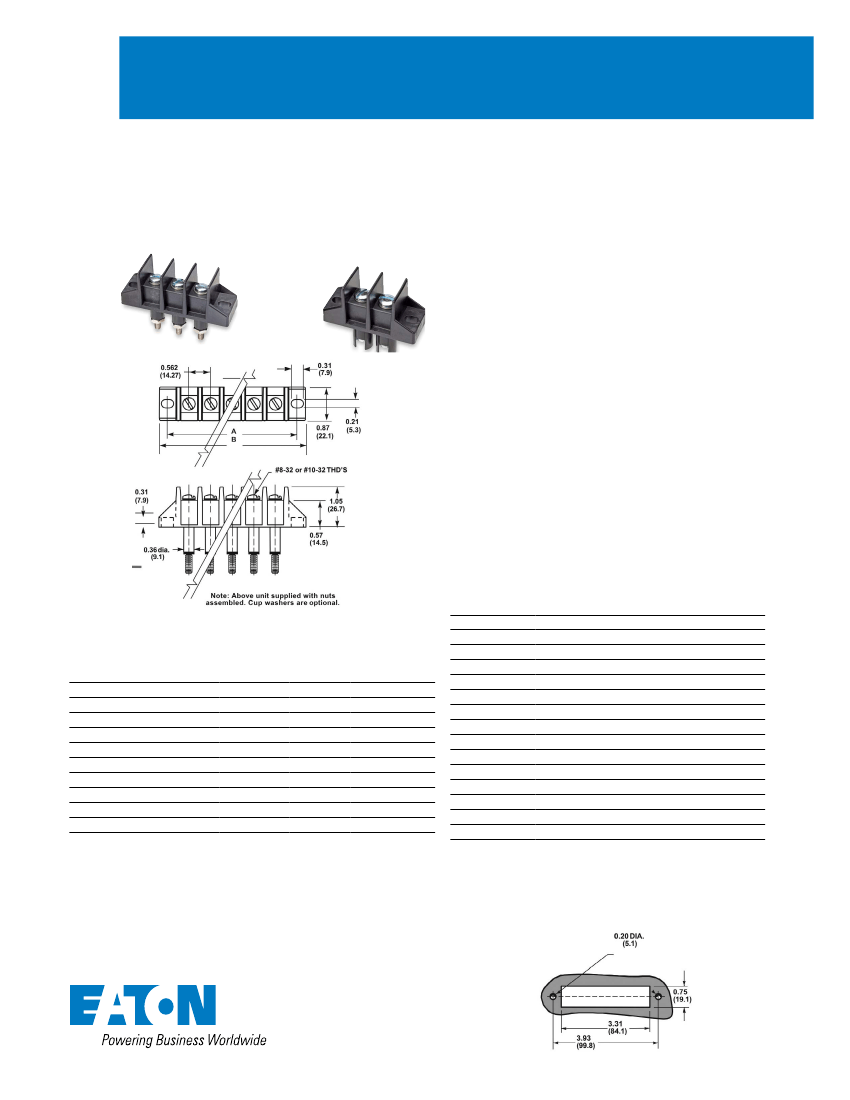

Single Row Terminal Blocks

A & B4

A4

B4

Specifications

Rating:

See table.

Center Spacing:

0.562” or 9/16” (14.28mm)

Wire Range:

See rating table.

A400303

Screw Size:

#8-32 or #10-32 zinc-plated slotted screws

B484302

Torque Rating:

#8 screw size 16 lb-in.

#10 screw size 20 lb-in.

Distance Between Barriers:

0.47” (11.9mm)

Operating Temperature:

105°C (221°F) max., -40°C (-40°F) min.

Molded Material:

Black, UL Rated 94V0 Thermoplastic

Hardware:

Bottom studs supplied with nuts assembled.

Extended Hex Nuts:

Optional extended, slotted hex nuts enable

easier installation and removal with hex wrench or screwdriver.

Available in bulk for the #10-32 studs on A4953 blocks. Specify part

number F582 and quantity.

Breakdown Voltage:

6100V

Agency Information:

UL File E62622, CSA File 47235; CE Certified

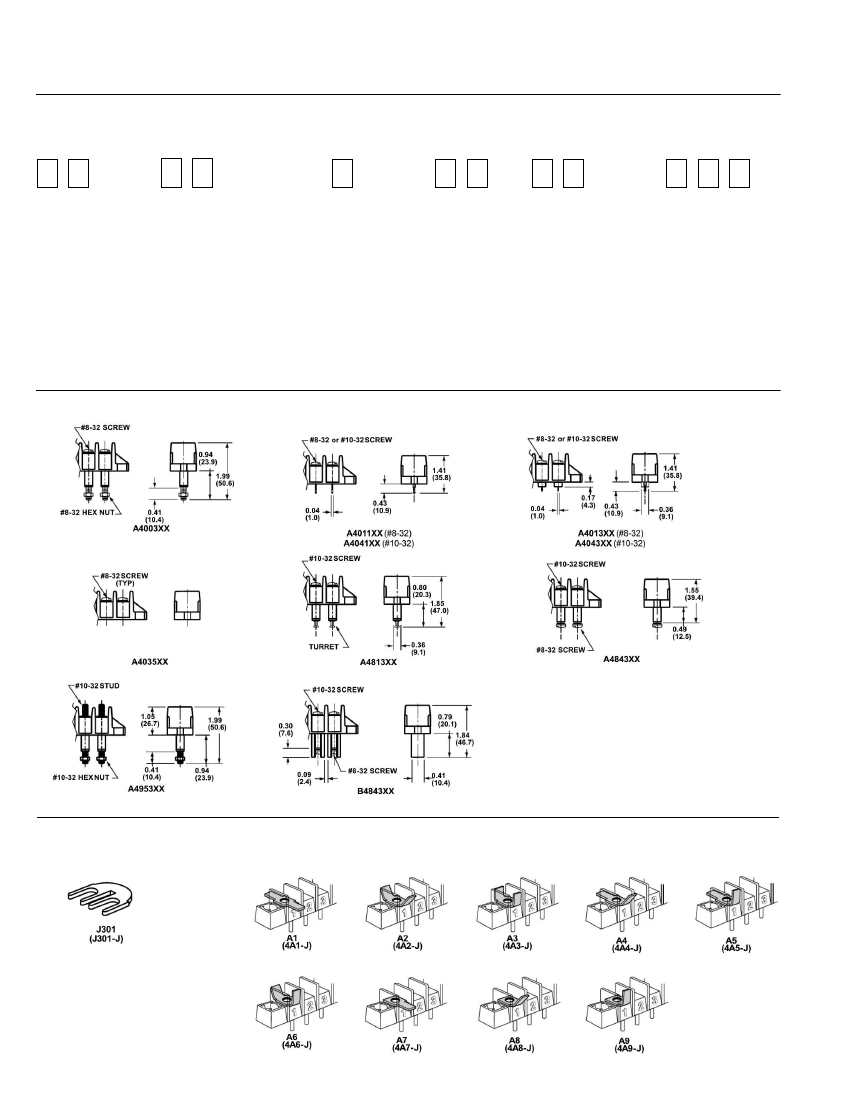

Dimensions

Inches (Millimeters)

MOUNTING ENDS ONLY

Poles

“A”

Mounting Centers

“B”

Dimension Length

Rating Table

Part Number

Terminal Top

Terminal

Bottom

Wire*

Range Cu

Ratings* Volts/

Amps

A4003XX

A4011XX

A4013XX

A4035XX

A4041XX

A4043XX

A4813XX

A4843XX

A4953XX

B4843XX

# 8 Screw

#10 Screw

#10 Stud

#10 Screw

#8 Stud

Solder

Closed

Solder

SolderTurret

#8 Screw

#10 Stud

#8 Screw

8-16 AWG

10-16 AWG

8-16 AWG

10-16 AWG

8-16 AWG

150V/50A

600V/35A

600V/50A

600V/35A

150V/50A

600V/50A

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

1.690

2.255

2.820

3.385

3.950

4.515

5.080

5.645

6.212

6.777

7.342

7.908

8.473

9.038

9.605

2.120

2.685

3.250

3.817

4.382

4.947

5.513

6.078

6.644

7.210

7.775

8.340

8.905

9.470

10.035

* All models 30A Max. with 10 AWG

35-50A ratings with 8 AWG using ring or fork type terminals.

Note: 50A rating achieved with #8 copper wire crimped to ring terminal.

Dimensions in inches. To convert to millimeters, multiply by 25.4.

Reference Panel Cutout for 6 Position Block
