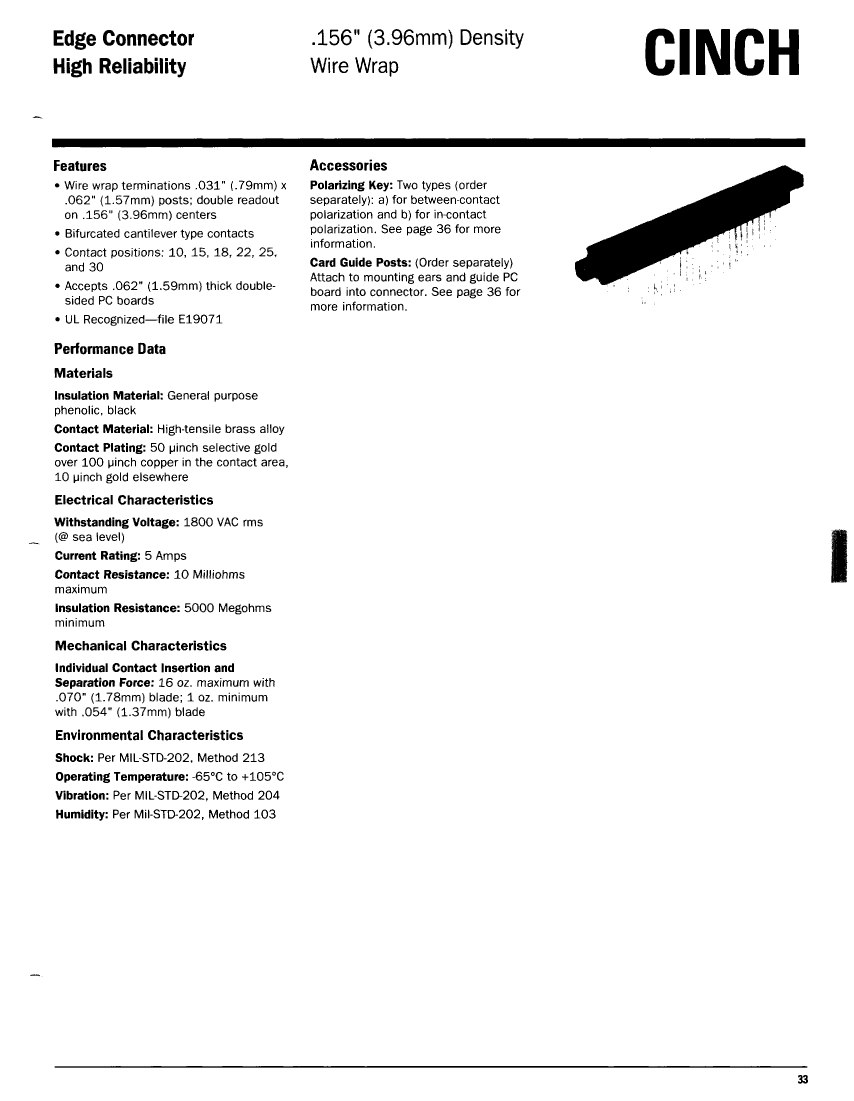

Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle,

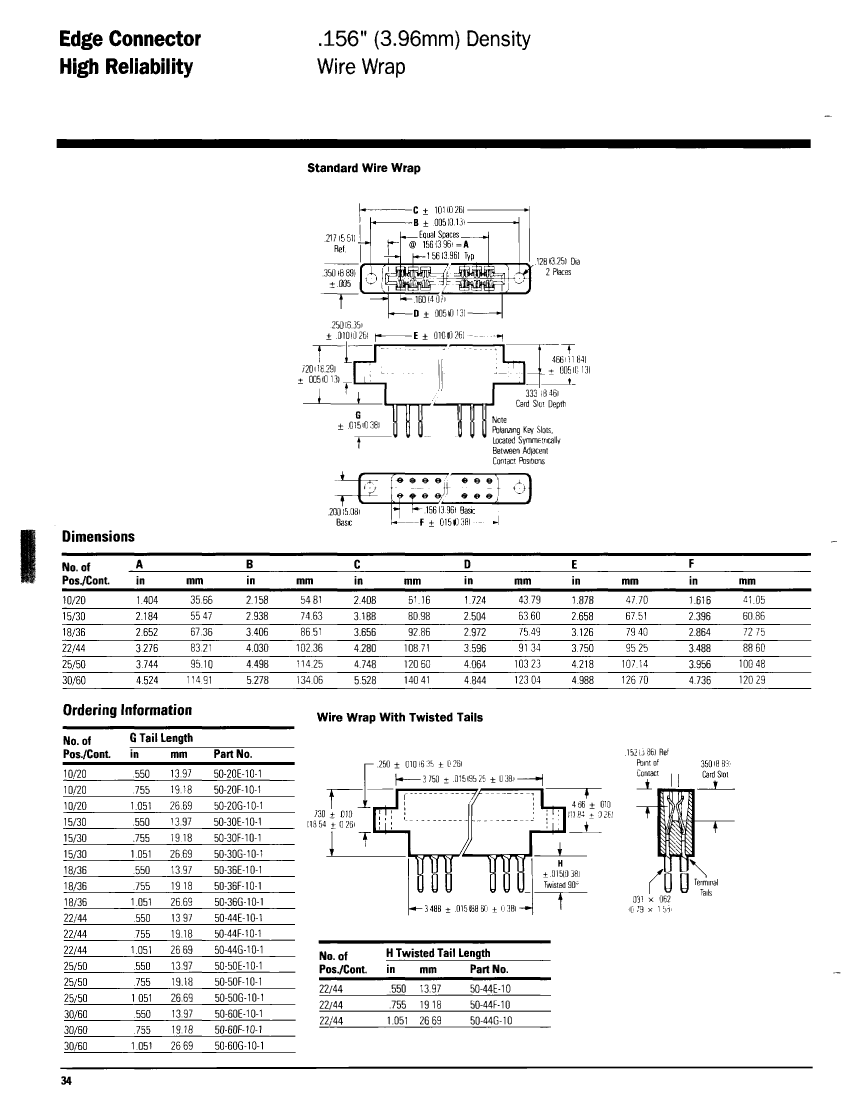

| Parameter Name | Attribute value |
| Maker | Cinch Connectivity Solutions |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | BIFURCATED CANTILEVER CONTACTS, POLARIZED |
| body width | 0.35 inch |
| subject depth | 0.72 inch |
| body length | 5.528 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD (50) |
| Contact point gender | FEMALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 1800VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.448 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | PHENOLIC |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | 50-60-1 |
| Plug contact pitch | 0.156 inch |
| Mixed contacts | NO |
| Installation option 1 | HOLE .125-.137 |
| Installation option 2 | OFFSET |
| Installation method | STRAIGHT |
| Installation type | PANEL |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.08 mm |
| Plating thickness | 50u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.55 inch |
| Terminal pitch | 3.9624 mm |
| Termination type | WIRE WRAP |
| Total number of contacts | 60 |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
| 50-60E-10-1 | 50-30E-10-1 | 50-36E-10-1 | 50-44E-10-1 | 50-50E-10-1 | |
|---|---|---|---|---|---|
| Description | Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle, | Card Edge Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle, | Card Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle, | Card Edge Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle, | Card Edge Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Black Insulator, Receptacle, |
| Maker | Cinch Connectivity Solutions | Cinch Connectivity Solutions | Cinch Connectivity Solutions | Cinch Connectivity Solutions | Cinch Connectivity Solutions |
| Reach Compliance Code | compliant | compliant | compliant | unknown | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Is Samacsys | N | N | N | N | N |
| Other features | BIFURCATED CANTILEVER CONTACTS, POLARIZED | BIFURCATED CANTILEVER CONTACTS, POLARIZED | BIFURCATED CANTILEVER CONTACTS, POLARIZED | BIFURCATED CANTILEVER CONTACTS, POLARIZED | BIFURCATED CANTILEVER CONTACTS, POLARIZED |
| body width | 0.35 inch | 0.35 inch | 0.35 inch | 0.35 inch | 0.35 inch |
| subject depth | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch |
| body length | 5.528 inch | 3.188 inch | 3.656 inch | 4.28 inch | 4.748 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU | AU | AU | AU | AU |
| Contact completed and terminated | GOLD (50) | GOLD (50) | GOLD (50) | GOLD (50) | GOLD (50) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | BRASS | BRASS | BRASS | BRASS | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1800VAC V | 1800VAC V | 1800VAC V | 1800VAC V | 1800VAC V |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| maximum insertion force | 4.448 N | 4.448 N | 4.448 N | 4.448 N | 4.448 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | PHENOLIC | PHENOLIC | PHENOLIC | PHENOLIC | PHENOLIC |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 |
| Installation option 2 | OFFSET | OFFSET | OFFSET | OFFSET | OFFSET |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | PANEL | PANEL | PANEL | PANEL | PANEL |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm |
| Plating thickness | 50u inch | 50u inch | 50u inch | 50u inch | 50u inch |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.55 inch | 0.55 inch | 0.55 inch | 0.55 inch | 0.55 inch |
| Terminal pitch | 3.9624 mm | 3.9624 mm | 3.9624 mm | 3.9624 mm | 3.9624 mm |
| Termination type | WIRE WRAP | WIRE WRAP | WIRE WRAP | WIRE WRAP | WIRE WRAP |
| Total number of contacts | 60 | 30 | 36 | 44 | 50 |
| Evacuation force-minimum value | .278 N | .278 N | .278 N | .278 N | .278 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Manufacturer's serial number | 50-60-1 | 50-30-1 | 50-36-1 | - | 50-50-1 |
