Part Number

Search

87918-0001

Description
DIMM Connectors 244CKT SOCKET RA
CategoryThe connector    The connector
File Size26KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87918-0001 Online Shopping

Suppliers Part Number Price MOQ In stock
87918-0001 - - View Buy Now

87918-0001 Overview

DIMM Connectors 244CKT SOCKET RA

87918-0001 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCH
Board mount optionsPEG
body width0.385 inch
subject depth0.807 inch
body length3.78 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance50 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87918
Plug contact pitch0.024 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-10 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing0.34 mm
Plating thickness30u inch
polarization keyPOLARIZED KEY
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch0.6 mm
Termination typeSURFACE MOUNT
Total number of contacts244
UL Flammability Code94V-0
Base Number Matches1

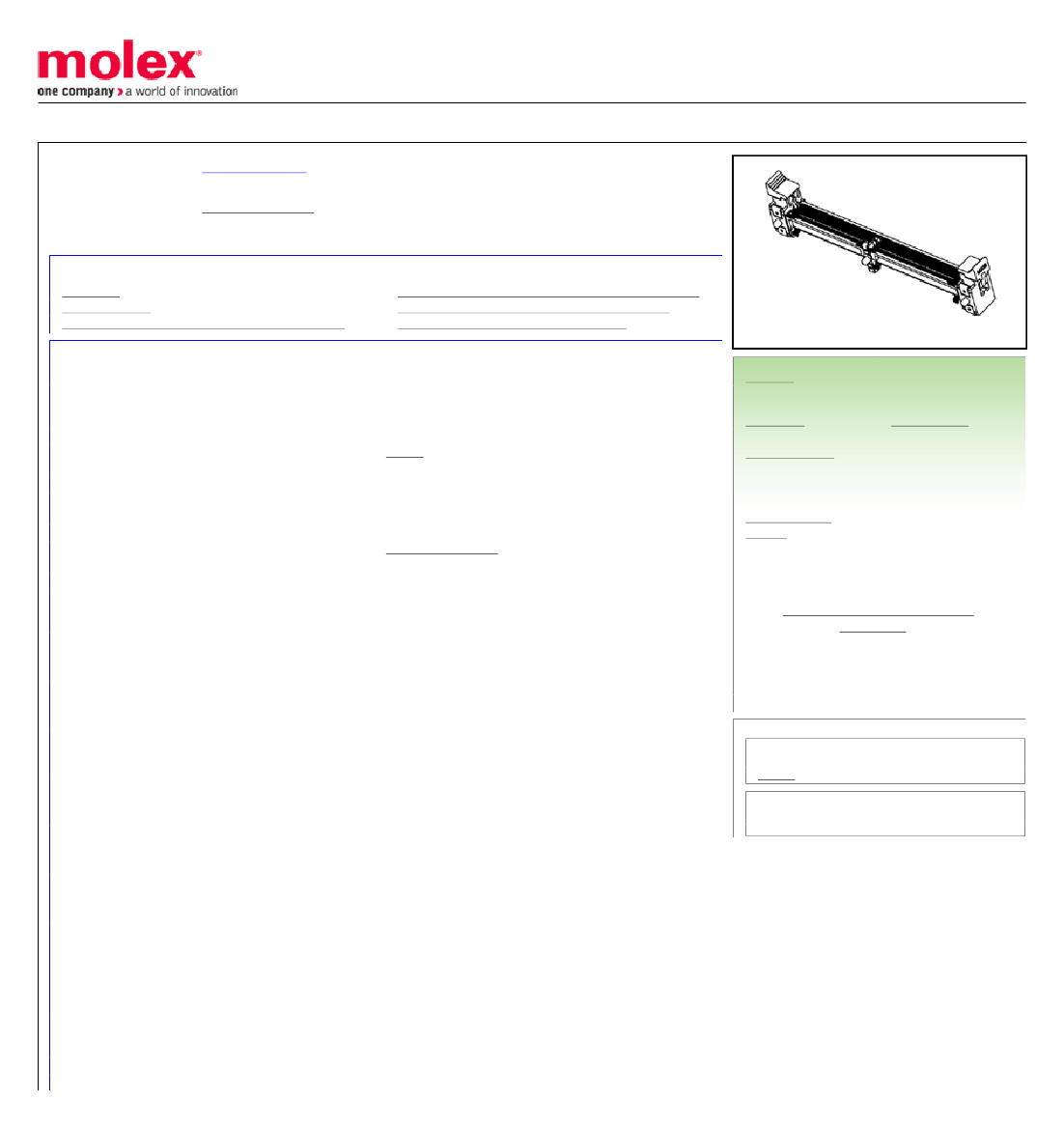

This document was generated on 02/28/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0879180001
Active
MiniDIMM Sockets
0.60mm Pitch miniDIMM DDR2 Socket, Surface Mount, Right Angle, 1.8V Key, 244
Circuits, Natural (Off White) Latch, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87918-001-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application Tooling Part Link
Application Tooling Part Link
Component Type
Electrical Model
JEDEC Outline
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Durability (mating cycles max)
Entry Angle
Flammability
Housing Color
Keying to Mating Part
Latch Color
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-freeProcess Capability
Application Specification AS-87782-001-001 (PDF)
Packaging Specification PK-87918-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
Memory Module Sockets
87918
62100-1900
62100-1950
Socket
Yes
MO-244
MiniDIMM Sockets
MiniDIMM
822350015899
244
25
90° Angle (Side Entry)
94V-0
Black
Yes
Natural (Off-White)
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
10.152/g
Yes
Yes
1.57mm
Tray
0.60mm
0.762µm
2.540µm
-55°C to +85°C
Surface Mount
1.0A
30V
1.8V
010
SMC&WAVE
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
87918 Series
Mates With
JEDEC MO-244 Modules
