505151-1000

Description
Headers & Wire Housings 2.0W/B REC HSG10ckt
CategoryThe connector
File Size38KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

505151-1000 Online Shopping

Suppliers Part Number Price MOQ In stock
505151-1000 - - View Buy Now

505151-1000 Overview

Headers & Wire Housings 2.0W/B REC HSG10ckt

505151-1000 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryHeaders & Wire Housings
RoHSDetails
ProductWire Housings
TypeReceptacle Housing
Number of Positions10 Position
Pitch2 mm
Number of Rows1 Row
Mounting StyleFree Hanging
Termination StyleCrimp
Mounting Angle-
Contact Gender-
Accessory Type-
ApplicationSignal, Wire to Board
Contact TypeSocket
Housing MaterialPolyester
Flammability RatingUL 94 V-2
Row Spacing-
Housing GenderFemale
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity500
Unit Weight0.013930 oz
This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5051511000
Active
DuraClik Connector System
DuraClik TPA Wire-to-Board Receptacle Housing, 10 Circuits, Black
Documents:
3D Model
Drawing (PDF)
Product Specification 5051510002-000 (PDF)
Product Specification PS-505151-001-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Ports
Stackable
Temperature Range - Operating
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-505151-001-001 (PDF)
Application Specification AS-505151-002-001 (PDF)
Packaging Specification 5051519200-200 (PDF)
RoHS Certificate of Compliance (PDF)

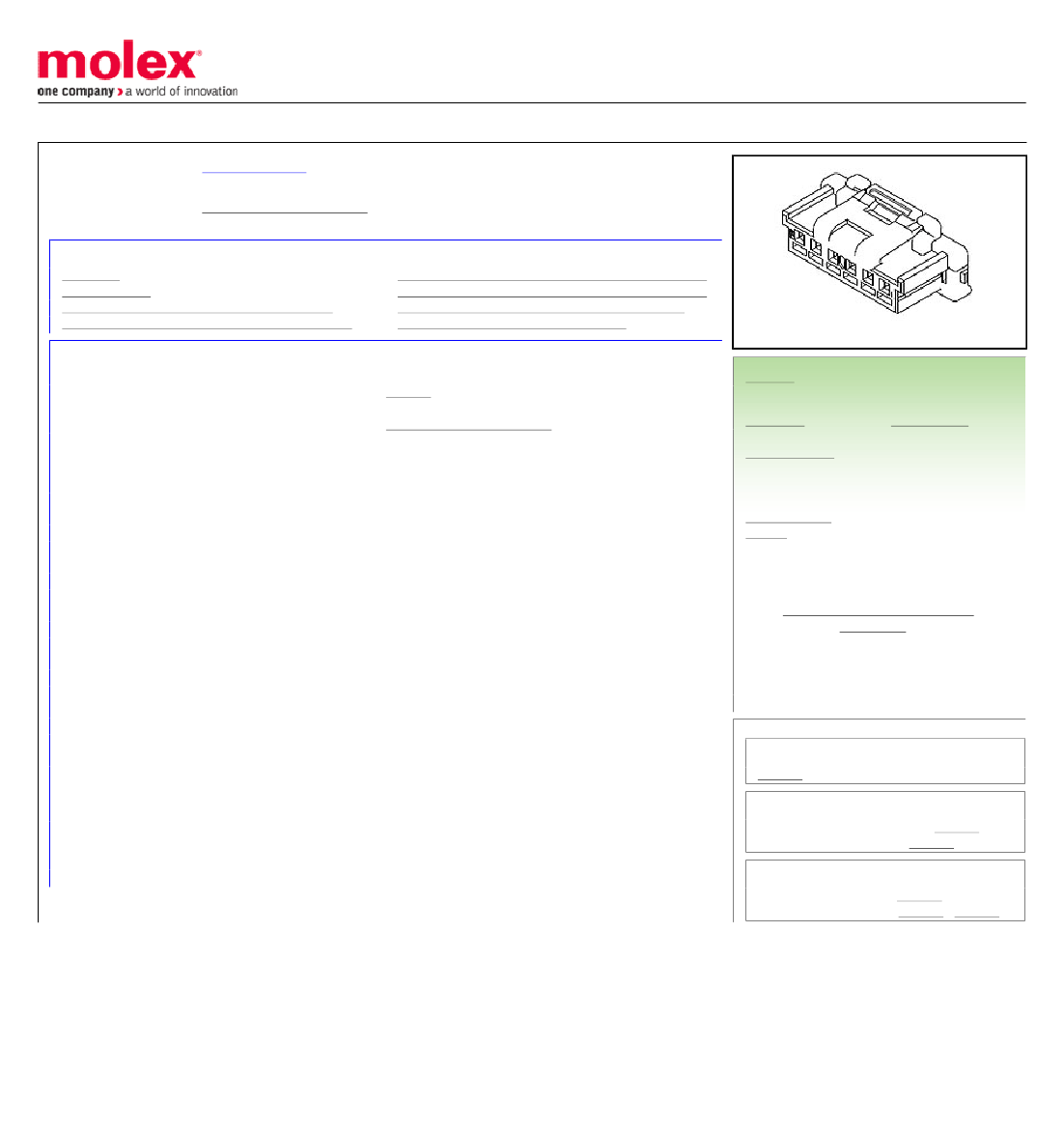

Series image - Reference only
Crimp Housings
505151
Signal, Wire-to-Board
DuraClik Connector System
DuraClik
887191733784
10
Black
Receptacle
No
None
Yes
Polyester Alloy
394.900/mg
1
Bag
No
2.00mm
2.00mm
Yes
1
No
-40°C to +125°C
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
505151 Series
Mates With
DuraClik Right-Angle Header 502352 <br>
DuraClik Vertical Header 560020
Use With
DuraClik TPA Retainer 505152 <br>
DuraClik TPA Terminal 505153 , 505487
AS-505151-001-001, AS-505151-002-001
5051519200-200
5051510002-000, PS-505151-001-001
SD-505151-001
This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
