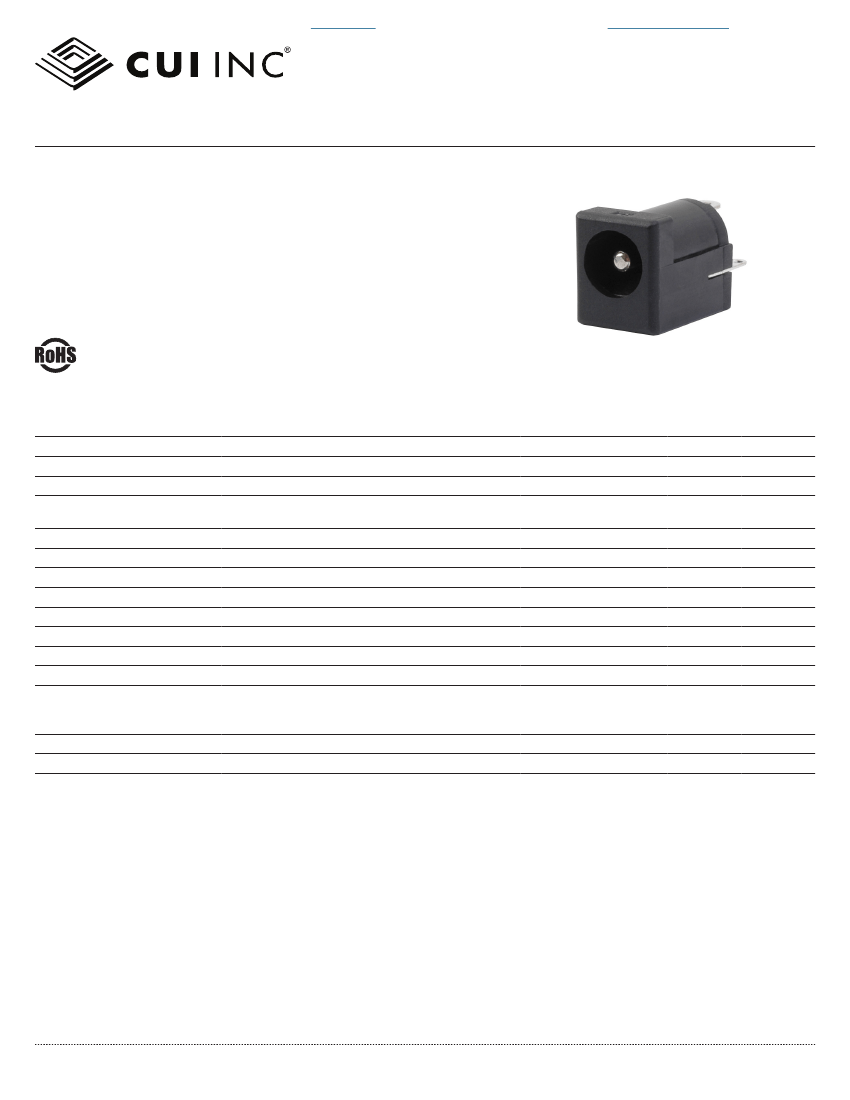

1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-044A
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016│
page
2 of 3

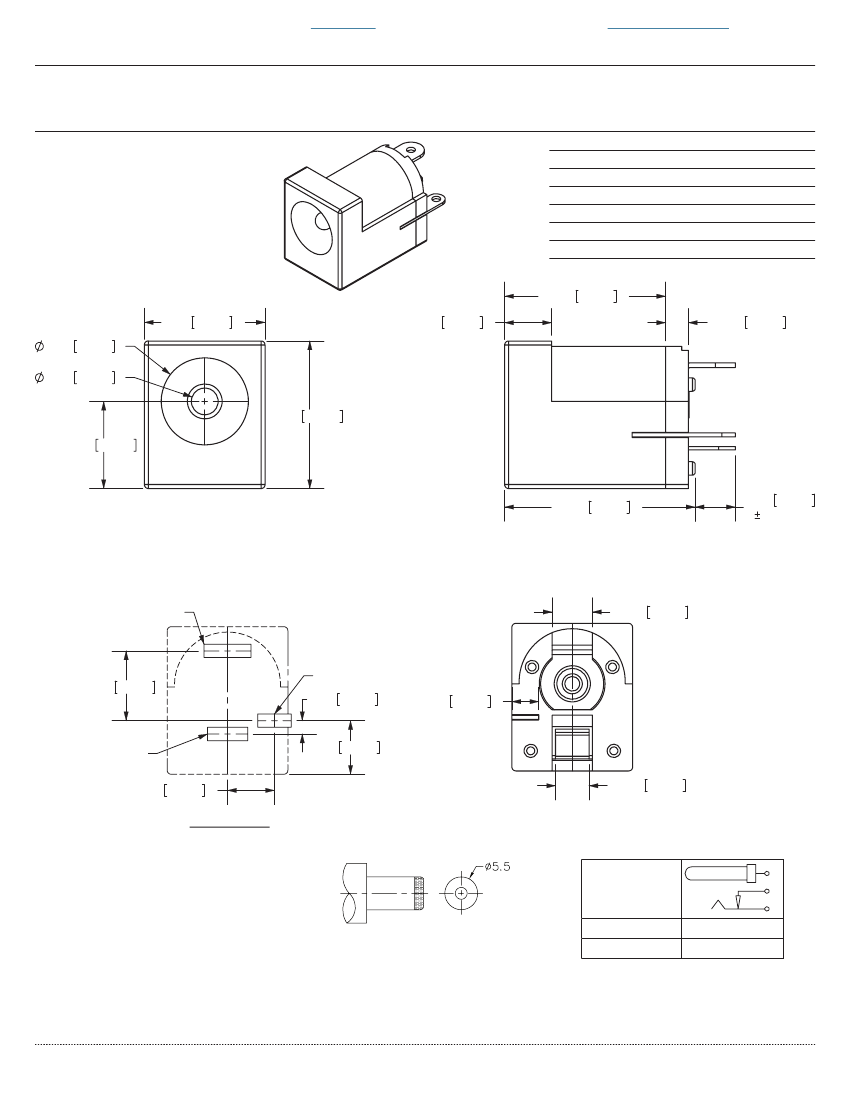

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PBT
PLATING
nickel
tin
tin
tin
12.0 0.472
9.0 0.354
6.50 0.256
2.00 0.079
11.0 0.433
6.50 0.256
1
3.50 0.138
1.70 0.067
3
2
14.2 0.559
3.0 0.118
0.3 (TYP)
1.00X3.50
3.00 0.118
1
5.2 0.205
3
2
1.00X2.50
1.0 0.039
4.0 0.157
2.50 0.098
2.00 0.079
1.00X3.00
3.5 0.138
PCB LAYOUT
TOP VIEW
1
3
2
PJ-044A
Ø2.0 mm
SCHEMATIC
Model
Center Pin
MATING PLUG
Jack Insertion Depth: 9.0 mm
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-044A
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
applied new spec template
increased voltage rating
date
07/30/2007
01/02/2014
04/14/2016
The revision history provided is for informational purposes only and is believed to be accurate.
