74061-2511: DescriptionHigh Speed / Modular Connectors VHDM BP 8 ROW SIG EN SIG END ASSY 25 COL; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74061-2511 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74061-2511	-	-	View	Buy Now

74061-2511 Overview

High Speed / Modular Connectors VHDM BP 8 ROW SIG EN SIG END ASSY 25 COL

74061-2511 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE, POLARIZED, NO OF SHIELD CONTACTS: 25
body width	0.85 inch
subject depth	0.484 inch
body length	2.244 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	18 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.143 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	225
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

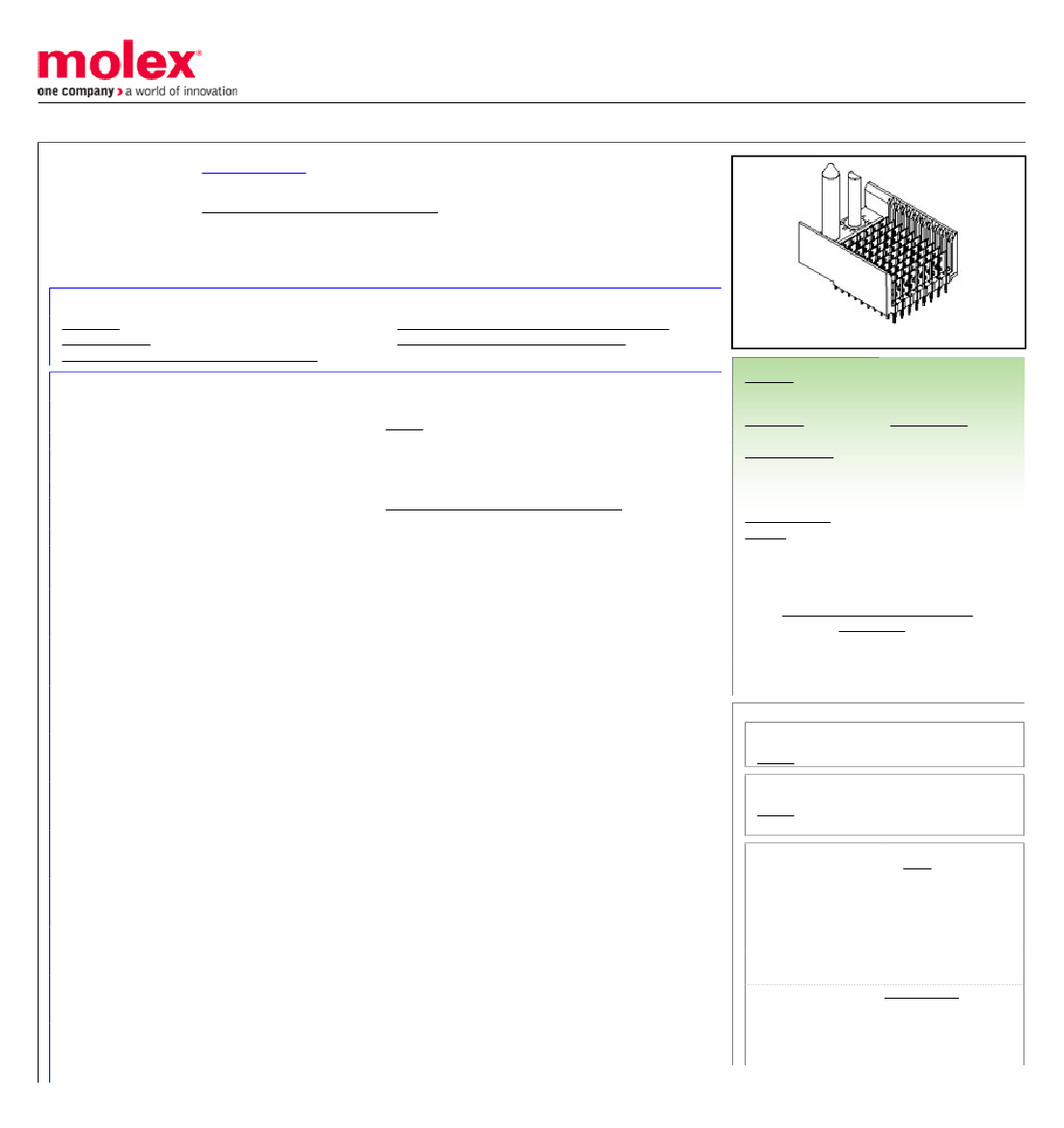

Preview

Download Datasheet

View All

This document was generated on 09/29/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0740612511

Active

VHDM® Backplane Connector Systems

2.00mm Pitch VHDM® Single-Ended Board-to-Board Backplane Header, Vertical, 8-

Row, Guide Pin Signal Module, Pin End Version, 200 Circuits, Pin Length 4.75mm.

Series:74075 Enables designers to create custom loaded connectors utilizing standard

pin lengths 4.25, 4.75, 5.15 and 6.25mm25, 4.75, 5.15 and 6.25mm

Documents:

3D Model

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Packaging Specification PK-74061-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

Backplane Connectors

74061

Backplane

TM-622010999

Keying Position A

PCB Header

VHDM® Backplane Connector Systems

VHDM®

800754881807

200

Black

200

Yes

Beryllium Copper, High Performance Alloy (HPA),

Stainless Steel

Gold

Tin-Lead

High Temperature Thermoplastic

17.192/g

Open Pin Field

Vertical

2.50mm

None

1.80mm

Tube

2.00mm

1.00mm

0.762µm

Yes

105°C max

Through Hole - Compliant Pin

EU RoHS

China RoHS

Not Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

50 Image

Not Relevant

Search Parts in this Series

74061 Series

Mates With

74040 VHDM® Board-to-Board

Daughtercard Receptacle

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Module

0622020210

for Standard Shield

Signal Header, 8-

Row by 25-Wide,

50.00mm

Recommended Resources

LT3755 driver LED application circuit diagram

Analog karaoke accompaniment amplifier circuit diagram

STK4181II audio IC circuit diagram

TL431 forms a series voltage regulator circuit

Nickel-cadmium battery charger circuit with voltage and current limiting function

50KHZ bandwidth amplifier circuit
