84525-0017 (Cut Strip) Overview

Standard Circular Contacts XRC 16P 14-18AWG Cut Strip of 100

84525-0017 (Cut Strip) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Standard Circular Contacts
RoHS	Details
Contact Gender	Socket (Female)
Current Rating	13 A
Contact Size	16
Wire Gauge	18 AWG - 14 AWG
Termination Style	Crimp
Contact Plating	Nickel
Packaging	Cut Tape
Product	Contacts
Voltage Rating	-
Contact Material	Copper Alloy
Factory Pack Quantity	100
Unit Weight	0.014815 oz

Preview

Download Datasheet

View All

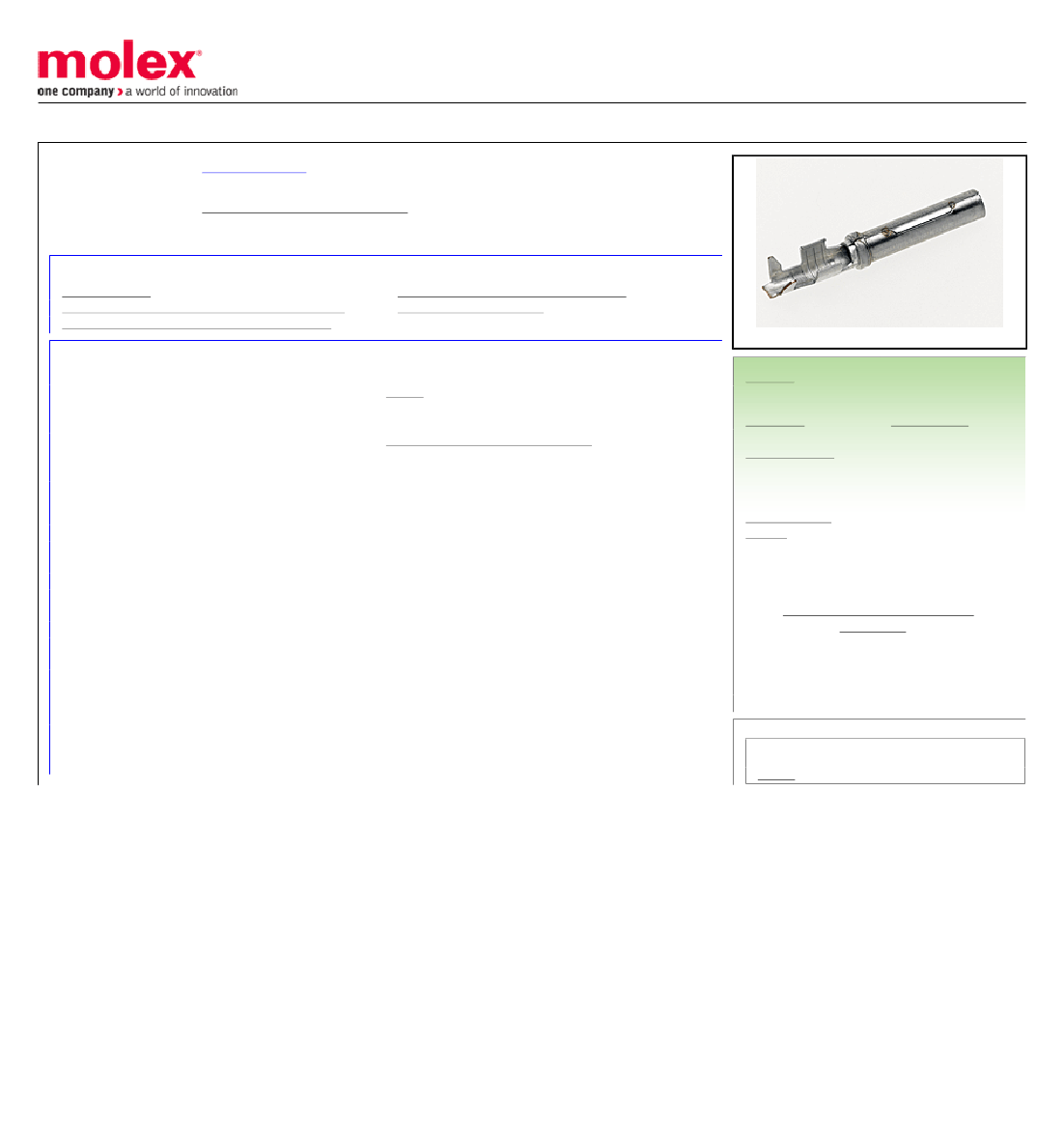

This document was generated on 05/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0845250017

Active

ML-XT Sealed Connection System

ML-XT / XRC Female (Socket) Terminal, 14 to 18 AWG, Terminal Size 16, Insulation

Diameter 1.91 to 3.30mm, Tin

Documents:

Drawing (PDF)

Product Specification PS-84501-001-001 (PDF)

Application Specification 845241000-A (PDF)

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Product Literature Order No

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Net Weight

Packaging Type

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

Crimp Terminals

84525

Power

Yes

ML-XT Sealed Connection System

987651-0201

ML-XT, XRC

78172511504

Female

Copper Alloy

Tin over Nickel

0.420/g

Reel

Crimp or Compression

2.41-3.81mm

14, 16, 18

N/A

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

845241000-A

PS-84501-001-001

845250005-000

Search Parts in this Series

84525 Series

This document was generated on 05/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

84525-0017 (Cut Strip) Related Products

	84525-0017 (Cut Strip)	84525-0017 (Loose Piece)	84525-0017 (Mouser Reel)
Description	Standard Circular Contacts XRC 16P 14-18AWG Cut Strip of 100	Standard Circular Contacts XRC 16P 14-18AWG Loose PC	Standard Circular Contacts XRC 16P 14-18AWG Reel of 1000
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Molex	Molex	Molex
Product Category	Standard Circular Contacts	Standard Circular Contacts	Standard Circular Contacts
RoHS	Details	Details	Details
Packaging	Cut Tape	Bulk	Reel
Factory Pack Quantity	100	9000	1000
Unit Weight	0.014815 oz	0.014815 oz	0.014815 oz
Contact Gender	Socket (Female)	-	Socket (Female)
Current Rating	13 A	-	13 A
Contact Size	16	-	16
Wire Gauge	18 AWG - 14 AWG	-	18 AWG - 14 AWG
Termination Style	Crimp	-	Crimp
Contact Plating	Nickel	-	Nickel
Product	Contacts	-	Contacts
Contact Material	Copper Alloy	-	Copper Alloy
