ASMP-25-11KT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ASMP-25-11KT

Preview

ASMP-25-11KT: DescriptionVariable Attenuator, 7000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size498KB，2 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ASMP-25-11KT Overview

Variable Attenuator, 7000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max

ASMP-25-11KT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
Maximum input power (CW)	36.99 dBm
Maximum insertion loss	0.7 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	7000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.7

Preview

Download Datasheet

View All

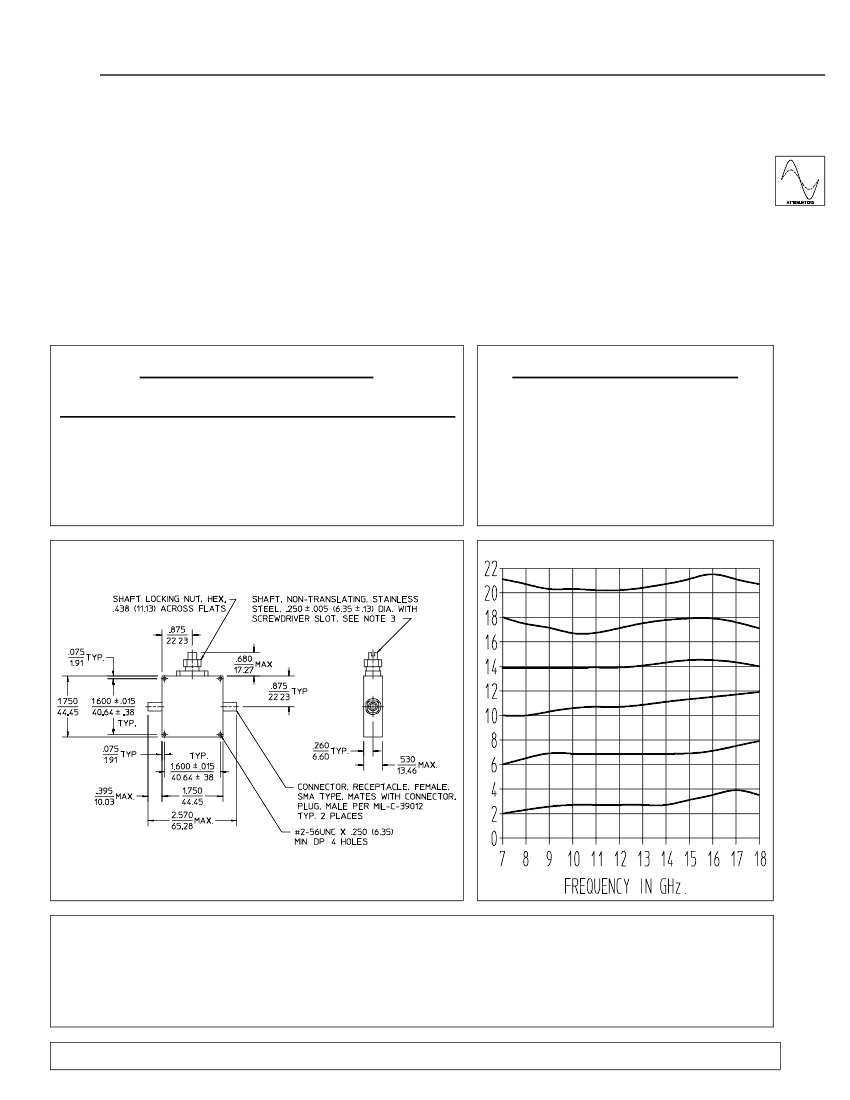

ASM-25-11K &

ASMP-25-11K series

MICROWAVE ATTENUATORS

7 to 18 GHz / 0 to 20 dB / Ferrite / Excellent Temperature Stability / MIL-E-5400 Class 3 / SMA

PRINCIPAL SPECIFICATIONS

Model

Number

ASM-25-11K

ASMP-25-11K

ASMP-25-11KK

ASMP-25-11KT

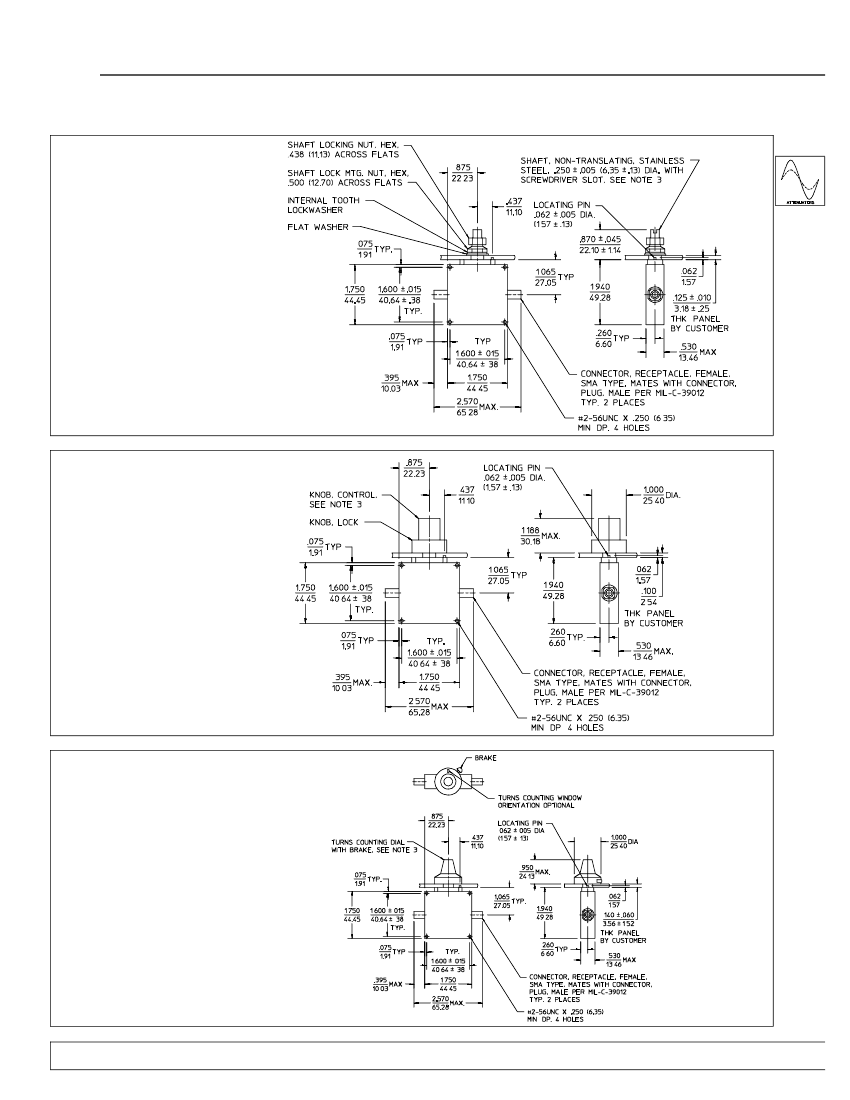

Mechanical

Configuration

Standard Model

Panel Mount

Panel Mount w/ Knob

Panel Mount w/ TC Dial

ASM-25-11K

Weight,

oz.(g), Nom.

2.5 (70)

3.8 (106)

4 (112)

GENERAL SPECIFICATIONS

Insertion Loss:

±

Ω

Typical Attenuation Flatness in dB

NOTES:

1. Tolerance on 3 place decimals

±

General Notes:

1. The ASM/ASMP-25-11K series has been designed for wideband ECM systems and other microwave applica

12Apr96

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531

ASMP-25-11KT Related Products

	ASMP-25-11KT	ASMP-25-11KK
Description	Variable Attenuator, 7000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max	Variable Attenuator, 7000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Merrimac Industries（Crane）	Merrimac Industries（Crane）
Reach Compliance Code	unknow	unknown
Nominal attenuation	20 dB	20 dB
Characteristic impedance	50 Ω	50 Ω
Maximum input power (CW)	36.99 dBm	36.99 dBm
Maximum insertion loss	0.7 dB	0.7 dB
Maximum operating frequency	18000 MHz	18000 MHz
Minimum operating frequency	7000 MHz	7000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.7	1.7
