Connector - SACC-MINMS-5CON-PG16 - 1559039
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

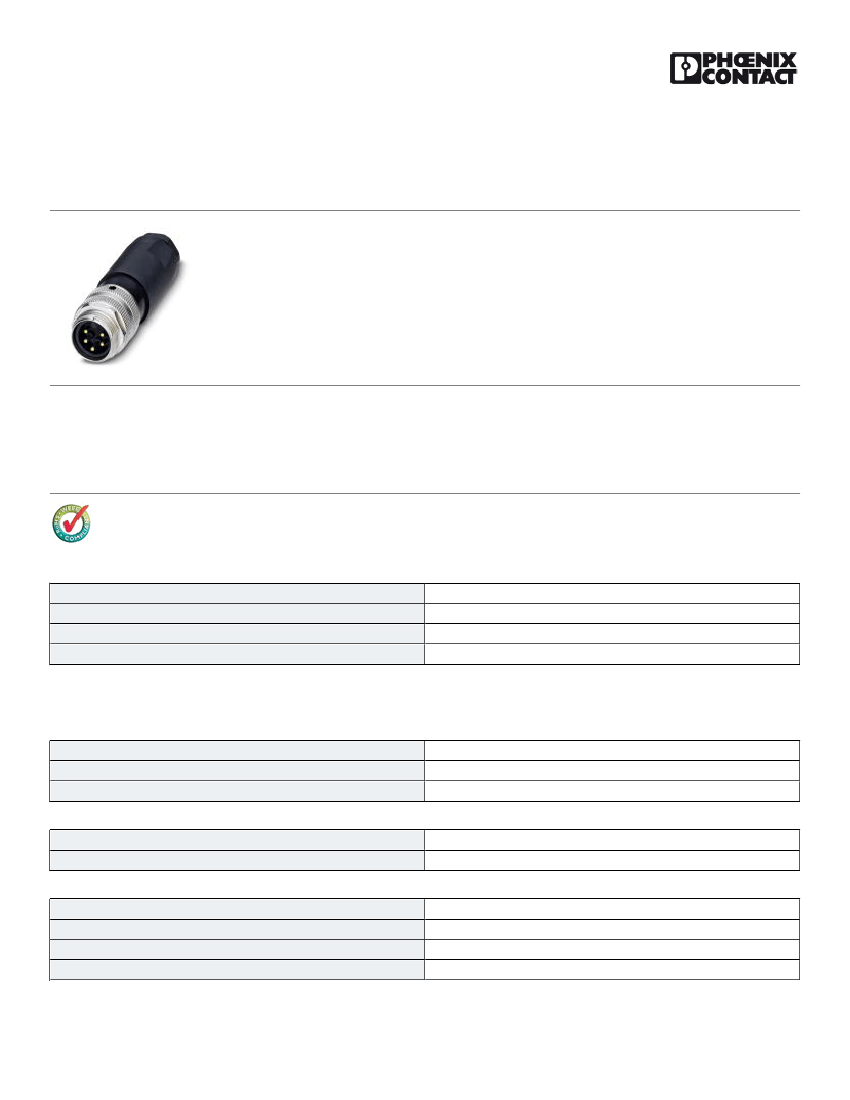

Connector, 5-position, Plug straight 7/8"-16UNF, Screw connection, Knurl material: Zinc die-cast, nickel-plated,
Cable gland Pg16, External cable diameter 12 mm ... 14 mm, Contact 3 capacitive
Product Features
■
■
■
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Screw connection: proven connection technology for a large selection of different conductors
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
60.0 g
85366990
Germany
Technical data
Dimensions
External cable diameter
Stripping length of the sheath
Stripping length of the individual wire
12 mm ... 14 mm
30 mm
7 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
9A
300 V
5
≥ 100 MΩ
04/25/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1559039
Connector - SACC-MINMS-5CON-PG16 - 1559039
Technical data
General
Coding
Status display
Overvoltage category
Degree of pollution
Connection method
Conductor cross section
Conductor cross section AWG
Insertion/withdrawal cycles
Torque
A - standard
No
II
3
Screw connection
0.34 mm² ... 1.5 mm²
22 ... 16
≥ 100
0.8 Nm (7/8" connectors)
0.4 Nm (Screw terminal blocks)
1 Nm ... 1.4 Nm (Pressure screw)
Tightening torque
Assembly instructions
Screw plug insert with sleeve housing as far it will go
The wires can be connected both with ferrules and without ferrules
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
HB
CuZn
Au
PUR / PA66
PBT
Zinc die-cast, nickel-plated
Standards and Regulations
Flammability rating according to UL 94
HB
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27250313
27250313
27143423
27143423
27279221
27440104
27440104
27440102
04/25/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1559039
Connector - SACC-MINMS-5CON-PG16 - 1559039
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC002062
EC002062
EC002062
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approvals submitted
Approval details
EAC
Accessories
Accessories
Protective cap
04/25/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1559039
Connector - SACC-MINMS-5CON-PG16 - 1559039
Accessories

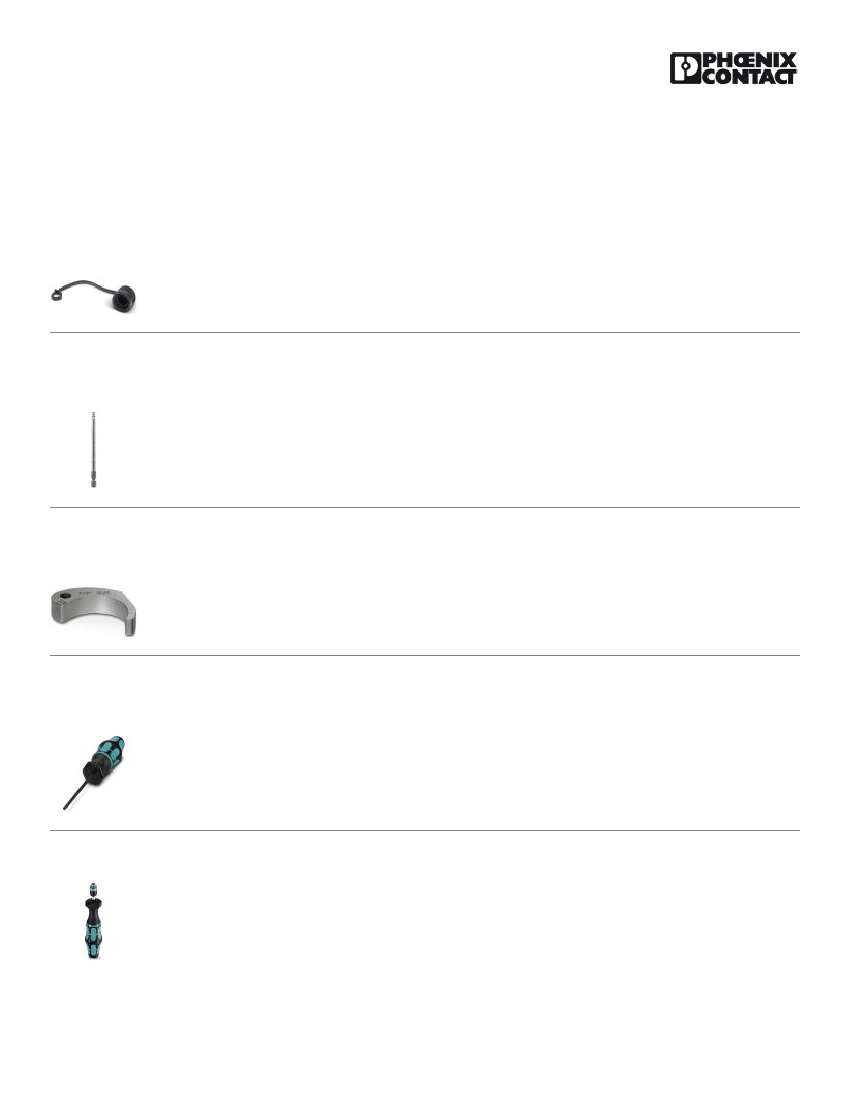

Sealing cap - PROT-MINFS-PA-CHAIN - 1430912
7/8" sealing cap made of plastic with fixing band, for sensor cables, for 7/8" connectors
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Tool - SAC BIT MIN-D25 - 1212512
Nut for assembling 7/8" connectors with a knurl diameter of 25 mm, with 4 mm hexagonal drive
Torque tool
Torque screwdriver - TSD 08 SAC - 1212597
Torque screw driver with preset torque of 0.8 Nm, with 4 mm hexagon for accommodating SAC bits, two-component
handle with non-slip grip
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
04/25/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1559039
Connector - SACC-MINMS-5CON-PG16 - 1559039
Accessories

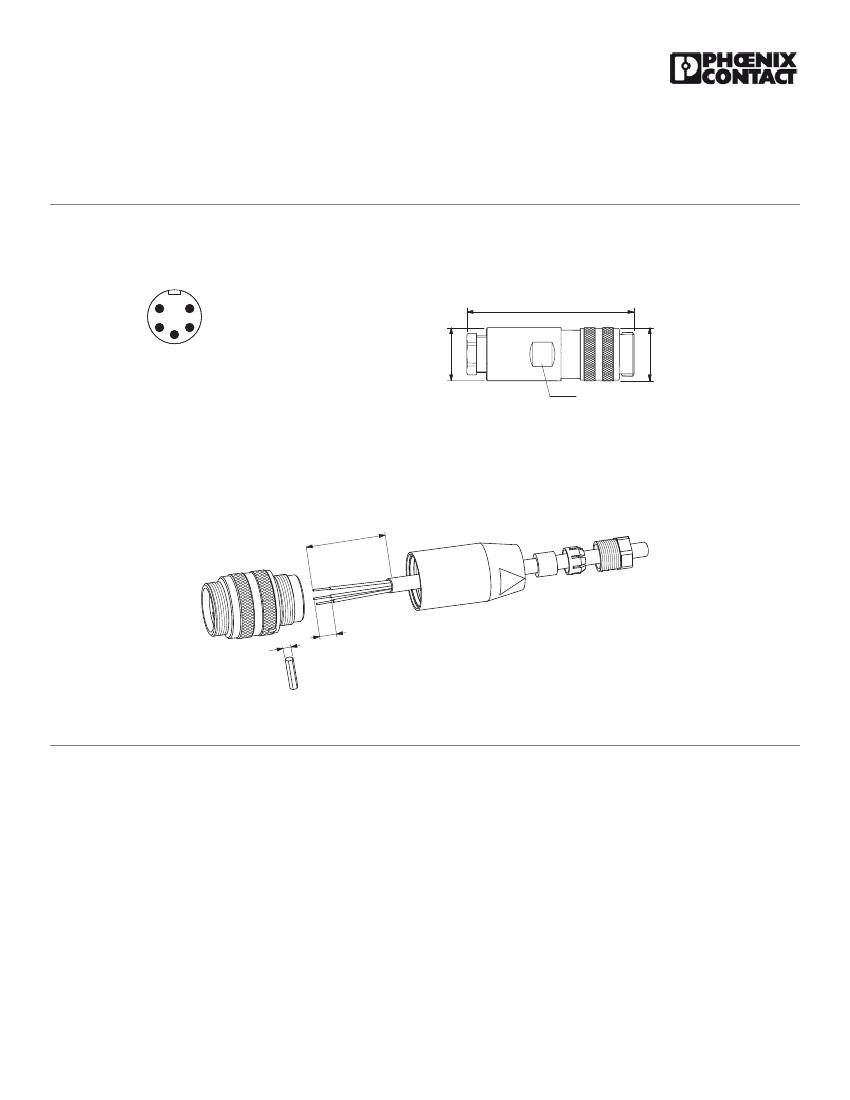

Drawings
Schematic diagram
1
5
Dimensional drawing
86
2
3
4
Ø27
Pin assignment, plug, 7/8"-16UNF, 5-pos., view of
male side
SW24
Plug 7/8"-16UNF, straight, Pg16
Functional drawing
30
7
3
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
Ø27
04/25/2016 Page 5 / 5
