SERIES 72
SERIES 72
BEAU Terminal Blocks
BEAU
.375" PCB Barrier Terminal Strip
Description
The series 72 PCB terminal strip is a
workhorse and our most popular product
series. The product can be configured
from 15 to 25 Amps and from 150 to 300
Volts.
The product is available in standard
and tri-barrier construction and can be
configured with a broad selection of
screws, hardware, mounting and terminal
options.
Made in the USA, all Beau terminal
blocks embody the highest quality
standards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all
applicable industry standards.
Features
•
Standard and Tri-barrier construc-
tion
is available to provide the
packaging options you need.
Robust and durable,
72 series screw
terminals are ultrasonically
welded into the thermoplastic
insulator, eliminating terminal
twisting and associated solder joint
failure.
Molded to exact length,
with no
ugly saw cuts, Beau terminal strips
make your products look more
professional.
Wide variety of options.
Our broad
range of screw, terminal, hardware
and mounting options allows us to
save you assembly costs and improve
interconnect performance.
•
•
•
PRODUCT RATINGS
#6-32 BINDING HEAD SCREW
UL
Class B
15 Amps @ 300 V 14 AWG
Class C
15 Amps @ 150 V 14 AWG
CSA
Class B
Class C
20 Amps @ 300 V 14 AWG
20 Amps @ 300 V 14 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Maximum torque
Wire strip length
Wire range
OPTIONS
-45
-47
-49
-45-56
-50
-58
-59
-C
-E
-F
-M
-P
Slotted screw
Screws up, wire ready
Brass, phillips/slotted screw
Stainless steel screw, slotted
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
No mounting ends
Solid mounting ends
Rap-attach mounts
3.5 M screw, slotted
.040" standoff pads
130°C insulator
10500 VDC
>5000 Megohms
12 in-lbs.
13 in-lbs.
5/16"
12 to 24 AWG
#6-32 WIRE CLAMP SCREW
UL
Class B
20 Amps @ 300 V 12 AWG
Class C
20 Amps @ 150 V 12 AWG
CSA
Class B
Class C
25 Amps @ 300 V 12 AWG
25 Amps @ 300 V 12 AWG
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
RTI mechanical w/o impact
110
o
C
110
o
C
NOTE: 3.5M screws carry #6-32 screw
ratings.
-V
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
MATERIALS
Insulator
Terminal
Screws
Thermoplastic,
UL94V-0, black
Brass, tin-lead plate
#6-32, phillips/slotted, steel,
zinc chromate plate

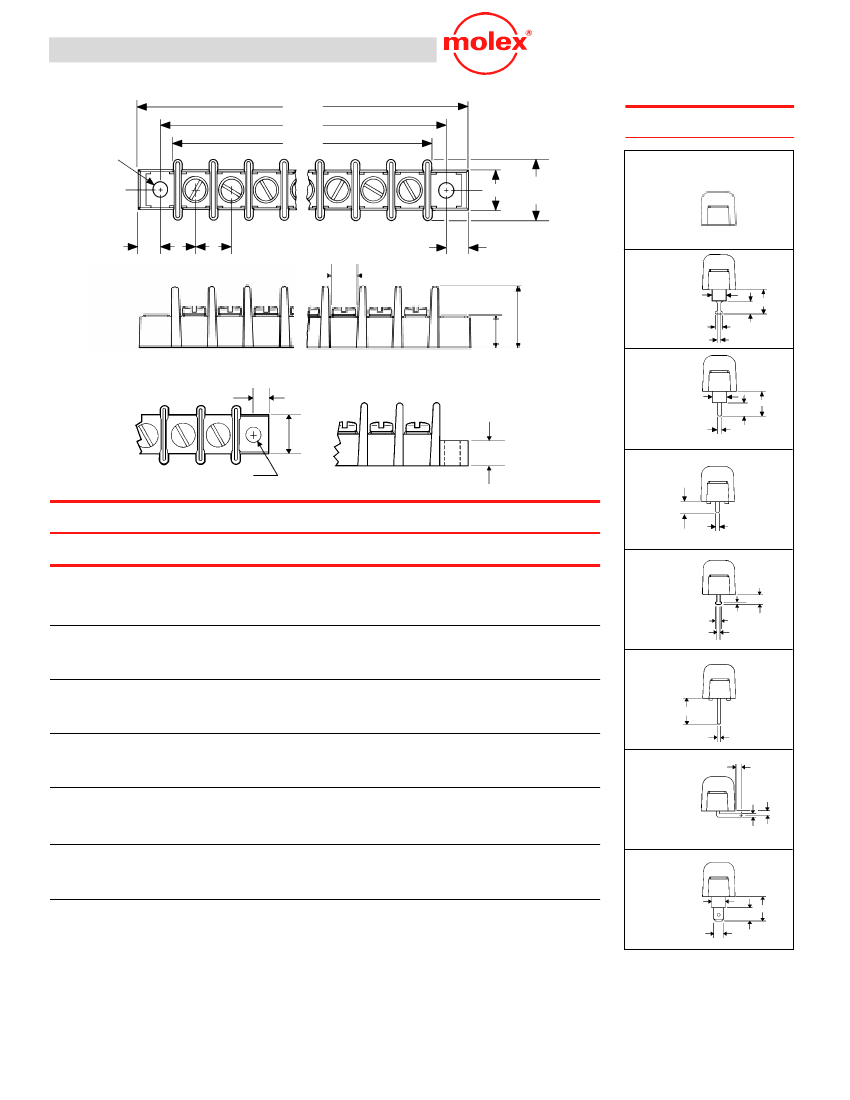

HOW TO ORDER
7 2
SERIES
X
TERMINAL
STYLE
123
567
89
X X - X X
NO. OF
POLES
2 to 26
(Dash #s above
and
opposite page)
OPTIONS
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
