M85049/39N23W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049/39N23W

M85049/39N23W: DescriptionCircular MIL Spec Backshells STRAIN RELIEF SZ 23 OLIVE DRAB; CategoryThe connector; File Size170KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/39N23W Overview

Circular MIL Spec Backshells STRAIN RELIEF SZ 23 OLIVE DRAB

M85049/39N23W Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
MIL Type	MIL-DTL-38999 III, IV

Preview

Download Datasheet

View All

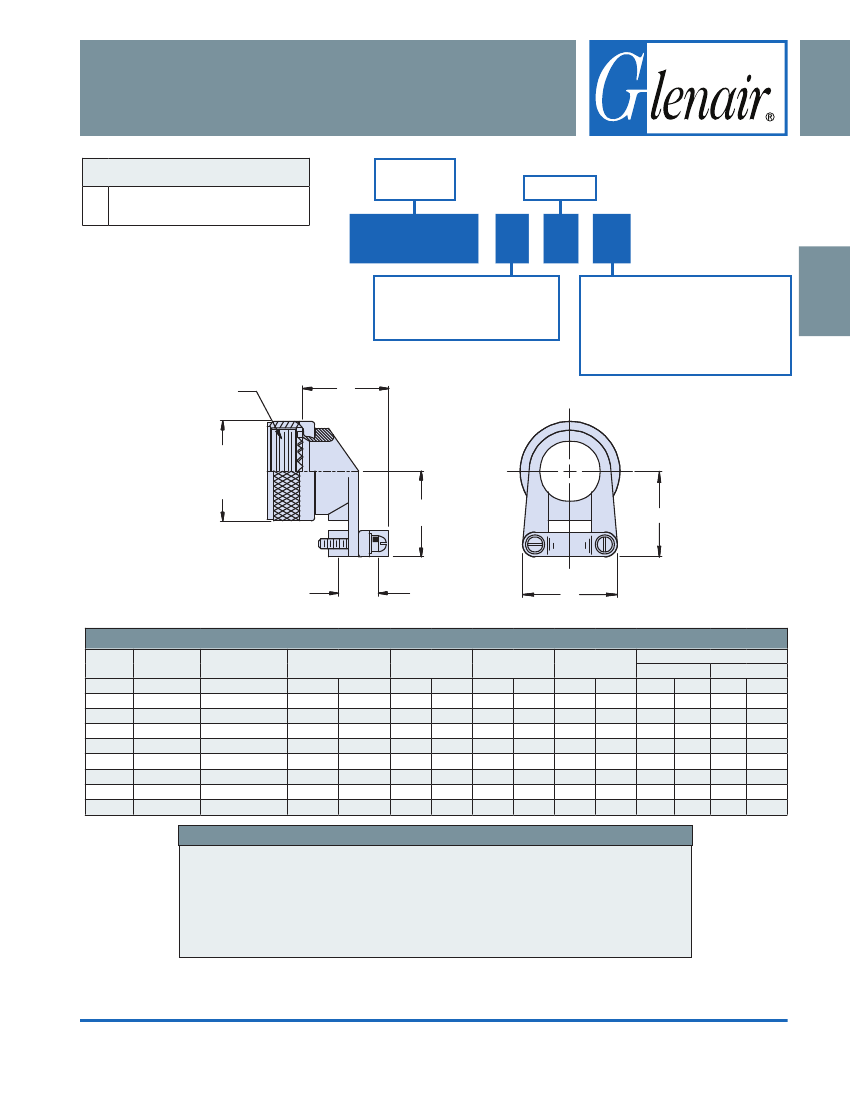

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series III & IV

EN3645

Basic

Part Number

Shell Size

FOR NEW DESIGN

USE AS85049/126

M85049/39

Material and Finish Designator

= Aluminum, Black Anodize

= Aluminum, Electroless Nickel

= 300 Series Steel, Passivated

= Aluminum, 500 Hour Cadmium

Olive Drab over Electroless Nickel

= Self-Locking

Use Dash for Non-Self-Locking

= Non-Detented

A Thread

Self Locking

Only

Cable

Entry

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Shell

Size

Shell Size

Ref.

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

Ø E Max

Self-Locking Only

.858

(21.8)

.984

(25.0)

1.157

(29.4)

1.279

(32.5)

1.406

(35.7)

1.516

(38.5)

1.642

(41.7)

1.768

(44.9)

1.889

(48.0)

Max

1.01 (25.7)

1.21 (30.7)

1.26 (32.0)

1.41 (35.8)

1.51 (38.4)

1.66 (42.2)

1.76 (44.7)

2.91 (73.9)

Max

1.00 (25.4)

1.10 (27.9)

1.25 (31.8)

1.30 (33.0)

1.35 (34.3)

1.60 (40.6)

1.75 (44.5)

1.85 (47.0)

Max

.85

(21.6)

.90

(22.9)

1.10 (27.9)

1.15 (29.2)

1.30 (33.0)

1.50 (38.1)

1.60 (40.6)

1.70 (43.2)

1.80 (45.7)

Cable Entry

Min

Max

.098 (2.5) .234 (5.9)

.153 (3.9) .234 (5.9)

.190 (4.8) .328 (8.3)

.260 (6.6) .457 (11.6)

.283 (7.2) .614 (15.6)

.325 (8.3) .634 (16.1)

.343 (8.7) .698 (17.7)

.381 (9.7) .823 (20.9)

.418 (10.6) .853 (21.7)

APPLICATION NOTES

Assembly to be identified with manufacturer’s name and part number, space permitting.

Cable Entry is defined as the accommodation entry for the wire bundle or cable.

Dimensions are not intended for inspection criteria.

For complete dimensions, see the applicable Military Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

Mil-Spec Backshells

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-63

E-Mail: sales@glenair.com

AS85049

AS85049/39

90° Strain Relief

Recommended Resources
