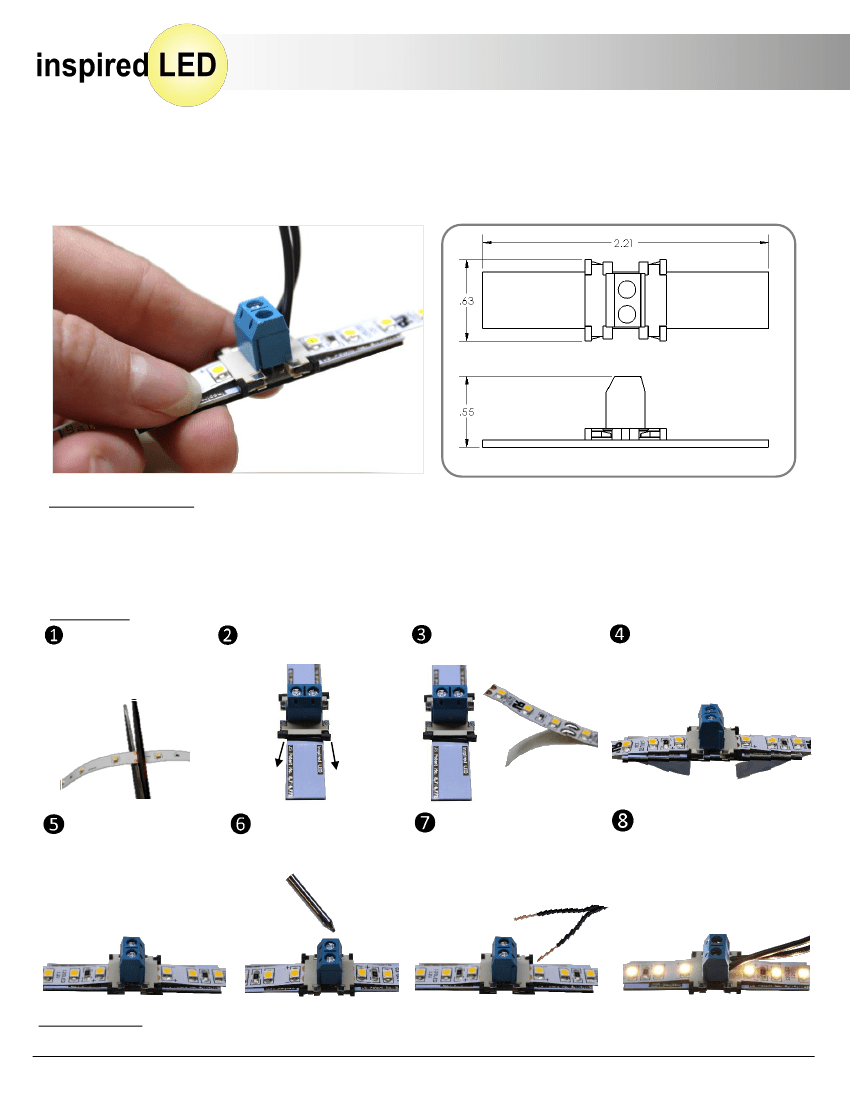

Tiger Paw™ Screw Terminal
Mid-connector
Inspired LED’s patented solderless
Tiger Paw Connectors
are the perfect solution for in-field
LED customization and system design. These innovative accessories pair easily with Inspired
LED flex strips to allow for a quick, convenient installation, making the perfect low-voltage
lighting system for a snap!
Dimensions shown in inches
Product Specifications:
Solderless termination for 8-10mm LED flex strips to 16-22 AWG wire
Max Load- 5 AMPs
Industry proven locking system meets shock and vibration requirements for IEC 60068-2-27
U.S. Patent No. 8,714,772
Instructions:
1. Use scissors to cut LED
strips to length along
copper solder pads,
located ever 3 LEDs
2. Take hold of black sliding
latch and pull outward to
open
3. Peel back adhesive lining
on LED strips
4. Taking note of (+) polarity
of LEDs, insert flex strips into
gaps above the black sliding
latches and beige top piece
5. Make sure LED strips
are centered and fully
inserted before sliding
black latches firmly closed
and pressing on adhesive
6. Use small screw driver
to loosen screws on the
top of connector piece
7. Strip cable back ¼” to
expose (+) and (-) wire, (if
using Inspired LED cable,
white writing indicates
positive polarity)
8. Insert wire (matching
polarity) tighten screws and
connect to class 2 power source
to verify connections, then
install LED flex strips as needed
Troubleshooting:
If LEDs are flickering, double check connection to be sure flex is fully inserted and secured, if no lights turn
on check to be sure polarities are properly matched
Inspired LED 1733 E. McKellips Rd. Suite #112 Tempe, AZ 85281 ● (480) 941-4286 ● www.inspiredled.com
