Part Number

Search

F0810MH

Description
FAST SWITCHING SCR
CategoryAnalog mixed-signal IC    Trigger device
File Size298KB,5 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Environmental Compliance
Download Datasheet Parametric View All

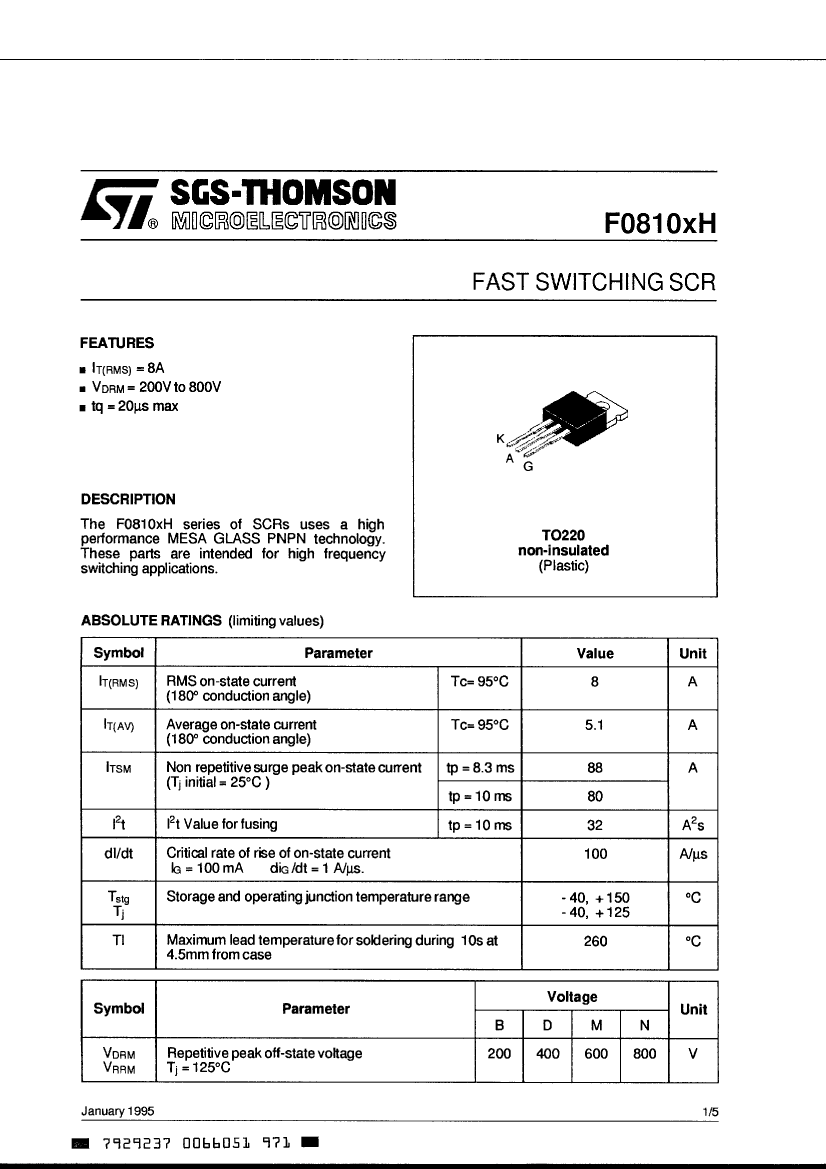

F0810MH Overview

FAST SWITCHING SCR

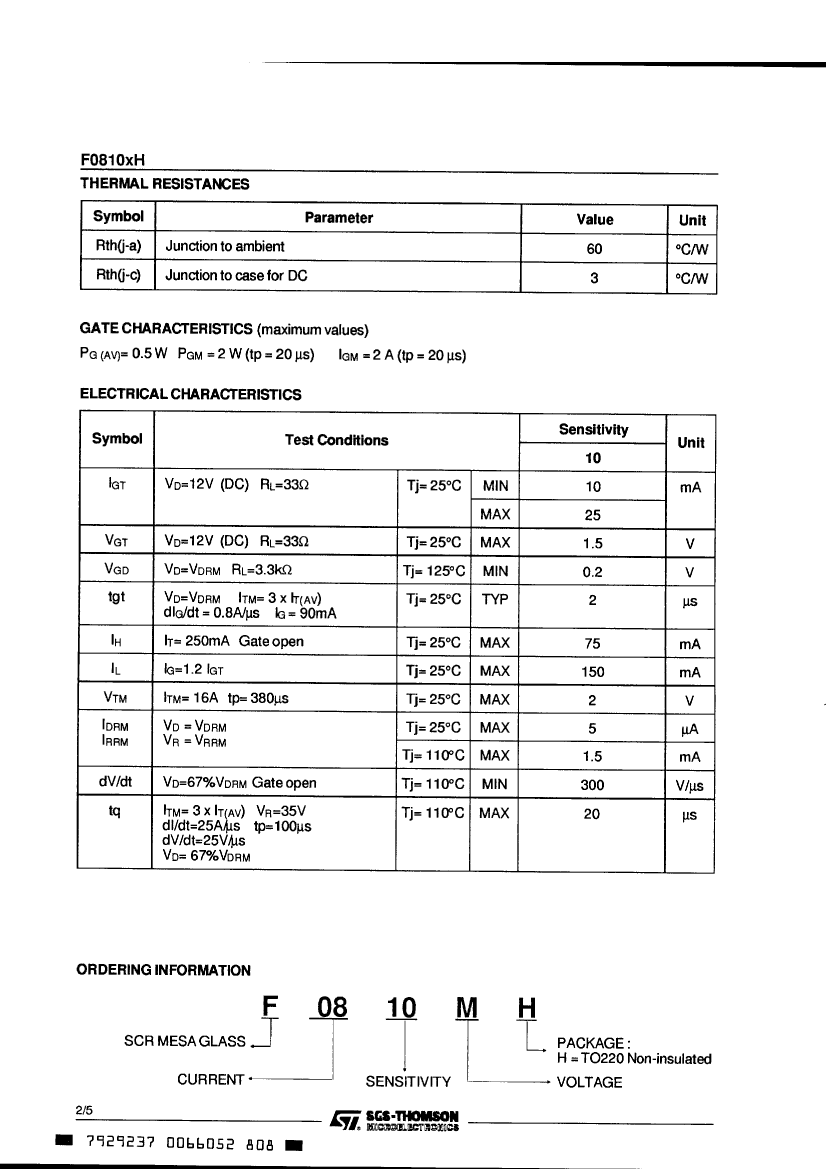

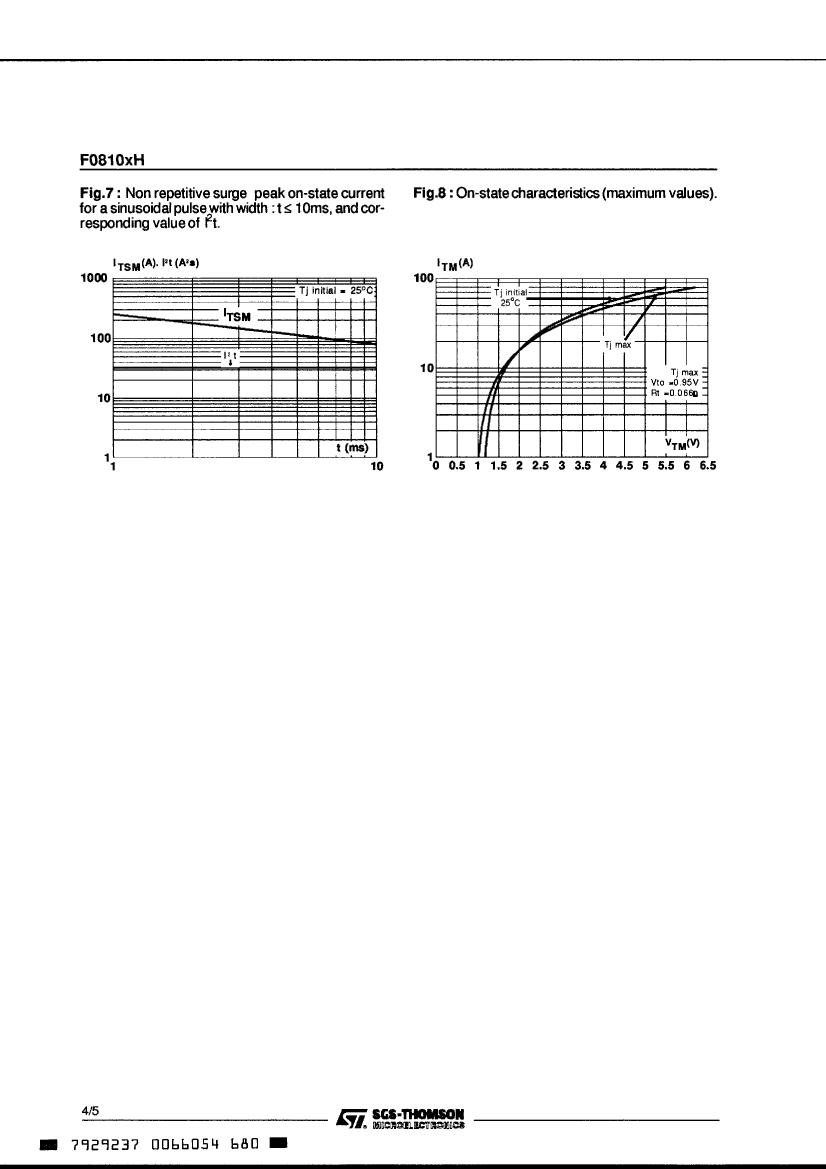

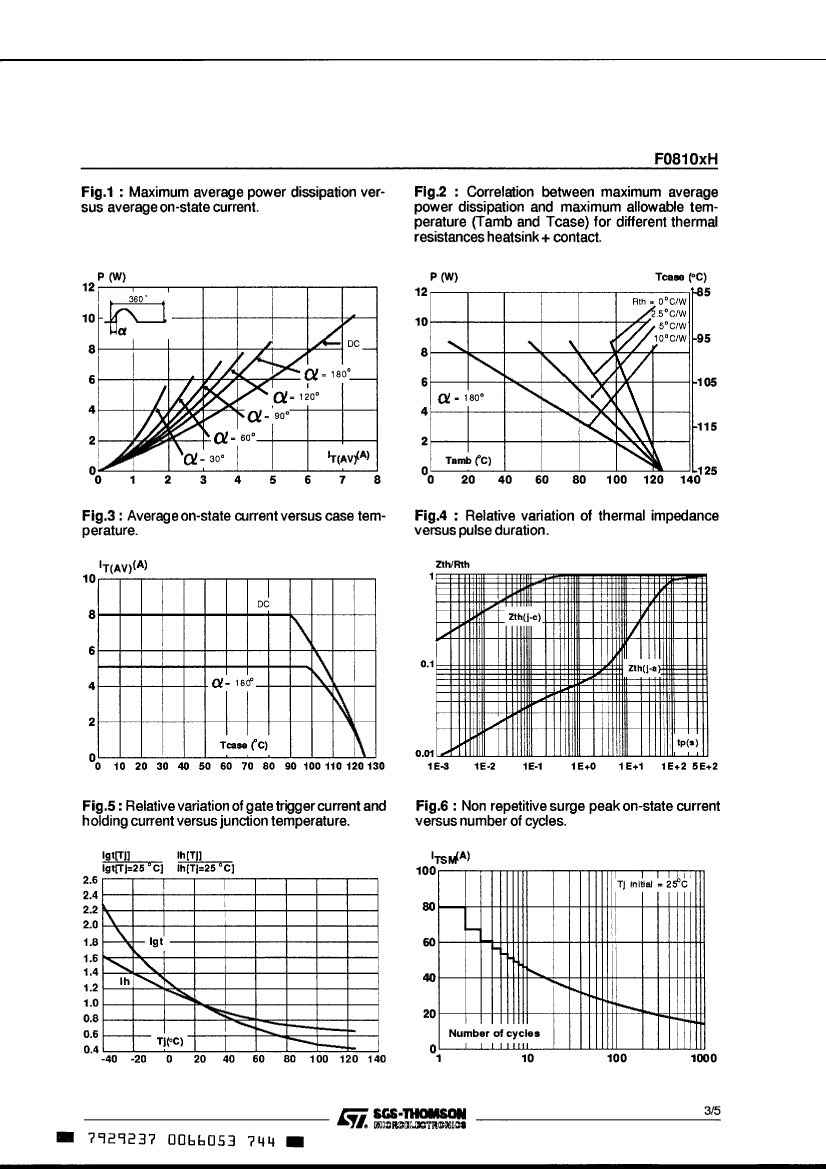

F0810MH Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSTMicroelectronics

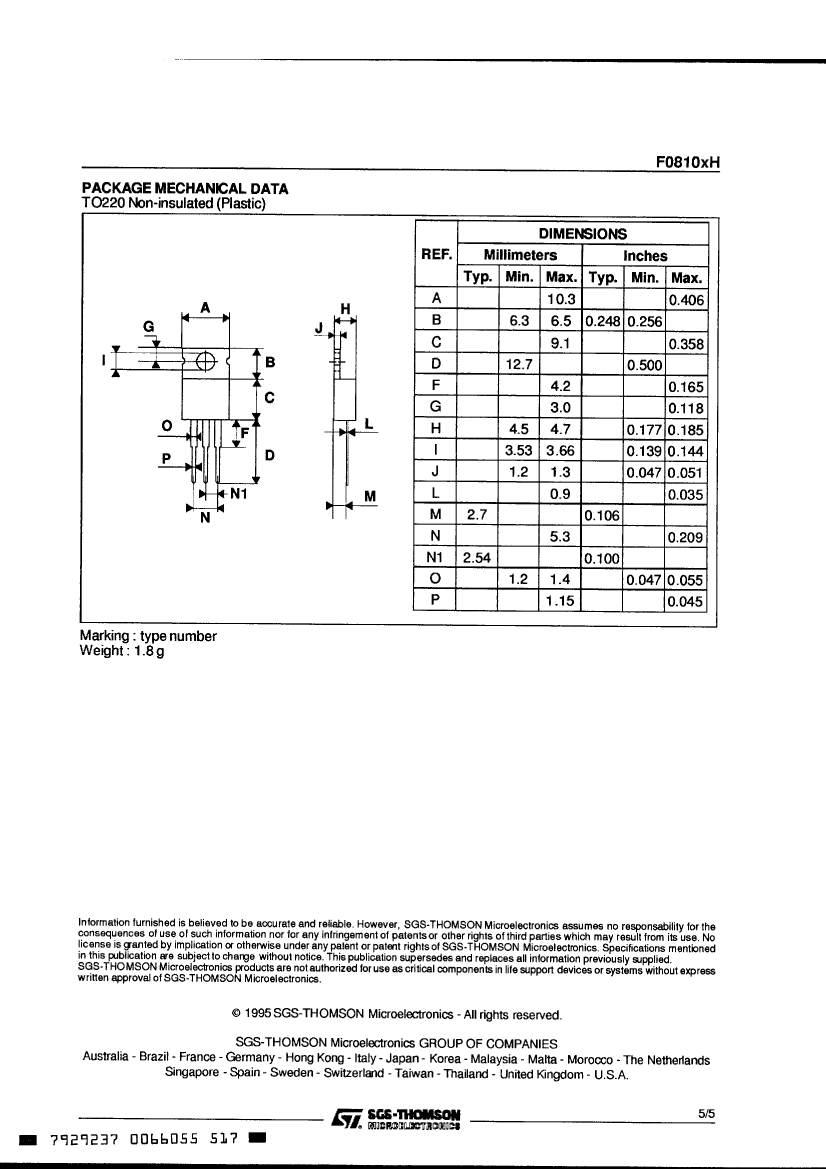

Parts packaging codeTO-220AB
package instructionTO-220AB, 3 PIN
Contacts3
Reach Compliance Code_compli
Other featuresFAST
Nominal circuit commutation break time8 µs
Critical rise rate of minimum off-state voltage400 V/us
Maximum DC gate trigger current25 mA
Maximum DC gate trigger voltage2 V
Maximum holding current75 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Maximum leakage current1.5 mA
On-state non-repetitive peak current90 A
Number of terminals3
Maximum on-state current5100 A
Maximum operating temperature125 °C
Minimum operating temperature-45 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current8 A
Off-state repetitive peak voltage600 V
Repeated peak reverse voltage600 V
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
